Instruction Manual
CLEAN & CLEAR ® RP FILTERS

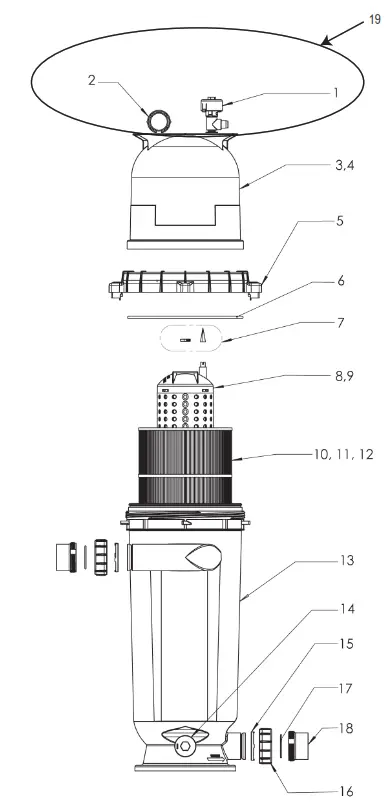

REPLACEMENT PARTS FOR FIBERGLASS REINFORCED POLYPROPYLENE TANK
| Item | Part No. | Description |
| CLEAN & CLEAR RP FILTERS | ||
| 1 | 98209800 | High flow manual air relief valve |
| 2 | 190058 | Pressure gauge |
| 3 | 178548Z | Lid, 100 sq. ft. filter |
| 4 | 178546Z | Lid, 150, 200 sq. ft. filter |
| 5 | 59052900 | Locking ring assembly |
| 6 | 87300400 | Body O-ring |
| 7 | 59016200 | Air bleed sock kit |
| 8 | 59053700 | Center core, 100 sq. ft. filter |
| 9 | 59053800 | Center core, 150, 200 sq. ft. filter |
| 10 | R173215 | Cartridge element, 100 sq. ft. |
| 11 | R173216 | Cartridge element, 150 sq. ft. |
| 12 | R173217 | Cartridge element, 200 sq. ft. |
| 13 | 178731Z | Tank bottom |
| 14 | 154712Z | Drain cap assembly |
| 15 | 178732Z | Union nut “C” clip |
| 16 17 | U11-200PS | Union nut |
| 18 | 178746Z | Union diamond seal |
| 19 | 178733Z | Union, threaded half |
| 170096 | Air relief kit | |
| NOT SHOWN | ||
| 154715 | Drain cap Gasket | |
