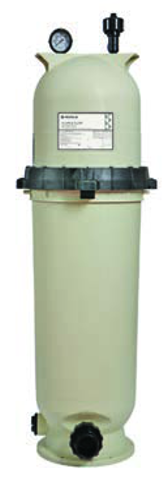

EC-160316 Clean and Clear Cartridge Filter
CLEAN & CLEAR®
CARTRIDGE FILTER
Crystal clarity with cartridge convenience.
The Clean & Clear Filter combines top-end performance with low maintenance. This dependable design uses special filter elements to strip tiny particles as small as 20 microns from your pool water. (An average grain of beach sand is 1,000 microns!) Plus, cleaning is a breeze. Open the top, remove the cartridge, hose it off, and the Clean & Clear Filter is ready to go again.
We’ve maximized cartridge surface consistency to block and trap the maximum amount of solids. We also use the most durable materials to extend cartridge life. The Clean & Clear Filter will keep your pool sparkling day in and day out.
CARTRIDGE FILTER
Carefree by design
Like all Pentair cartridge filters, the Clean & Clear Filter features an easily cleaned cartridge for the ultimate in carefree pool filtration. The fiberglass-reinforced tank halves are secured with a locking ring—just loosen the ring and remove the top half for easy cartridge access and rinsing. Filter maintenance doesn’t get any easier.
KEY FEATURES
Single-piece base and tank
Constructed of fiberglass-reinforced polypropylene for strength, chemical resistance, and maximum durability.
High Flow™ Manual Air Relief Valve
Valve with continuous internal air relief works to maintain optimum filtration efficiency at all times.
1 ½” drain cap and washout
For quick and convenient maintenance and winterization.
Innovative lock ring
Requires only an easy half of a revolution for a leak-proof seal.
Easy to remove and rinse the cartridge
2″ plumbing
For maximum flow.
Locking ring
Allows easy and quick access to cartridges and internal parts.
| Model Number | Filter Area Sq. Ft. | Vertical Clearance* | Filter Diameter | Flow Rate GPM | Turnover Capacity (Gallons)8 hrs. | Turnover Capacity (Gallons)10 hrs. | Turnover Capacity (Gallons)12 hrs. |
| CC 50 | 50 | 30″ | 15.5″ | 50 | 24,000 | 30,000 | 36,000 |
| CC 75 | 75 | 39″ | 15.5″ | 75 | 36,000 | 45,000 | 54,000 |
| CC 100 | 100 | 61″ | 15.5″ | 100 | 48,000 | 60,000 | 72,000 |
| CC 150 | 150 | 76″ | 15.5″ | 150 | 72,000 | 90,000 | 108,000 |
| CC 200 | 200 | 76″ | 15.5″ | 150 | 72,000 | 90,000 | 108,000 |
The TradeGrade family of products is exclusively made for and sold by the world’s most demanding pool professionals.
1620 Hawkins Ave | Sanford, NC 27330 | United States | 800.831.7133 | pentair.com
All indicated Pentair trademarks and logos are property of Pentair Inc. or its global afiliates in the U.S.A. and/or other countries.
Third-party registered and unregistered trademarks and logos are the property of their respective owners.
P1-121 4/20 ©2020 Pentair. All Rights Reserved.
