Throwdown Swivel REV B Installation Guide
Enhanced Images: Pictures can be zoomed in to any level for detail. Use the standard zoom tools for your platform to zoom in
To resolve the issue of the swivel hardware backing out, a change was made to include an anti-rotation bracket. Please see below for instructions on removing the REV A swivel and installing the REV B swivel. Be sure to measure the tube width and ensure the correct kit is ordered for the specific tube dimensions.
Required Tools
- 8mm Allen Key
- Large Jaw Adjustable Crescent Wrench
- Loctite 242
Required Parts
- 72-00121-KT2 Turret Bolt Kit for 2 inch (5.08 cm) Tube
- 72-00121-KT3 Turret Bolt Kit for 3 inch (7.62 cm)Tube
- 72-00121-KT4 Turret Bolt Kit for 4 (10.16 cm) inch Tube
Assembly Instruction

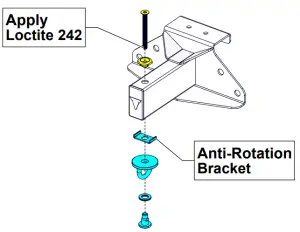

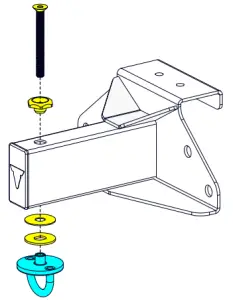

- Remove the REV A swivel using an 8mm allen key and an adjustable crescent wrench
- Apply Loctite 242 to the bottom of the bolt.
- Install the REV B swivel including the antirotation bracket using an 8mm allen key and an adjustable wrench – ensure that the bearing is sandwiched between the two washers.
NOTE: Apply low torque to the bolt but DO NOT OVER-TIGHTEN. If the turret bolt is overtightened, the swivel ring will not spin. Check the swivel ring and confirm it can spin freely.
Technical Procedure
Please see below for swivel kit-SKU matrix:
| 2″ (5.08 cm) Bracket | 3″ (7.62 cm) Bracket | 4″ (10.16 cm) Bracket | ||
| SKUs | DESCRIPTION | 72-00121-KT2 | 72-00121-KT3 | 72-00121-KT4 |
| 01-00002-25 | Single Station Training Tree (White) w/TurretBolt | 1 | ||
| 01-00002-60 | Single Station Training Tree (TexturedBlack )W/ TurretBolt | 1 | ||
| 01-00003-35 | Elite Single Station Cantilever Bag Rack with TurretBolt (Smooth Black) | 1 | ||
| 21-00034-005 | PALLET 5, HIIT4, CRUNCH, 24′ | 2 | ||
| 21-00035-005 | PALLET 5, HIIT4, CRUNCH, 30′ | 4 | ||
| 21-00065-001 | PALLET 1, CRUNCH-HIIT4- BL-2.1 | 4 | ||
| 21-00065-005 | PALLET 5, CRUNCH-HIIT4- BL-2.1 | 4 | ||
| 52-00128-60 | XTC Cantilever Bag Hanger (TexturedBlack) | 1 | ||
| 71-00323-60 | ASSY, XTC Bag Hanger w/TurretBolt (MatteBlack) | 1 | ||
| 9-ABR-1812-60 | Alpha Bag Rack, 9×18,12bag | 12 | ||
| 9-ABR-2716-60 | Alpha Bag Rack, 9×27,16bag | 16 | ||
| 9-ABR-3620-60 | Alpha Bag Rack, 9×36,20bag | 20 | ||
| 9-SSTT-29 | Single Station Training Tree w/ TurretBolt | 1 | ||
| FBR-0618-60GLD | BAG RACK, 6×18, GOLDS | 6 | ||
| TD-BXRACK-16 | 16′ Jabz Boxing Ring, Bag Rack Combo | 8 |
| TD-IAMX-1 | IAMX Single Bag Attachment w/ TurretBolt, Silver | 1 | ||
| TD-IAMX-2 | IAMX Double Bag Attachment w/ TurretBolt, Silver | 2 | ||
| TD-WR1-29AAA | Rig, Weight Room Rack1 | 2 | ||
| TD-WR2-29AAA | Rig, Weight Room Rack | 2 |
