NETGEAR CM700 Cable Modem
Modem InformationDOCSIS 3.0 Cable Modem 32×8 channel bonding To achieve Gigablast or Ultimate Classic speeds, a DOCSIS 3.1 modem is required | Highest Service LevelUltimate 500 |

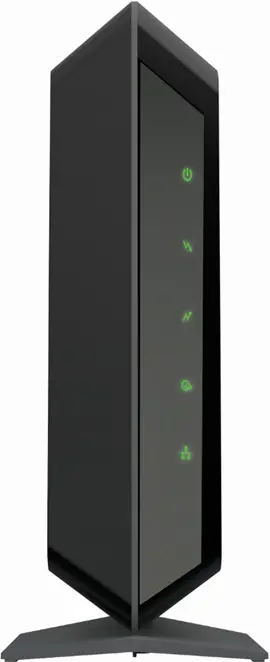

Front View
| After the cable modem successfully registers on the network, the Power, Upstream, Downstream, and Internet indicators illuminate continuously to indicate that the modem is online and fully operational. For more details, refer to the Modem Lights section. | |
Back View
| The modem includes the following connection ports:
| |

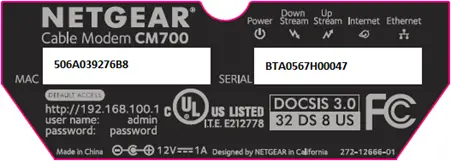

MAC Address
| The MAC Address and Serial Number information is located on the bottom of the modem. |
Troubleshooting
The lights indicate the current status of your gateway. To troubleshoot any connection problems, use the table below.
| Modem Light | Status | Problem |
|---|---|---|
| Power
| Off | No power |
| Green | None | |
| Red | The cable modem is too warm and might overheat | |
| Downstream
| Blinking Green | Scanning for downstream channel |
| Solid Amber | None – connection established on one channel | |
| Solid Green | None – operating on more than one channel | |
| Off | Downstream channel inactive | |
| Upstream
| Off | Upstream channel inactive |
| Blinking Green | Scanning for upstream channel | |
| Solid Amber | None – connection established on one channel | |
| Solid Green | None – operating on more than one channel | |
| Internet
| Off | Modem offline |
| Blinking Green | None – scanning for configuration parameters | |
| Solid Green | None – operational | |
| Ethernet
| Off | A device is not connected to the Ethernet port on the back. |
| Solid Green | None – A device is connected to the Ethernet port. |
Manufacturer Resources
For more detailed technical information use the resources below.
NetgearCM700_DataSheet [PDF]
