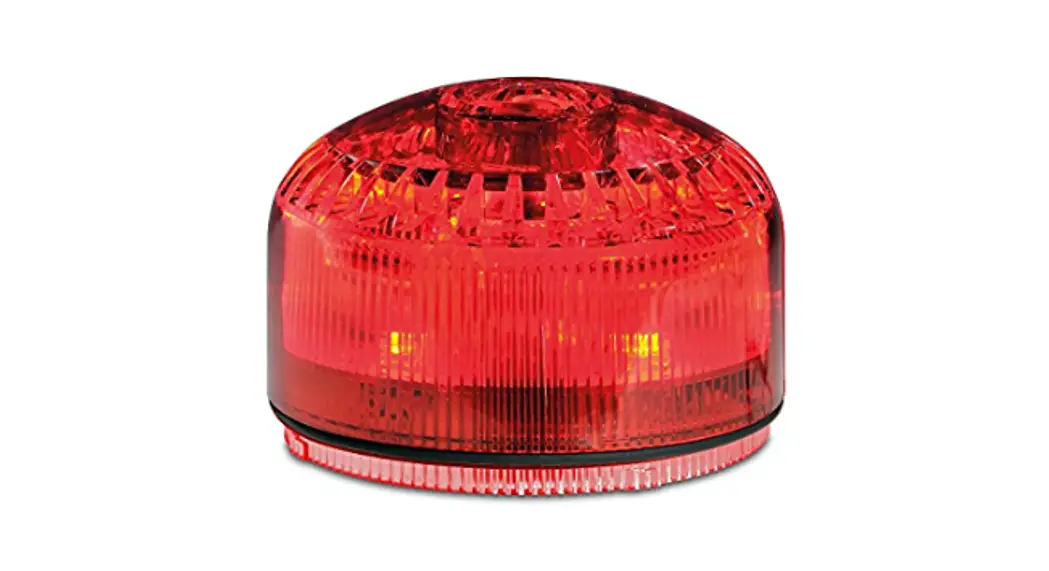

SLM500 StreamLine Combination Audible-Visual Signal
Instruction Manual

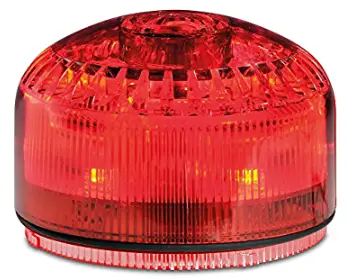

SLM500 StreamLine Combination Audible-Visual Signal
INSTALLATION AND APPLICATION INSTRUCT IONS
SLM700
V  | 12 | – | 24 | – |
V | 12 | – | 24 | |
| mA | 85 | 280 | 60 | 190 |
| dB(A)1m* | 86 ÷ 105 | |||
SLM500
| V | 12 | – | 24 | – |
| V | 12 | – | 24 | |
| mA | 315 | 375 | 280 | 325 |
| dB(A)1m* | 86 ÷ 105 | |||
SLM700 with 120-240V base
| V | 120-240 | |
| mA | 125 | 90 |
| dB(A)1m* | 87-105 | |
SLM500 with 120-240V base
| V | 120-240 | |
| mA | 205 | 115 |
| dB(A)1 m* | 87-105 | |
*Not evaluated by UL.
All dims in mm unless otherwise noted
FUSE WIRE PROTECTION
On the power supply line the rating of the supply fuse must be according to the voltage
TO BE INSTALLED BY QUALIFIED PERSONNEL ONLY
ATTENTION
The possibility exists that rapid flashing lights, under certain circumstances, might induce photosensitive epilepsy
ATTENTION
Disconnect power before servicing
C ÷ 2 has priority over C ÷ 1
C ÷ 3 has priority over C ÷ 2 and C ÷ 1
C ÷ 5 has priority over C ÷ 4
C ÷ 6 has priority over C ÷ 5 and C ÷ 4

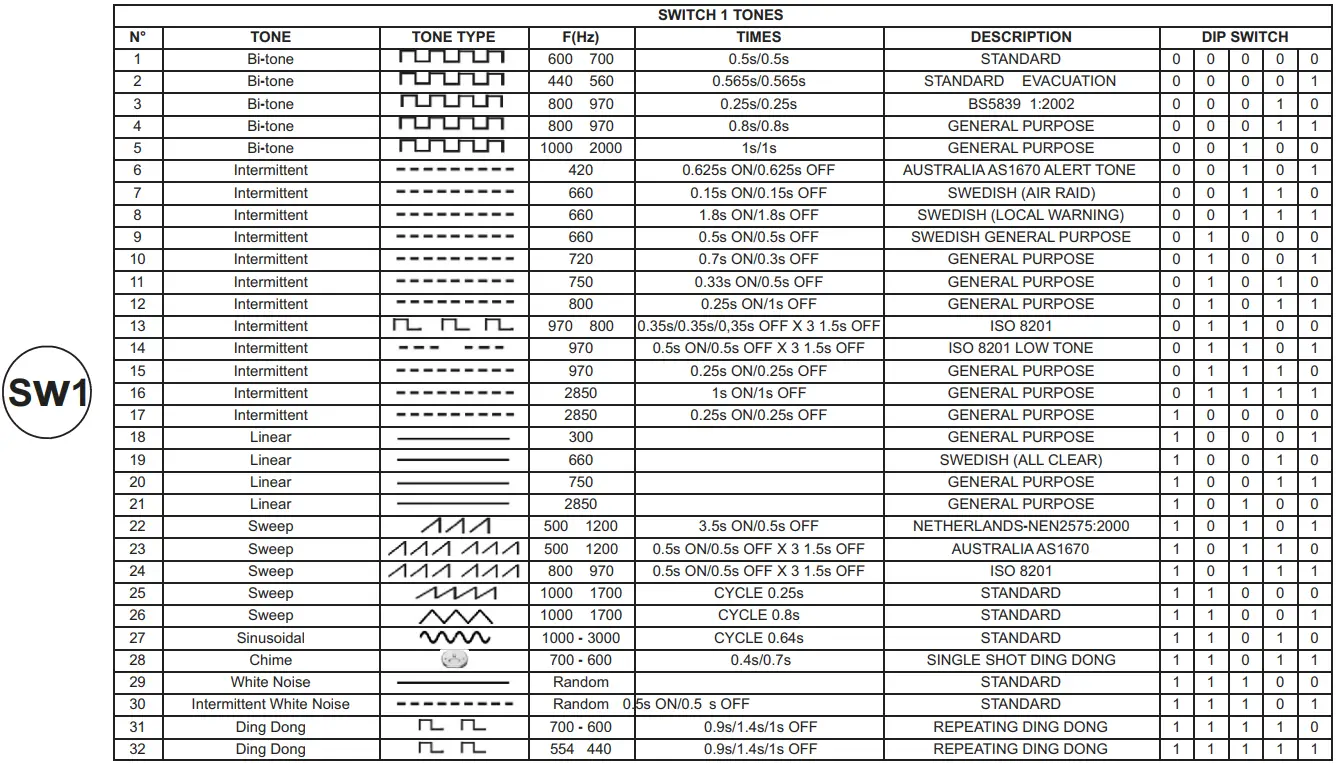

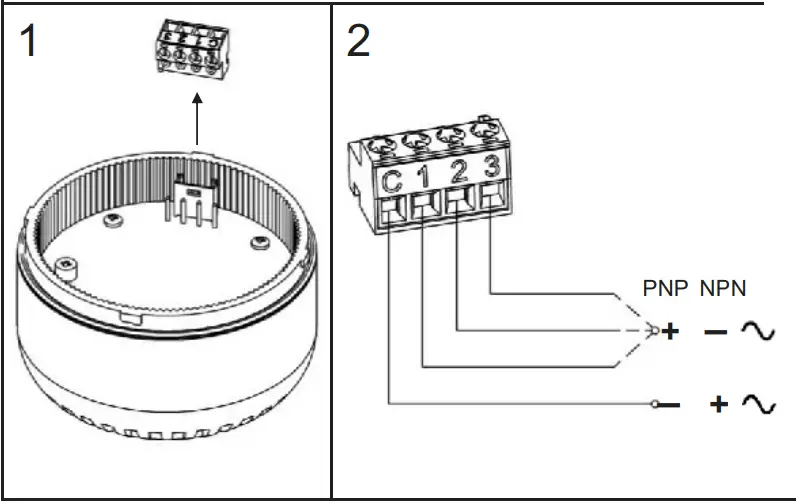

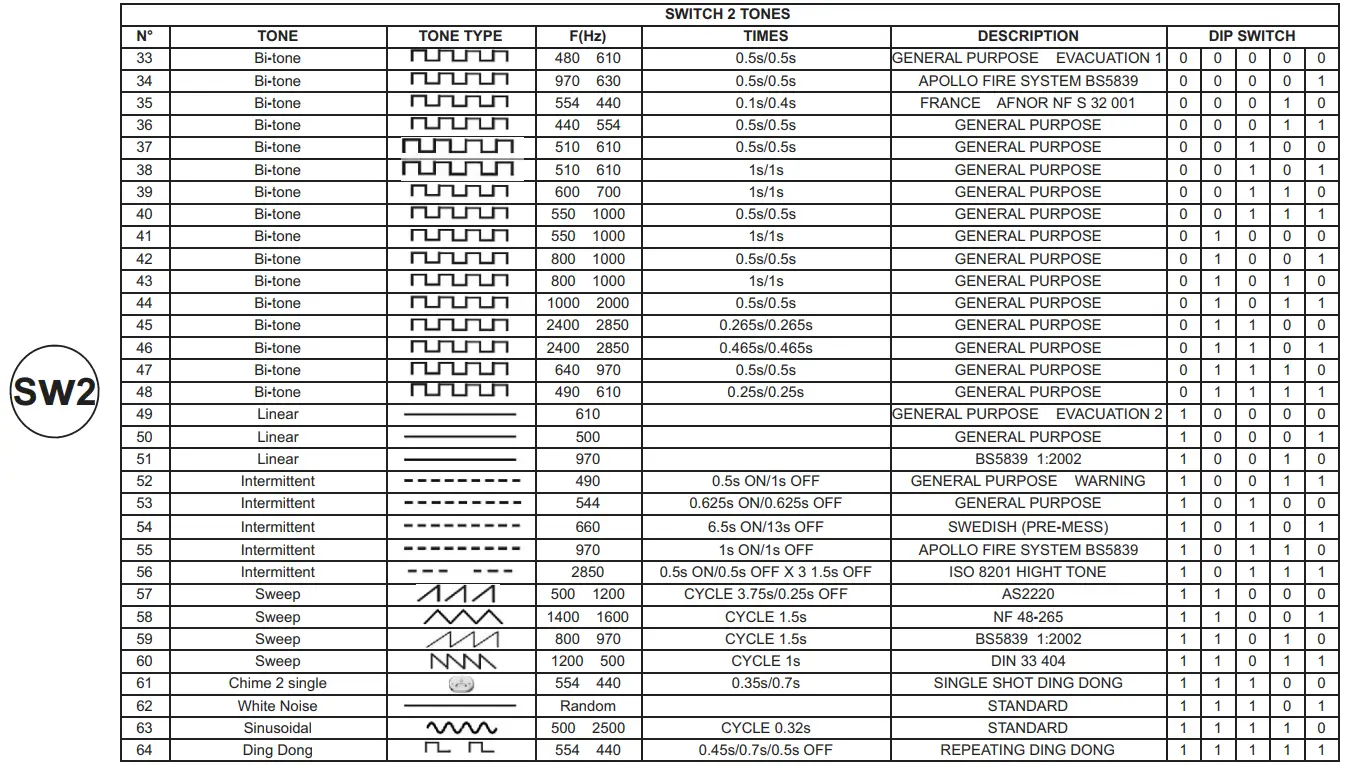

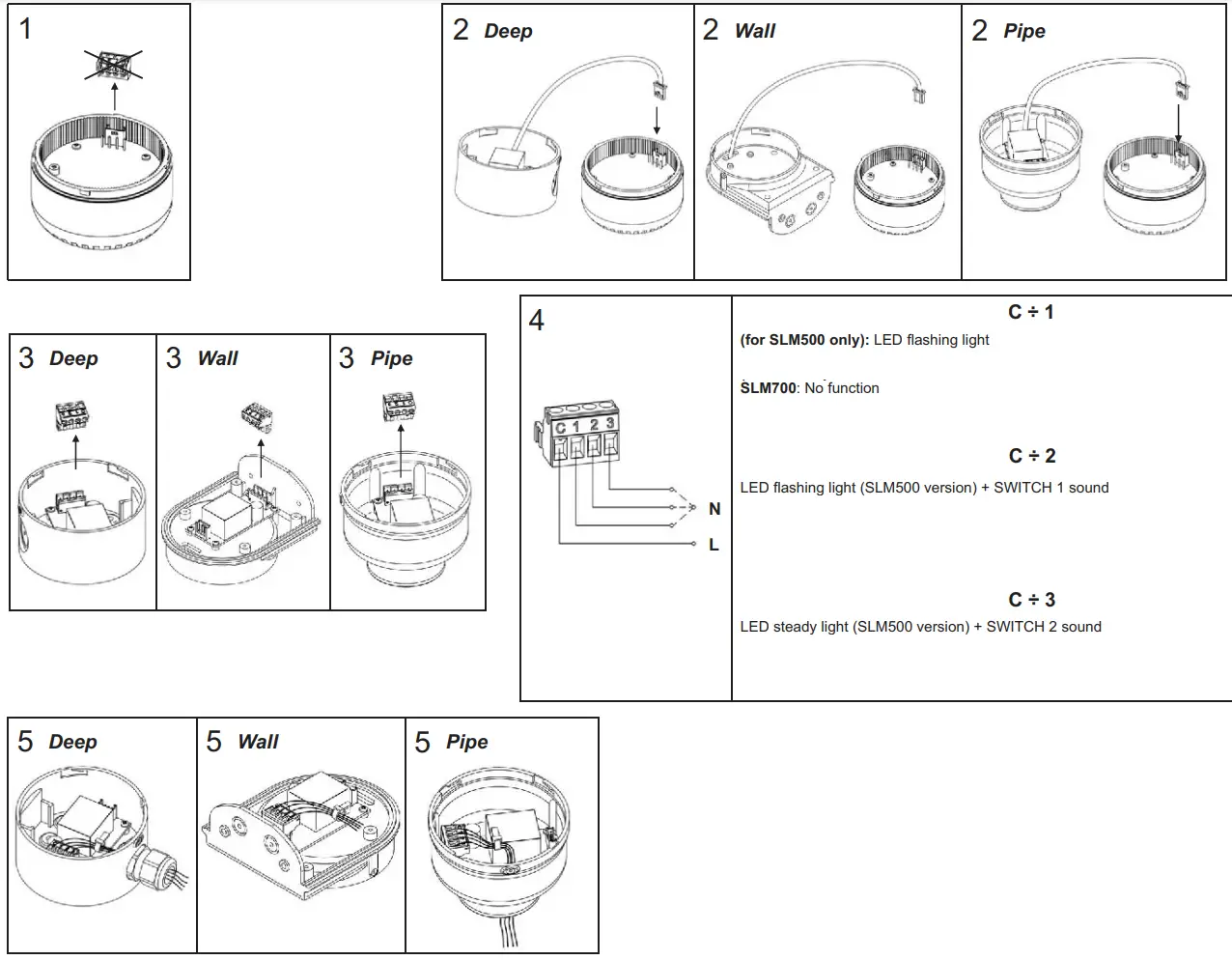

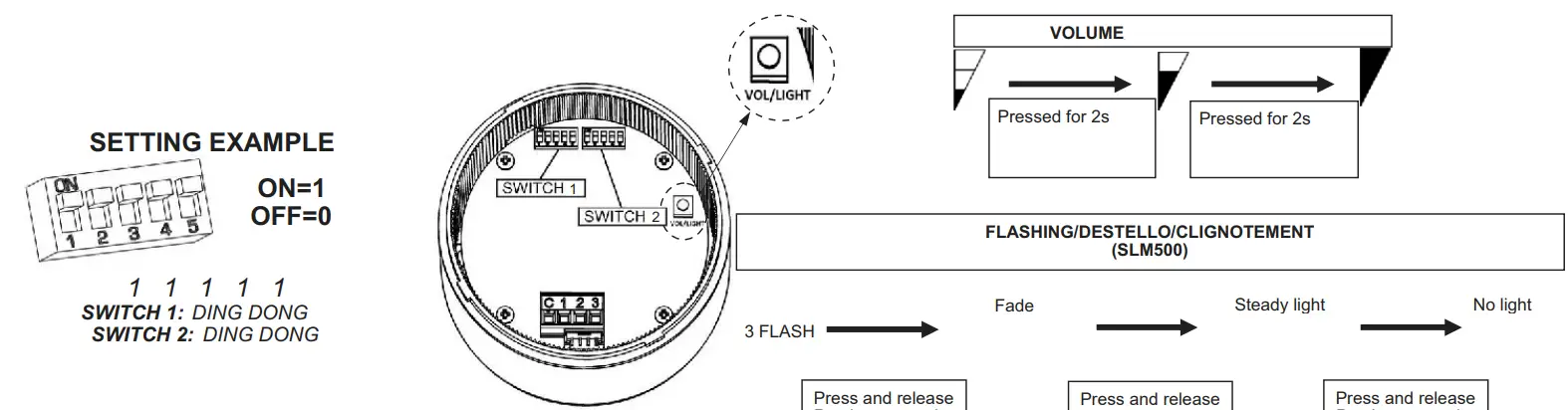

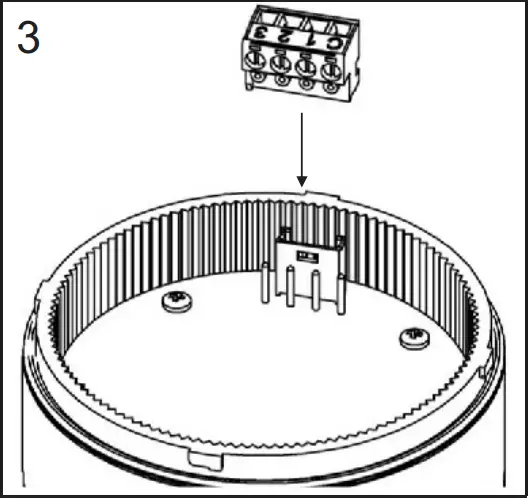

12-24VAC/DC BASE WIRING
For devices rated 12-24 Vac/Vdc only:
Power supply shall be connected to a “Class 2” or “Limited Voltage Limited Current (LVLC)” source only
C ÷ 1 (only SLM500 version): LED flashing light
C ÷ 2: LED flashing light (SLM500 version) + SWITCH 1 sound
C ÷ 3: LED steady light (SLM500 version) + SWITCH 2 sound
Note: Do not connect 120VAC/240VAC directly to SLM500/700 unit.
120VAC/240VAC is only to be connected to compatible AC base.

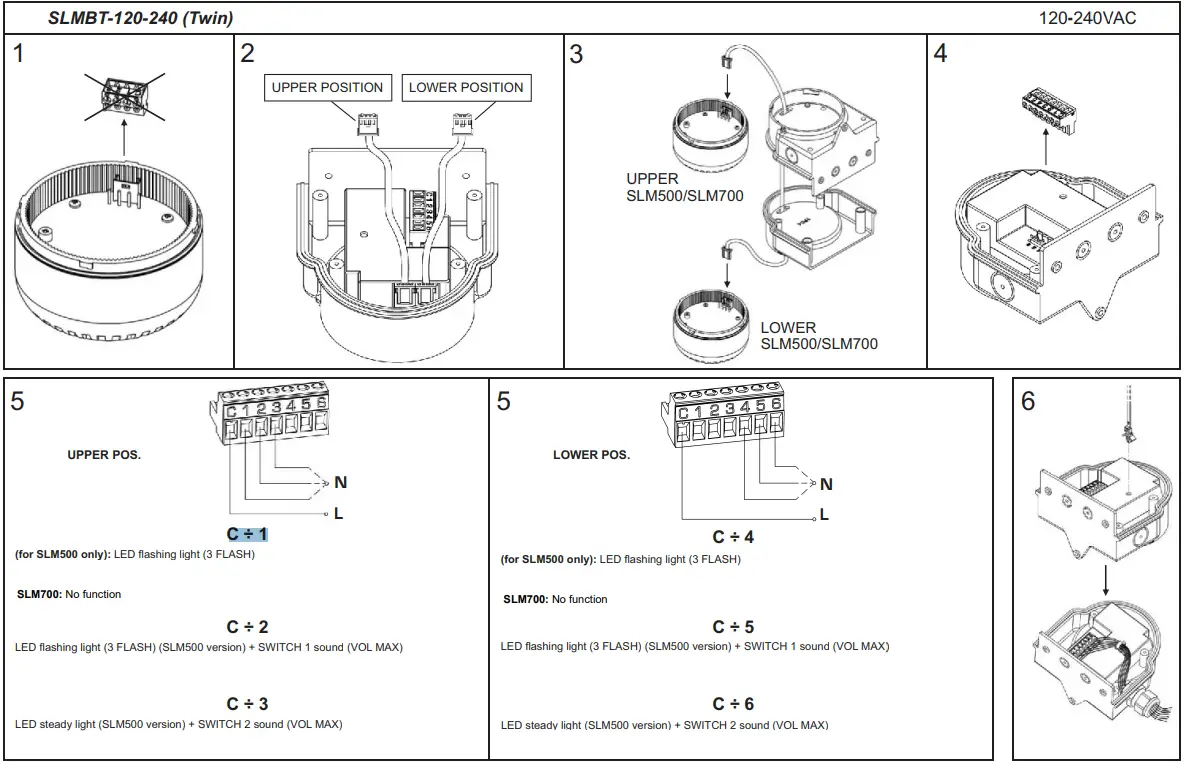

120-240VAC BASE WIRING

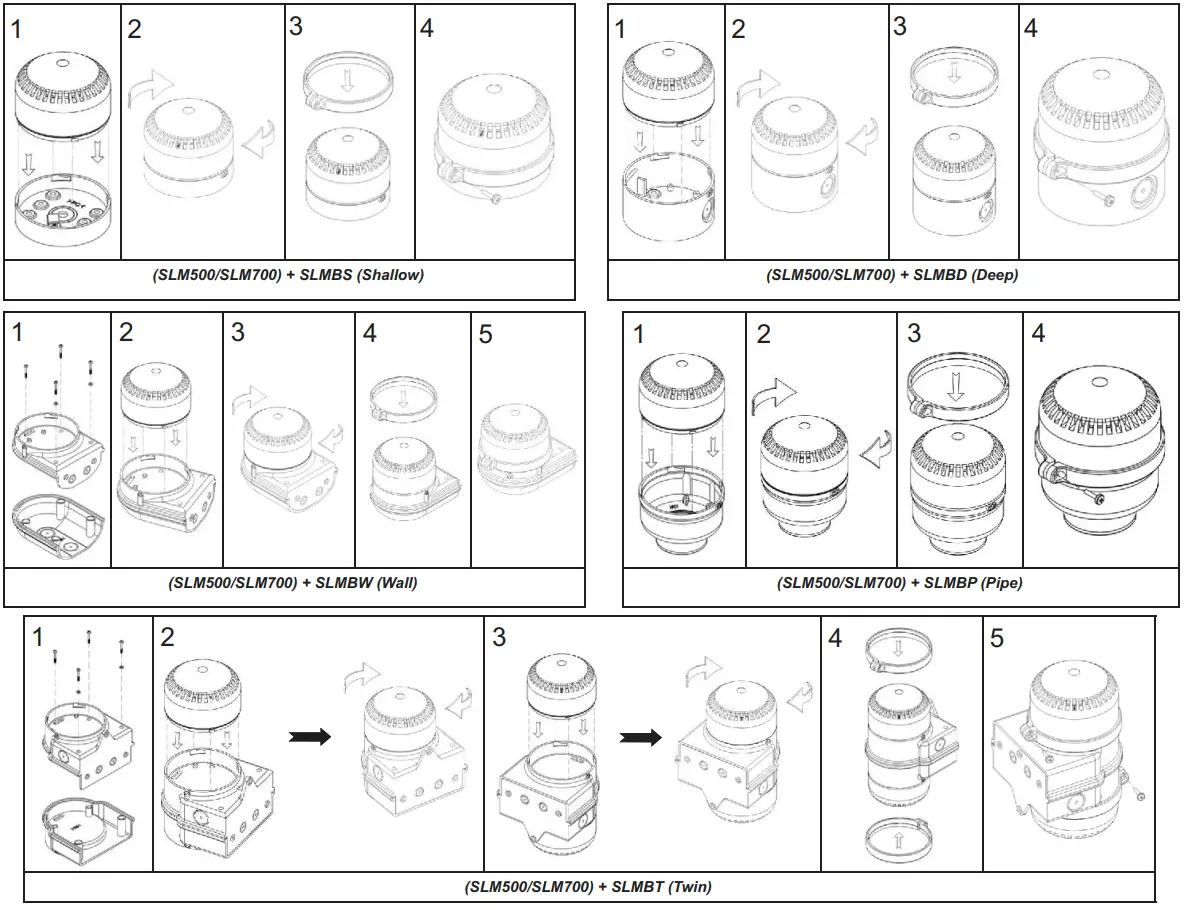

DOME TIGHTENING
