X01388 Runway 850 Shower Trap Runway
Instruction Manual

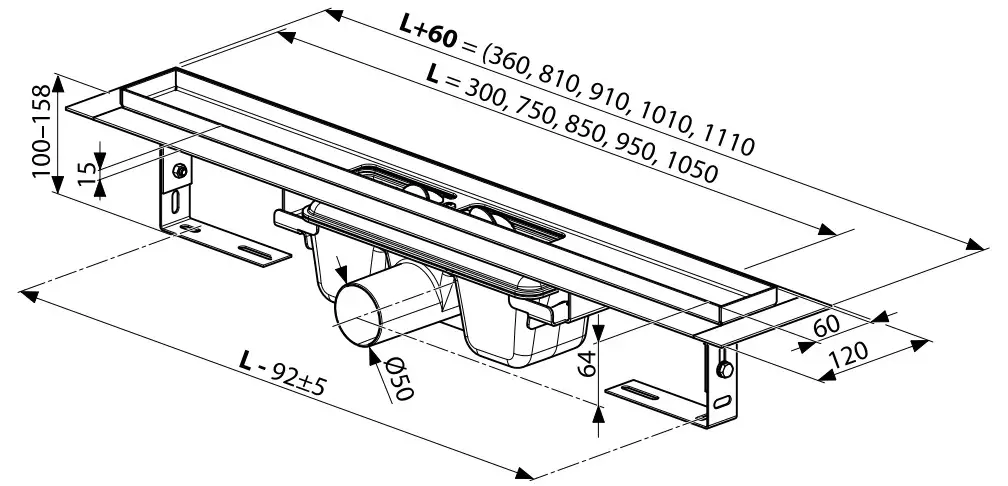

X01388 Runway 850 Shower Trap Runway
OZ RAVAK shower drain stainless steel
 |  |

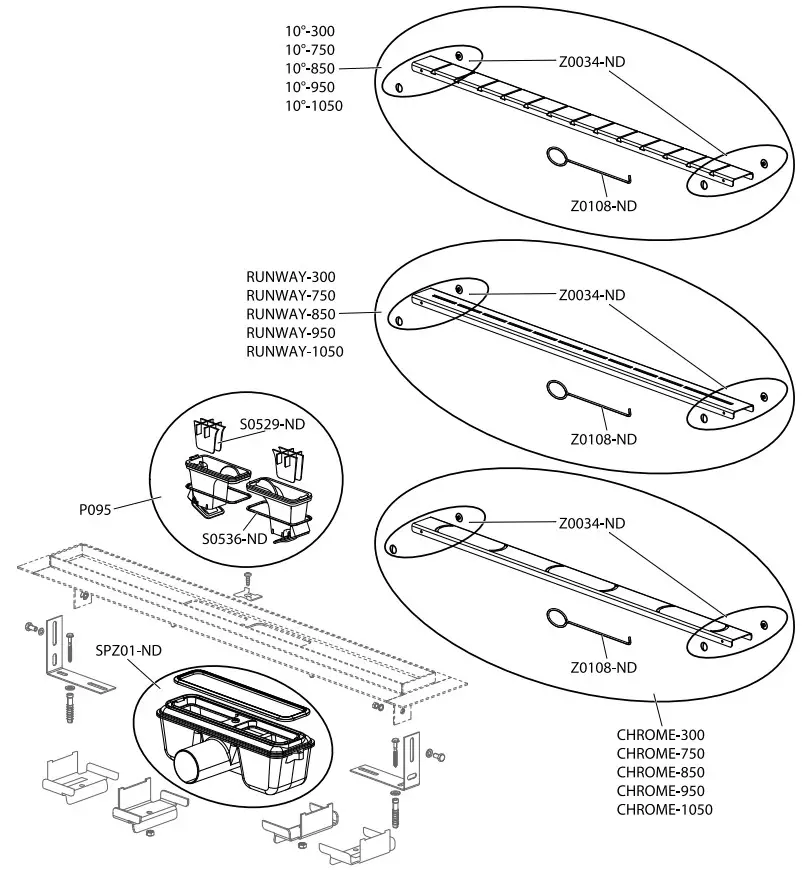

Spare parts:
 |  |

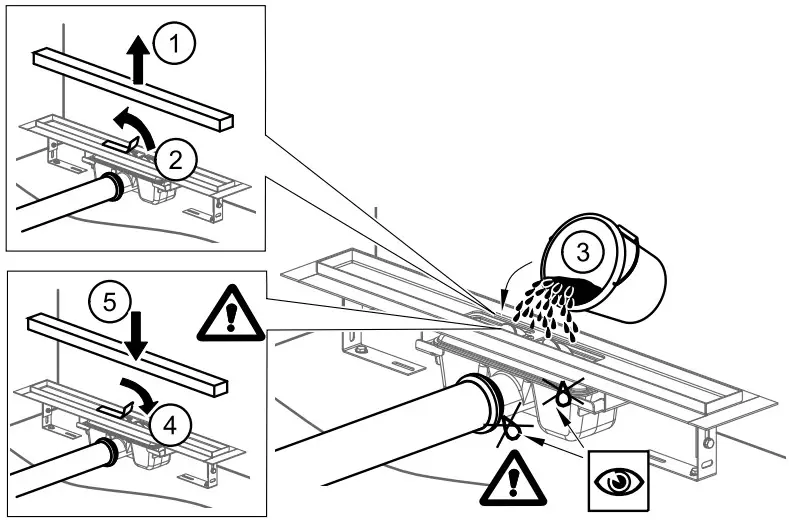

Before concreting it’s necessary to carry out test tightness!

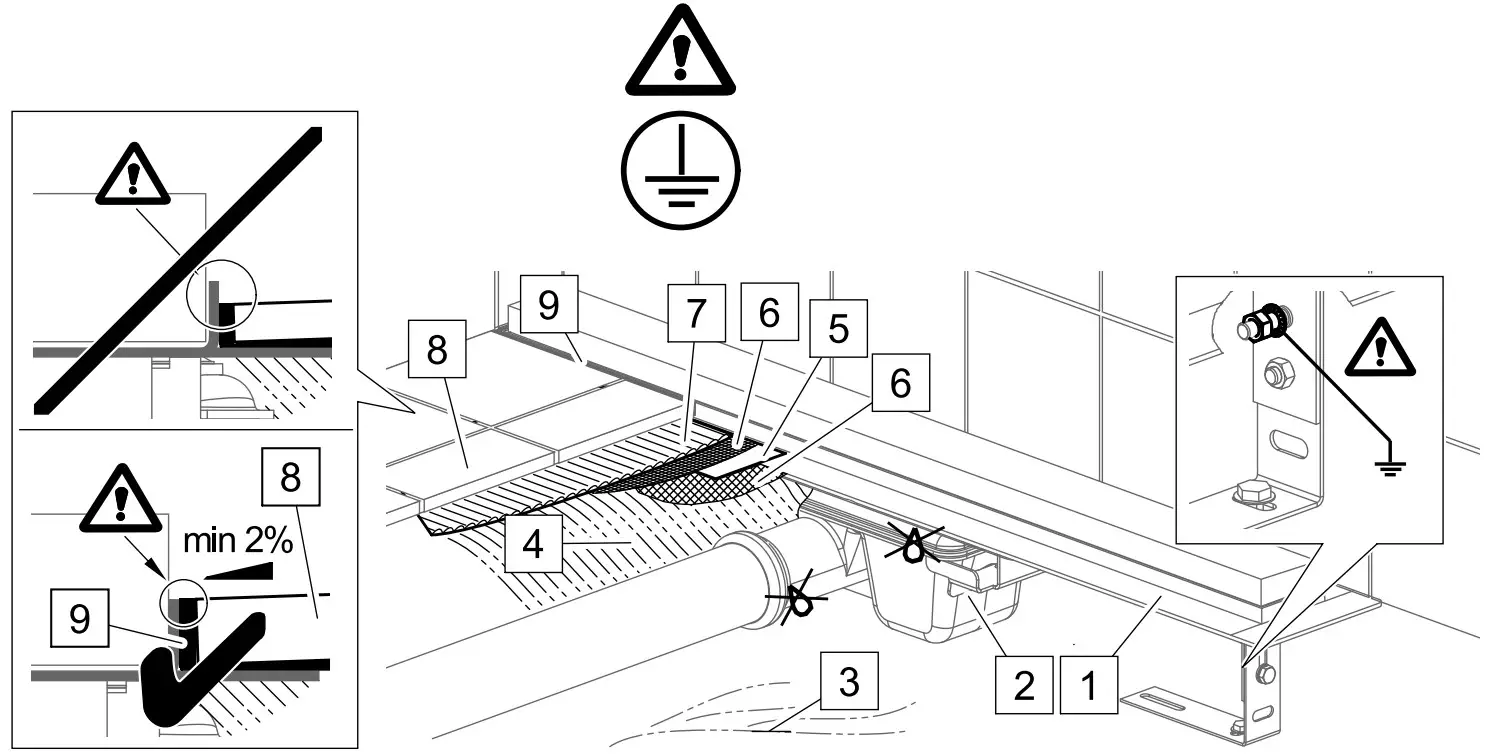

Dreins must be line up on earth connection!
- Shower drain
- Siphon
- Flooring Concrete
- Top Concrete
- Hydro isolation wrapper/ band/
- Hydroisolation substance
- Glue
- Paving
- Flexible filler
 |  |

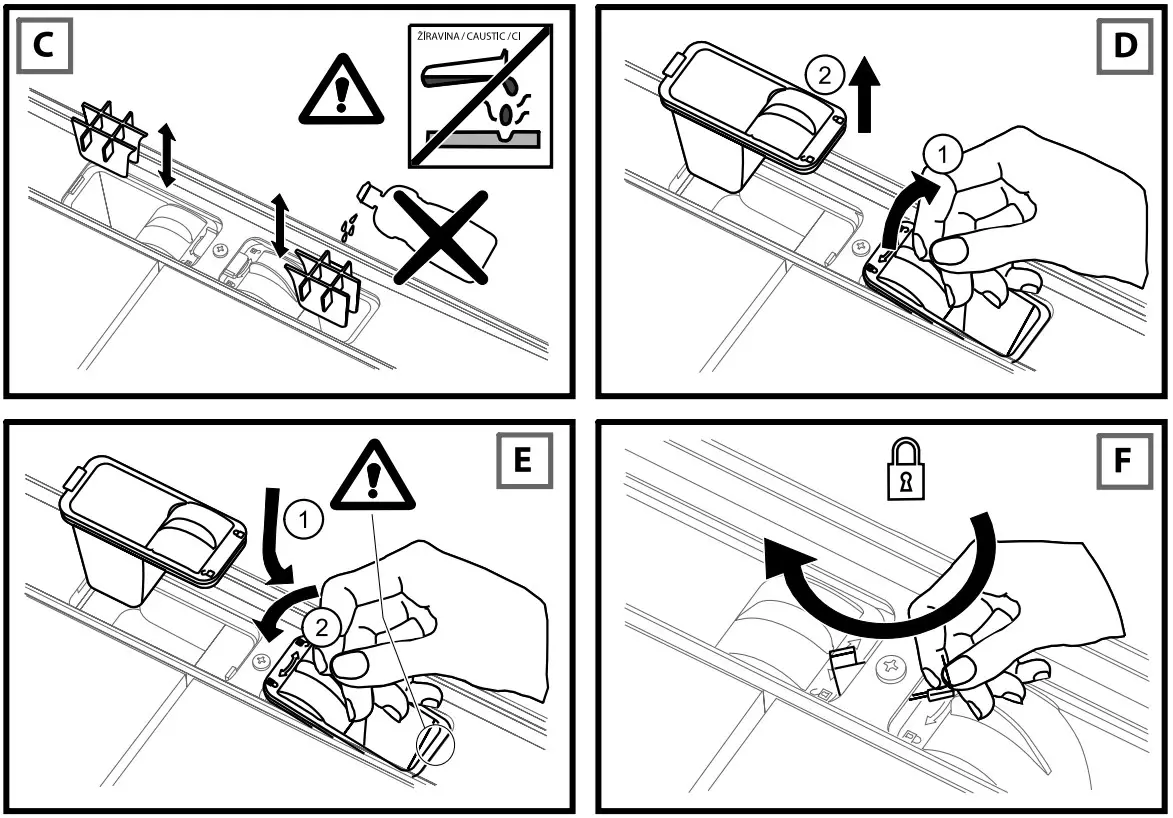

MAINTENANCE – clean with a cloth and mild recommended detergent. Never use any abrasive pastes, dissolvents, acetone or detergents, and disinfectants, that contain chlorine. The manufacturer is not liable for damages caused by improper use, installation, or maintenance of the product.
The manufacturer recommends RAVAK CLEANER.
