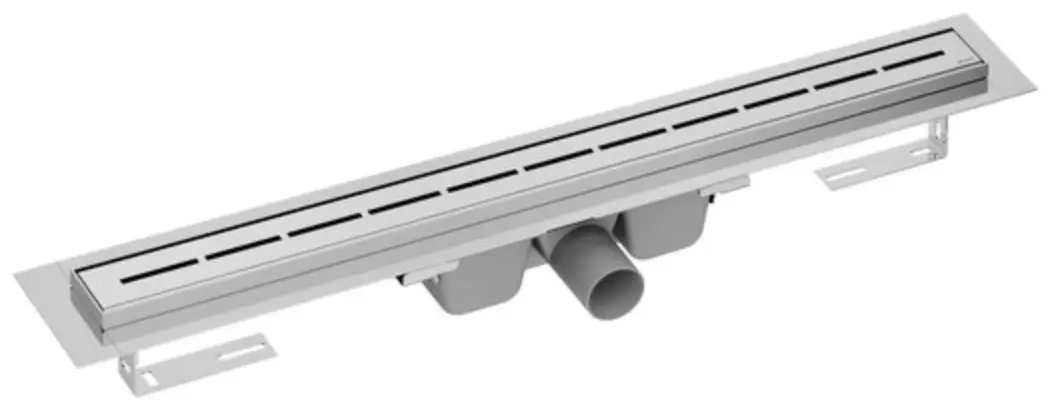

RAVAK X01633 Wall Mounted Channel Type Shower Trap
Installation Instructions

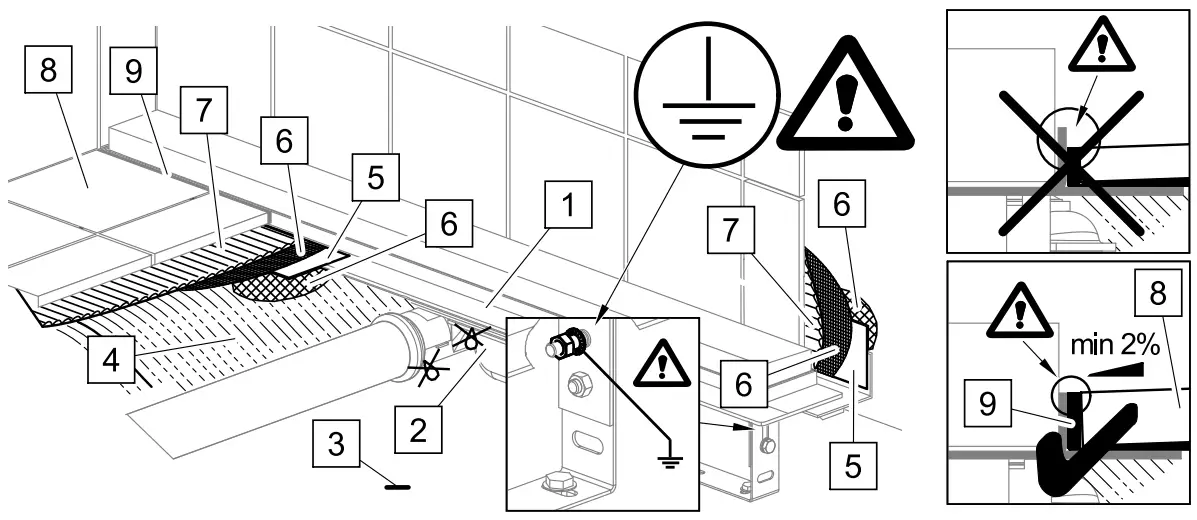

- Shower drain
- Siphon
- Flooring concrete
- Top concrete

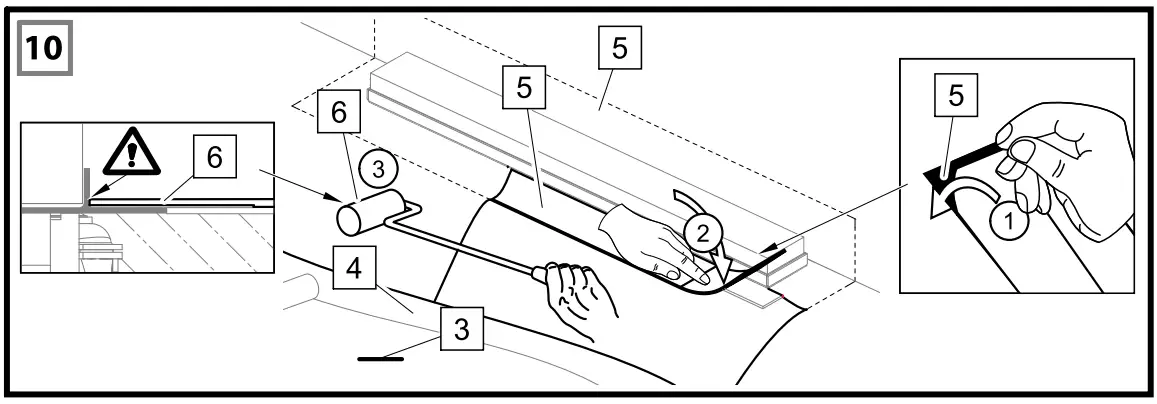

- Hydroisolation wrapper /band/
- Hydroisolation substance
- Glue
- Paving
- Flexible filler

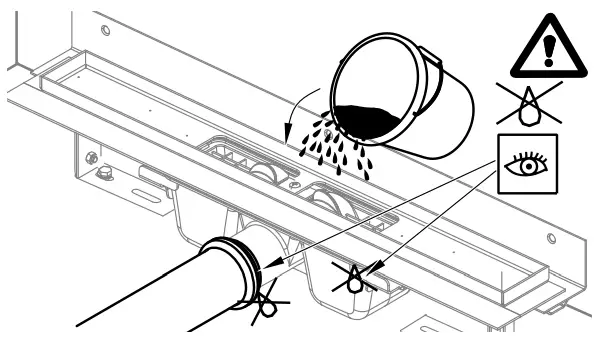

Before concreting it’s necessary carry out test tightness!
Dreins must be line up on earth connection!
