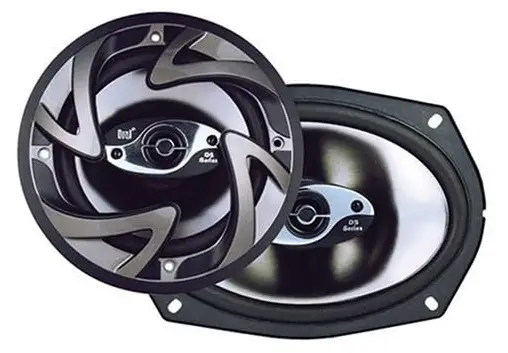

Dual Electronics DS52 100 Watt 5.25″ 2-Way Car Coaxial Speakers
Getting Started
Thank you for purchasing the DS Series car speakers. Although Dual has attempted to make sure all of the information contained within this manual is accurate, please be aware that any part of it is subject to change without notice.
Safety
CAUTION
This symbol is intended to alert the user to the presence of important instructions. Failure to heed these instructions can result in injury or unit damage.
CAUTION
To prevent injury and damage to the unit, please read and follow the instructions in this manual.
CAUTION
If you feel unsure about installing this system yourself, have it installed by a qualified audio technician.
CAUTION
Before installation, disconnect the battery negative (-) terminal to prevent damage to the unit, fire and/or possible injury.
CAUTION
The following installation instructions are very basic. If you feel unsure about personally installing this speaker system, Dual recommends acquiring the services of a professional car audio installation center.
Before installation, please follow these guidelines:
- Be sure to carefully read and understand the instructions before attempting to install this product.
- For safety, disconnect the negative terminal from the battery prior to beginning the installation.
- For easier assembly: If additional wiring is required, we recommend running all wires prior to mounting your speaker in place.
- Use the highest quality connectors for a reliable installation and to minimize signal or power loss.
- Use caution before you drill or cut! Be careful not to cut or drill into gas tanks, fuel lines, brake or hydraulic lines, vacuum lines or electrical wiring when working on any vehicle.
- Never run speaker wires underneath your vehicle. Running speaker wires inside the vehicle provides the best protection from exhaust heat and environmental elements.
- Avoid running wires over, near, or through sharp edged surfaces. We suggest you also use rubber grommets to protect any wires routed through metal.
- When running the speaker cable from the amplifier, avoid running it near sources of high current (i.e. wiring harnesses, battery cables).
Mounting
- Determine where the speakers will be mounted. Make sure the area is large enough for the speaker to mount evenly. Also ensure the mounting location is deep enough for the speaker to fit.
- Refer to the specification chart to determine the proper diameter hole to cut for your speaker model.
- If needed, use the grille as a template to mark the locations for the mounting screws. Drill the holes with a 3/32″ bit.
- Be sure to observe proper polarity when connecting the wires. The speaker’s positive terminal is indicated with a “+” symbol.
- Fit the speaker to the hole cut-out. Mount the speaker using the supplied screws. If the speaker grill is to be used, insert 4 screws into the grill holes and then mount the speaker.

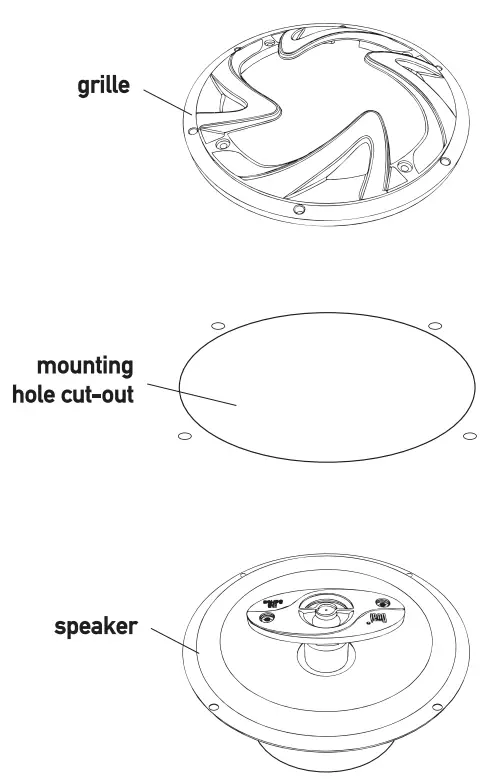

Standard Rear Deck Installation

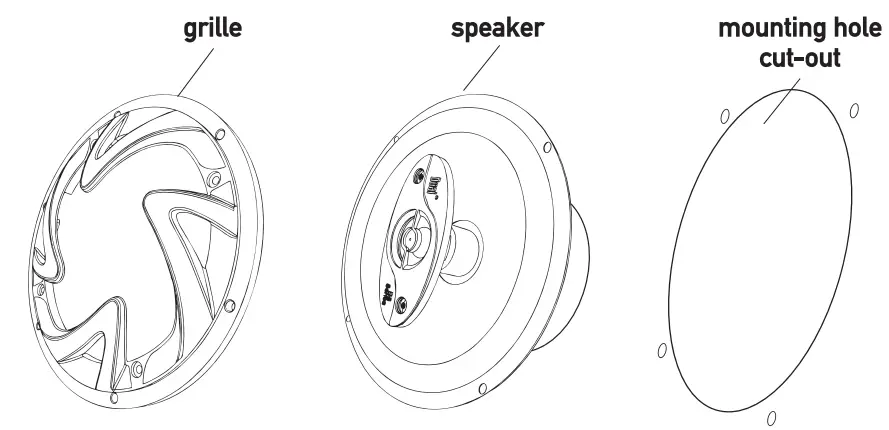

Standard Door Installation
Specifications

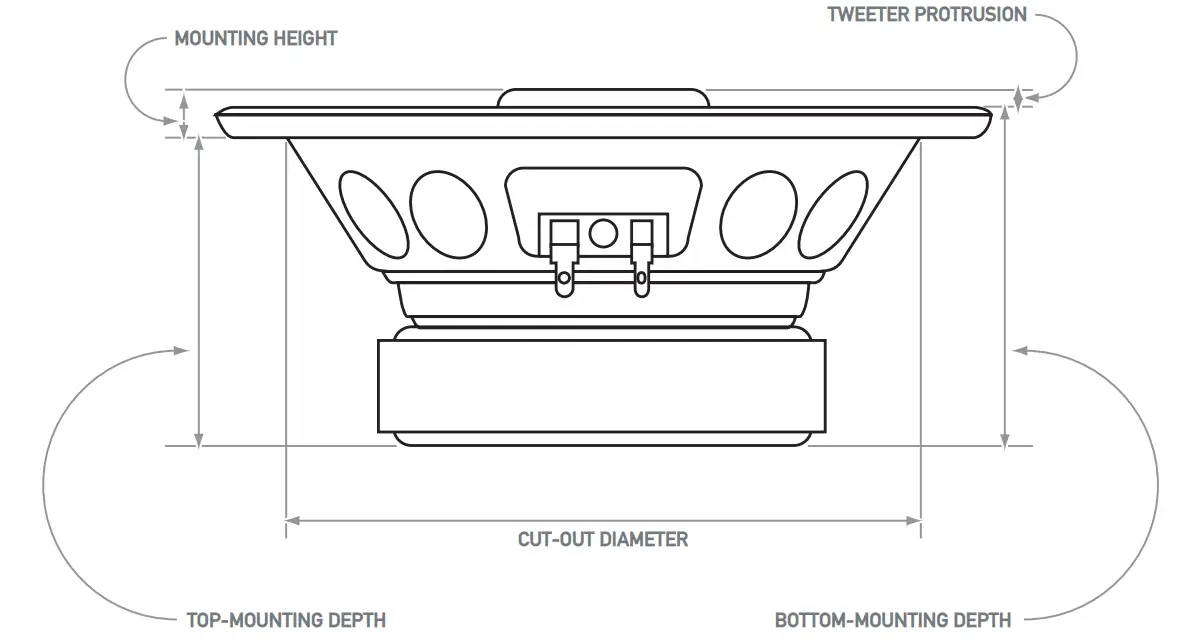

The diagram featured above is to be used in conjunction with the specifications matrix guide below:
