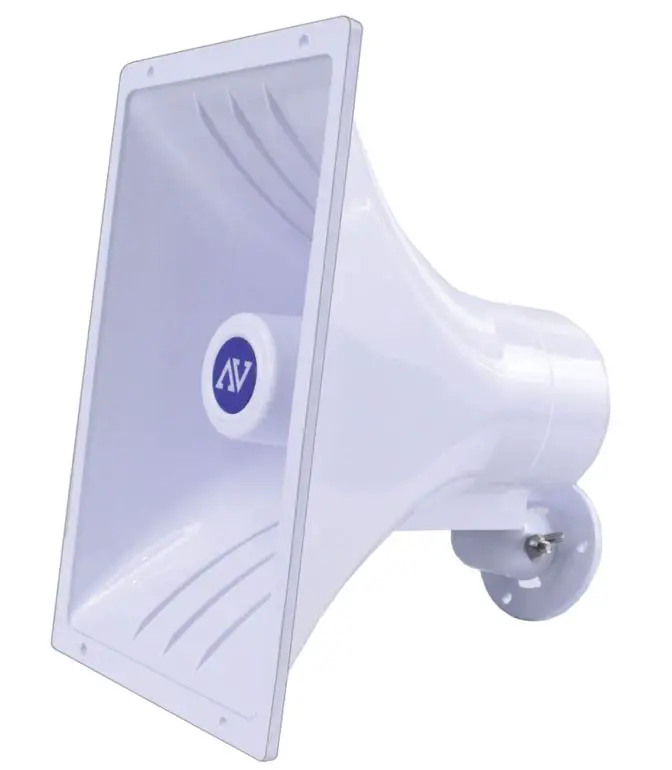

Amplivox Indoor/Outdoor 100W Power Horn Speaker
Introduction
For use in public address or paging applications, the AmpliVox S1270 Indoor/Outdoor 100 Watt Paging Power Horn Speaker is a very audible, lightweight horn speaker. It is perfect for workplaces including schools, factories, offices, conference centers, and sports arenas. This PA speaker is built to last. A durable 1.5 in. dia. voice coil and ceramic magnet structure are used in the double re-entrant horn with a compression driver for extended life and dependability under difficult working conditions. In challenging applications, an ideal coverage pattern of 60° horizontal by 40° vertical (horizontal mount) is available. Additionally, the positive lock and extremely durable metal swivel base offer the greatest mounting versatility and simplicity of installation. With its single locking pin, it is movable in both horizontal and vertical planes (90° tilt, 360° rotation).
Thank you for purchasing AmpliVox S1270 – POWER HORN We encourage you to visit our website www.ampli.com to register your product for its warranty coverage, sign up to receive our newsletter, download our catalog, and learn more about the complete line of AmpliVox audiovisual products, including portable PA systems, and lecterns.
INSTALLATION INSTRUCTIONS
- Adjustment: The S1270 is constructed with a pivoting, cast iron base. Loosen the wing nut connecting the base to the horn and remove the base. With a screwdriver, loosen the screw on the back of the speaker if you wish to rotate the horn between vertical and horizontal positions. Tighten the screw securely when the desired position is reached.
- BASE: The base contains 3 holes for screws (not included). Use screws with greater than 1/4” diameter head to ensure safe installation. Screw the base to the mounting surface where you wish to install the horn. Reattach the horn to the base, rotate the horn to your de- sired angle and tighten the wing nut securely.
- Wiring: To aid weatherproofing, the wire connections are sealed internally, and accessible through a 20” lead. Connect the Brown (positive) and Black (negative/ground) wires to the corresponding 8-ohm outputs on your amplifier.
- If you wish to use the tamper loop functionality, connect the Red and Green wires to the appropriate circuit in your alarm system. If the circuit is broken, an alarm can be triggered. This is normally a closed (NC) circuit
SPECIFICATIONS
- Frequency Response: 200 Hz—15 kHz
- Max Power Handling: 100W
- Sensitivity: 124 dB, 1W / 1M
- Impedance: 8 Ohms
- Size: 6″ W x 10 7/8″ H x 8 3/8″ D
- Weatherproof ABS construction
IF YOU HAVE ANY QUESTIONS OR PROBLEMS, PLEASE CALL OUR CUSTOMER SERVICE DEPARTMENT AT 1-800-267-5486
WARRANTY
Limited One (1) -Year Warranty AmpliVox warrants this product to be free from defects in materials and workmanship (subject to the terms set forth below) for a period of one (1) year from the date of purchase (“Warranty Period”). During the Warranty Period, AmpliVox will repair or replace (at AmpliVox discretion) this product or any defective parts (“Warranty Service”). Repair or replacement under the terms of this warranty does not give right to any extension or a new beginning of the period of warranty.
CLAIMS UNDER THE WARRANTY
To obtain Warranty Service, contact AmpliVox (800-267-5486) to be assigned a Return Authorization number (RA#). After receiving RA #, the defective unit is to be returned to AmpliVox in either its original packaging or packaging affording an equal degree of protection. You will bear the cost of shipping the product to AmpliVox. If the product is covered by the warranty, AmpliVox will bear the cost of shipping product back to you after the completion of service under this warranty.
Return shipping will be charged to you for products not covered by the warranty or requiring no warranty repair.
The following information must be presented to obtain Warranty Service: (a) the RA# must be clearly and legibility marked on the outside of shipping carton, (b) proof of purchase, which clearly indicates the name and address of the seller, the date of purchase and the product type, which is evidence that this product is within the Warranty Period. Please further include (c) your return address, (d) daytime telephone number, and (e) reason for return.
LIMITATION OF WARRANTY
This warranty is only valid for the original purchaser and will automatically terminate prior to expiration if this product is sold or otherwise transferred to another party. The warranty provided by AmpliVox in this statement applies only to products purchased for use, and not for resale. It does not apply to open box purchases, which are sold “as is” and without any warranty. Specifically exempt from warranty are limited-life consumable com- ponents subject to normal wear and tear, such as microphone windscreens, ear cushions, modular plugs, ear tips, decorative finishes, batteries, and other accessories. This warranty is invalid if the factory-applied serial number, date code label, or product label has been altered or removed from this product. This Warranty does not cover cosmetic damage or damage due to misuse, abuse, negligence, Acts of Nature, accident, disassembling or modification of, or to any part of, the product. This Warranty does not cover damage due to improper operation, maintenance or installation, or attempted repair by anyone other than AmpliVox. Any unauthorized repairs will void this warranty.
REPAIRS OR REPLACEMENTS AS PROVIDED UNDER THIS WARRANTY ARE THE EXCLUSIVE REME- DY OF THE CONSUMER. AMPLIVOX SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUEN- TIAL DAMAGES FOR BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT. EX- CEPT TO THE EXTENT PROHIBITED BY LAW, THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL
OTHER EXPRESS AND IMPLIED WARRANTIES WHAT SO EVER, INCLUDING BUT NOT LIMITED TO THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PRACTICAL PURPOSE.
NOTE! This warranty gives you specific legal rights. You may have other rights which vary from location to lo- cation. Some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages or implied warranties, so the above exclusions may not apply to you. This warranty does not affect your legal (statutory) rights under your applicable national or local laws.
Dispose of the product according to local standards and regulations. AmpliVox – 650 Anthony Trail, Suite D, Northbrook, IL 60062 – Phone: (800)267-5486 Fax: (800)267-5489 www.ampli.com
Frequently Asked Questions
The horn assists to increase the coupling effectiveness between the air and the speaker driver. When it comes to impedance matching between the relatively thick diaphragm material and the less dense air, the horn can be compared to an “acoustic transformer.” Greater acoustic output power from a given driver is the end consequence.
In contrast to, say, a cone diaphragm, a horn speaker’s diaphragm doesn’t need to oscillate as often to produce a loud sound, making horn speakers a very efficient design. Horns are still employed in PA speakers for making announcements and sending out warning signals due to their high efficiency.
Hearing horns amplify sounds when waves are reflected into a gradually smaller region, increasing the sound pressure that reaches the ear [21,22], whereas speaking horns do so by matching the acoustic impedance of outgoing sounds to the surrounding air [20].
Horn loudspeakers are utilized either as a self-contained unit or as a component of a loudspeaker system in sound systems for streets, squares, motion picture theatres, and other big locations due to their high efficiency (up to 20%).
There is some correlation between speaker size and speaker loudness. The louder a speaker can get, especially with older sound systems, the bigger the speaker’s circumference. The maximum volume of sound that can be pushed out of speakers grows along with the physical diameter of the speakers.
The speaker’s transducer components, or speaker drivers, are ultimately in charge of transforming the audio signal (electrical energy) into sound (mechanical wave energy).
The number of decibels (dB) of sound pressure level (SPL) per watt of amplifier power, measured at one meter from the speaker, is used to describe speaker sensitivity. Manufacturers typically omit the SPL/W/M and merely use dB to simplify.
The computation is simple if the impedance of each parallel speaker is the same. Divide the impedance by the quantity of parallel speakers. Example 1: Parallel placement of four 8 ohm speakers 8/4 Equals 2 ohms, or eight to four. Example 2: Two parallel 4 ohm speakers: 4 divided by 2 equals 2 ohms.
If you don’t have a manual, look on the speaker box’s back. If you don’t have your instruction book, your speaker should have a plate or sticker with the wattage, voltage, and amperage listed on it. You may find this information by turning the speaker box around. Under wattage, there will typically be a range of figures listed.
Scream into a cone-shaped piece of paper to make it seem louder. This is a simple illustration of a real-world horn. The trumpet or the trombone are additional, more logical examples.
