RBH-BFR-FACE
INSTALLATION HW 1.0
Package content
- Controller x 1, wall hanger x 1, user manual x 1, screwdriver x 1, kit pack x 1 Kit pack : screw x 4, screw anchors x 4, diode (1N4004) x 1 4 pin cable x 1, 8 pin cable x 1, 9 pin cable x 1

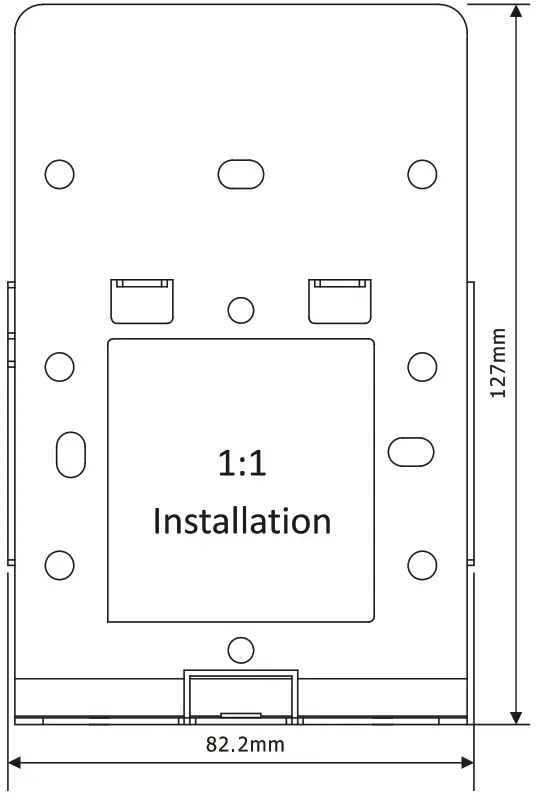

Wall-hanger size
Specifications

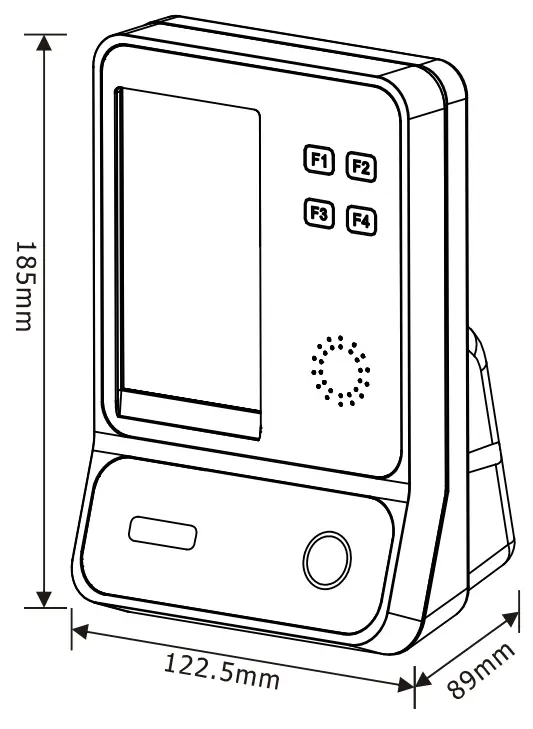

Specifications- Dimension : 122.5 x 185 x 89(mm)
- Power : 9-24 VDC/ 1A
- Wiegand communication : Max to 100 meters
- RS485 communication : Max to 1000 meters
- Face recognition distance : 50 ” 100 cm
- Install Wall: recommend installation height 115-125 cm
Installation instructions

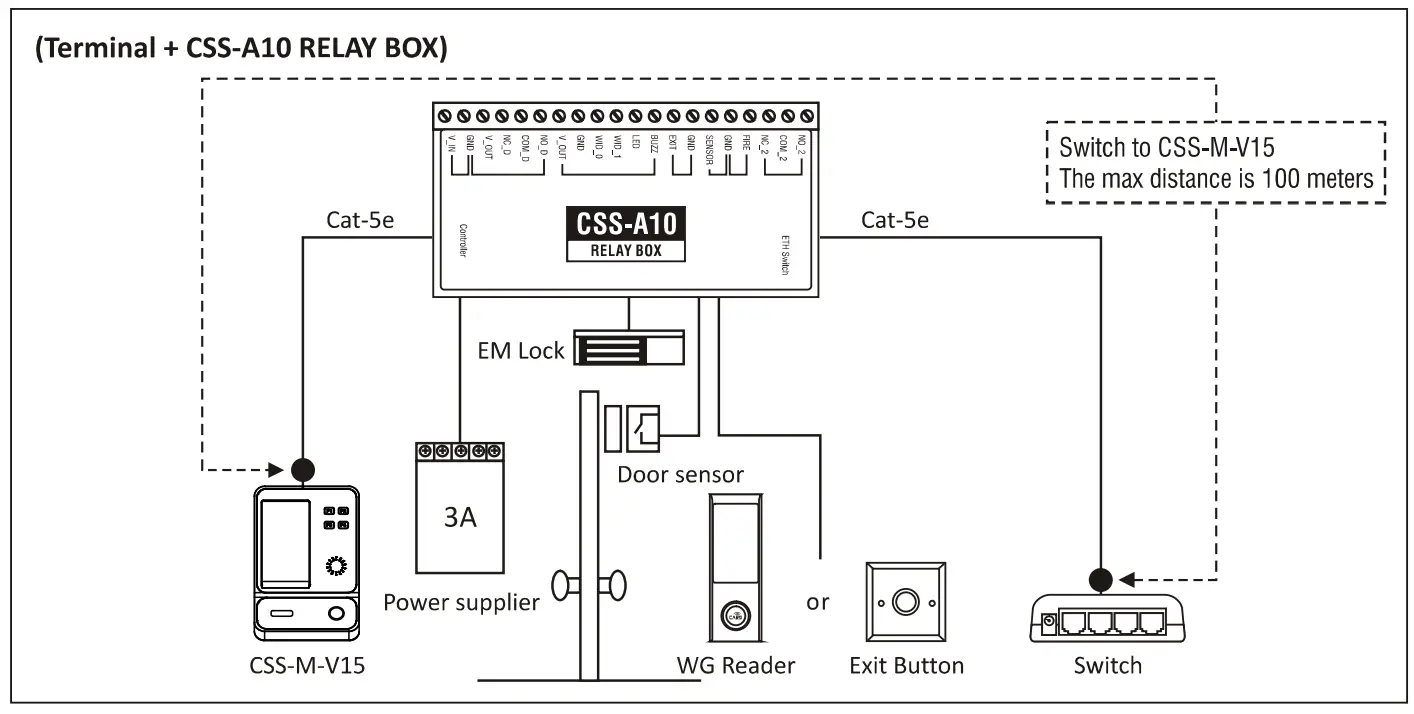

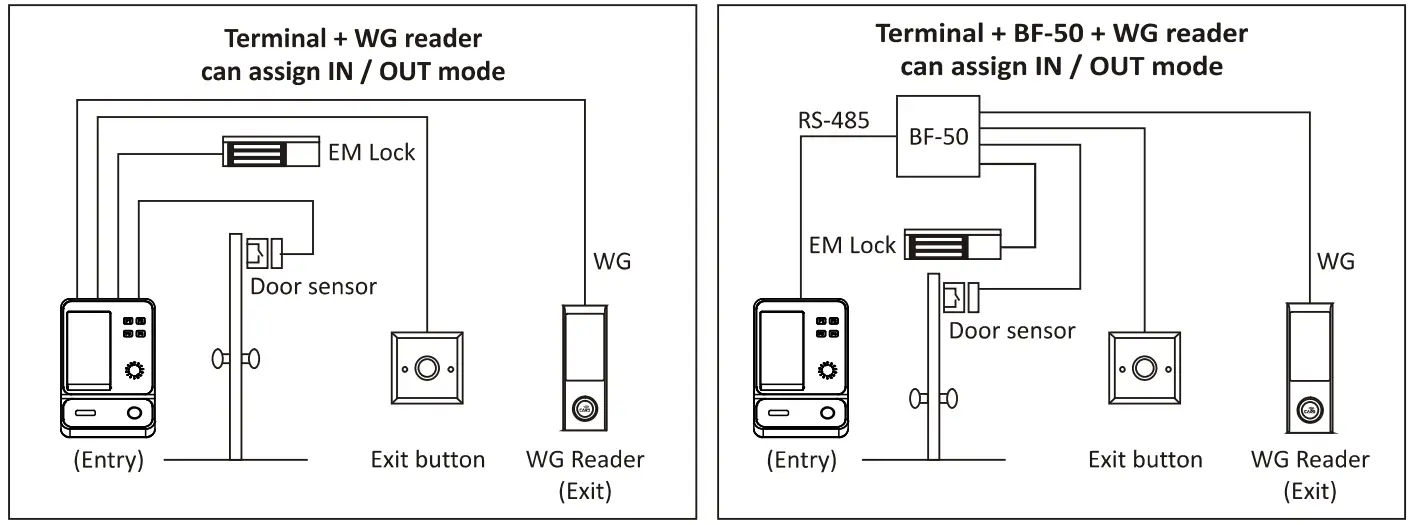

Application structure

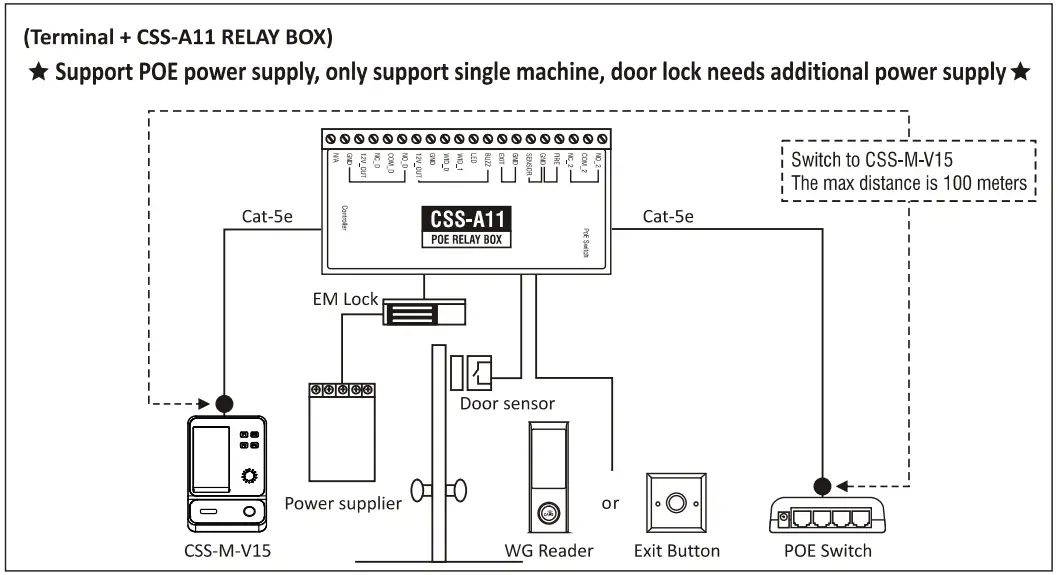

Application structure

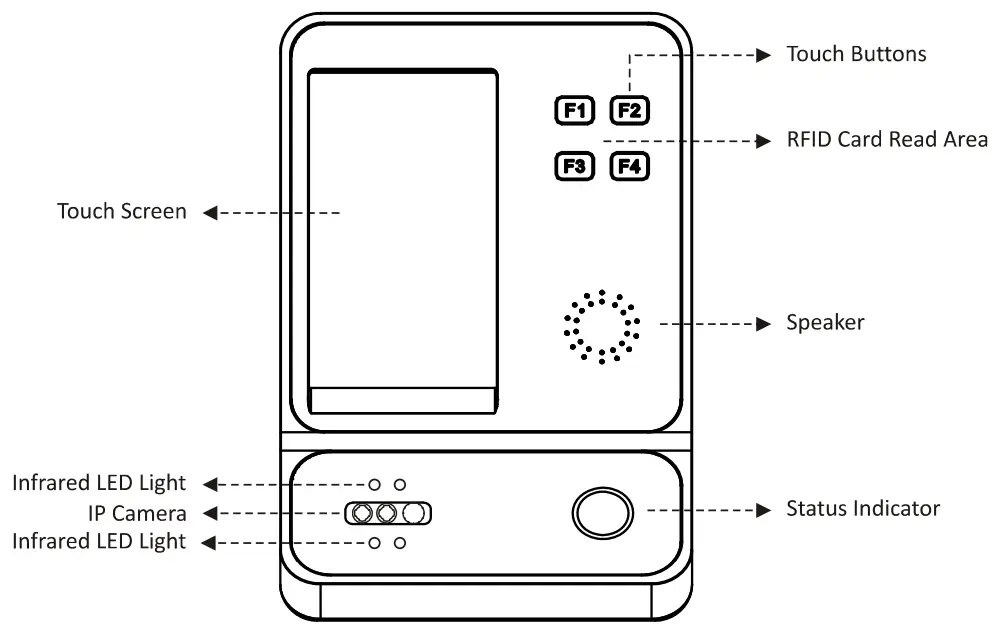

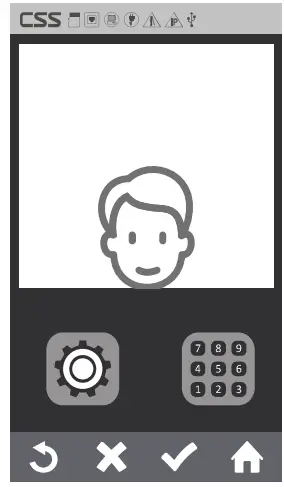

Terminal Front Description

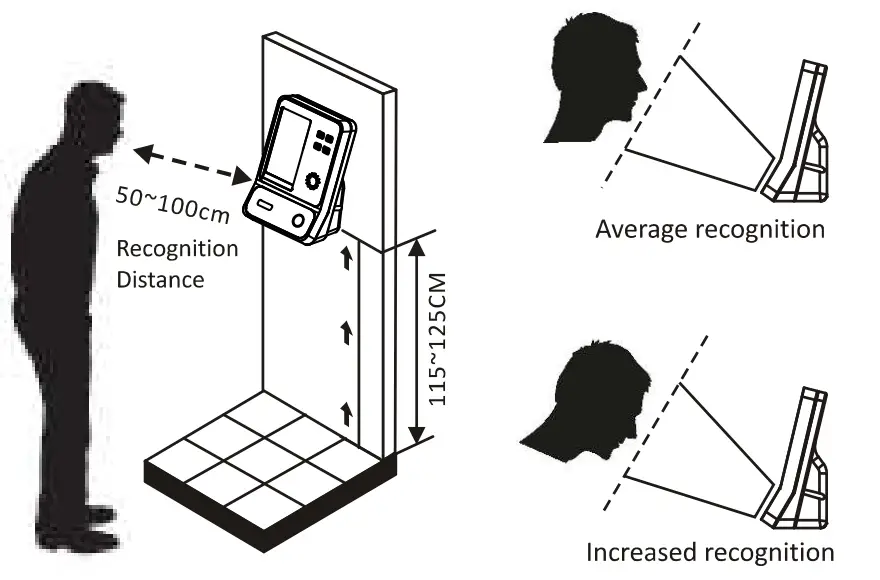

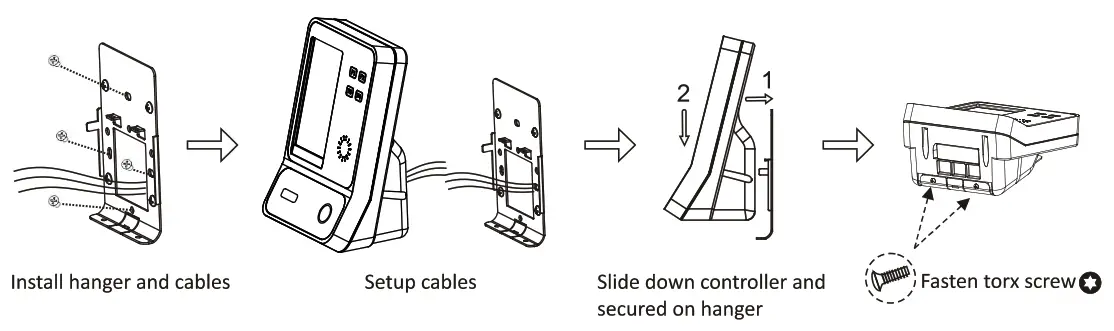

Installation
| Recommended installation height | |
| Installed height CM (Bottom of the machine) | Identify users Height CM |
| 115 | 153∼190 |
| 117 | 155∼195 |
| 119 | 157∼200 |
| 121 | 159∼205 |
| 123 | 161∼210 |
| 125 | 163∼215 |
The installation height is mainly for a shorter person The face is aligned to the lower edge of the display frame
The installation height is mainly for shorter person Recognition distance is about 50∼100cm Recommended installation height from the bottom of the machine to the ground is about 115-125cm
Please bow your head slightly when recognizing to improve the recognition success rate

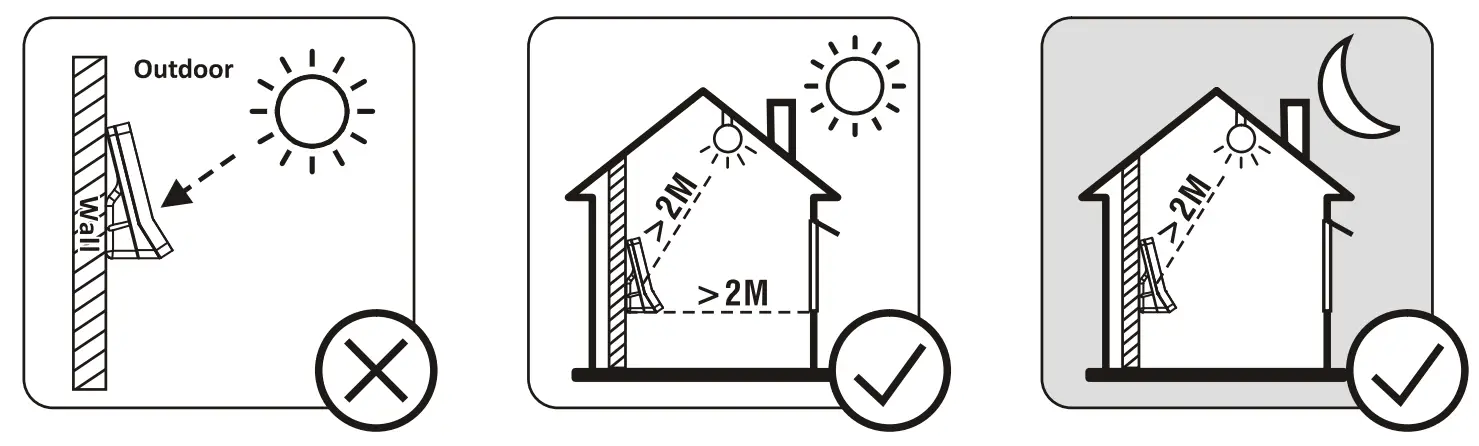

installation environment
When installing outdoors, direct sunlight equipment, oblique sunlight equipment, or direct sunlight equipment through windows are prohibited When installing indoors, make sure that the place must be installed away from windows/doors / lamp more than 2 meters away equipment
Terminal Back Explanation
Cable description
4 PIN
| 485— | GRAY | For Relay Box BF-50 |
| 485+ | BROWN | |
| VIN | RED | DC 9∼24V (1A) |
| GND | BLACK |
8 PIN
| ALARM-NC | YELLOW BLACK | 10 Relay Bell Alarm/ Ring Relay |
| ALARM-NO | WHITE BLACK | |
| ALARM-COM | GREEN BLACK | |
| WG IN 0 | RED WHITE | WG Input Connect WG Reader |
| WG IN 1 | BLACK WHITE | |
| GND | BLACK | GND |
| LED | ORANGE | Control WG Reader LED/ Buzzer Action |
| BUZZER | PINK BLACK |
9 PIN
| DOOR-NC | YELLOW | Door Relay |
| DOOR-NO | WHITE | |
| DOOR-COM | GREEN | |
| EXIT | VIOLET | Exit Button |
| SENSOR | BLUE | Door Sensor |
| FIRE | PINK | Fire Alarm |
| GND | BLACK | GND |
| WG OUT 0 | GRAY BLUE | WG Output |
| WG OUT 1 | ORANGE BLACK |
FCC Warning
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
V1.0
