ProTeam AviationVac®
106542* AviationVac w/Aviation 1½” Tool Kit #1 (106502)
$865

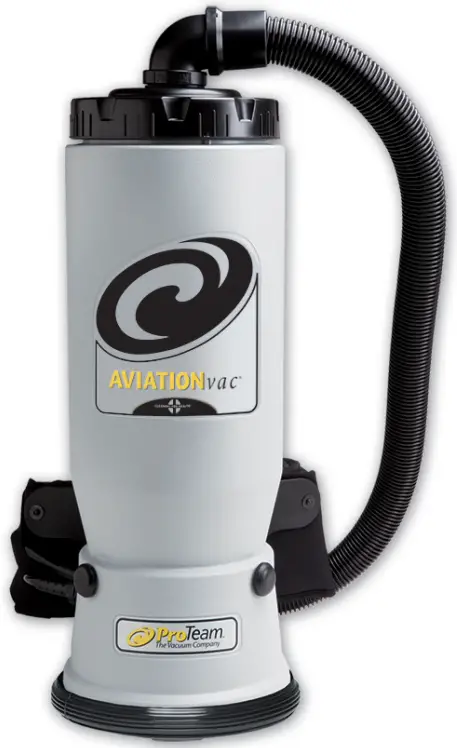

106542 Backpack Vacuum with Aviation
Designed exclusively for the transportation industry, the AviationVac utilizes the same 400 Hz power system used on transport vehicles without the need for bulky adapters. The lightweight wand and ergonomic backplate provide a highly efficient tool for cleaning up in a hurry.
Specifications
| Weight: | 10 lbs. / 4.5 kg. |
| Motor Airflow: | 106 CFM |
| Static Lift: | 82 in. |
| Motor: | 1864 W / 7.2 A |
| Decibel: | 68 dBA |
| Capacity: | 6 qt. / 6,6 L |
| ProLevel Filtration® w/Four Levels of Filtration: | 676 sq. in. total area |
Limited Warranty
- 3 years parts, labor and motor on vacuum
- Limited lifetime on molded body parts
*Standard Configuration
One-Piece, Two-Bend Aluminum Wand
12” Aluminum Gulper Floor Tool
5” Upholstery Tool
3” Dust Brush
17” Crevice Tool
Related Products
| 100431 | Intercept Micro Filters, 10/pk (open collar) | $20.49 |
| 106995 | Intercept Micro Filters, 10/pk (closed collar) | 35.13 |
Specification calculations are based on average motor performance.
Optional Configurations
| 103024 | w/Aviation 1¼” Tool Kit #2 (103222) | $825 |
| 107155 | w/Xover® Performance Telescoping Wand Tool Kit C (107099) | 845 |

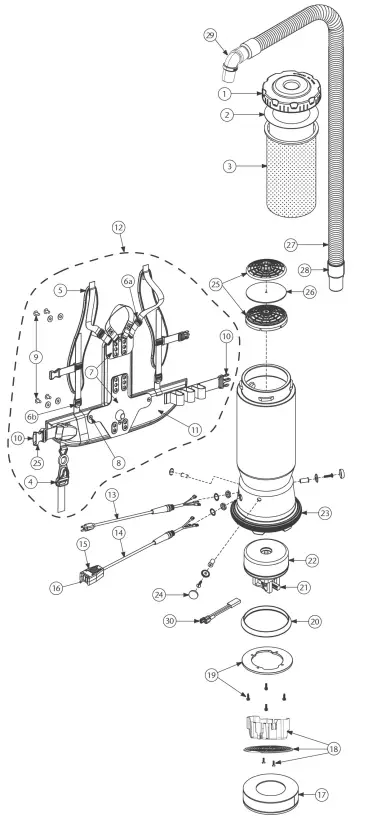

AVIATIONVAC PARTS
| No. | Product Name | Qty List | List Price | |
| 1 | 104273 | Twist Cap (Black) | 1 ea. | $41.79 |
| 2 | 100431 | Intercept Micro Filter | 10/pk | $20 |
| 3 | 100564 | Micro Cloth Filter | 1 ea. | 35.4 |
| 4 | 510738 | Cord Holder | 1 ea. | 3.87 |
| 5 | 100356 | Shoulder Strap Assembly (includes: 6a, 6b) | 1 set | 24.69 |
| 100354 | Strap Assembly Complete (includes: 5, 11) | 1 set | 75.96 | |
| 6a | 100358 | Shoulder Strap Plastic Adjustment (Top) | 1 ea. | 1.46 |
| 6b | 100357 | Shoulder Strap Plastic Adjustment (Bottom) | 1 ea. | 1.46 |
| 7 | 105046 | Backplate (includes: 8) | 1 ea. | 37.98 |
| 8 | 100375 | Barrel Nut Connection Set for Backplate | 1 set | 8.57 |
| 9 | 100716 | Backplate (Black) Connection Set: 4 Screws w/Washers | 1 set | 18.99 |
| 10 | 106719 | Waist Belt Keeper and Latch | 1 ea. | 17.22 |
| 11 | 100359 | Waist Belt (includes: 10) | 1 set | 56.95 |
| 12 | 103166 | Backplate System Complete (includes: 4-11) | 1 set | 94.94 |
| 13 | 100641 | Power Cord Assembly | 1 set | 27.55 |
| 14 | 101610 | Switch Cord Assembly Complete (includes: 15, 16) | 1 set | 53.19 |
| 15 | 101472 | Switch Box w/Velcro and New Lamb Switch | 1 set | 34.17 |
| 106287 | Switch Box w/Velcro and Screws | 1 ea. | 25.51 | |
| 16 | 106066 | On/Off Switch (Must be Used with #106287) | 1 ea. | 10.35 |
| 17 | 105800 | Sound Muffler | 1 ea. | 41.94 |
| 18 | 105044 | Motor Shroud/Diffuser w/Screw Set: 2 Screws | 1 set | 32.55 |
| 19 | 100335 | Motor Compression Ring w/Screws | 1 set | 18.26 |
| 100378 | Compression Ring Screw Set: 4 Screws | 1 set | 4.29 | |
| 20 | 100014 | Motor Gasket | 1 ea. | 17.12 |
| 21 | 100173 | Carbon Brush Set for 400 Hz Motor | 1 set | 162.04 |
| 22 | 100171 | Motor/Fan w/Rectifier and Crimps (400Hz) | 1 set | 288.68 |
| 100174 | Motor Rectifier | 1 ea. | 41.79 | |
| 100379 | Motor Ground Connection and Wire Clamp Set w/Screws | 1 set | 8.57 | |
| 100380 | Motor Crimp Set: 4 Female, 4 Male, Ground Crimp Connector | 1 set | 15.21 | |
| 23 | 100586 | Bottom Bumper | 1 ea. | 10.47 |
| 24 | 100368 | Motor Mounting System Set: 3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers | 1 set | 18.99 |
| 25 | 100030 | Dome Filter w/Foam Media | 1 ea. | 11.43 |
| 26 | 100343 | Foam Filter Media for Dome Filter | 1 ea. | 2.63 |
| 101220 | High Filtration Disk (Optional) | 2/pk | 15.33 | |
| 27 | 103237 | Static-Dissipating Hose 1¼” (Black) | 1 ea. | 37.92 |
| 107648 | 48″ Static-Dissipating Hose w/Non-Replaceable Elbow and Straight Cuffs | 1 ea. | 39.67 | |
| 28 | 100694 | Replacement Double Swivel Straight Cuff (Only AV 1½”) | 1 ea. | 35.3 |
| 103279 | Replacement Double Swivel Elbow Cuff (Only AV 1¼”) | 1 ea. | 7.83 | |
| 29 | 102715 | Swivel Elbow Cuff 1¼” (Black) (Only AV) | 1 ea. | 9.71 |
| 101928 | Replacement Double Swivel Elbow Cuff (Only AV 1½”) | 1 ea. | 17.38 | |
| 30 | 107294 | Thermal Protector | 1 ea. | 13.13 |
| 101678 | 50′ Extension Cord (Not Shown) | 1 ea. | 20.85 |
