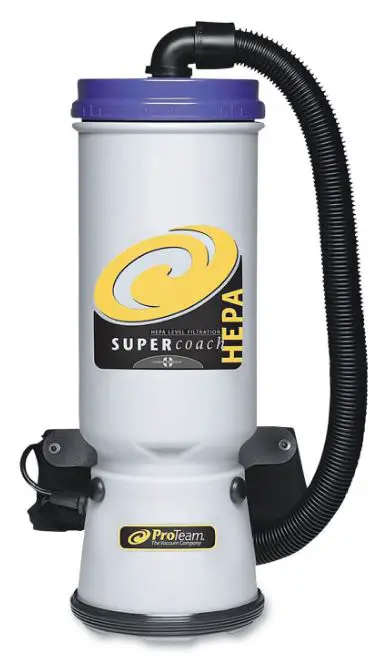

ProTeam 107119 Super CoachVac Commercial Backpack Vacuum
Product Information
- Product Name: Super CoachVac w/ Xover Telescoping Wand Tool Kit
D (107100) - Price: $740
- Weight: 11 lbs. / 4.99 kg.
- Airflow: 150 CFM
- Total Area: 1190 sq. in.
- Noise Level: 66 dBA
- Capacity: 10 qt. / 11 L
- Filtration System: ProLevel Filtration System with HEPA
Media - Filtration Efficiency: Captures 99.67% at 0.3-.5 microns per
ASTM F3150 - Warranty: Limited Warranty
Product Description
The Super CoachVac is a backpack vacuum designed to clean large areas with multiple floor tool kit options available to tackle hard surfaces or carpets. With easy maintenance and a large capacity, it saves time and effort during cleaning tasks. The ProLevel Filtration System with HEPA Media ensures high filtration efficiency and captures up to 99.67% of particles at 0.3-.5 microns per ASTM F3150.
Parts List
- The product comes with various parts and accessories, including
- Twist Cap, Intercept Micro Filter, Micro Cloth Filter, Shoulder
- Strap Assembly, Strap Assembly Complete, Shoulder Strap Plastic
- Adjustment Buckle, Backplate, Barrel Nut Connection Set for
- Backplate (Replacement), Waist Belt Keeper and Latch, Waist Belt,
- Cord Holder, Backplate (Black) System Complete, Power Cord
- Assembly, Switch Cord Assembly, Switch Cord w/ Crimps, Switch Box w/ Velcro and New Lamb Switch On/Off Switch (must use with #106287),
- Switch Box w/ Velcro and Screws, Sound Muffler, Motor
- Shroud/Diffuser w/ Screw Set, Motor Compression Ring w/ Screws,
- Compression Ring Screw Set, Motor Gasket, Carbon Brush Set (Domel
- Motor), Carbon Brush Set (Ametek Motor), Motor/Fan (120 V) w/
- Crimps, Motor Ground and Wire Clamp Set w/ Screws, Motor Crimp Set:
- 4 Female, 4 Male, Ground Crimp Connector, Motor Mounting System
- Set: 3 Well Nuts, 3 Bolts, 3 Washers, 3 Covers, Bottom Bumper, Dome
- Filter w/ Foam Media, Foam Filter Media for Dome Filter, High
- Filtration Disk (optional), 48″ Static-Dissipating Hose w/ Non-Replaceable Elbow & Straight Cuffs, and Replacement Double Swivel Elbow Cuff.
Product Usage Instructions
- Choose the appropriate floor tool kit for the surface to be cleaned. Multiple floor tool kit options are available to tackle hard surfaces or carpets.
- Ensure that the Intercept Micro Filter is properly installed.
- Adjust the backpack straps to fit comfortably and securely on your back.
- Plug in the power cord and switch on the device.
- Begin cleaning by holding the wand and using the floor tool to clean the surface.
- As needed, switch out the floor tool kit to clean different surfaces.
- When finished cleaning, switch off the device and unplug the power cord.
- Clean and maintain the device as needed, following the instructions in the user manual.
ProTeam Super CoachVac
107119* Super CoachVac w/Xover Telescoping Wand Tool Kit D (107100) $740
The Super CoachVac is a basic backpack vacuum designed to tackle high square footage areas. Multiple floor tool kit options available to tackle hard surface or carpet.
Specifications
- Weight: 11 lbs. / 4.99 kg.
- Motor Airflow: 150 CFM
- Static Lift: 100 in.
- Motor: 1188 W / 9.9 A
- Decibel: 66 dBA
- Capacity: 10 qt. / 11 L
- ProLevel Filtration® w/Four Levels of Filtration: 1190 sq. in. total area
ProLevel Filtration System with HEPA Media
Captures 99.67% at 0.3-.5 microns per ASTM F3150
Limited Warranty
- 3 years parts, labor and motor on vacuum
- Limited lifetime on molded body parts
*Standard Configuration
- 14” Xover Floor Tool
- Telescoping Wand
- 5″ Upholstery Tool
- 3” Dust Brush
- 17” Crevice Tool
Related Products
- 100331 Intercept Micro Filters, 10/pk (open collar) $27.32
- 100291 Intercept Micro Filters, 10/pk (closed collar) 40.83
Optional Configurations
- 107104 w/Xover® Performance Two-Piece Wand Tool Kit A (107097) $740
- 107109 w/Xover Two-Piece Wand Tool Kit B (107098) 740
- 107114 w/Xover Performance Telescoping Wand Tool Kit C (107099) 740
- 107602 w/ProBlade® Carpet Floor Tool Kit (107530) 740
- 107603 w/ProBlade Hard Surface Floor Tool Kit (107531) 765
- 107604 w/ProBlade Carpet and Hard Surface Floor Tool Kit (107532) 815
- 107746 w/Telescoping Wand (107628) and Xover Tool (107016) 720

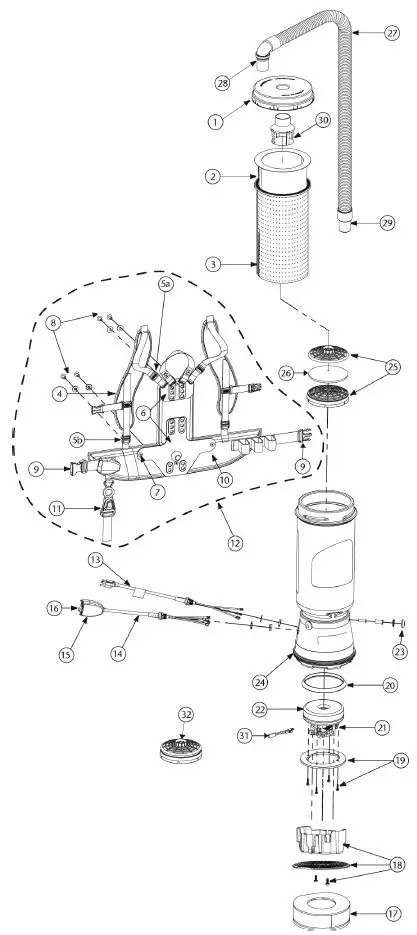

SUPER COACHVAC PARTS
| No. | Product Name | Qty | List Price | |
| 1 | 100197 | Twist Cap (Purple) | 1 ea. | $ 49.37 |
| 2 | 100331 | Intercept Micro Filter | 10/pk | 27.32 |
| 3 | 100565 | Micro Cloth Filter | 1 ea. | 42.86 |
| 4 | 100356 | Shoulder Strap Assembly (includes: 5a, 5b) | 1 set | 24.69 |
| 100354 | Strap Assembly Complete (includes: 4, 10) | 1 set | 75.96 | |
| 5a | 100358 | Shoulder Strap Plastic Adjustment Buckle (Top) | 1 ea. | 1.46 |
| 5b | 100357 | Shoulder Strap Plastic Adjustment Buckle | 1 ea. | 1.46 |
| (Bottom) | ||||
| 6 | 105046 | Backplate (includes: 7) | 1 ea. | 37.98 |
| 7 | 100375 | Barrel Nut Connection Set for Backplate | 1 set | 8.57 |
| (Replacement) | ||||
| 8 | 100716 | Backplate (Black) Connection Set: 4 Screws | 1 set | 18.99 |
| w/Washers | ||||
| 9 | 106719 | Waist Belt Keeper and Latch | 1 ea. | 17.22 |
| 10 | 100359 | Waist Belt (includes: 9) | 1 ea. | 56.95 |
| 11 | 510738 | Cord Holder | 1 ea. | 3.87 |
| 12 | 103166 | Backplate (Black) System Complete | 1 set | 94.94 |
| (includes: 4-11) | ||||
| 13 | 100641 | Power Cord Assembly | 1 set | 27.55 |
| 14 | 101610 | Switch Cord Assembly (includes: 15, 16) | 1 set | 53.19 |
| 101714 | Switch Cord w/Crimps | 1 ea. | 23.58 | |
| 15 | 101472 | Switch Box w/Velcro and New Lamb Switch | 1 set | 34.17 |
| 16 | 106066 | On/Off Switch (must use with #106287) | 1 ea. | 10.35 |
| 106287 | Switch Box w/Velcro and Screws | 1 ea. | 25.51 | |
| 17 | 100597 | Sound Muffler | 1 ea. | 41.94 |
| 18 | 105044 | Motor Shroud/Diffuser w/Screw Set: 2 Screws | 1 set | 32.55 |
| 19 | 100335 | Motor Compression Ring w/Screws | 1 set | 18.26 |
| 100378 | Compression Ring Screw Set: 4 Screws | 1 set | 4.29 | |
| 20 | 100014 | Motor Gasket | 1 ea. | 17.12 |
| 21 | 105164 | Carbon Brush Set (Domel Motor) | 1 set | 30.37 |
| 101720 | Carbon Brush Set (Ametek Motor) | 1 set | 30.37 | |
| 22 | 105162 | Motor/Fan (120 V) w/Crimps | 1 ea. | 170.85 |
| 100379 | Motor Ground and Wire Clamp Set w/Screws | 1 set | 8.57 | |
| 100380 | Motor Crimp Set: 4 Female, 4 Male, | 1 set | 15.21 | |
| Ground Crimp Connector | ||||
| 23 | 100368 | Motor Mounting System Set: 3 Well Nuts, | 1 set | 18.99 |
| 3 Bolts, 3 Washers, 3 Covers | ||||
| 24 | 100586 | Bottom Bumper | 1 ea. | 10.47 |
| 25 | 100030 | Dome Filter w/Foam Media (includes: 26) | 1 ea. | 11.43 |
| 26 | 100343 | Foam Filter Media for Dome Filter | 1 ea. | 2.63 |
| 101220 | High Filtration Disk (optional) | 2/pk | 15.33 | |
| 27 | 107648 | 48″ Static-Dissipating Hose w/ | 1 ea. | 39.67 |
| Non-Replaceable Elbow & Straight Cuffs | ||||
| 28 | 101928 | Replacement Double Swivel Elbow Cuff | 1 ea. | 13.13 |
| 29 | 100694 | Replacement Double Swivel Straight Cuff | 1 ea. | 7.83 |
| 30 | 101543 | Filter Guard (Optional) | 1 ea. | 13.73 |
| 31 | 107294 | Thermal Protector | 1 ea. | 20.85 |
| 32 | 106526 | Dome Filter made from HEPA Media | 1 ea. | 19.41 |
| 101678 | 50′ Extension Cord (Not Shown) | 1 ea. | 48.66 |
The filtration value of ProTeam’s ProLevel Filtration System in this vacuum is achieved by the use of a multi-stage filtration system, including intercept micro filter, micro cloth filter, plastic cage with foam filter, and post-motor filter made from HEPA media, as tested per ASTM F3150. Specification calculations are based on average motor performance
