107359 Pro Guard 15 Commercial Wet-Dry Vacuum
User Manual
The Pro Guard 15/20 Wet/Dry Vacuums deliver high-powered performance and durability, including intuitive features that make it easier and more convenient to use. These units can help cleaning professionals respond quickly to any challenge big or small. An optional front mount squeegee system saves time, money and energy when stripping floors. Patented wheel configuration allows for increased maneuverability.
Specifications
| Motor Airflow: | 105 CFM |
| Static Lift: | 95” |
| Motor: | 1380 W / 9.5 A |
| Decibel: | 69 dBA |
| Pro Guard Filter: | Polypropylene Screen |
| Fine Dust Cartridge Filter: | 1142 sq. in. |
| Power Cord: | 50′, 14 AWG |
| 15 | 20 | |
| Weight: | 68 lbs. / 31 kg. | 70 lbs. / 32 kg. |
| Tank size: | 15 gallon / 57 L | 20 gallon / 76 L |
*Standard Configuration
| 10′ Vacuum Hose | Squeegee Tool |
| Two-Piece Wand | Crevice Tool |
| Nylon Floor Tool | Dust Brush |
Related Products
| 107180 Intercept Micro Filters, 3/pk | $46.40 |
Optional Configurations’
| 107131 | Pro Guard 20 w/Wet/Dry Tool Kit (107187) (no squeegee) | $1,085.00 |
| 107130 | Pro Guard 15 w/Wet/Dry Tool Kit (107187) (no squeegee) | 1,015.00 |
| 107185 | Front Mount Squeegee | 287.22 |

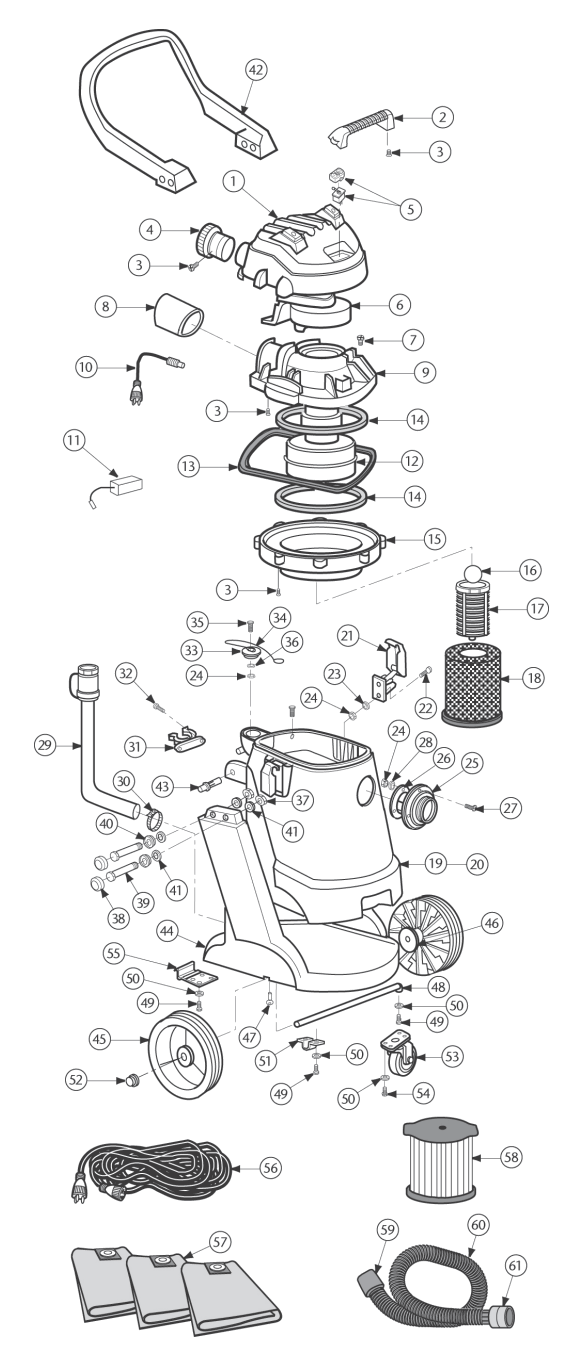

PROGUARD 15 / 20 PARTS
| No. | Product Name | Qty | List Price |
| 1 510097 | Motor Cover Assembly (Pro Guard 15) | 1 ea. | $45.31 |
| 510104 | Motor Cover Assembly (Pro Guard 20) | 1 ea. | 38.43 |
| 2 830565-2 | Handle Motor Cover | 1 ea. | 3.38 |
| 3 820563-4 | Screw Type AB #10 x ¾” | 1 ea. | 0.69 |
| 4 833600 | Diffuser Assembly | 1 ea. | 7.91 |
| 5 510127 | Switch Assembly | 1 set | 9.2 |
| 6 831651 | Motor Exhaust Duct | 1 ea. | 8.77 |
| 7 826453-2 | Screw 10-32 X ¾” | 1 ea. | 1.26 |
| 8 830609 | Exhaust Foam Pad | 1 ea. | 2.93 |
| 9 831653-3 | Lid | 1 ea. | 21.63 |
| 10 833417 | Power Cord Assembly | 1 ea. | 31.49 |
| 11 822374-8 | Carbon Brush Set | 1 set | 18.26 |
| 12 831567 | Motor Assembly Complete | 1 ea. | 120.44 |
| 13 833518 | Gasket Lid | 1 ea. | 15.57 |
| 14 827415 | Gasket Motor | 1 ea. | 14.49 |
| 15 831659 | Collector Assembly with Foam | 1 ea. | 13.32 |
| 16 833778 | Ball Float | 1 ea. | 4.09 |
| 17 830101-1 | Filter Cage | 1 ea. | 3.96 |
| 18 107177 | Wet FIlter | 1 ea. | 36.42 |
| 19 833603 | 20 Gallon Tank | 1 ea. | 272.82 |
| 20 833602 | 15 Gallon Tank | 1 ea. | 287.27 |
| 21 833424-1 | Drum Latch | 1 ea. | 9.2 |
| 22 833492-1 | Screw 10-32 X ¾” | 1 ea. | 1.47 |
| 23 833493 | Washer (13/64 ID) #10 | 1 ea. | 1.46 |
| 24 161255-8 | Nut Lock #10 | 1 ea. | 1.39 |
| 25 833425 | Tank Inlet Adapter | 1 ea. | 4.23 |
| 26 833426 | Gasket Inlet Adapter | 1 ea. | 2.56 |
| 27 833492 | Screw 10-32 X 1 ¼” | 1 ea. | 2.03 |
| 28 833493 | Washer (13/64 ID) #10 | 1 ea. | 1.46 |
| 29 833451 | Hose Drain Assembly 30″ (includes: 30) | 1 ea. | 31.85 |
| 30 833452 | Hose Clamp | 1 ea. | 4.95 |
| 31 826881 | Hose Clip | 1 ea. | 1.6 |
| 32 808872-2 | Screw 10-32 X 1 ¼” | 1 ea. | 1.39 |
| 33 833449 | Cap Rubber Drum Pour Spout | 1 ea. | 6.33 |
| 34 833450 | Pour Spout Cable Lanyard | 1 ea. | 8.85 |
| 35 833492 | Screw 10-32 X 1 ¼” | 1 ea. | 2.03 |
| 36 833493 | Washer (13/64 ID) #10 | 1 ea. | 1.46 |
| 37 161255-2 | Nut Lock 3/8-16 | 1 ea. | 1.17 |
| 38 100371 | Cap | 1 ea. | 1.01 |
| 39 832397-1 | Screw Hex 3/8-16 X 3 ¾” | 1 ea. | 6.41 |
| 40 833779 | Cap Retainer | 1 ea. | 1.6 |
| 41 805557-1 | Washer 13/32 ID | 1 ea. | 1.54 |
| 42 833465 | Cart Base Handle | 1 ea. | 157.76 |
| 43 833454 | Drum Hinge Bushing | 1 ea. | 2.48 |
| 44 833456 | Cart Base | 1 ea. | 323.32 |
| 45 833459 | 10″ Wheel | 1 ea. | 19.7 |
| 46 833460 | Wheel Spacer | 1 ea. | 2.83 |
| 47 833662 | Thumb Screw | 1 ea. | 3.43 |
| 48 831024-3 | Shaft Tube | 1 ea. | 7.18 |
| 49 805466-3 | Screw Hex HD 5/16-18 X 5/8″ | 1 ea. | 1.26 |
| 50 140755-12 | Lock Washer Ext 5/16″ | 1 ea. | 1.1 |
| 51 833461 | Axle Bracket | 1 ea. | 4.09 |
| 52 813836-1 | Nut Washer Cap | 1 ea. | 1.54 |
| 53 833462 | 4″ Caster w/Bearings | 1 ea. | 24.42 |
| 54 805466-3 | Screw Hex HD 5/16-18 X 5/8″ | 1 ea. | 1.26 |
| 55 833463 | Plate Pedal Lock | 1 ea. | 9.66 |
| 56 833432 | 50′ Extension Cord | 1 ea. | 94.24 |
| 57 107180 | Intercept Micro Filter | 3/pk | 46.4 |
| 58 107175 | Qwik Lock Fine Dust Filter | 1 ea. | 36.42 |
| 59 831577 | Swivel Hose Cuff 1½” | 1 ea. | 5.32 |
| 60 107198 | Hose Assembly | 1 ea. | 60.57 |
| 61 833587 | Locking Ring Cuff | 1 ea. | 12.18 |
| 510142 | Bag of Loose Parts (Not Shown) (includes: 37-41) | 1 se | 15.49 |
