H-6460

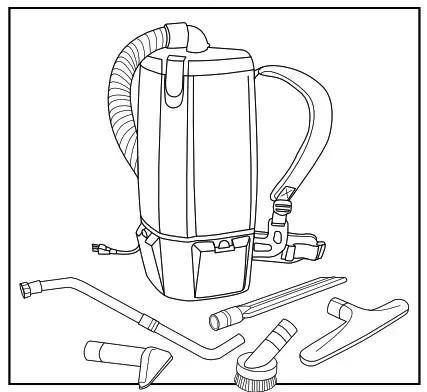

6 QT. INDUSTRIAL BACKPACK VACUUM
1-800-295-5510
unline.com

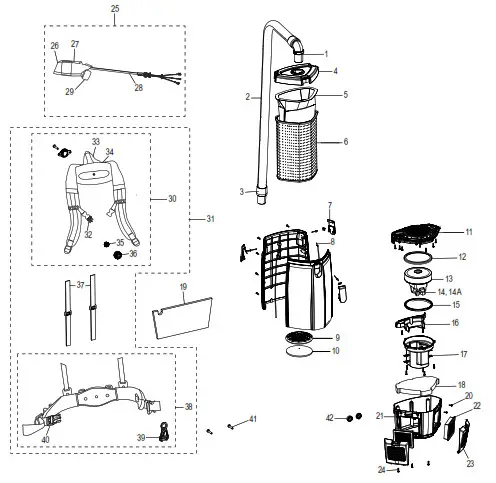

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Replacement Double Swivel Elbow Cuff (Black) | 1 | H-5048-1 | 101928 |
| 2 | Static-Dissipating Hose with Cuffs (Black) | 1 | H-5048HOSE | 103048 |
| 3 | 1½” Replacement Swivel Cuff (Black) | 1 | H-5048-SWCUF | 100694 |
| 4 | Purple Cap | 1 | H-5048-CAP | 833948 |
| 5 | Intercept® Micro Filter Bag | 10 | S-21745 | 107314 |
| 6 | Micro Cloth Filter | 1 | H-6460-FILT | 834072 |
| 7 | Latch and Retainer with Lock Nut and Screw | 1 | H-5048LTCHRT | 510179 |
| 8 | Gasket for Tank | 2 | H-6460-GSKT | 510181 |
| 9 | Dome Filter with Foam Media (Includes #10) | 1 | H-5048-FILTR | 510183 |
| 10 | Foam Filter Media for Dome Filter | 1 | H-5048FOAM | 510184 |
| 11 | Upper Motor Support with Gasket | 1 | H-5048-UMSWG | 510193 |
| 12 | Upper Motor Gasket | 1 | H-5048-UMG | 833951 |
| 13 | Motor/Fan (120 V) | 1 | H-5048MOTOR | 836099 |
| 14 | Carbon Brush Set for 834036 Motor | 1 | H-5048CBRSH | 101720 |
| 14A | Carbon Brush Set for 836099 Motor | 1 | ———– | 841933 |
| 15 | Lower Motor Gasket | 1 | ———– | 833952 |
| 16 | Cover Wire with Two Screws | 1 | ———– | 510185 |
| 17 | Lower Motor Support with Five Screws | 1 | ———– | 510194 |
| 18 | Triangular Lower Foam Pad | 1 | ———– | 834042 |
| 19 | Rectangular Upper Foam Pad | 1 | ———– | 834043 |
| 20 | Screw Pan CR #8 x 1/2″ | 1 | ———– | 808380-0 |
| 21 | Housing Assembly Lower with Screws | 1 | ———– | 510188 |
| 22 | HEPA Filter (2 Pack) | 1 | H-5048HEPA | 107315 |
| 23 | Exhaust Filter Door | 1 | H-5048DOOR | 841708 |
| 24 | Screw Pan CR #8 x 3/4″ | 1 | ———– | 808380-22 |
| 25 | Switch Box, Full Assembly (Includes #26-29) | 1 | H-5048-P25 | 836255 |
| 26 | On/Off Switch | 1 | ———– | 106066 |
| 27 | Switch Box | 1 | ———– | 836554 |
| 28 | Power Cord Assembly | 1 | ———– | 836480 |
| 29 | Power Plug Assembly | 1 | ———– | 841724 |
| 30 | Upper Harness Assembly (Includes #32-36) | 1 | H-5048-UPHAR | 840112 |
| 31 | Harness Assembly Complete (Includes #30, 37, 38) | 1 | H-5048HARASM | 840011 |
| 32 | Sternum Strap Buckle (Latch and Keeper) | 1 | ———– | 103627 |
| 33 | Carry Handle with Rivet Set | 1 | ———– | 101737 |
| 34 | Upper Pad Harness (Includes #37) | 1 | ———– | 834049 |
| 35 | Pivoting Ball | 1 | ———– | 834050 |
| 36 | Outer Support Retainer | 1 | ———– | 834053 |
| 37 | Tensioning Straps | 1 | H-5048-STRAP | 510192 |
| 38 | Lower Harness Assembly (Includes #39-40) | 1 | ———– | 840114 |
| 39 | Cord Holder | 1 | H-5048-CRDHR | 510738 |
| 40 | Waist Belt Buckles and Straps Set | 1 | ———– | 510301 |
| 41 | 5/16 x 18 x 3/8″ Lock Screws | 2 | H-5048-LSCRW | 834051 |
| 42 | Harness Spacers | 2 | H-5048-SPCRS | 510186 |
| 50′ Extension Cord (Not Shown) | 1 | H-5048EXTNSN | 101678 | |
| 42 to 59″ Telscoping Wand (Not Shown) | 1 | H-5048WAND | 107628 | |
| 14″ Xover Floor Tool (Not Shown) | 1 | H-5048XOVER | 107016 | |
| 3″ Dust Brush with Reducer (Not Shown) | 1 | H-5048BRUSH | 100110 | |
| 5″ Upholstery Tool (Not Shown) | 1 | ———– | 100115 | |
| 17″ Crevice Tool (Not Shown) | 1 | H-5048-CRVIC | 100108 | |
| Floor Tool with Scallops (Not Shown, Sold Separately) | — | H-5048-CT | 100147 | |
| Hard Floor Tool with Nylon Brush (Not Shown, Sold Separately) | — | H-5048-HFT | 100623 | |
| Nut – Aluminum Wands | — | H-7407 | 100099 | |
| Ring – Aluminum Wands | — | H-7408 | 100100 | |
| Felt – 14″ Floor Tool | — | H-7409 | 100145 | |
| Sleeve – Aluminum Wands | — | H-7410 | 100101 | |
