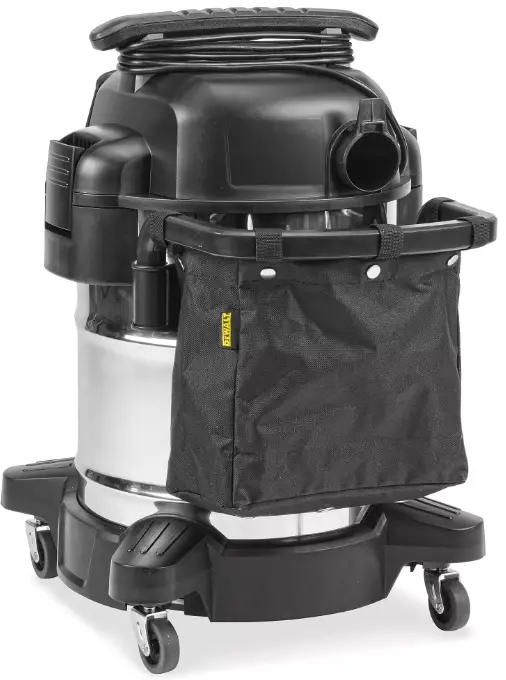

ULINE H-8931 Dry Vacuum
DEWALT® 10 GALLON
WET/DRY VACUUM
1-800-295-5510
uline.com

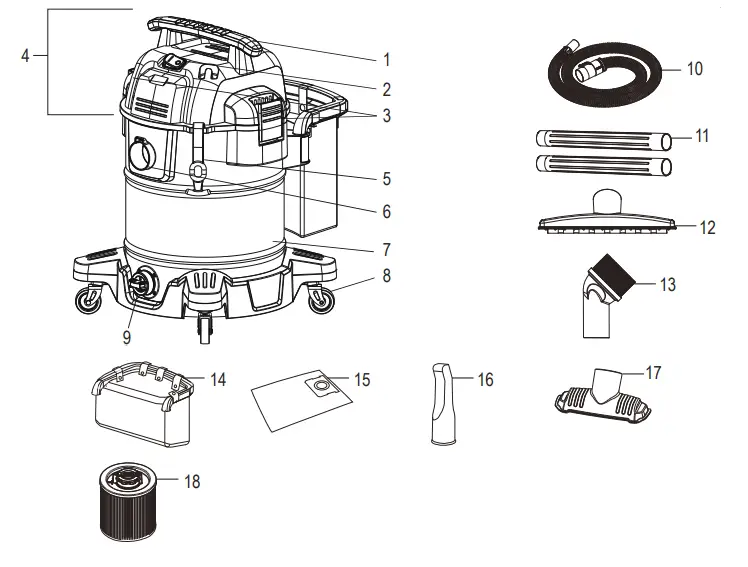

| # | DESCRIPTION | QTY. | ULINE PART NO. | MFG. PART NO. |
| 1 | Handle | 1 | ———– | ———– |
| 2 | Power Switch | 1 | ———– | ———– |
| 3 | Lid Latch | 2 | ———– | ———– |
| 4 | Power Head | 1 | H-8931-PH | DXV10SB-PH |
| 5 | Hose Strap | 1 | ———– | ———– |
| 6 | Vacuum Port | 1 | ———– | ———– |
| 7 | Dust Tank | 1 | ———– | ———– |
| 8 | Rubberized Caster | 4 | H-9336 | DXV10SA-CASTER |
| 9 | Drain Port | 1 | ———– | ———– |
| 10 | 1″ Durable Hose | 1 | H-9338 | DXVA19-2500 |
| 11 | Extension Wand | 2 | H-9072 | DXVA19-1200A |
| 12 | Floor Nozzle | 1 | H-9070 | DXVA19-1900D |
| 13 | Round Brush | 1 | H-9069 | DXVA19-2400 |
| 14 | Accessory Bag with Holder | 1 | H-9084 | DXVA19-5256 |
| 15 | Disposable Filter Bag | 1 | S-24037 | DXVA19-4101 |
| 16 | Car Nozzle | 1 | H-9068 | DXVA19-4333 |
| 17 | Utility Nozzle | 1 | H-9073 | DXVA19-1300 |
| 18 | Cartridge Filter | 1 | S-24031 | DXVC6910 |
800-295-5510

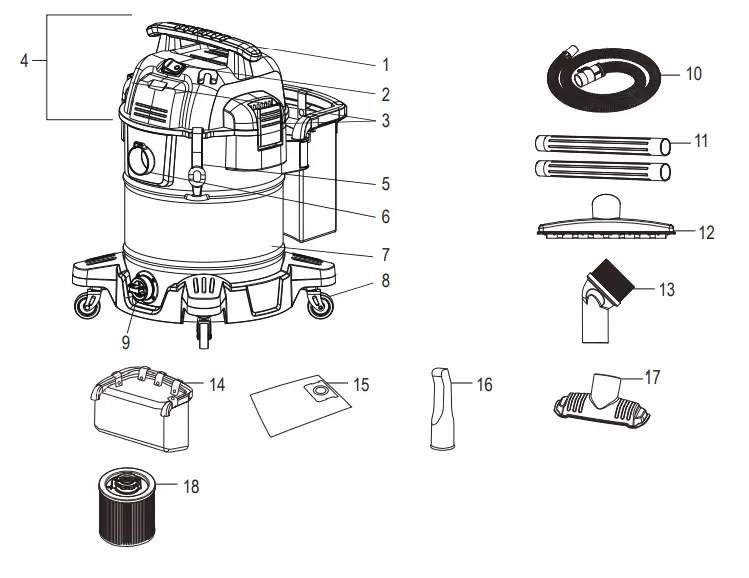

| # | DESCRIPCIÓN | CANT. | NO. DE PARTE DE ULINE | NO. DE PARTE DEL FABRICANTE |
| 1 | Asa | 1 | ———– | ———– |
| 2 | Interruptor de Energía | 1 | ———– | ———– |
| 3 | Pestillo de la Tapa | 2 | ———– | ———– |
| 4 | Motor | 1 | H-8931-PH | DXV10SB-PH |
| 5 | Correa para Manguera | 1 | ———– | ———– |
| 6 | Puerto de Aspirado | 1 | ———– | ———– |
| 7 | Tanque para Polvo | 1 | ———– | ———– |
| 8 | Rueda de Goma | 4 | H-9336 | DXV10SA-CASTER |
| 9 | Puerto de Drenado | 1 | ———– | ———– |
| 10 | Manguera Duradera de 1⁄” | 1 | H-9338 | DXVA19-2500 |
| 11 | Tubo | 2 | H-9072 | DXVA19-1200A |
| 12 | Boquilla para Piso | 1 | H-9070 | DXVA19-1900D |
| 13 | Cepillo Redondo | 1 | H-9069 | DXVA19-2400 |
| 14 | Bolsa para Accesorios con Soporte | 1 | H-9084 | DXVA19-5256 |
| 15 | Bolsa de Filtro Desechable | 1 | S-24037 | DXVA19-4101 |
| 16 | Boquilla para Auto | 1 | H-9068 | DXVA19-4333 |
| 17 | Boquilla Utilitaria | 1 | H-9073 | DXVA19-1300 |
| 18 | Filtro de Cartucho | 1 | S-24031 | DXVC6910 |
1-800-295-5510

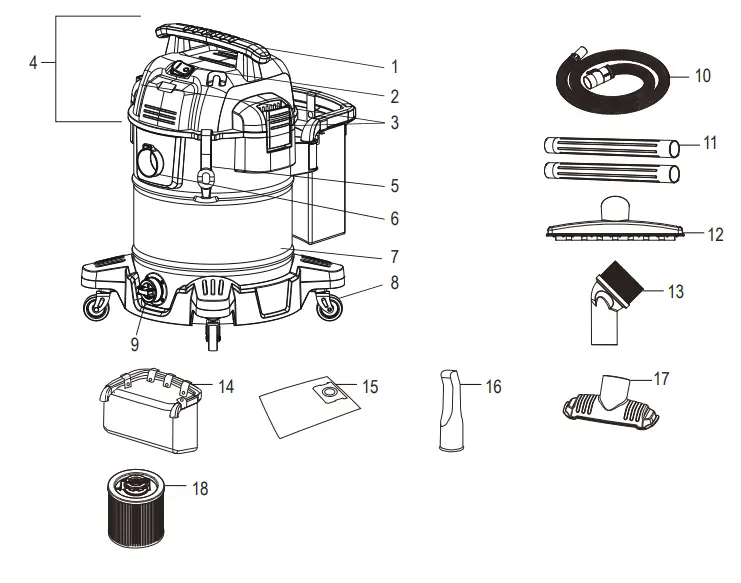

| # | DESCRIPTION | QTÉ | RÉF. ULINE | RÉF. DU FABRICANT |
| 1 | Poignée | 1 | ———– | ———– |
| 2 | Interrupteur d’alimentation | 1 | ———– | ———– |
| 3 | Loquet du couvercle | 2 | ———– | ———– |
| 4 | Ensemble moteur | 1 | H-8931-PH | DXV10SB-PH |
| 5 | Porte-tuyau | 1 | ———– | ———– |
| 6 | Orifice d’aspiration | 1 | ———– | ———– |
| 7 | Réservoir à poussière | 1 | ———– | ———– |
| 8 | Roulette en caoutchouc | 4 | H-9336 | DXV10SA-CASTER |
| 9 | Orifice d’évacuation | 1 | ———– | ———– |
| 10 | Tuyau résistant de 1 ⁄ po | 1 | H-9338 | DXVA19-2500 |
| 11 | Tube-rallonge | 2 | H-9072 | DXVA19-1200A |
| 12 | Suceur à sol | 1 | H-9070 | DXVA19-1900D |
| 13 | Brosse ronde | 1 | H-9069 | DXVA19-2400 |
| 14 | Sac avec porte-accessoires | 1 | H-9084 | DXVA19-5256 |
| 15 | Sac-filtre jetable | 1 | S-24037 | DXVA19-4101 |
| 16 | Buse de voiture | 1 | H-9068 | DXVA19-4333 |
| 17 | Buse utilitaire | 1 | H-9073 | DXVA19-1300 |
| 18 | Filtre à cartouche | 1 | S-24031 | DXVC6910 |
