Kingspan Ferham FC100GL Low-Level Cistern Including Byelaw Kit
Introducing Kingspan Fulham
A brand leader in cold water storage for nearly 40 years, Kingspan Ferham Cold Water Tanks are renowned for their robust design and manufacturing quality. Kingspan Ferham tanks are approved for the hygienic storage and supply of cold potable water to an open-vented cylinder; they can also be used as an expansion tank in vented heating systems. They are manufactured under a quality management system that is fully compliant with ISO 9001:2015, with cisterns not only meeting industry standards but exceeding them with some products even featuring the gold standard of full British Kitemark to BS4213:2004.
Contact Details
UK
Kingspan Water & Energy Ltd.
Tadman Street | Wakefield
West Yorkshire | WF1 5QU
T: (GB) +44 (0) 345 260 0258
T: (NI) +44 (0) 28 3836 4520
E: [email protected]
kingspancylinders.com
KingspanWaterandEnergy
@KingspanWatEner
KingspanWaterEnergy
Water & Energy
Hot Water Energy Storage GB & NI
Key Features
- Roto-moulded from approved hygienic polypropylene plastic
- Robust cistern design for maximum durability
- Available in capacities from 4 to 100 gallons (18 to 455 litres)
- Selected models Kitemarked to BS4213:2004 (Open Top Oval cisterns only)
- Manufactured from WRAS-approved materials
- 1-Year guarantee against manufacturing defects

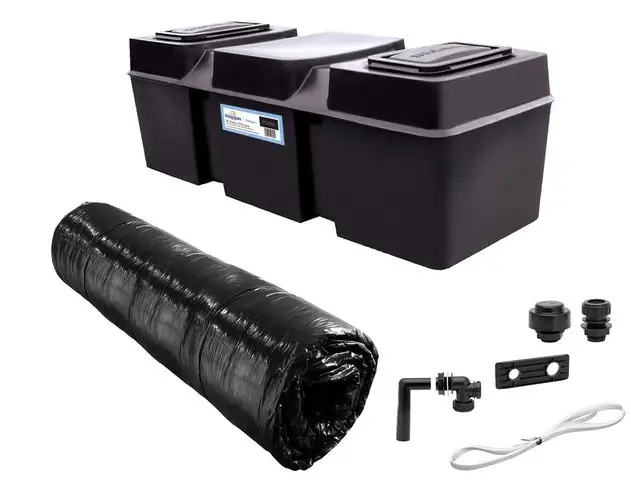

Now supplied complete with kits
To make it easier for the installer and help ensure installation complies with the water regulations, we have updated our range and now supply our most popular cisterns with kits.
Oval Kitemarked cisterns and Low Level (Coffin) cisterns only † BK4G does not include Byelaw 30 fittings (lid, insulation jacket & backplate only)
Open Top (Stackable)
Popular with installers, open-top cisterns can be easier to fit through tight loft hatches. The open top gives full access for fitting all components, making the tank substantially quicker to fit.
| Capacity | Height | Width | Depth | Code | Code | |
| G | L | (mm) | (mm) | (mm) | CISTERN | KIT |
RECTANGULAR
| 4 | 18 | 320 | 480 | 250 | FC4G | BK4G† |
OVAL – KITEMARKED to BS4213:2004
| 15 | 68 | 380 | 860 | 508 | FC15G |
Sold with kit |
| 25 | 114 | 515 | 860 | 508 | FC25G | |
| 40 | 182 | 440 | 1265 | 670 | FC40G | |
| 50 | 227 | 525 | 1265 | 670 | FC50G |
CIRCULAR
| 25 | 114 | 584 | 660 | 660 | FC25GC | BK25GC |
| 50 | 227 | 685 | 840 | 840 | FC50GC | BK50GC |

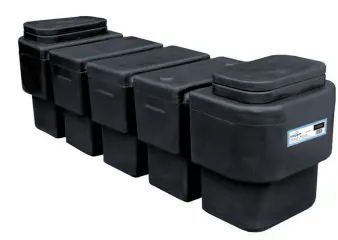

Low Level (Coffin)
Specifically designed with a low profile to make them suitable for installation in locations with limited headroom, such as lofts. They are fully enclosed to provide maximum protection from contamination.
| Capacity | Height | Width | Depth | Code | Code | |
| G | L | (mm) | (mm) | (mm) | CISTERN | KIT |
| 25 | 114 | 395 | 1120 | 490 | FC25GL |
Sold with kit |
| 40 | 182 | 495 | 1562 | 457 | FC40GL | |
| 50 | 227 | 490 | 1420 | 530 | FC50GL | |
| 100 | 455 | 590 | 1790 | 644 | FC100GL | |
We take every care to ensure that the information in this document is accurate at the point of publication. Dimensions may vary (within a small parameter) due to the manufacturing process. All images are for illustration purposes only. ®Kingspan, Fulham and the Lion Device have Registered Trademarks of the Kingspan Group in the UK and Ireland. All rights reserved. Registered No.NI017631. Registered Office: 180 Gilford Road, Portadown, Co. Armagh, BT635LF. VAT GB412 5124 03
