Ata 8013 Seated Chest Press Instruction Manual

ata 8013 Seated Chest Press

Product Information

Product Name

Ata Seated Chest Press

Model

8013

Category

Commercial

Product Description

The machine is indoor fitness equipment and is suitable for aerobic exercise. It is mainly used for strength training.

Product Parameter

Product Usage Instructions

Assembly Procedure and Bill of Materials

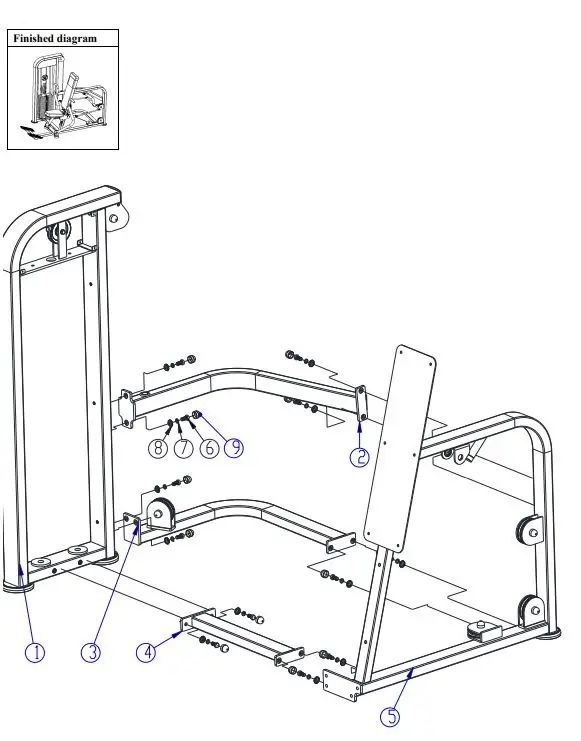

Step 1:

Refer to the finished diagram and the bill of materials below to assemble the following parts:

• Gantry
• Connection support 3
• Connection support 2
• Connection support 1
• Frame
• Outer hexagonal bolt M12X25 (Qty: 12)
• Split washer (Qty: 12)
• Drum washer (Qty: 12)
• Screw cap (Qty: 12)

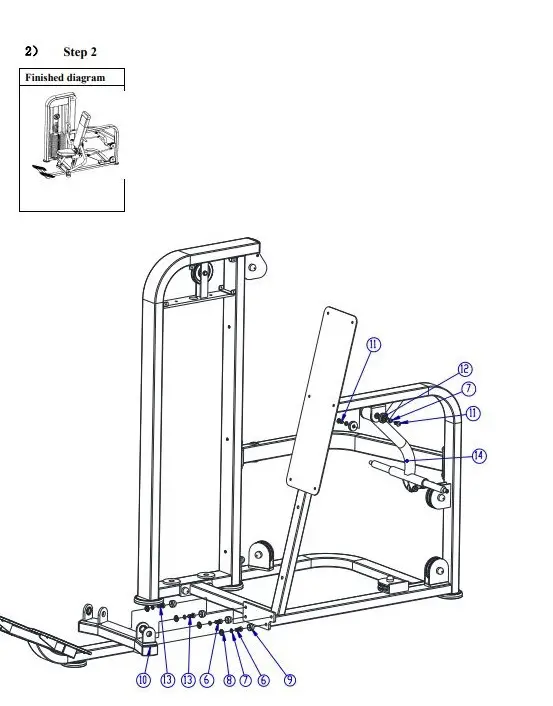

Step 2:

Refer to the finished diagram and the bill of materials below to assemble the following parts:

• Outer hexagonal bolt M12X25 (Qty: 2)
• Split washer (Qty: 6)
• Drum washer (Qty: 4)
• Screw cap (Qty: 4)
• Pedal assembly (Qty: 1)
• Hexagon pan head bolt M12X25 (Qty: 2)
• Axle end washer 43.5*14.5 (Qty: 2)
• Outer hexagonal bolt M12X20 (Qty: 2)
• Drive frame (Qty: 1)

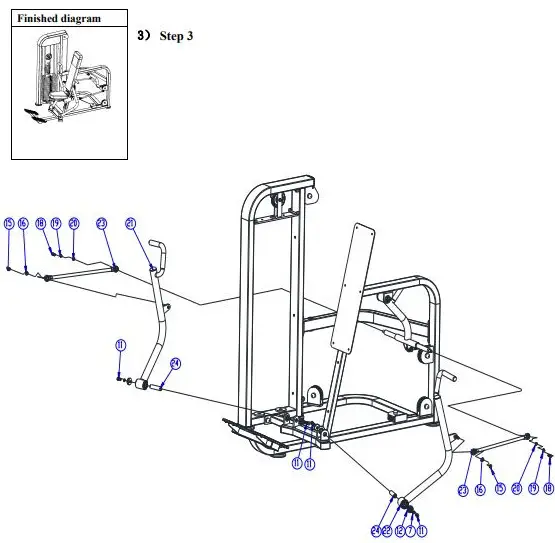

Step 3:

Refer to the finished diagram and the bill of materials below to assemble the following parts:

• Split washer (Qty: 4)
• Hexagon pan head bolt M12X25 (Qty: 2)
• End cap 43.5*14.5 (Qty: 2)
• M hexagon locknut M12 (Qty: 1)
• Flat washer (Qty: 2)
• Hexagon pan head bolt M10X25 (Qty: 2)
• Split washer (Qty: 2)
• Right movable arm (Qty: 1)
• Left movable arm (Qty: 1)
• Left stem end bearing SA16, assemble with clockwise tooth hexagon nut (Qty: 2)
• Seat rotary shaft 25*93 (Qty: 1)

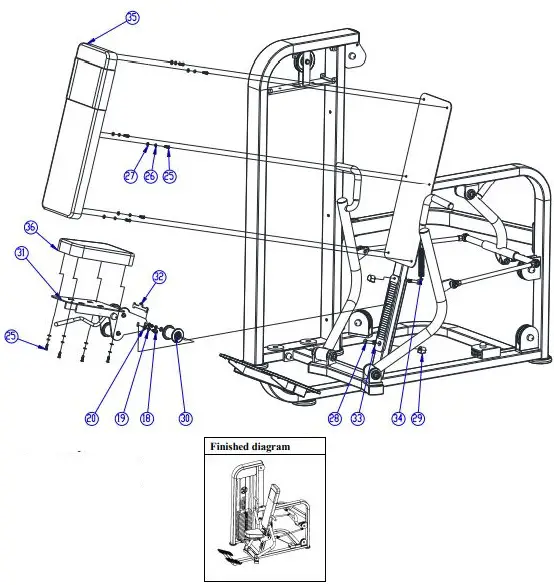

Step 4:

Refer to the finished diagram and the bill of materials below to assemble the following parts:

• Hexagon pan head bolt M10X25 (Qty: 2)
• Split washer (Qty: 2)
• Flat washer (Qty: 2)
• Hexagon pan head bolt M8X25 (Qty: 10)
• Split washer (Qty: 10)
• Flat washer (Qty: 10)
• Hexagon countersunk bolt M10X65 (Qty: 2)
• Stop block 26*39*25.5 (Qty: 1)
• Idler wheel (Qty: 2)
• Seat assembly (Qty: 1)
• The tension spring 113*36*T6 (Qty: 2)
• Adjusting plate 70*382*13 (Qty: 1)
• The tension spring 25*183*2.2 (Qty: 2)
• Cushion 838*250*60 (Qty: 1)
• Seat 348*248*60 (Qty: 1)

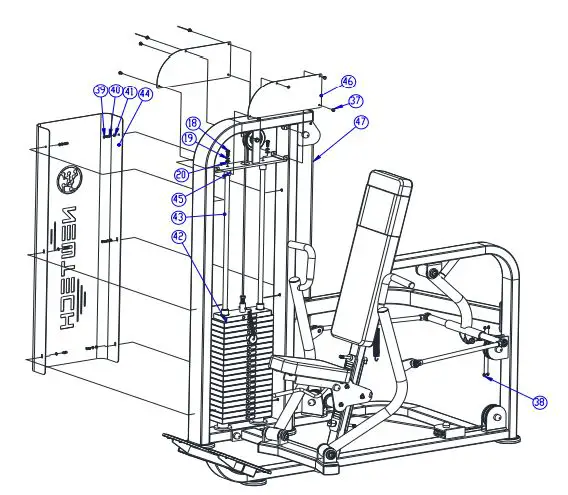

Step 5:

Refer to the finished diagram and the bill of materials below to assemble the following parts:

• Hexagon pan head bolt M10X25 (Qty: 2)
• Split washer (Qty: 2)
• Flat washer (Qty: 2)
• Hexagon pan head bolt M5X12 (Qty: 8)
• Hexagon flat locknut M8X10 (Qty: 4)
• Hexagon cylinder head bolt M6X15 (Qty: 6)
• Split washer (Qty: 6)
• Flat washer (Qty: 6)
• Weight stack 100KG (Qty: 1)
• Guide rod 20*1344 (Qty: 2)
• Safety board 1240*621.4*T2 (Qty: 1)
• Guide rod fixing sleeve 30*33 (Qty: 2)
• Training flitch plate 415*174*T2 (Qty: 2)
• Steel cable 6*4300 (Qty: 1)

Step 6:

Please refer to the pulley installation instructions provided separately.

Maintenance Guideline

1. All the bolts and screws should be inspected regularly and kept tightened. Rotating parts should be flexible without abnormal sound.
2. The machine should be kept clean. Please DO NOT clean the machine with strong cleaning solvent.
3. Any worn or damaged stress parts should be repaired or changed immediately.

Troubleshooting

If you encounter any issues with the product, please contact support at 66101400 or [email protected]

Warranty Instruction

Warranty information is not provided in the user manual.

IMPORTANT NOTICE

Thank you for choosing our machine, proper use of the machine is important to keep you convenient and away from danger. Please read the instruction before operating the machine:

1. Please read all user manuals before operating the machine and operate the machine according to the instructions. Please keep the user manual until the machine is scrapped.
2. Keep users read and understand all cautions
3. Keep air fresh, flowing and enough motion space for users when operating the machine.
4. Keep the machine in good condition. Ensure all fixed parts are tightened without extra parts. Inspect the parts easy to wear out regularly.
5. Please contact the dealer or after-sales department to change wear-out or defective parts. DO NOT operate the machine when it out of use.
6. Please wear proper sports dress and gym shoes before operating it, DO NOT wear skirt, jewelry and tie up the hair to avoid any possible dangers.
7. Do warm-up exercises before operating the machine.
8. Stop workout and ask your doctor when any abnormal symptoms occur such as headache, pain or emesis, etc.
9. Children must exercise under the supervision of adults.
10. WARNING: Keep hands and feet away from moving parts.
11. WARNING: DO NOT beyond adjustable setting range.
12. WARNING: Keep children or pets away from the machine when operating it.
13. WARNING: Keep all control apparatus in proper position.
14. WARNING: Please operate the machine in proper way, improper operating may not achieve workout effect of the machine, and lead to damage to your health.
15. Operating the machine in controlled area is recommended.

ASSEMBLY PROCEDURE

Step 1

Step 2

Step 3

Step 4

Step 5

Step 6

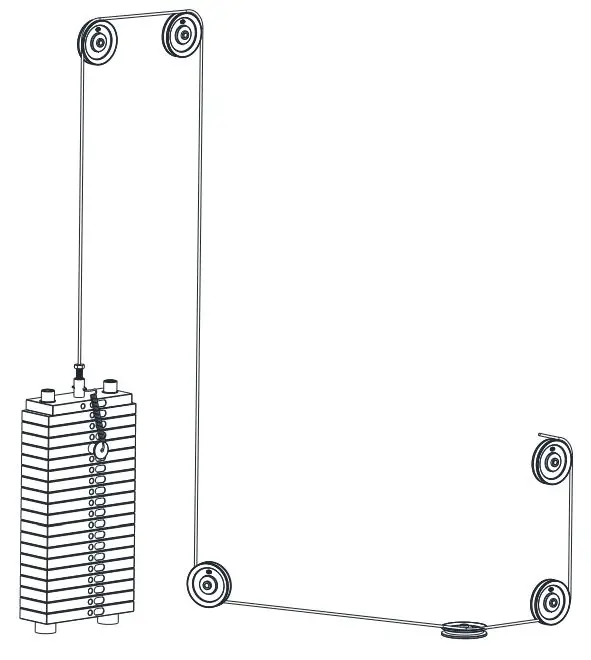

Pulley installation instruction:

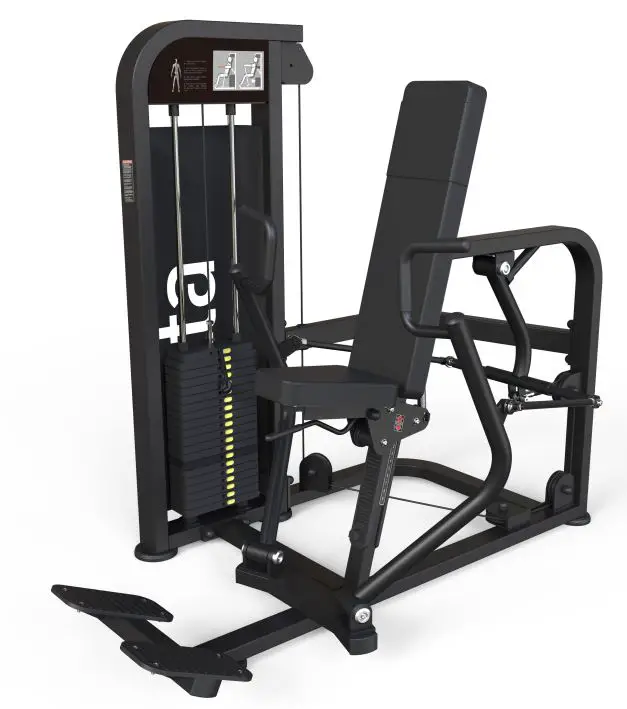

PRODUCT DESCRIPTION

• The machine is indoor fitness equipment, suitable for aerobic exercise, mainly used to strengthen the cardio-pulmonary function and train the muscles supplemented.
• By workout with the machine pectorals and other muscles can be built up, achieving the purpose of bodybuilding and fitness.
• The machine explains how to operate it properly and build up muscles by functional diagram, easy to learn. Users can adjust the resistance by weight stack easily.
• The design and manufacture of the machine meet the human motion curve, the safety and durability are guaranteed.
• The design and manufacture of the machine meets the human motion curve and meets the standard of GB17498.1-2008 and GB17498.2-2008, the safety and durability are guaranteed.
• Large-size steel tubes and electrostatic spraying guarantee safety and durability.

PRODUCT PARAMETER

MAINTENANCE GUIDELINE

1. All the bolts and screws should be inspected regularly and kept tightened; rotating parts should be flexible without abnormal sound.
2. The machine should be kept clean. Please DO NOT clean the machine with strong cleaning solvent.
3. Any worn or damaged stress parts should be repaired or changed immediately.

TROUBLESHOOTING

Please contact support at 66101400 or [email protected]

WARRANTY INSTRUCTION

1. Warranty scope
   • The machine is damaged by any non-impersonal factors under proper maintenance. The warranty card is valid only when the user is an original buyer.
2. The warranty period is one year after buying the machine.
3. The below-listed damages are out of warranty:
   1. the damages caused by abuse, carelessness, accident, or unauthorized modification.
   2. the damages caused by improper adjusting the weight stack pin.
   3. the damages caused by improper maintenance.
   4. the damages caused by other violations operating.
