Sanus Wss52 Wireless Speaker Stand Instruction Manual

WSS52 Wireless Speaker Stand
Instruction Manual

WSS52 Wireless Speaker Stand

Before getting started, let’s make sure this product is perfect for you! This stand is designed to support the Sonos® PLAY:5™ and Five™ speaker only.
CAUTION: Avoid potential personal injuries and property damage!

• Check your speaker owner’s manual to see if there are any special requirements for mounting your speaker.
• Please read through these instructions completely to be sure you’re comfortable with this easy installation process.
• Do not use this product for any purpose not explicitly specified by the manufacturer.
• The manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
• If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at: US: +1 (800) 359-5520 • UK: +44 (0) 800 056 2853 • EMEA: +31 (0) 495 580 852.

Speaker Weight Limit DO NOT EXCEED
Tool Needed

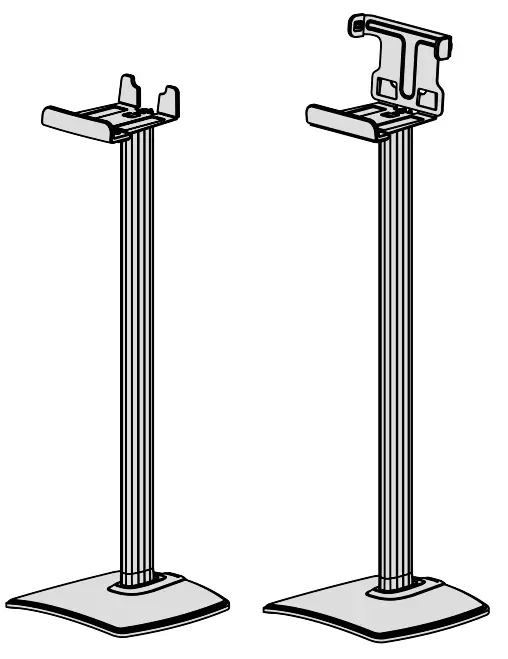

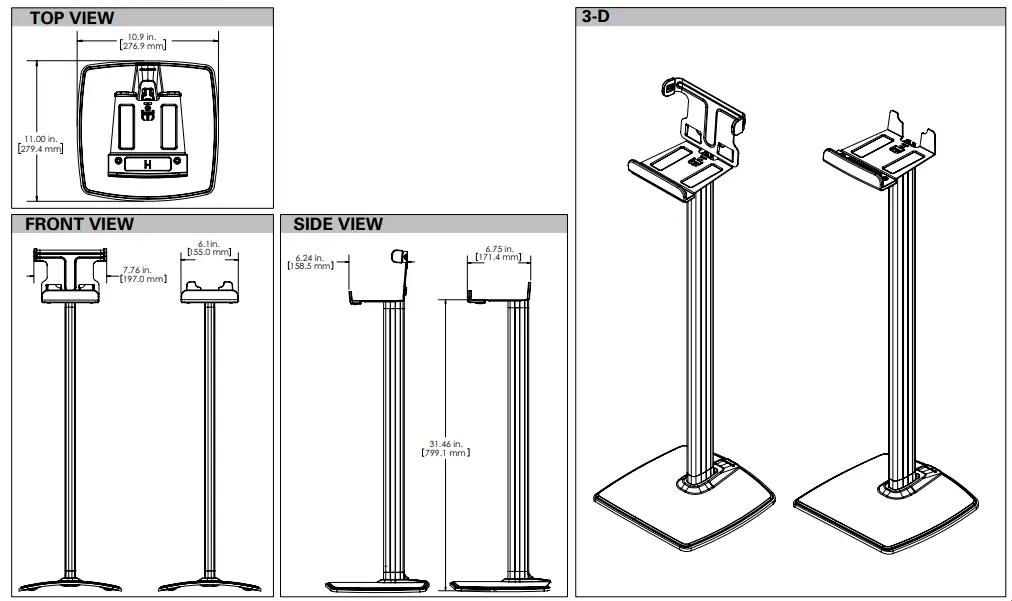

Dimensions

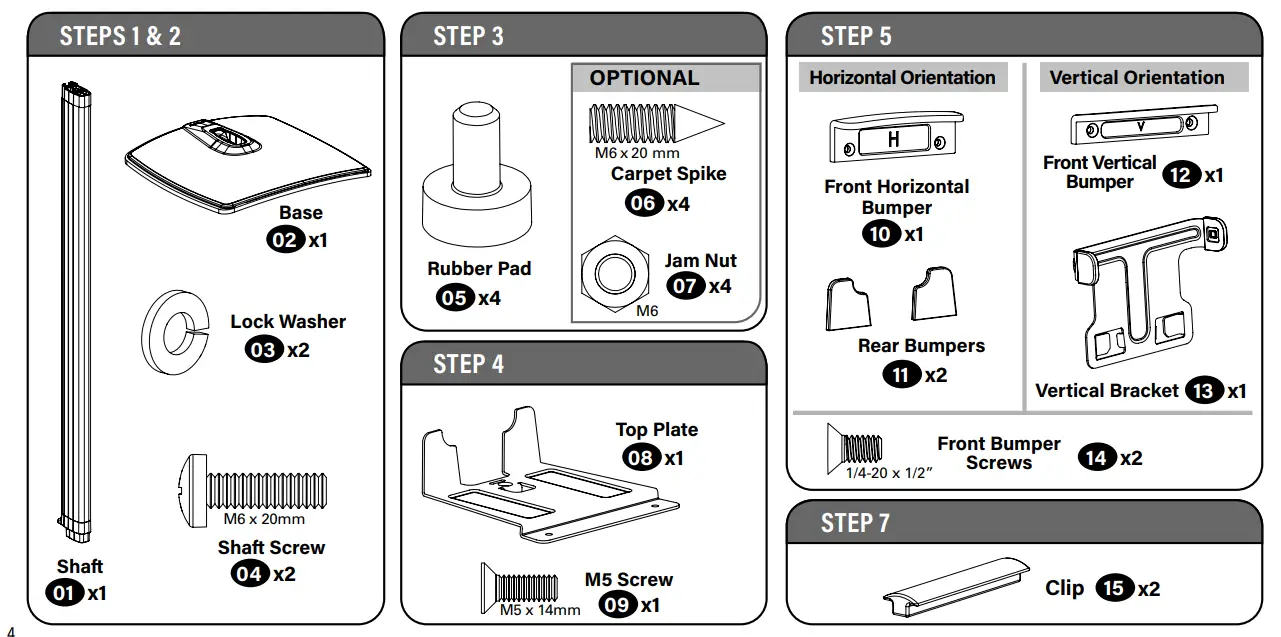

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.

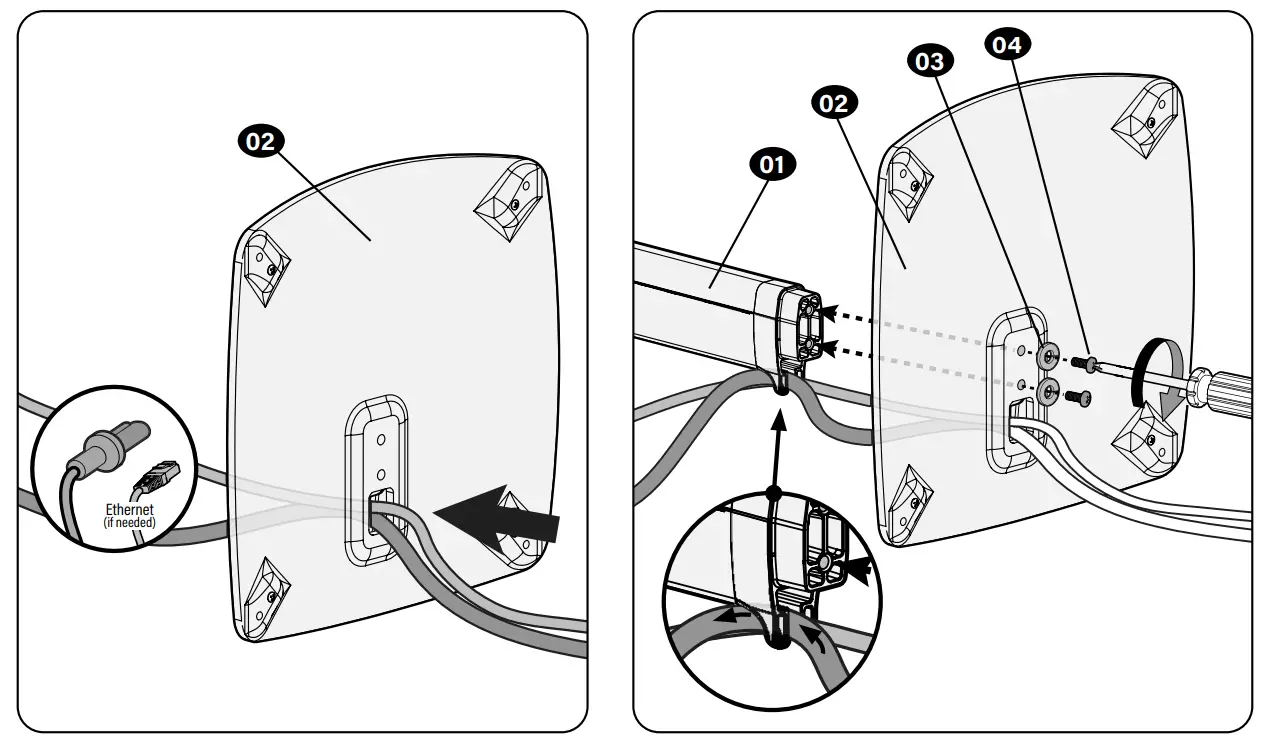

STEP 1 Route Power Cables	STEP 2 Attach Base to Shaft

STEP 3

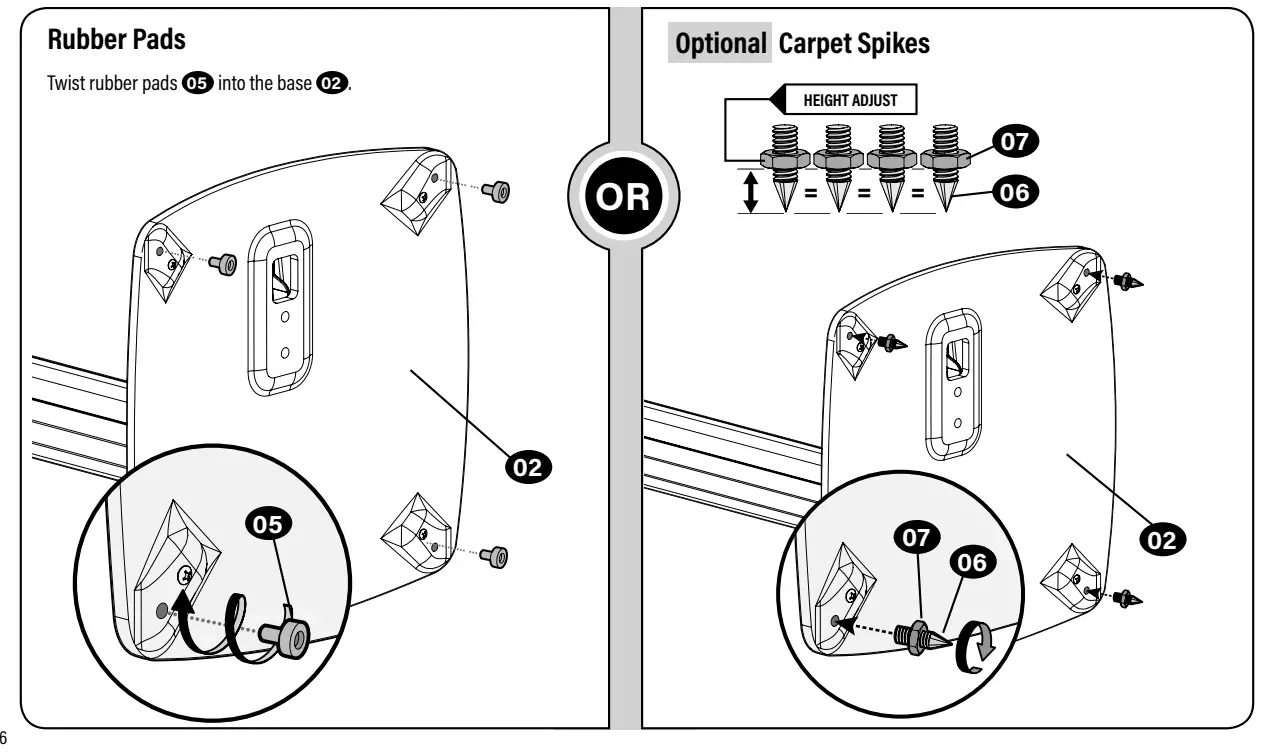

Install Rubber Pads -or- Carpet Spikes

WARNING: The ends of carpet spikes 06 are sharp and may scratch flooring, damaged wiring, or be hazardous to children.

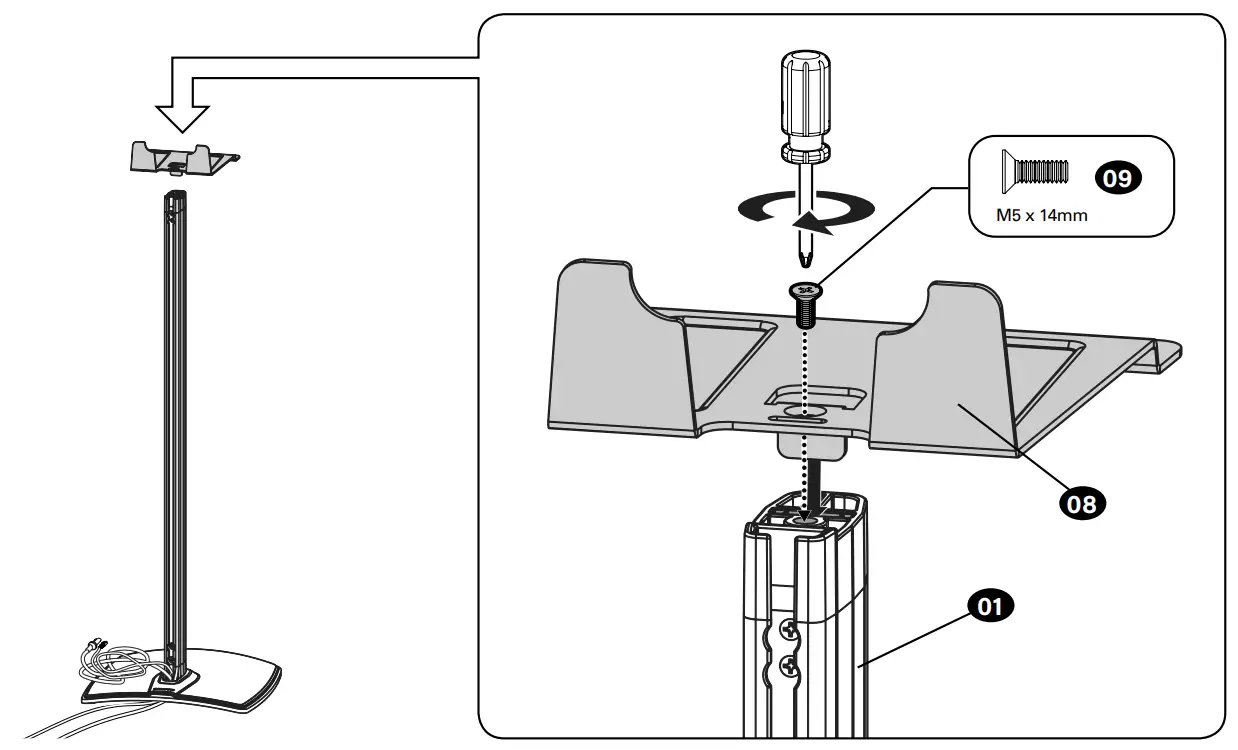

Attach the Top Plate to the Shaft

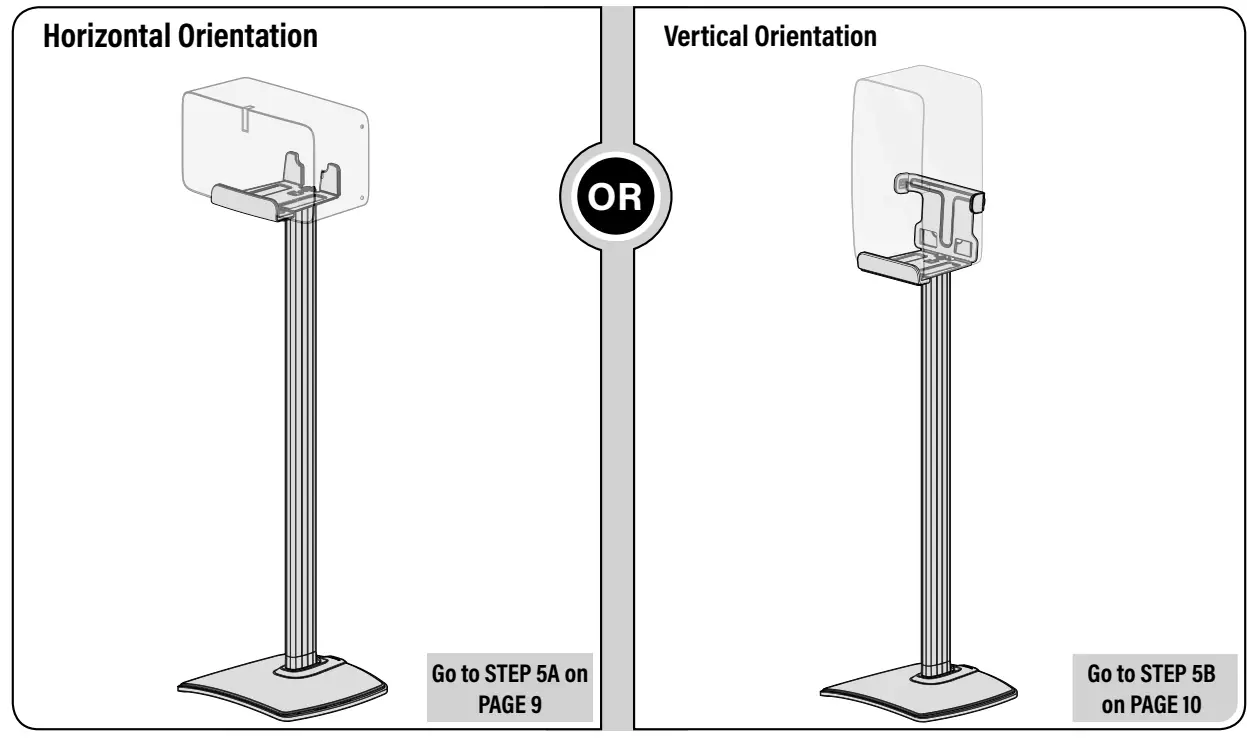

Determine Speaker Orientation

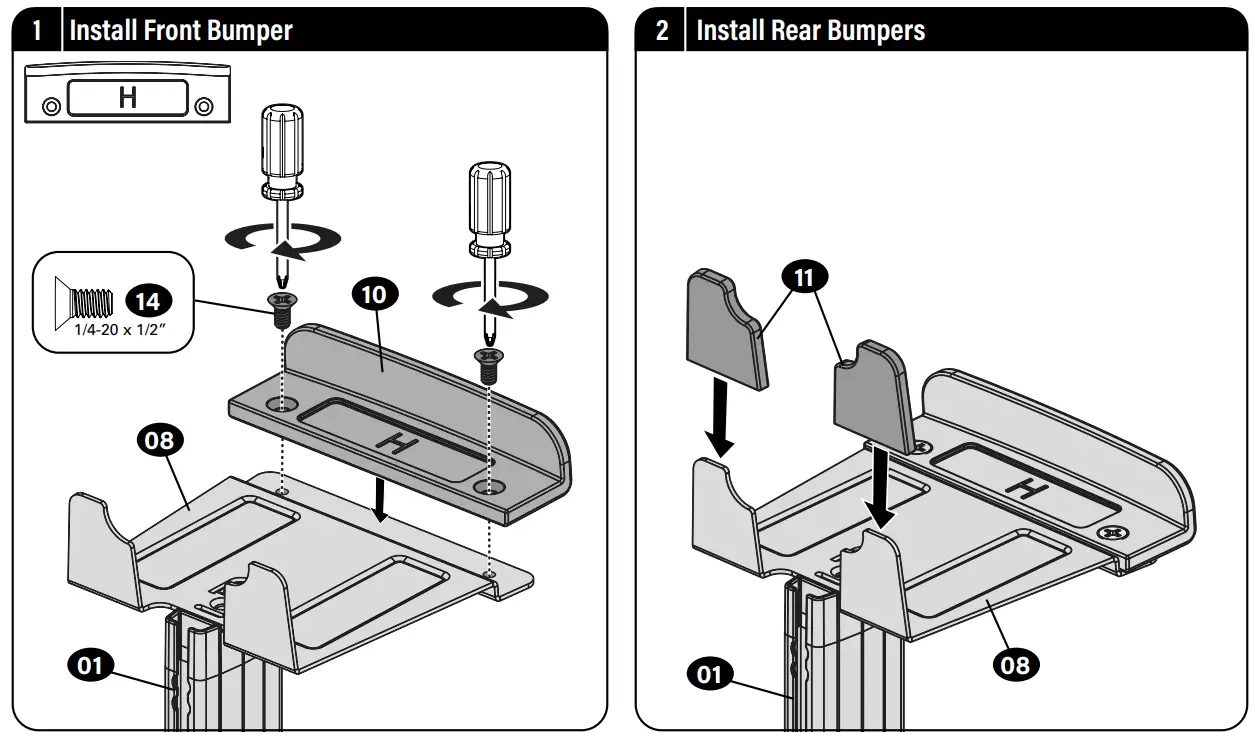

Horizontal Orientation

Vertical Orientation

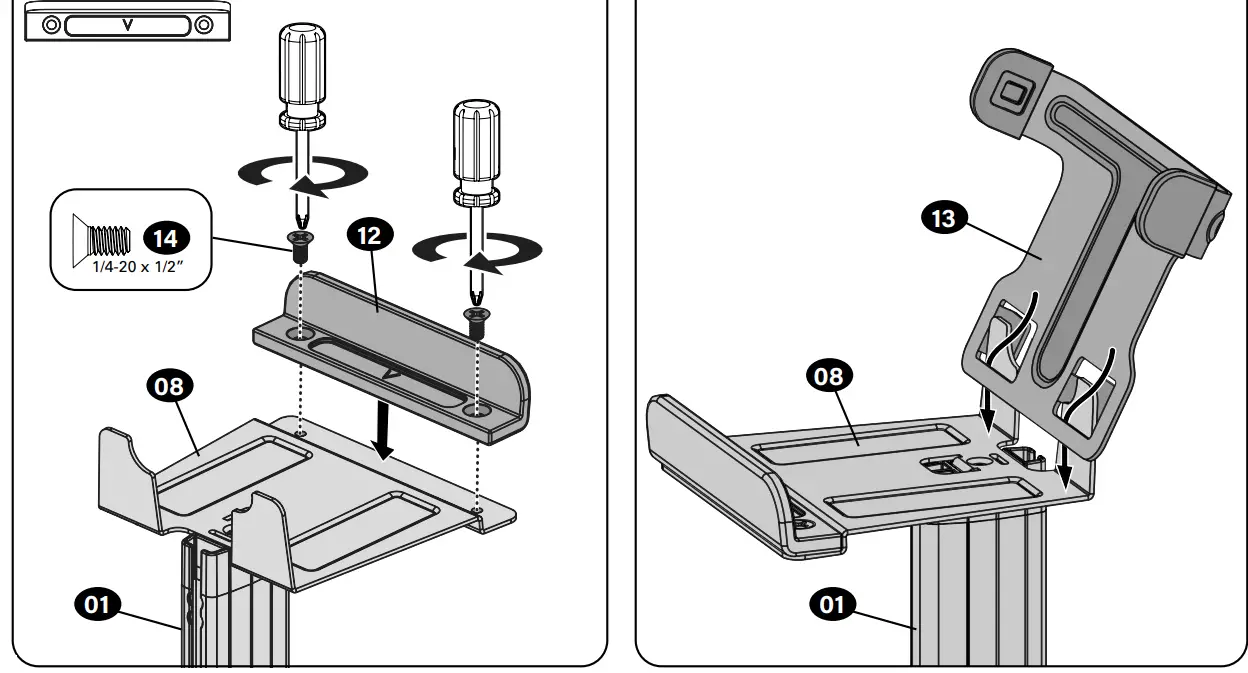

Install Front Bumper	2 Slide Rear Bracket onto Rear Tabs

Vertical Orientation (Continued)

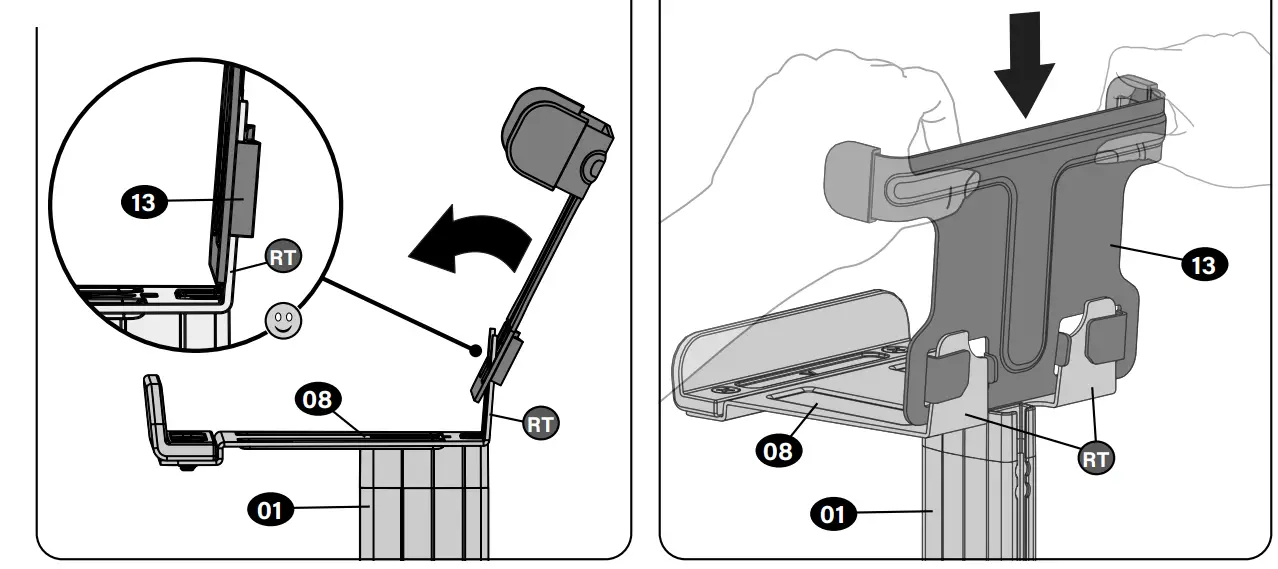

Rotate Rear Bracket Forward Rotate the vertical bracket 13 forward until the rear tabs RT on the top plate 08 is behind the vertical bracket 13.	CAUTION: Apply light force – DO NOT OVERBEND Secure Rear Bracket

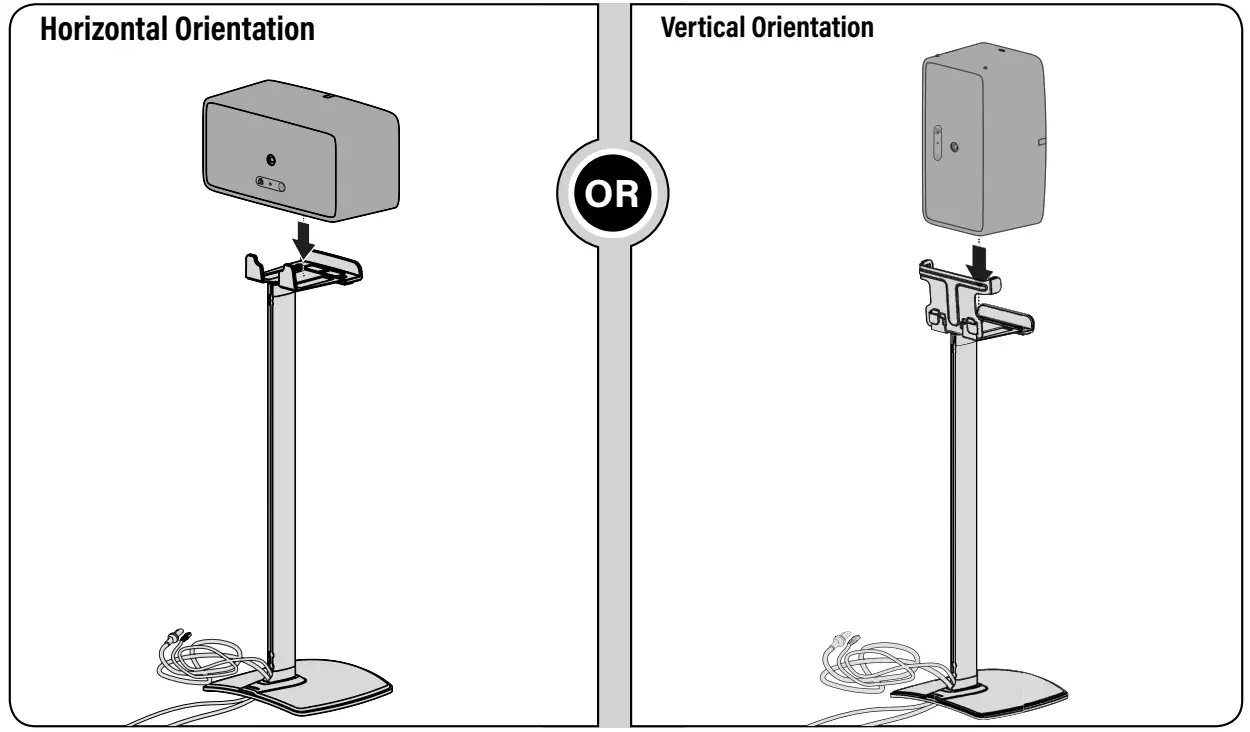

Install Speaker

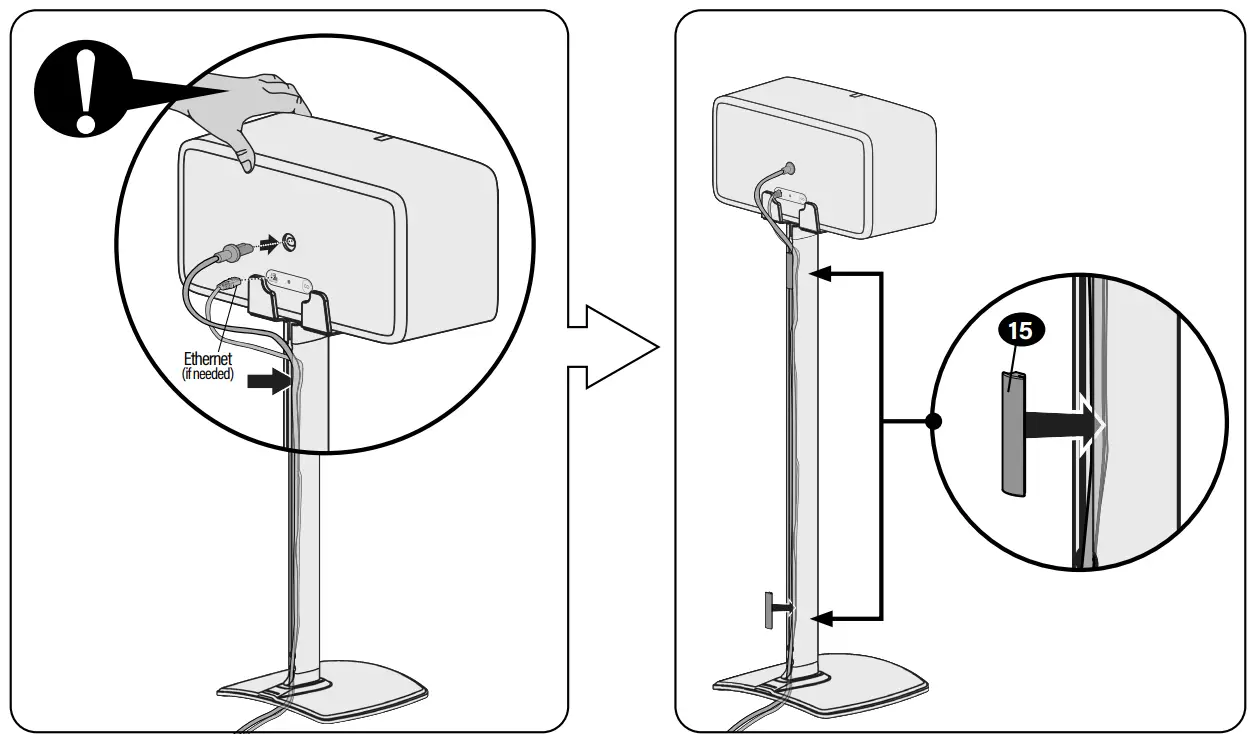

Secure Cables

Legrand AV Inc and its affiliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand makes no representation or warranty, expressed or implied, regarding the information contained herein. Legrand assumes no responsibility for the accuracy, completeness, or sufficiency of the information contained in this document.

Thank you for choosing SANUS! Please take a moment to let us know how we did:

Legrand AV Inc. and its affiliated corporations and subsidiaries (collectively, “Legrand”), intend to make this manual accurate and complete. However, Legrand AV makes no claim that the information contained herein covers all details, conditions, or variations. Nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Legrand AV makes no representation or warranty, expressed or implied, regarding the information contained herein. Legrand AV assumes no responsibility for the accuracy, completeness, or sufficiency of the
information contained in this document.

©2021 Legrand AV Inc. All rights reserved. SANUS is a brand of Legrand.
Sonos and Sonos product names are trademarks or registered trademarks of Sonos, Inc.
Legrand AV Inc. • 6436 City West Parkway • Eden Prairie, MN 55344 USA
6901-602715 00
