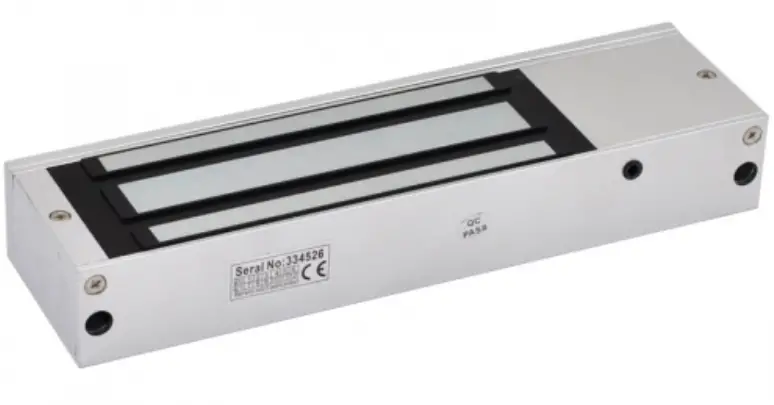

ELSEMA ML500 Magnetic Lock

Features

Dual Voltage. 12/24VDC User selectable.
For outdoor use
Holding Force up to 500KG/1200lbs
Corrosion free
No noise
No magnetism during power failure
Built-in Voltage spike suppressor

Application

Sliding gates or swing gates
Overhead doors or door entrance

Description

The ML500 is an electromagnetic lock which is designed to hold up to 500Kg force. The ML500 magnetises when 12/24VDC is applied to the supply wires. The ML500 is ideal for installation on automatic sliding or swing gates, doors etc.
The lock can be mounted directly or with the L bracket supplied. It must be rigidly mounted to the gate post. The armature is designed to pivot slightly to compensate for reasonable misalignment.
Due to the wide diversity of gate designs custom mounting brackets may be necessary to facilitate the installation.

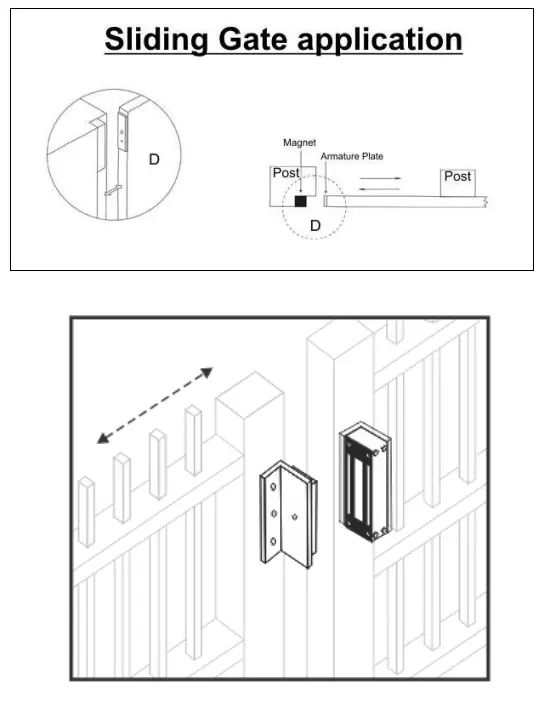

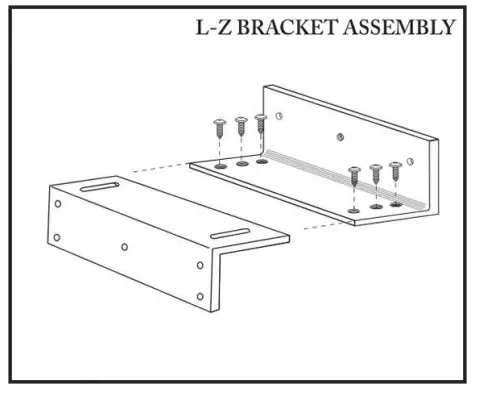

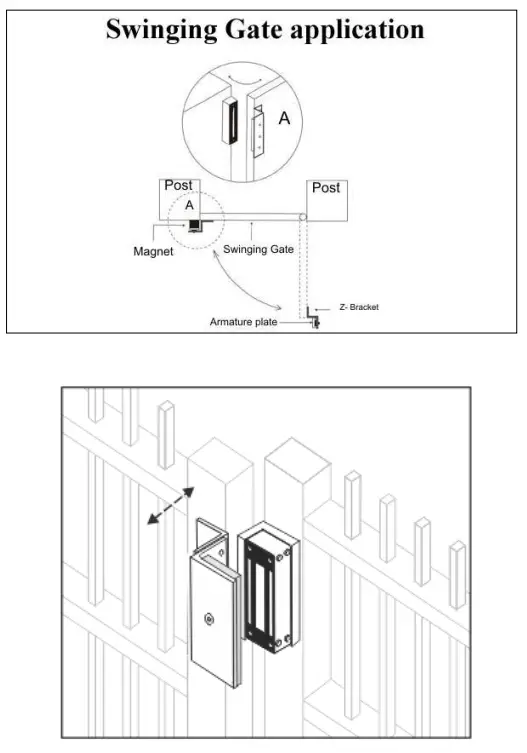

L-Z bracket can be used to accommodate the majority of gate and door applications. The lock is mounted to the vertical gate post. The armature is mounted to the leading edge of the gate.

Technical Data

Power Source		12 Volts DC	24 Volts DC
Operating Current		500mA	250mA
Holding Force		500Kg, 1200lbs.
Output		Reed switch output: COM, NO, NC. Rated at 500mA at 30VDC/AC
Connections		Striped wire
Shipping Weight (Including brackets)		4500 grams
Dimensions	Lock	220 x 70 x 50mm
	Armature	185 x 61 x 16mm

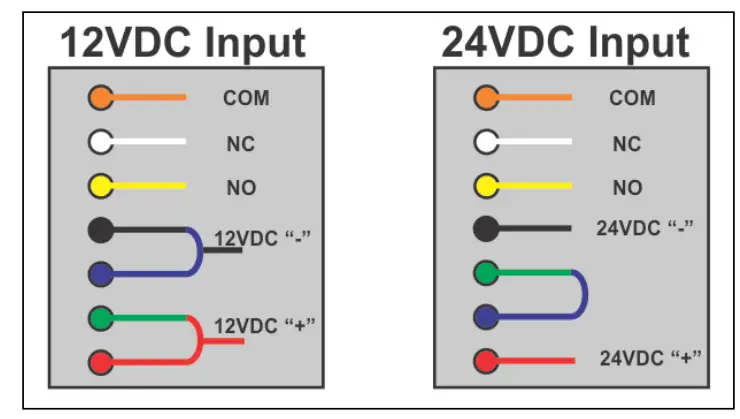

Input Voltage selection/ Output

12VDC :
- Connect Black and Blue wires together for negative (-12VDC)
- Connect Red and Green wires together for positive (+12VDC)
24VDC : Connect Green and Blue together and supply 24VDC to Red and Black wires. Red for positive and black for negative.

Reed switch output (indicates when the armature is engaged with the magnet)
