FAS-OUT 1200 Waterproof Outdoor Magnetic Lock
User’s Manual

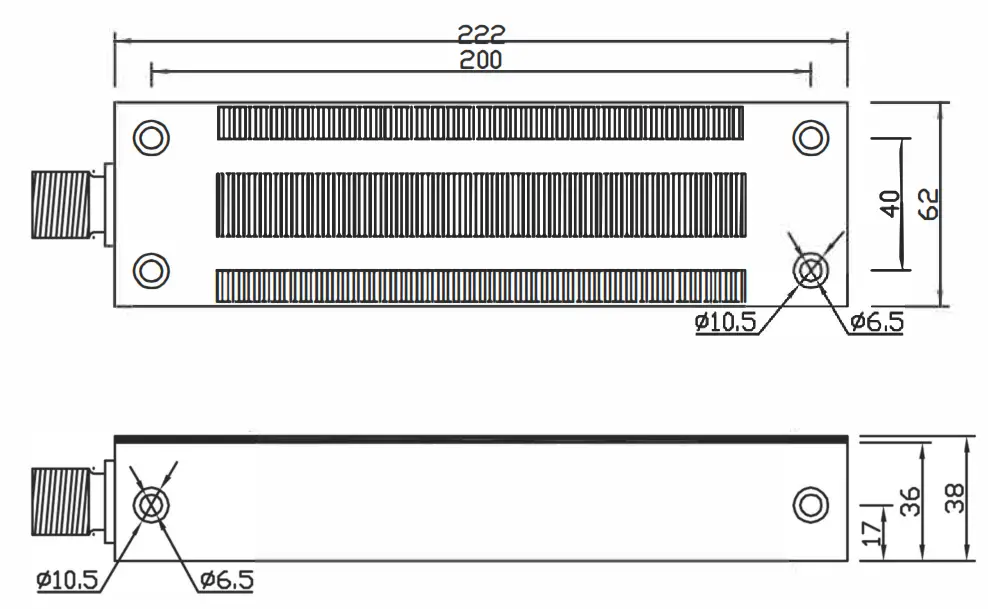

Magnetic lock dimension drawing
FAS-OUT 1200 Waterproof Outdoor Magnetic Lock

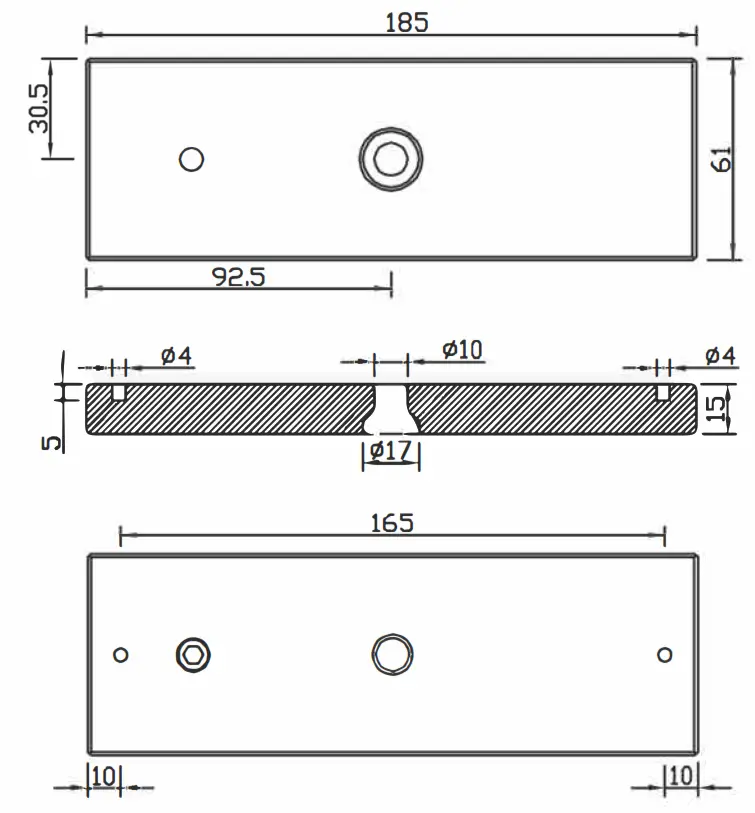

Adsorption board size chart
| Operating Voltage: | DC12V | DC24V |
| Operating Current: | 500mA | 250mA |

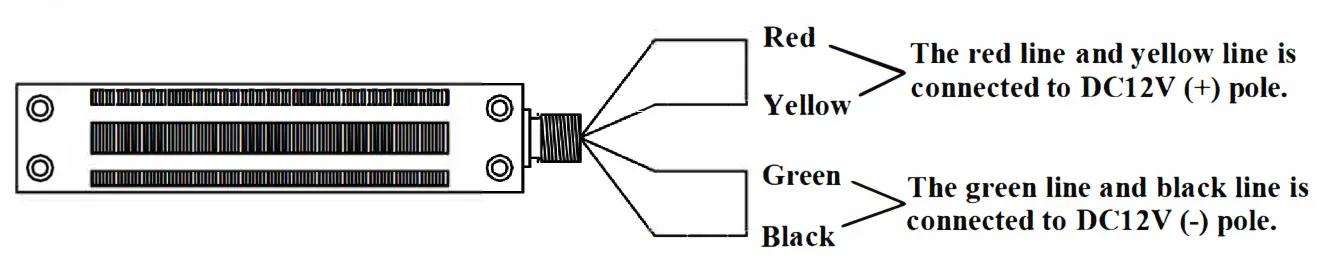

A.12VDC Input:

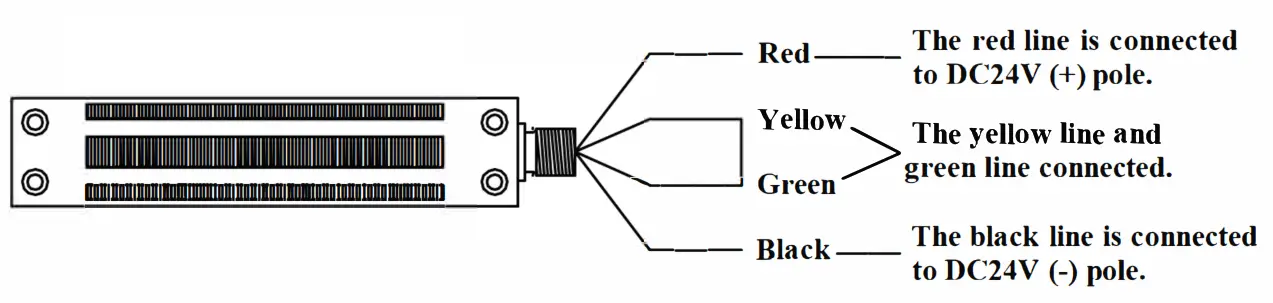

B.24VDC Input:

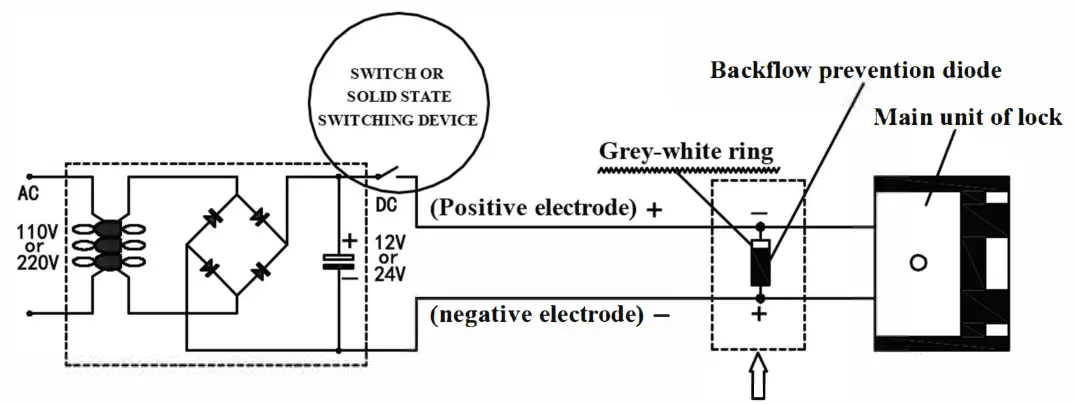

C. Connection method of backflow prevention diode:
Connection method of backflow prevention diode:
A.Connect the negative electrode of the diode with the positive electrode of the lock body.
B.Connect the positive electrode of the diode with the negative electrode of the lock body.
