Magnetic Locks and Accessories
Cross Reference Guide

Contents hide

1 Magnetic Locks and Accessories Cross

2 300 and 600 Series Maglocks

3 1200 Series Maglocks

4 Documents / Resources

4.1 References

5 Related Posts

Magnetic Locks and Accessories Cross

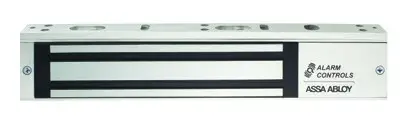

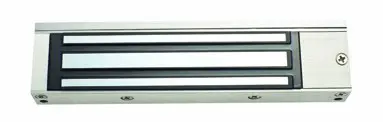

	MODEL 300S	300 lbs Single Lock Ideal for cabinets and showcases

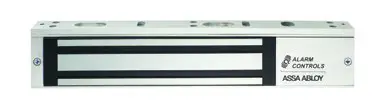

	MODEL 600S	600 lbs Single Lock Recommended for interior doors
	MODEL 600L	600 lbs Single Lock with status LED Recommended for interior doors
	MODEL 600 LB	600 lbs Single Lock with Bond Sensor, Door Status Sensor and LED Recommended for interior doors
	MODEL 600D	600 lbs Double Lock Recommended for interior doors
	MODEL 600DLB	600 lbs Double Lock with Bond Sensor, Door Status Sensor and LED Recommended for interior doors

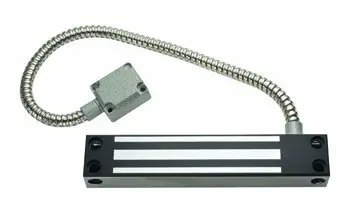

	MODEL 600WP	600 lbs Weatherproof Gate Lock Recommended for exterior gates

300 and 600 Series Maglocks

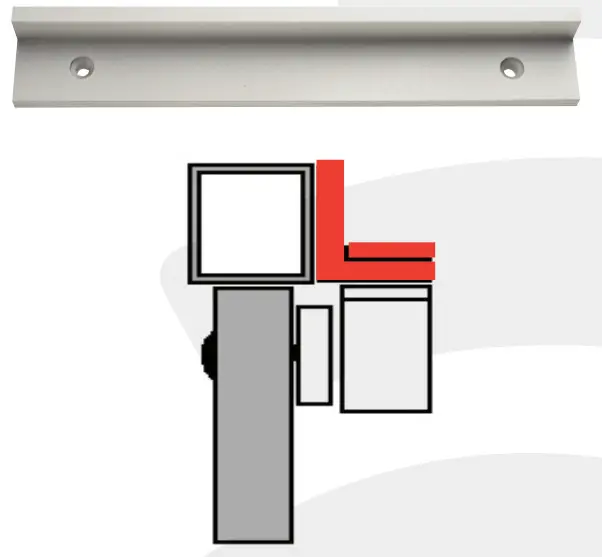

L-Brackets
	AM3320	AM3320C	AM3325	AM3326
300S
600S	●	●	●
600D				●
600DLB				●
600L	●	●	●
600WP	●	●

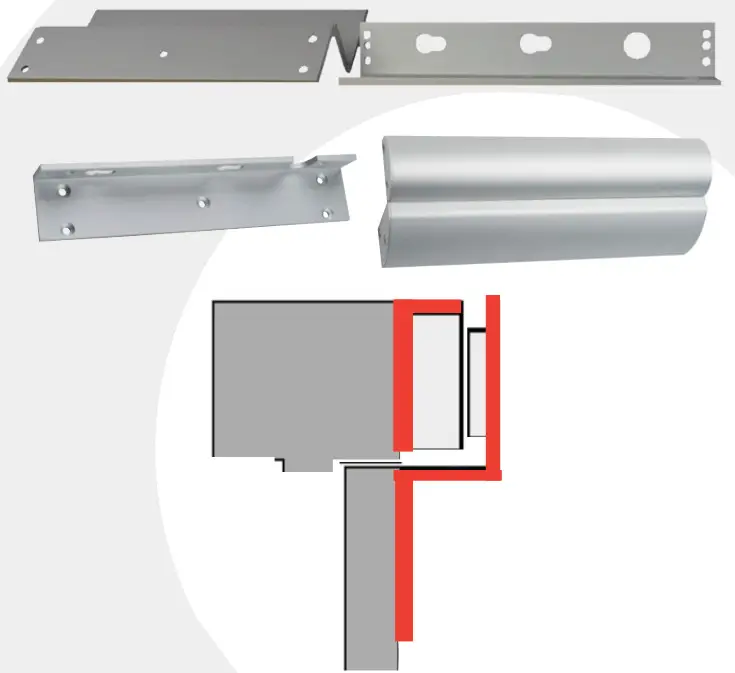

Z-Brackets
	AM2370	AM3370	AM3370C	AM3375
300S	●
600S		●	●
600D				●
600DLB				●
600L		●	●
600WP		●	●

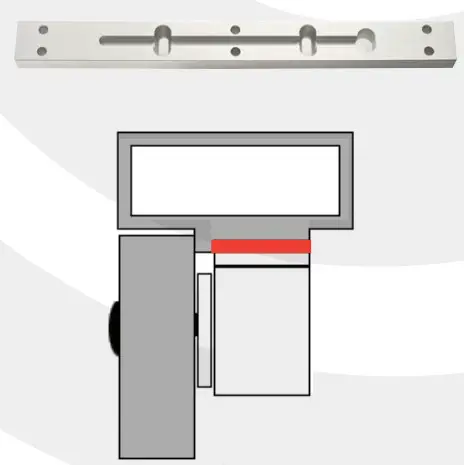

Drop Down Plates for Single Locks
	AM1500	AM3300	AM3305	AM3330
	1/8”	1/2”	5/8”	1/4”
300S	●
600S		●	●	●
600L		●	●	●
600LB		●	●	●
600WP		●	●	●

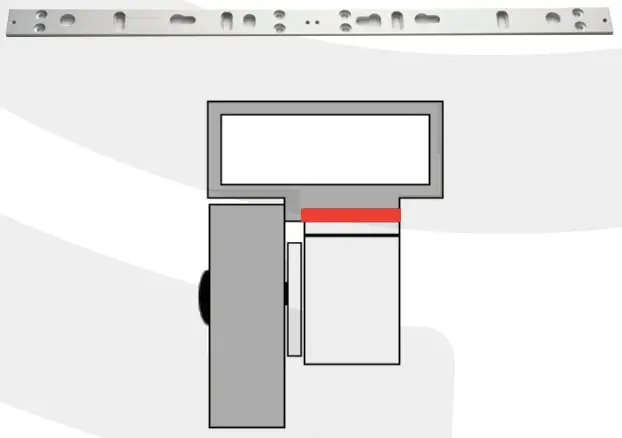

Drop Down Plates for Double Locks
	AM3331	AM3332	AM3334
	1/4”	1/2”	1/4”
600D	●	●	●
600DLB	●	●	●

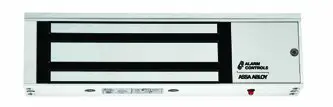

	MODEL 1200S	1200 lbs Single Lock Recommended for exterior doors
	MODEL 1200L	1200 lbs Single Lock with status LED Recommended for exterior doors
	MODEL 1200LB	1200 lbs Single Lock with Bond Sensor, Door Status Sensor and LED Recommended for exterior doors
	MODEL 1200D	1200 lbs Double Lock with Bond Sensor, Door Status Sensor and LED Recommended for exterior doors
	MODEL 1200WP	1200 lbs Weatherproof Gate Lock Recommended for exterior gates

1200 Series Maglocks

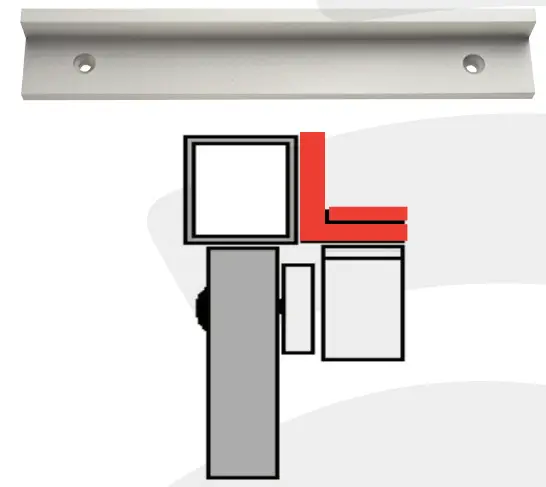

L-Brackets
	AM6320	AM6320C	AM6325	AM3326
1200S	●	●	●
1200D
1200DLB	●	●	●	●
1200L	●	●	●	●
1200WP	●	●	●

Z-Brackets
	AM6370	AM6370C	AM6375
1200S	●	●
1200D			●
1200DLB			●
1200L	●	●
1200WP	●	●

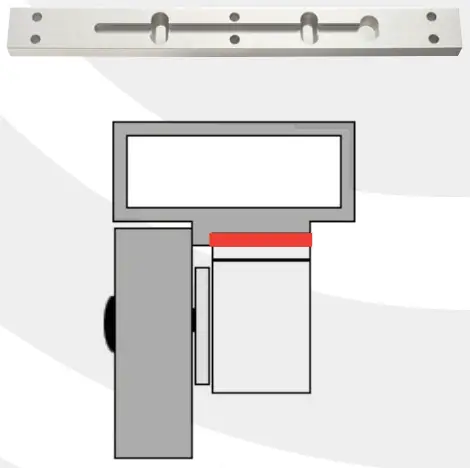

Drop Down Plates for Single Locks
	AM6300	AM6305	AM6330
	1/2”	5/8”	1/4”
1200S	●	●	●
1200L	●	●	●
1200LB	●	●	●
1200WP	●	●	●

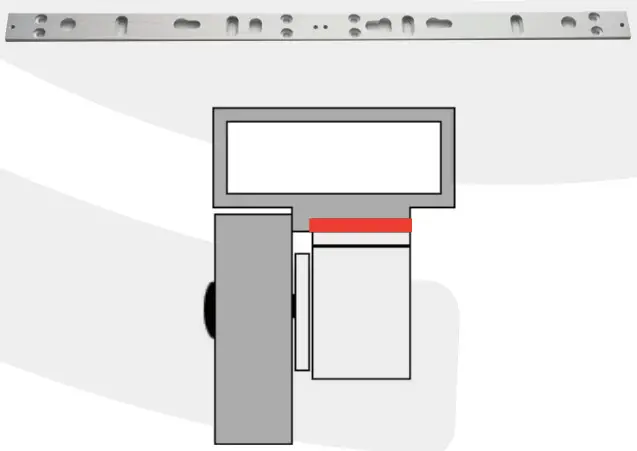

Drop Down Plates for Double Locks
	AM6331	AM6332	AM6334
	1/2”	5/8”	1/4”
1200D	●	●	●

alarmcontrols.com • 800.645.5538
Copyright © 2021, Hanchett Entry Systems, Inc., an ASSA ABLOY Group company. All rights reserved. Reproduction in whole or in part without the express written permission of Hanchett Entry Systems, Inc. is prohibited. AC-034-0621
