S4a 500kg Waterproof Magnetic Lock Instructions

S4A 500KG Waterproof Magnetic Lock Instructions

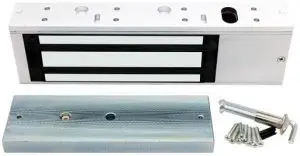

Main Parameters

• Voltage: DC12V/24V
• Current:0.5/0.25A
• Armature piate: 185mmL x 61mmW x l2mmD
• Magnet: 230mmL x 63mmW x 4OmmD
• Holding force: 1200LBS
• Operating temperature: -5°C

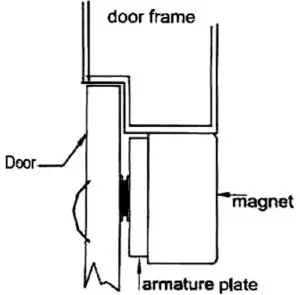

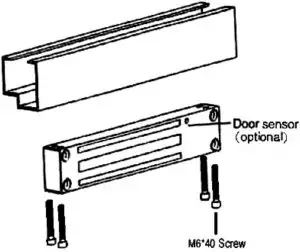

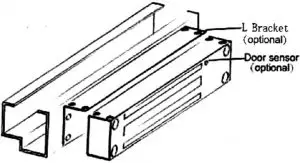

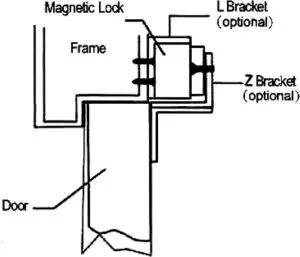

Diagram

Typical installation:

1. Out-swing door


2. In-swing door

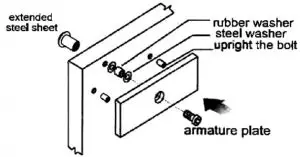

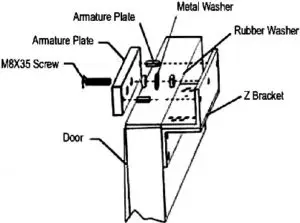

Armature Plate Mounts To The Door

Attention: Please do not over tighten the screw for the armature plate,this will ensure the rubber washer maintain the required elasticity, allowing the armature plate to auto-adjust to the proper position in accordance to the magnetism.

Connection

1. DC12V: red and yellow connects +, black and green connects — (chart 1)
   DC24V: red connects+ , and black connects—, ( yellow and green are in the line.) (chart 2)
   DC12V Input Wiring:

   Connection Method (chart 1)
   DC24V Input Wiring:

   Connection Method (chart 2)
2. Door sensor connection method (optional) (chart 3)
   If a normally open signal is needed , please connect the black and green wires.

   Door sensor

   Armature and magnet are properly alignet

   Input voltage too low or insufficient contact between armature and magnet (chart 3)


For more information, please visit www.devancocanada.com or call toll free at 855-931-3334
