INSTRUCTION MANUAL
JT Nozzles
For JTT Heater
This manual corresponds to the following references:
| Straight: JN2020 JN8417 | Bent: JN2015 JN2012 JN6633 | Flat: JN7637 JN7638 JN7639 |
The following items are included:

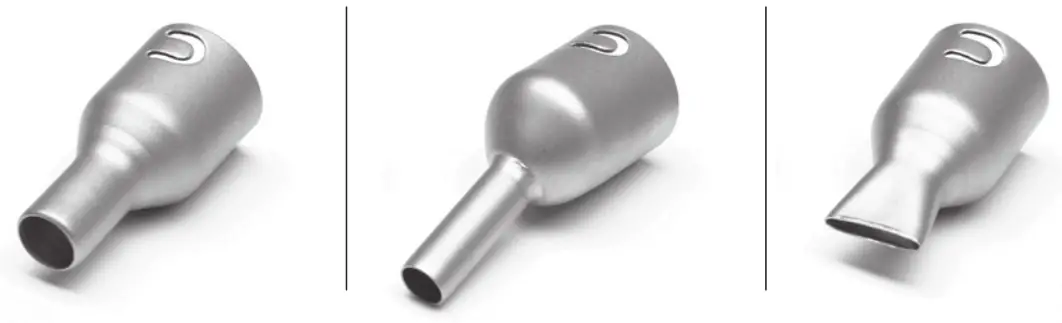

Packing List
Nozzle for JTT Heater ………………………………………………………….. 1 unit (according to purchased reference)
Manual ………………………………………………………………………………….. 1 unit Ref. 0029001

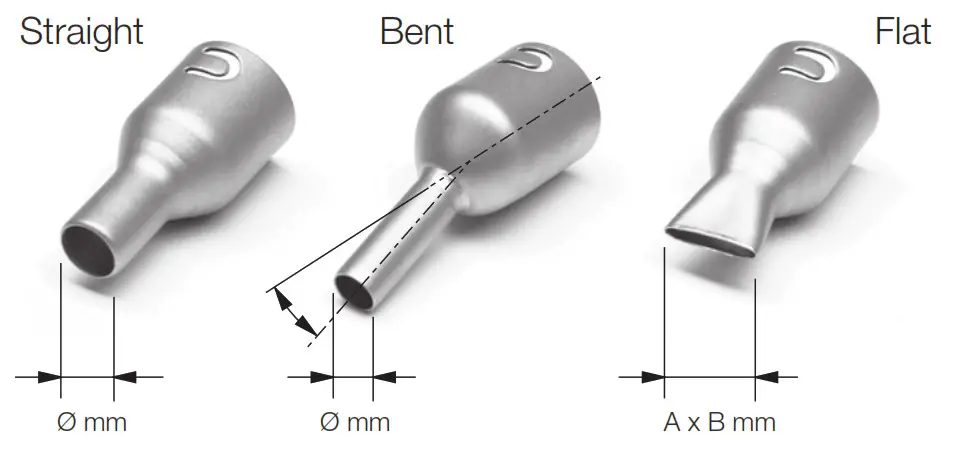

Nozzle Models
| Ref. | Shape | Size | Ref. | Shape | Size |
| JN2020 | Straight | Ø 8mm | JN6633 | Bent | Ø 8mm 18º |
| JN8417 | Straight | Ø 10mm | JN7637 | Flat | 10 x 2mm |
| JN2015 | Bent | Ø 4mm 18º | JN7638 | Flat | 20 x 2mm |
| JN2012 | Bent | Ø 6mm 18º | JN7639 | Flat | 30 x 2mm |
Maintenance

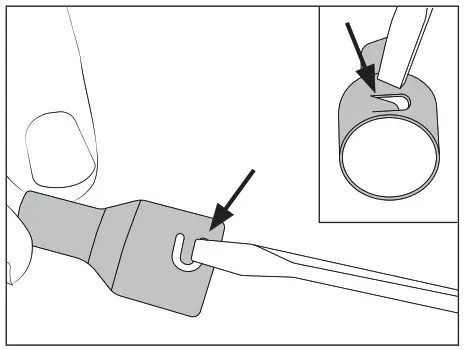

In case of a loosely fitting nozzle:
- Push the nozzle tab inwards slightly with a screw driver or flat-nosed pliers.

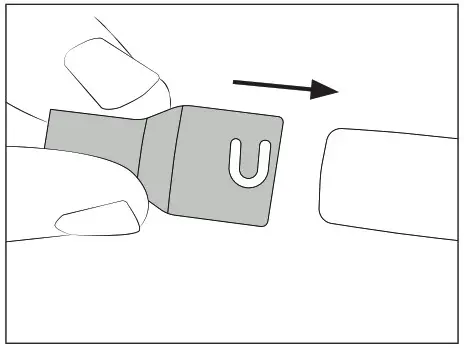

Assemble the nozzle onto JTT again.
Assemble the nozzle onto JTT again.
Specifications
JT Nozzles
For JTT Heater
| Net Weight: | Package Weight: | |
| Ref.: JN2020 Ref.: JN8417 | 7.2 g / 0.016 lb 6 g / 0.013 lb | 14.2 / 0.031 lb 14 g / 0.031 lb |
| Ref.: JN2015 Ref.: JN2012 Ref.: JN7639 | 6 g / 0.013 lb 6.9 g / 0.015 lb 10 g / 0.022 lb | 14 g / 0.031 lb 14 g / 0.031 lb 17 g / 0.037 lb |
| Ref.: JN7637 Ref.: JN7638 Ref.: JN7639 | 6 g / 0.013 lb 8 g / 0.018 lb 10 g / 0.022 lb | 14 g / 0.031 lb 14 g / 0.031 lb 17 g / 0.037 lb |
• Package Dimensions: 60 x 35 x 27 mm
(L x W x H) 2.36 x 1.38 x 1.06 in
Warranty
JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
This product should not be thrown in the garbage. In accordance with the European directive 2012/19/EU, electronic equipment at the end of its life must be collected and returned to an authorized recycling facility.
www.jbctools.com
0029001-130522
