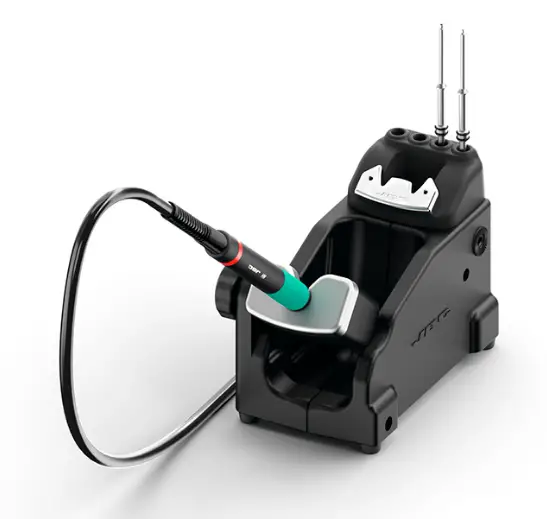

JBC NHS Stand for NH High-Precision Heater Hose Set

Packing List

The following items are included:

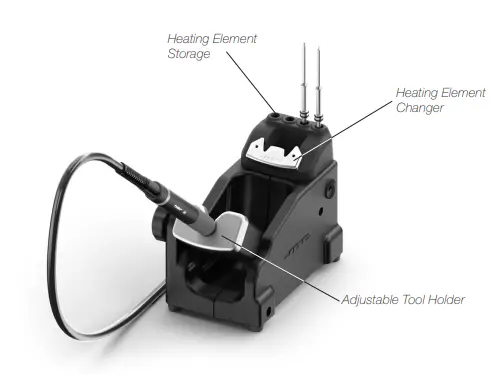

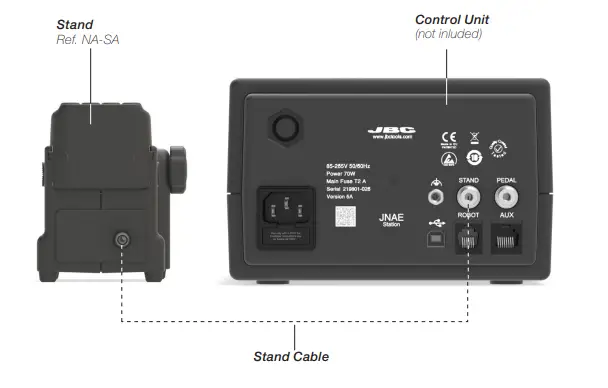

Features and Connections

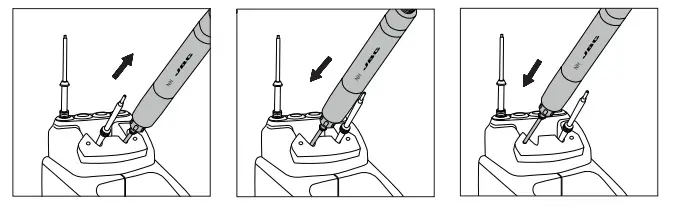

Changing Heating Element

Save time and change the heating element safely without switching the station off.

1.  Removing
   1.  Place the heating element in the extractor and pull the handle to remove it.
2.  Inserting
   1. Place the handpiece on top of the new heating element and press down slightly.
3.  Fixing
   1. Use the holes to fix the heating element.



*Important

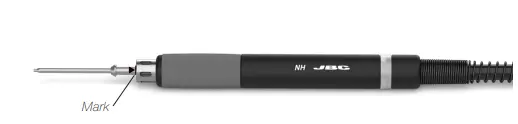

It is essential to insert the heating element far as the mark for a proper connection

Maintenance

Before carrying out maintenance or storage, always unplug the stand from the station and  the tool

•  Use a damp cloth to clean the stand. Alcohol can be used only when cleaning the metal parts.

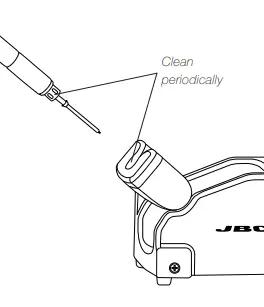

•  Check periodically that the metal parts of the tool/stand are clean so that the station   can check the tool’s status.
•  Periodically check all cables and tube  connections.
•  Replace any defective or damaged parts. Use original JBC spare parts only.
•  Repairs should only be performed by a JBC-authorized technical service.
