Thermoworks Tx-1003x-ap Pro Series High Temp Air Probe Instructions

Pro-Series
High Temp Air Probe
TX-1003X-AP

Pro-Series High Temp Air Probe

Designed for use in commercial kitchens and professional settings, the Pro-Series Probes deliver better accuracy, faster readings, unique designs, wider temperature ranges and better moisture-resistance than probes sold with low-cost houseware-grade temperature alarms.

Instructions, Tips and Cautions

• The cable may be closed in an oven door or under a BBQ hood using the precautions below.
• Do not pull on the cable. Use the molded mini-handle.
• The cable will withstand 700°F (370°C) for short periods.
• Probe tip itself is rated to 572°F (300°C). Do NOT expose probe tip to flames or coals.
• Construction is moisture-resistant but do not immerse.

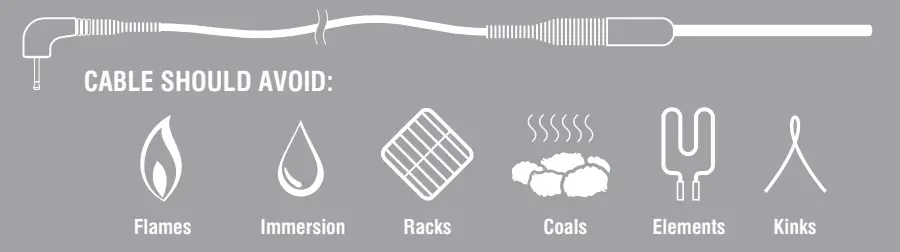

• Keep the probe cable away from oven elements, flames, coals, grill or oven racks—all of which can reach temperatures far higher than 700°F (even if an oven is set  lower). The probe cable can be damaged at higher temperatures. The inner insulation will melt and the probe will short (displaying “NO PROBE” on the alarm display).
• Avoid repeated kinking or twisting of the probe cable which can break wires.
• Pinch the grate clip until the probe can slide through both holes.
• Place the probe tip no less than one inch from the wall of the cooker.
• With care, the probe should last a long time. Eventually, you may need to replace it. If the probe becomes damaged, the base unit will flash “NO PROBE” above the  temperature display. Affordable replacements are available. Use only ThermoWorks Pro-Series Probes.

Specifications:

Technical Support

For warranty, service, and technical assistance, please contact ThermoWorks Technical Support at (801) 756-7705 or email at [email protected].
Use only with ThermoWorks thermometers designed for the Pro-Series. Will not work in other brands.
Go to www.thermoworks.com/blog for more info on chef-recommended temperatures, resting and other cooking tips.

ThermoWorks, Inc.
Utah, U.S.A.
Ph: 801-756-7705
Fax: 801-756-8948
www.thermoworks.com

Designed in Utah.
Assembled in China.

Follow us on:TX-1003X-AP
Pro-Series High Temp Air Probe
