All Purpose Temperature
Sensor Instructions
PT100 HTSAP

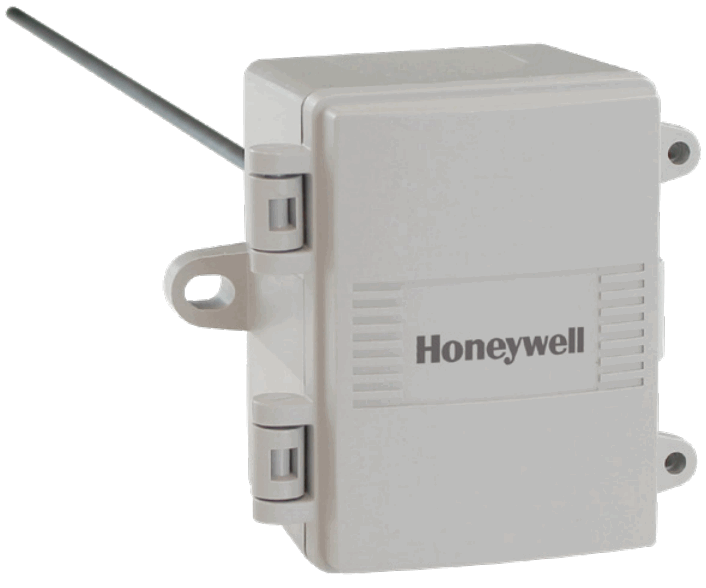

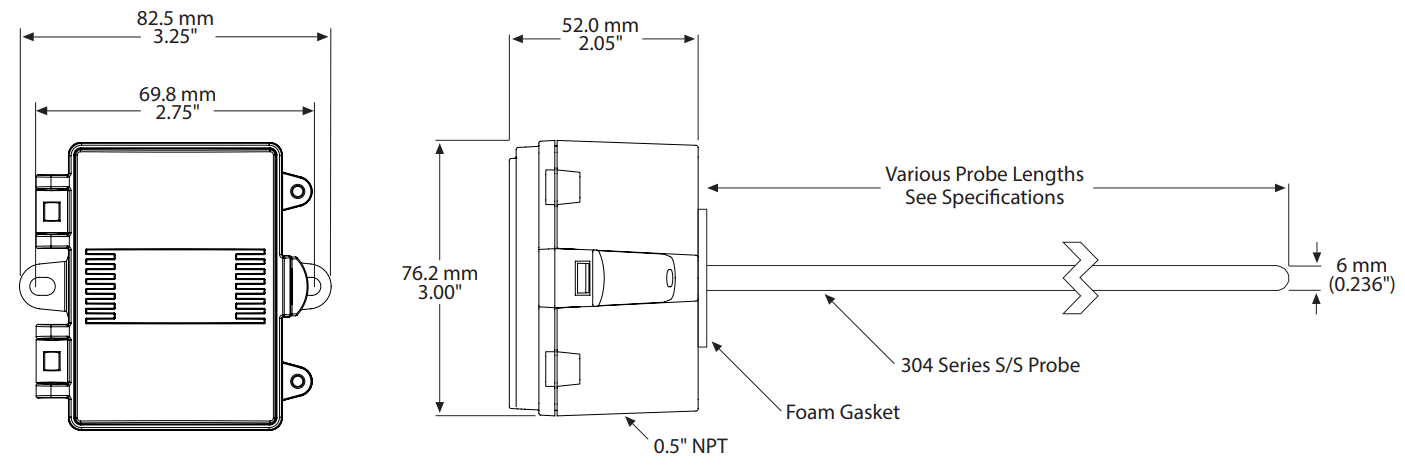

PT100 HTSAP All Purpose Temperature Sensor
The HTSAP is an all purpose duct/immersion temperature sensor that utilizes a precision sensor that is encapsulated in 6 mm (0.236”) OD, 304 series stainless steel probe and is available in various lengths.
All probes provide excellent heat transfer, fast response and resistance to moisture penetration. A compact ABS enclosure with a hinged and gasketed cover is provided for ease of installation.
APPLICATIONS
The HTSAP all purpose temperature sensor is designed for use in duct and immersion applications.
FEATURES
- Choice of Various Thermistors and RTD’s
- Selection of enclosure styles
- Selection of probe lengths
- Hinged and gasketed, ABS enclosure
*NOTE: All immersion sensors require a thermowell (sold separately).

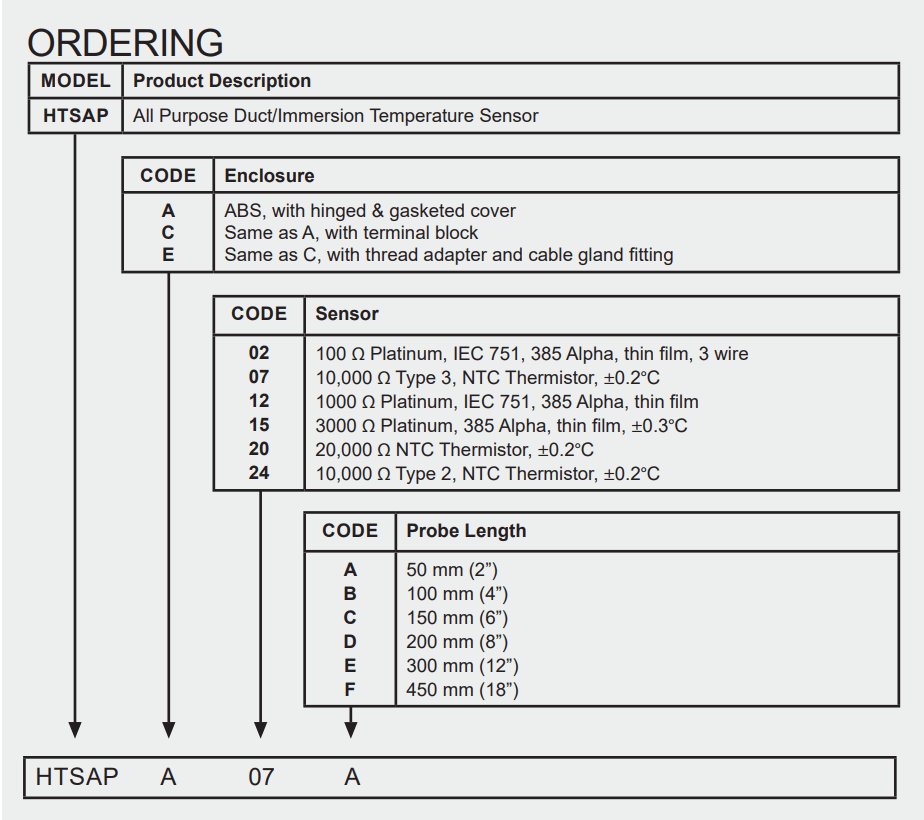

SPECIFICATIONS
Sensor Type: …………..Various thermistors or RTD
Sensor Accuracy:……..Thermistors: ±0.2°C (±0.36°F) @ 25°C (77°F)
Platinum RTD’s: ±0.3°C (±0.54°F)
Nickel RTD’s: ±0.4°C (±0.72°F) @ 0°C (32°F)
Temperature Range: …-20 to 105°C (-4 to 221°F)
Wire Material: ………….PVC insulated, parallel bonded, 22 AWG
Probe Material: ………..304 series stainless steel
Probe Diameter: ………6 mm (0.236”)
Standard Lengths: ……50, 100, 150, 200, 300, and 450 mm (2”, 4”, 6”, 8”, 12”, and 18”)
Enclosure:……………….ABS – UL94-V0, IP65 (NEMA 4X)
C – includes terminal block
E – includes thread adapter (1/2” NPT to M16), cable gland fitting, and terminal block
Termination: …………….A – pigtail, 2 or 3 wire
C & E – Terminal block, 2 or 3 wire
Country of Origin ……..Canada
