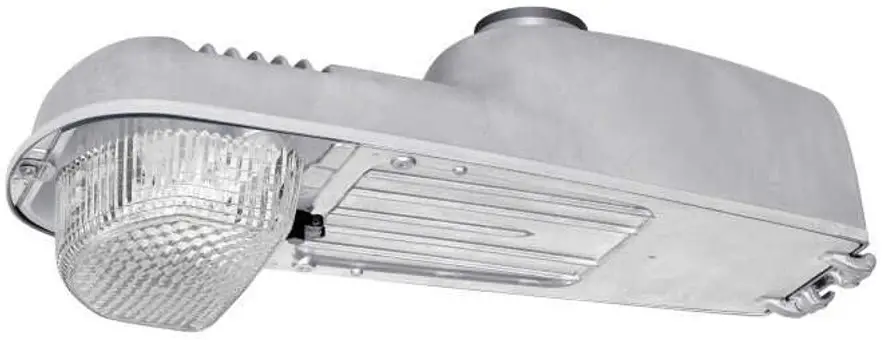

E2SC Security Light
LED Roadway Lighting

The Evolve ® LED Security Light provides energy efficiency in a rugged, easy to install, light weight fixture. Current’s advanced optical design offers Type III and Type V photometry with the versatility of a field installable refractor option to meet your lighting requirements.

Construction

Housing:	Aluminum die cast enclosure
Lens:	Impact resistant tempered glass (non refractor version)
Weight:	8.5 lbs (3.8 kgs) without mounting bracket

Optical System

Lumens:	3,730 – 6,270 lm
Distribution:	Type III/IV and Type V
Efficacy:	100-128 LPW
CCT:	2700K, 3000K, 4000K, 5000K
CRI:	≥70

Electrical

Input Voltage:	120-277V (no 347-480V)
Input Frequency:	50/60Hz
Power Factor:	≥ 90 at rated watts
Total Harmonic Distortion:	≤ 20% at rated watts

Surge Protection*

STANDARD	OPTIONAL
6kV/3kA	Enhanced 10kV/5kA (R Option)

*Per ANSI C136.2-2018

WARRANTY
5 Year (Standard)

Lumen Maintenance

Projected Lxx per IES TM-21 at 25°C
LXX(10K) @ HOURS

LUMEN CODES	LUMEN CODES	25,000 HR	50,000 HR	60,000 HR
04	C4	L95	L93	L92
05	C4	L93	L88	L86
06	C4	L83	L70	L65
04	V4	L95	L92	L90
05	V4	L94	L90	L89
06	V4	L91	L85	L83

Note: Projected Lxx based on LM80 (≥ 10,000 hour testing). Accepted Industry tolerances apply to initial luminous flux and lumen maintenance measurements.

Ambient Temperature Factor

AMBIENT TEMP (°C)	INITIAL FLUX FACTOR
10	1.02
20	1.01
25	1
30	0.99
40	0.98

Ratings

Operating Temperature:	-40°C to 40°C
Vibration:	3G per ANSI C136.31-2010
LM-79:	Testing in accordance with IES Standards

Controls

Dimming:	Standard – 0-10V Optional = DALI (Option U)
Sensors:	Photo Electric Sensors (PE) available LightGrid and Daintree Compatible

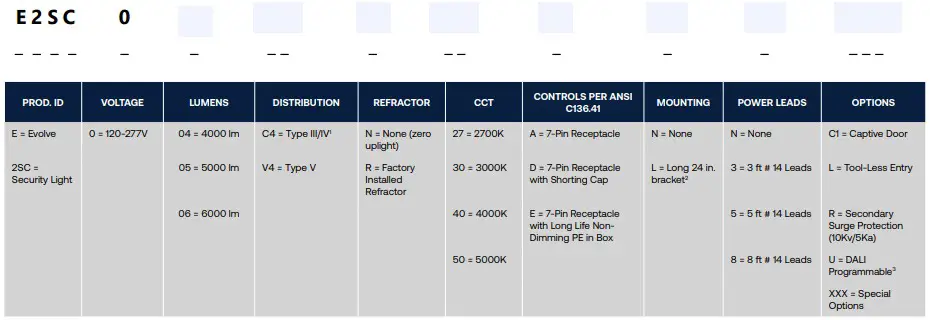

Ordering Information

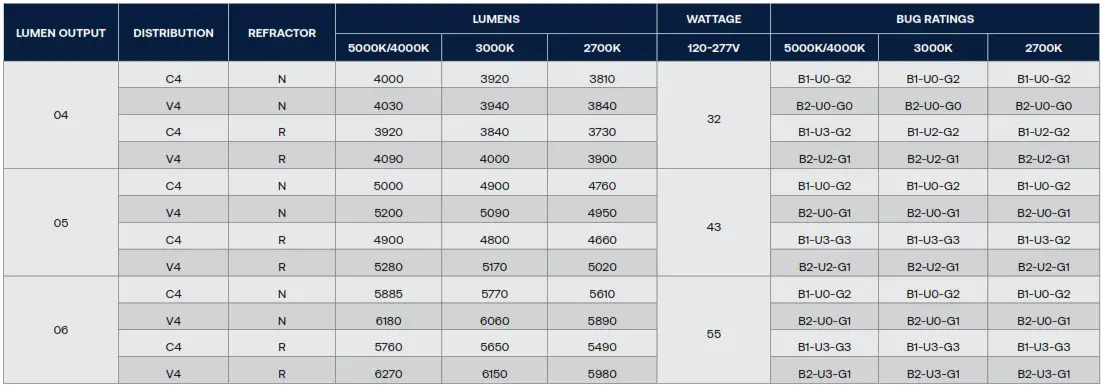

1. See ISO Plot page for the typical C4 distribution – this optic is designed to address a Roadway Photometric Application and is a Type III without the refractor, and Type IV with a refractor.
2. For Mounting on Wood Pole
3. Compatible with LightGrid

For additional information on E2SC IES files, please refer to LED.com

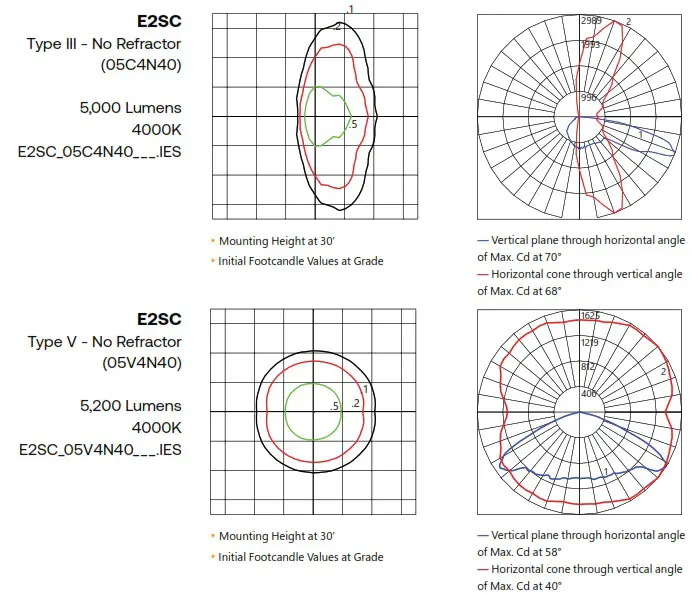

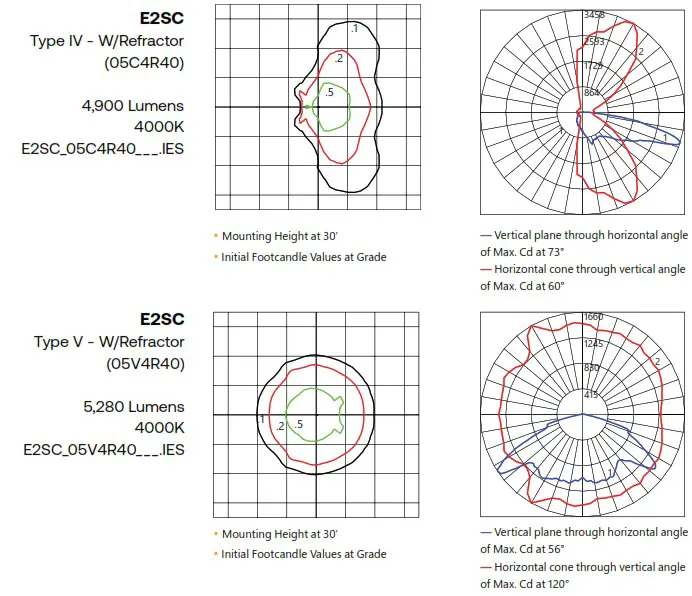

Photometric Plots

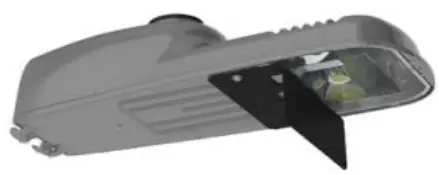

House Side Shield – E2SC/ERLC

DESCRIPTION
ELSHS-ERLC-BLCK
ELSHS-ERLC-GRAY
*E2SC shields are designed for Flat Glass Versions only.

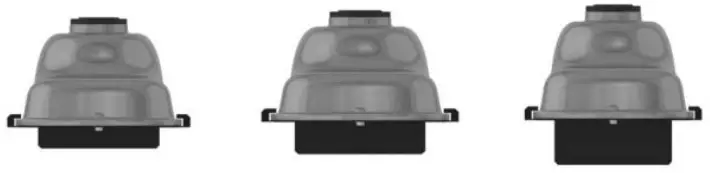

Street Side Shield – E2SC/ERLC

DESCRIPTION
ELSFS-ERLC-BLCK-10
ELSFS-ERLC-BLCK-15
ELSFS-ERLC-BLCK-20
*E2SC shields are designed for Flat Glass Versions only.

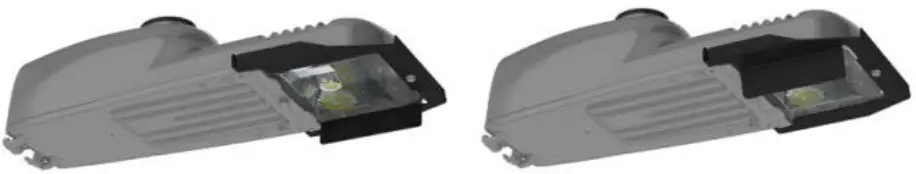

Side Shield (L & R) – E2SC/ERLC

DESCRIPTION
ELS-ERLC-LEFTRIGHTSIDEKIT-BLCK-10
ELSHS-ERLC-GRAY
Shipped as a kit – L & R can be used independently
*E2SC shields are designed for Flat Glass Versions only.

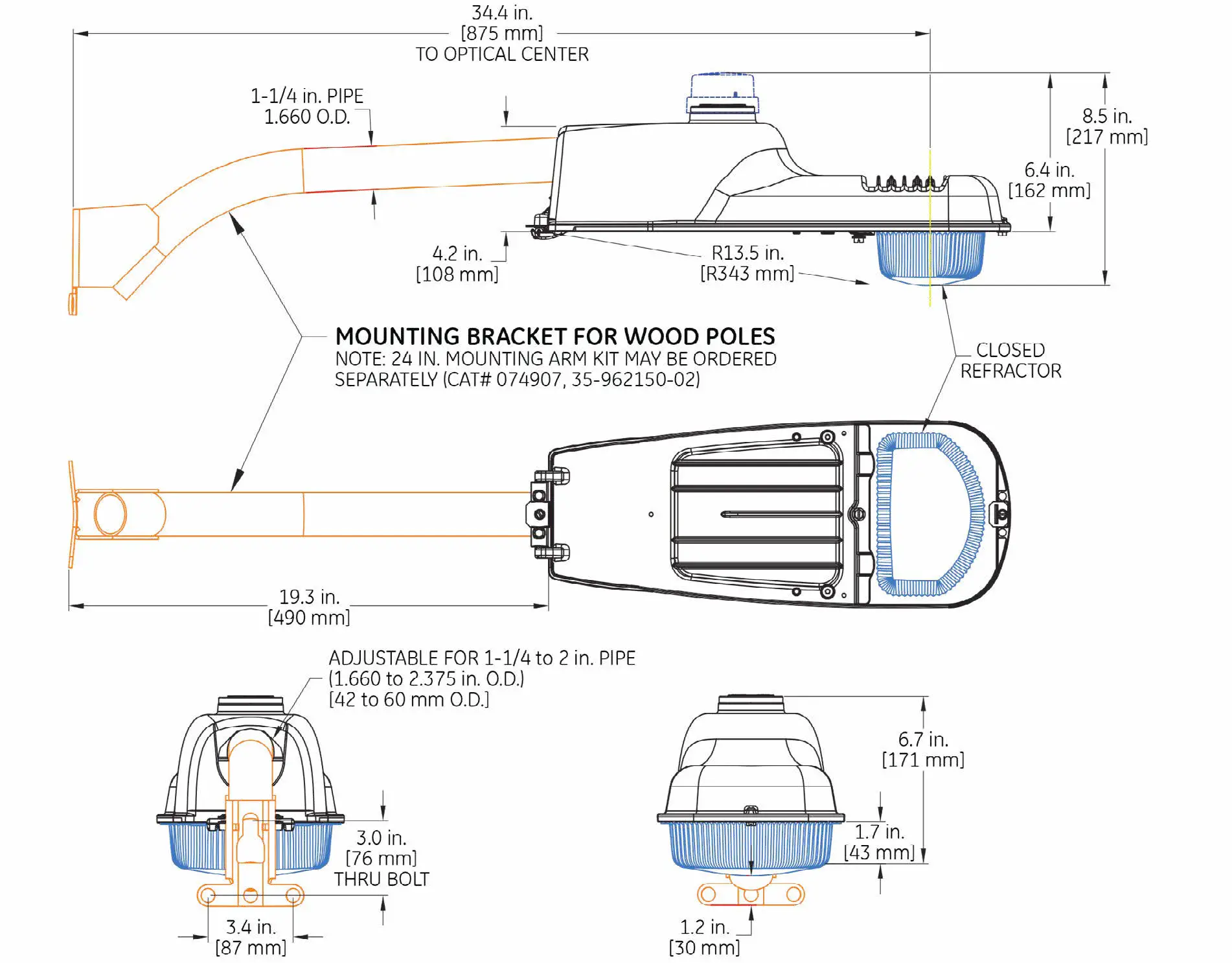

Mounting

Suggested Mounting Height: 12-28 ft. (4-8 M)
Adjustable for 1.25 to 2 in. nominal mounting pipe
Integral diecast mounting pipe stop
Slipfitter with +/- 5 degrees of leveling adjustment

Effective Projected Area

0.38 sq ft.

Weight

Approximate net weight: 8.5 lbs (3.8 kgs) without mounting bracket.
With 24 in. (610 mm) Mounting Bracket: 16 lbs (7.3 kgs)

Accessories

SAP NUMBER	PART NUMBER	DESCRIPTION
74907	35-962150-02	24 in. Mounting Arm Kit for Wood Poles
93122446	ESR-E2SC-A	Field Installable Refractor Kit

Networked Lighting Control

Current’s LightGrid™ Outdoor Lighting Control System is designed for Street and Roadway Applications. It enables remote monitoring, control, and asset management of a single fixture or a group of fixtures through a web enabled Central Management System.

LED.com
© 2023 Current Lighting Solutions, LLC.
All rights reserved.
Information and specifications subject to change without notice. All values are design or typical values when measured under laboratory conditions.

(Rev 05/02/23)
OLP3160_R04
