NVR Multi Megapixel Network Camera


Outstanding product quality and unique design	Timely, efficient and diverse support	Independent R&D team guarantees innovative technologies

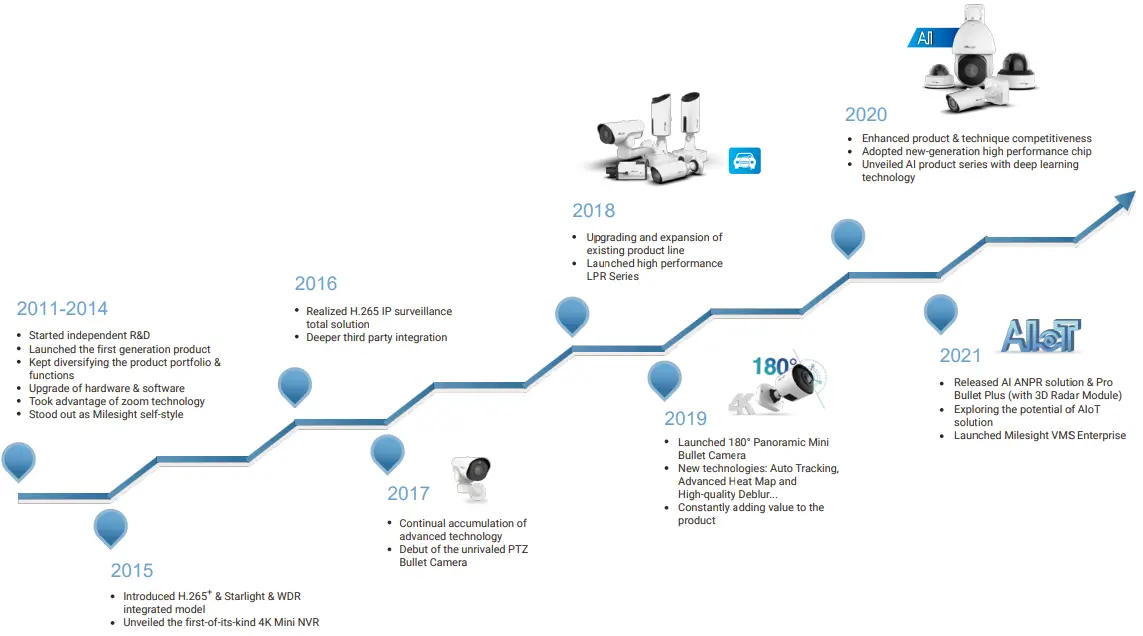

Timeline

Naming Convention

Network Camera
[ Model ]: MS-C2966-R(T)F(I)PC — AI Motorized Pro Bullet Plus Camera
MS-C

2	9
Resolution 2 – 2MP 5 – 5MP 8 – 4K 9 – 12MP	Sensor 1 – 4K 2 – 4K (1/1.8″) 3 – 5MP 6 – 12MP 8 – 2MP (1/2″) 9 – 2MP

66-
Camera Type

41	Speed Dome Camera
52	Pro Box Plus Camera
67	PTZ Bullet Plus Camera
66	Pro Bullet Plus Camera
65	180° Panoramic Mini Bullet Camera
64	Vandal-proof Mini Bullet Camera
63	Weather-proof Mini Bullet Camera
62	Pro Bullet Camera
61	PTZ Bullet Camera
76	180° Panoramic Mini Dome Camera
75	Weather-proof Mini Dome Camera
74	Fisheye Camera
73	Vandal-proof Mini Dome Camera
72	Pro Dome Camera
71	PTZ Dome Camera
83	IR Mini Dome Camera

R	F	I	PC
Advanced Features
T- High Frame Rate (90fps/100fps) R- High Frame Rate (60fps) S- 20fps@4K Series X- Magnification of the lens e.g.: X42 – 42X AF lens E- Enterprise Edition F- Motorized Varifocal Lens I- P-Iris Supported U- Full-color Supported V- Radar Supported W- Supplement Light Supported G- 5G Supported O- IoT Supported P- PoE Supported A/C/D- AI Platform

Note: In a sequence from top to bottom
Intelligent Traffic Camera
[ Model ]: MS-C2972-RFLPC — Entrance & Exit AI LPR Pro Dome Camera
TS2866-X4TPC — AI Road Traffic Pro Bullet Plus Camera
PMC8266-FPC — AI Outdoor Parking Management Pro Bullet Plus Camera

TS
Series
TS – Traffic Sensing (Camera)
PMC – Parking Management Camera
MS-C – Entrance & Exit Camera

2
Resolution
2 – 2MP
8 – 4K

8
Sensor
2 – 4K (1/1.8″)
8 – 2MP (1/2″)
9 – 2MP

66-
Camera Type
41 – Speed Dome Camera
67 – PTZ Bullet Plus Camera
66 – Pro Bullet Plus Camera
64 – Vandal-proof Mini Bullet Camera
61 – PTZ Bullet Camera
72 – Pro Dome Camera

X4	T	PC
Advanced Features
T – High Frame Rate (100fps) R – High Frame Rate (60fps) X – Magnification of the lens e.g.: 36X AF lens F – Motorized Varifocal Lens L – LPR Supported V – Radar Supported W – Supplement Light Supported C – AI Platform

Note: The naming rule of “L” is only for the Entrance & Exit management models. Whether other models support LPR function depends on the application scenes and specific functions.
[ Model ]: SC211-NA — 4G Solar-powered Traffic Sensing Camera

SC
Series
Sensing Camera

2
Major Application Scenarios
2 – Intelligent Traffic

1
Core Technology
1 – Frame-based AI

1-
Camera Type
(2_)1 – 4G Solar-powered Traffic
Sensing Camera

NA
4G Module Supported Region
NA – North America
EU – Europe, the Middle East and Africa
AU – Latin America, Australia and New Zealand

Network Video Recorder
[ Model ]: MS-N7032-UPH — 32-channel 4K H.265 PoE NVR
MS-N

7
1 – 2*HDD(2.5” ) or 1*HDD(3.5” )
5 – 2*HDD(3.5” )
7 – 4*HDD(3.5” )
8 – 8*HDD(3.5” )

032-
004 – 4-CH
008 – 8-CH
009 – 9-CH
016 – 16-CH
048 – 48-CH
032 – 32-CH
064 – 64-CH

U
U – 4K

P
P – PoE

H
C/E/H – H.265 Compression

Mile sight PoE Switch
[ Model ]: MS-S0224-GL — Mile sight 4-port PoE Switch
MS-S

02
02 – 2*Uplink Ports
04 – 4*Uplink Ports

24-
04 – 4*PoE Ports
08 – 8*PoE Ports
16 – 16*PoE Ports
24 – 24*PoE Ports

G
E – 10/100Mbps Uplink Port
G – Gigabit Uplink Port

L
F – Optical Fiber Port (SFP)
L – Extend Mode

AL NETWORK CAMERA

AI Network Camera
Color+ Camera Series— 07
5G Camera Series— 08
Mini Camera Series— 11

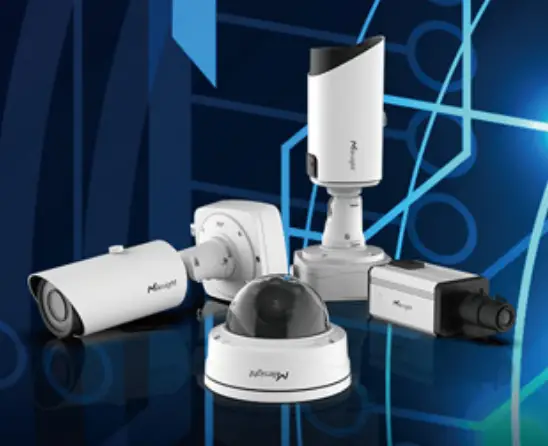

Pro Camera Series— 18

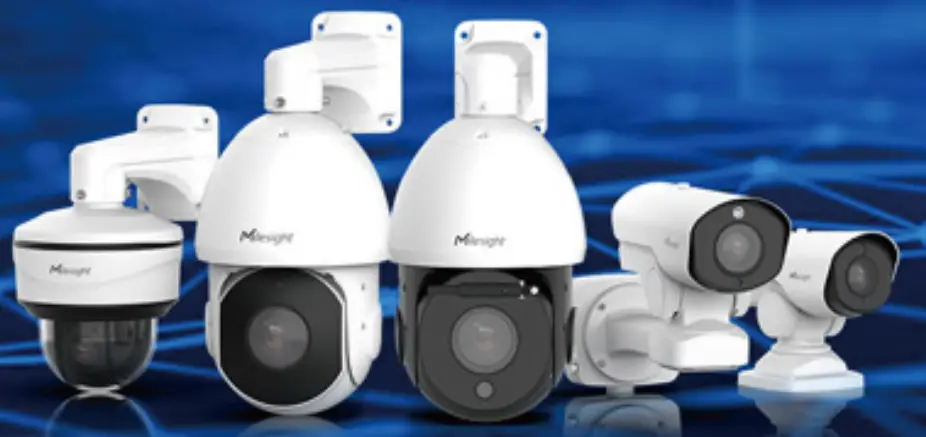

PTZ Camera Series— 24
Panoramic Camera Series— 31
Intelligent Traffic Camera Series— 33
IoT Device— 43
NVR
PoE Switch
Software

Al Color+ Series

Al Deep Learning
Full-color Image Performance
F1.0 Super Aperture
0.001 Lux Starlight
120dB Super WDR
30m Illumination Distance
4K Resolution
Point-contact Power Supply
3-Axis Mechanical Design

AI COLOR+ CAMERA SERIES
AI Color+ Vandal-proof Mini Bullet Camera

	Model	MS-C2964-(R)UPD(2MP)	MS-C5364-UPD(5MP)	MS-C8164-UPD(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: [email protected] 0Lux with White LED on	Color: [email protected] 0Lux with White LED on	Color: [email protected] 0Lux with White LED on
	WDR	120dB Super WDR
	Lens	2.8mm/[email protected]
	Field of View	H109°/D125°/V61°(2.8mm) H87°/D100°/V49°(4mm)	H104°/D129°/V78°(2.8mm) H81°/D100°/V61°(4mm)	H108°/D125°/V60°(2.8mm) H87°/D101°/V49°(4mm)
	Shutter Time	1/100000s~1s
	Illumination Distance	Up to 30m
	S/N	>55dB
Video	Max. Image Resolution	30fps@(1920×1080) 60fps@(1920×1080)(Optional for R Series)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	Event Trigger	Motion Detection, Network Disconnection, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
General	Working Temperature/ Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af)
	Housing	IP67/IK10
	Dimensions/Weight	97mmX74mmX180mm/610g(Junction Box Version); 64mmX64mmX160mm/450g(Cable Out Version)

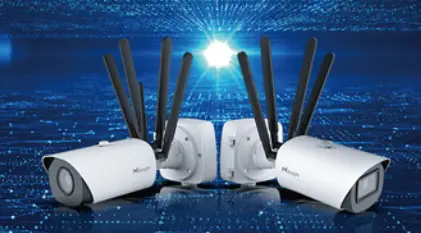

Al 5G Series

Embedded 5G Technology
Built-in Network Server
Integrate Data from loT Sensors
8-CH Data Transmitting Simultaneously
Support Standard LoRaWAN1) Protocol
4K Video Viewing Experience
1/1.8″ Starlight Sensor
3 in 1 Super WDR Pro – 140dB
Up to 180m IR Distance
Versatile Interfaces
Easy Deployment and Compact Structure
Advanced Heat Map

Al 5G CAMERA SERIES
5G AI 4X/12X Pro Bullet Plus Camera

	Model		MS-C2966-X12R(T)GPC(2MP)	MS-C8266-X4GPC(4K)
Camera	Appearance			4K
	Image Sensor		1/2.8″ Progressive Scan CMOS	1/1.8″ Progressive Scan CMOS
	Min. Illumination		Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on
	WDR		140dB Super WDR (Super WDR Pro is optional for T Series)	120dB Super WDR
	Lens		[email protected]~F2.8, 12X Optical Zoom	[email protected]~F1.7, 4X Optical Zoom
	Field of View		H61°~H5°/D69°~D5°/V36°~V2°	H44°~H13°/D51°~D15°/V25°~V7°
	IR Distance		Up to 180m
Video	Max. Image Resolution		60fps@(1920×1080) 100fps@(1920×1080)(Optional for T Series)	30fps@(3840×2160)
	Video Compression		H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Mobile Communication Parameter	Wireless Communication		Support 5G/4G/3G
	Frequency Bands	5G NR	n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
		LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/B25/B26/B28/B29/B30/B32/B66/B71
	Wireless Transmission Speed	SA	DL 3.3Gbps; UL 250Mbps
		NSA	DL 3.4Gbps; UL 200Mbps
	SIM Card		Nano SIM
Network	Ethernet		1*RJ45 10M/100M Ethernet Port
	Protocol		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression		G.711/AAC/G.722/G.726
System	Storage		NAS(Support NFS, SMB/CIFS), ANR; Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function		Heat Map, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger		Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature/Humidity		-40°C~60°C/0~90%(Non-condensing)
	Power Supply		PoE (802.3at) / DC 12V±10%
	Housing		IP67(Only for camera body)
	Dimensions/Weight		320mmX134mmX126mm/1608g 320mmX134mmX292mm (With Antennas)/1608g

			5G AIoT 4X/12X Pro Bullet Plus Camera		AIoT 12X Pro Bullet Plus Camera
	Model		MS-C2966-X12R(T)GOPC(2MP)	MS-C8266-X4GOPC(4K)	MS-C2966-X12R(T)OPC(2MP)
Camera	Appearance
	Image Sensor		1/2.8″ Progressive Scan CMOS	1/1.8″ Progressive Scan CMOS	1/2.8″ Progressive Scan CMOS
	Min. Illumination		Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on
	WDR		140dB Super WDR (Super WDR Pro is optional for T Series)	120dB Super WDR	140dB Super WDR (Super WDR Pro is optional for T Series)
	Lens		[email protected]~F2.8, 12X Optical Zoom	[email protected]~F1.7, 4X Optical Zoom	[email protected]~F2.8, 12X Optical Zoom
	Field of View		H61°~H5°/D69°~D5°/V36°~V2°	H44°~H13°/D51°~D15°/V25°~V7°	H61°~H5°/D69°~D5°/V36°~V2°
	IR Distance		Up to 180m
Video	Max. Image Resolution		60fps@(1920×1080) 100fps@(1920×1080)(Optional for T Series)	30fps@(3840×2160)	60fps@(1920×1080) 100fps@(1920×1080)(Optional for T Series)
	Video Compression		H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Mobile Communication Parameter	Wireless Communication		Support 5G/4G/3G		–
	Frequency Bands	5G NR	n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79		–
		LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71		–
	Wireless Transmission Speed	SA	DL 3.3Gbps; UL 250Mbps		–
		NSA	DL 3.4Gbps; UL 200Mbps		–
	SIM Card		Nano SIM		–
LoRaWAN®	Channel		8 channels simultaneously
	Frequency Band		CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923/AS923-2
	Sensitivity		-140dBm Sensitivity @292bps
	Protocol		V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C
	Communication Range		Up to 15km
Network	Ethernet		1*RJ45 10M/100M Ethernet Port
	Protocol		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression		G.711/AAC/G.722/G.726
System	Storage		NAS(Support NFS, SMB/CIFS), ANR; Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function		Heat Map, Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger		IoT Sensor Alarm, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature/Humidity		-40°C~60°C/0~90%(Non-condensing)
	Power Supply		PoE (802.3at) / DC 12V±10%
	Housing		IP67(Only for camera body)
	Dimensions/Weight		320mmX134mmX126mm/1636g 320mmX134mmX292mm (With Antennas)/1636g		320mmX134mmX126mm/1521g 320mmX134mmX208mm (With Antennas)/1521g

5G AI Motorized Pro Bullet Plus Camera

	Model		MS-C2966-RF(I)GPC(2MP)	MS-C5366-F(I)GPC(5MP)	MS-C8266-F(I)GPC(4K)
Camera	Appearance				4K
	Image Sensor		1/2.8″ Progressive Scan CMOS		1/1.8″ Progressive Scan CMOS
	Min. Illumination		Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on
	WDR		140dB Super WDR	120dB Super WDR
	Lens		Motorized 2.7~13.5mm/[email protected] P-Iris(Optional)		Motorized [email protected] P-Iris(Optional)
	Field of View		H113°~H33°/D130°~D38°/V60°~V18° (2.7~13.5mm) H45°~H17°/D53°~D20°/V25°~V9° (7~22mm)	H113°~H33°/D138°~D42°/V83°~V25° (2.7~13.5mm) H42°~H16°/D53°~D20°/V32°~V12° (7~22mm)	H116°~H48°/D134°~D55°/V65°~V27°
	IR Distance		Up to 65m(2.7~13.5mm) Up to 100m(7~22mm)		Up to 65m
Video	Max. Image Resolution		60fps@(1920×1080)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression		H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Mobile Communication Parameter	Wireless Communication		Support 5G/4G/3G
	Frequency Bands	5G NR	n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
		LTE-FDD	B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71
	Wireless Transmission Speed	SA	DL 3.3Gbps; UL 250Mbps
		NSA	DL 3.4Gbps; UL 200Mbps
	SIM Card		Nano SIM
Network	Ethernet		1*RJ45 10M/100M Ethernet Port
	Protocol		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression		G.711/AAC/G.722/G.726
System	Storage		NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function		Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger		Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity		-40°C~60°C/0~90%(Non-condensing)
	Power Supply		PoE (802.3af) / DC 12V±10%
	Housing		IP67(Only for camera body)
	Dimensions/Weight		320mmX134mmX126mm/1650g 320mmX134mmX208mm (With Antennas)/1650g

Al Mini Series

Ultra Mini Size
2MP@60fps, 5MP@30fps, 4K@30fps IP67 & IK10
0.005Lux Starlight
140dB Super WDR
Smart IR II Technology
Al Video Analytics
People Counting
Face Detection
Advanced Heat Map
3-Axis Mechanical Design

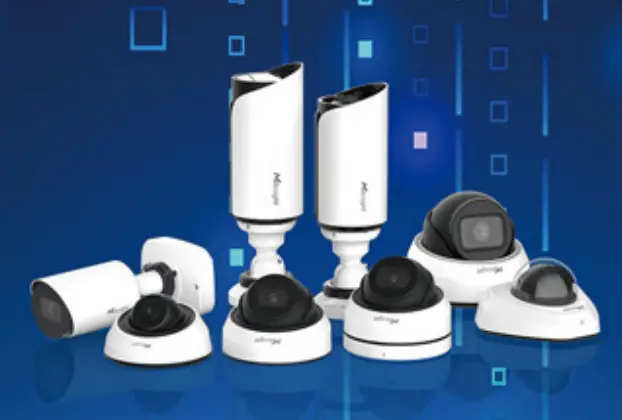

AI MINI CAMERA SERIES
AI IR Mini Dome Camera

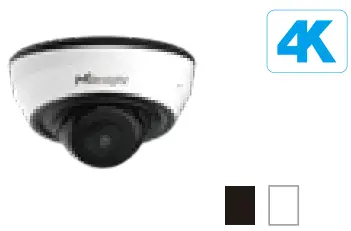

	Model	MS-C2983-RPC(2MP)	MS-C2983-(R)PD(2MP)	MS-C5383-PD(5MP)	MS-C8183-PD(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on		Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR	120dB Super WDR
	Field of View	H111°/D128°/V61°(2.8mm)		H105°/D131°/V78°(2.8mm)	H110°/D126°/V60°(2.8mm)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 20m
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080)	30fps@(1920×1080) 60fps@(1920×1080)(Optional for R Series)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio Interface	Built-in Microphone
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-licker, Corridor Mode, Deblur, Watermark	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
General	Working Temperature/Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af)
	Housing	N/A
	Dimensions/Weight	Φ97.8mmX57.9mm/200g

AI Vandal-proof Mini Dome Camera

	Model	MS-C2973-RPC(2MP)	MS-C2973-(R)PD(2MP)	MS-C5373-PD(5MP)	MS-C8173-PD(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on		Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR	120dB Super WDR
	Lens	2.8mm/4mm/[email protected]
	Field of View	H111°/D128°/V61°(2.8mm)		H105°/D131°/V78°(2.8mm)	H110°/D126°/V60°(2.8mm)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 30m
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080)	30fps@(1920×1080) 60fps@(1920×1080)(Optional for R Series)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	Built-in Microphone; 1/1 (Multi-interface Version)
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Alarm I/O	1/1 (Multi-interface Version)
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB,IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
	Housing	IP67/IK10
	Dimensions/Weight	118.5mmX110.8mmX65mm/500g

AI Weather-proof Mini Dome Camera

	Model	MS-C2975-RPC(2MP)	MS-C2975-(R)PD(2MP)	MS-C5375-PD(5MP)	MS-C8175-PD(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on		Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR	120dB Super WDR
	Lens	2.8mm/4mm/[email protected]
	Field of View	H111°/D128°/V61°(2.8mm)		H105°/D131°/V78°(2.8mm)	H110°/D126°/V60°(2.8mm)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 25m
	S/N	>55dB
	Max. Image Resolution	60fps@(1920×1080)	30fps@(1920×1080) 60fps@(1920×1080)(Optional for R Series)	30fps@(2592×1944)	30fps@(3840×2160)
Video	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio Interface	Built-in Microphone
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	–
	People Counting & Report	–
System	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af)
	Housing	IP67/IK10
	Dimensions/Weight	Φ108mmX96.5mm/600g (Junction Box Version); Φ106mmX76.5mm/410g (Cable Out Version)

AI Motorized Dome Camera

	Model	MS-C2975-RF(I)PC(2MP)	MS-C2975-RFPD(2MP)	MS-C5375-FPD(5MP)	MS-C8175-FPD(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on		Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR	120dB Super WDR
	Lens	Motorized 2.7~13.5mm/3.0~10.5mm/[email protected] P-Iris(Optional)	Motorized 2.7~13.5mm/[email protected]		Motorized [email protected]
	Field of View	H111°~H34°/D130°~D39°/ V60°~V19°(2.7~13.5mm)		H99°~H31°/D124°~D38°/ V72°~V23°(2.7~13.5mm)	H107°~H33°/D125°~D37° /V58°~V18°
	Shutter Time	1/100000s~1s
	IR Distance	Up to 50m
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080)	60fps@(1920×1080)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	Built-in Microphone; 1/1 (Multi-interface Version)
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Alarm I/O	1/1 (Multi-interface Version)
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
	Housing	IP67/IK10
	Dimensions/Weight	Φ130mmX115mm/780g

AI Weather-proof Mini Bullet Camera

	Model	MS-C2963-RPA(2MP)	MS-C5363-PA(5MP)	MS-C8163-PA(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on	Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Lens	4mm/2.8mm/[email protected]
	Field of View	H91°/D106°/V50°(4mm)	H86°/D108°/V63°(4mm)	H91°/D106°/V50°(4mm)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 50m
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, etc.; Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. (Multi-interface Version)
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.; FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. (Multi-interface Version)
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af); PoE (802.3af) / DC 12V±10% (Multi-interface Version)
	Housing	IP67/IK10
	Dimensions/Weight	Φ76mmX214.5mm/750g

AI Vandal-proof Mini Bullet Camera

	Model	MS-C2964-RPC(2MP)	MS-C2964-(R)PD(2MP)	MS-C5364-PD(5MP)	MS-C8164-PD(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on		Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR	120dB Super WDR
	Lens	2.8mm/4mm/[email protected]
	Field of View	H111°/D128°/V61°(2.8mm)		H105°/D131°/V78°(2.8mm)	H110°/D126°/V60°(2.8mm)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 30m
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080)	30fps@(1920×1080) 60fps@(1920×1080)(Optional for R Series)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	Event Trigger	Motion Detection, Network Disconnection, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af)
	Housing	IP67/IK10
	Dimensions/Weight	97mmX74mmX180mm/610g(Junction Box Version); 64mmX64mmX160mm/450g(Cable Out Version)

AI Motorized Bullet Camera

	Model	MS-C2964-RF(I)PA(2MP)	MS-C5364-F(I)PA(5MP)	MS-C8164-F(I)PA(4K)
Camera	Appearance			4K
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on	Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Lens	Motorized 2.7~13.5mm/3.0~10.5mm/[email protected] P-Iris(Optional)		Motorized [email protected] P-Iris(Optional)
	Field of View	H111°~H34°/D130°~D39°/ V60°~V19° (2.7~13.5mm)	H99°~H31°/ D124°~D38°/ V72°~V23° (2.7~13.5mm)	H107°~H33°/D125°~D37° /V58°~V18°
	Shutter Time	1/100000s~1s
	IR Distance	Up to 50m
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af) / DC 12V±10%
	Housing	IP67/IK10
	Dimensions/Weight	Φ76mmX239.5mm/825g

Al Pro Series

4K High Resolution
0.002Lux Starlight
120dB Super WDR
Up to 90fps High Frame Rate
Smart IR II Technology
Pins Control
Al Video Analytics
People Counting
Face Detection
Advanced Heat Map
Versatile Interfaces
IP67 & IK10
Integrated Cable Management
Advanced Heat Map

AI PRO CAMERA SERIES
AI Motorized Pro Dome Camera

	Model	MS-C2872-R(T)F(I)PA(2MP)	MS-C2972-R(T)F(I)PA(2MP)	MS-C2972-RF(I)PC(2MP)
Camera	Appearance
	Image Sensor	1/2″ Progressive Scan CMOS	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: [email protected] B/W: OLux with IR on	Color [email protected] B/W: OLux with IR on
	WDR	120d8 Super WDR		140dB Super WDR
	Lens	Motorized [email protected] P-Iris(Optional)	Motorized 2.7~13.5mm/3.0~10.5mm/[email protected] P-Iris(Optional)
	Field of View	H96°~H42°/D111°~D48°/V55°~V23°	H115°~H34°/D135°~D39° /V62°~V19° (2.7~13.5mm)
	Shutter Time	1/100000s-1s
	IR Distance	Up to 50m	Up to 50m(3.0-10.5mm/2.7-13.5mm), Up to 90m(7-22mm)
	S/N	>55dB
	Max. Image Resolution	60fps@(1920×1080), 90fps@(1920×1080)(Optional for T Series)		60fps@(1920×1080)
Video	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	1Pv4/1Pv6, ARP, TCP, UDR RTCR RTP, RTSP, FITMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP,SNMP, UPnP, Bonjour, SIR PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	Built-in Microphone and 1 Audio Output interface
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face detection			Detect and capture faces, get real-time snapshots
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark		Privacy Masking. Heat M. BLC. FRG 2D DNR 30 ONR. Delos AWB. EIS. P Address Fdtermg. AGC. Anti-flicker, Corridor Mode. Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af) / DC 12V±10%
	Housing	IP67/IK10
	Dimensions/Weight	Φ143mmX108.4mm/1100g

AI Motorized Pro Dome Camera

	Model	MS-C5372-F(I)PA(5MP)	MS-C8172-F(I)PA(4K)	MS-C8272-F(I)PA(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS		1/1.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on	Color: 0.009L [email protected] B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Lens	Motorized 2.7~13.5mm/3.0~10.5mm/[email protected] P-Iris(Optional)	Motorized [email protected] P-Iris(Optional)	Motorized [email protected] P-Iris(Optional)
	Field of View	H89°~H30°/D111°~D37°/V66°~V22°(2.7~13.5mm)	H96°~H33°/ D112°~D37°/ V53°~V18°	H110°~H46°/D126°~D54°/V61°~V25°
	Shutter Time	1/100000s~1s
	IR Distance	Up to 50m(3.0~10.5mm/2.7~13.5mm), Up to 90m(7~22mm)	Up to 50m
	S/N	>55dB
Video	Max. Image Resolution	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	Built-in Microphone and 1 Audio Output interface
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face detection	–
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af) / DC 12V±10%
	Housing	IP67/IK10
	Dimensions/Weight	Φ143mmX108.4mm/1100g

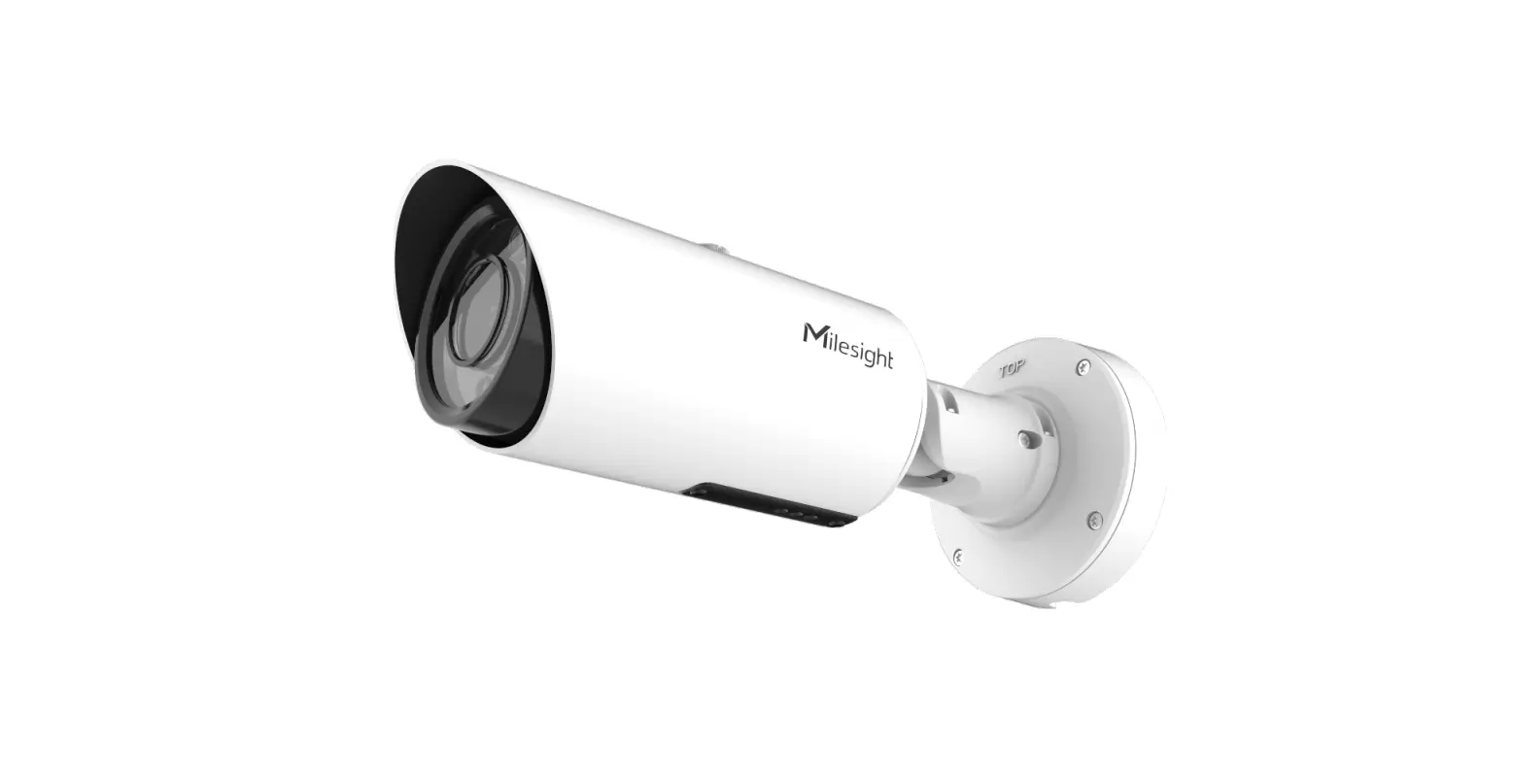

AI Motorized Pro Bullet Camera

	Model	MS-C2962-R(T)F(I)PA(2MP)	MS-C2962-RF(I)PC(2MP)	MS-C5362-F(I)PA(5MP)	MS-C8162-F(I)PA(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on		Color: 0.008L [email protected] B/W: 0Lux with IR on	Color: 0.012L [email protected] B/W: 0Lux with IR on
	WDR	120dB Super WDR	140dB Super WDR	120dB Super WDR
	Lens	Motorized 2.7~13.5mm/3.0~10.5mm/[email protected] P-Iris(Optional)			Motorized [email protected] P-Iris(Optional)
	Field of View	H92°~H32°/D107°~D37°/V51°~V18° (2.7~13.5mm)		H89°~H30°/D111°~D37°/V66°~V22° (2.7~13.5mm)	H96°~H33°/ D112°~D37°/ 53°~V18°
	Shutter Time	1/100000s~1s
	IR Distance	Up to 60m(3.0~10.5mm/2.7~13.5mm) Up to 100m(7~22mm)			Up to 60m
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080) 90fps@(1920×1080)(Optional for T Series)	60fps@(1920×1080)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af) / DC 12V±10%
	Housing	IP67
	Dimensions/Weight	134mmX126mmX285mm/1080g

AI 4X/12X Pro Bullet Plus Camera

	Model	MS-C2866-X4R(T)PA(2MP)	MS-C2866-X4RPC(2MP)	MS-C2966-X12R(T)PA(2MP)	MS-C2966-X12R(T)PC(2MP)
Camera	Appearance
	Image Sensor	1/2″ Progressive Scan CMOS		1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.002L [email protected] B/W: 0Lux with IR on		Color: 0.005L [email protected] B/W: 0Lux with IR on
	WDR	120dB Super WDR	140dB Super WDR	120dB Super WDR	140dB Super WDR (Super WDR Pro is optional for T Series)
	Lens	8~32mm, 4X Optical Zoom		5.3~64mm, 12X Optical Zoom
	Field of View	H44°~H13°/D51°~D15°/V25°~V7°		H44°~H13°/D51°~D15°/V25°~V7°
	Shutter Time	1/100000s~1s
	IR Distance	Up to 180m
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080) 90fps@(1920×1080)(Optional for T Series)	60fps@(1920×1080)	60fps@(1920×1080) 90fps@(1920×1080)(Optional for T Series)	60fps@(1920×1080) 100fps@(1920×1080)(Optional for T Series)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	–	Detect and capture faces, get real-time snapshots	–	Detect and capture faces, get real-time snapshots
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing) -60°C~60°C(Optional for Heater Version)/0~90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V±10%
	Housing	IP67/IK10
	Dimensions/Weight	320mmX134mmX126mm/1447g

AI Motorized Pro Bullet Plus Camera

	Model	MS-C2966- R(T)F(I)PA(2MP)	MS-C2966-RF(I)PC(2MP)	MS-C5366-F(I)PA(5MP)	MS-C8166-F(I)PA(4K)	MS-C8266-F(I)PA(4K)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS				1/1.8″ Progressive Scan CMOS
	Min. Illumination	Color: [email protected] B/W: 0Lux with IR on		Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on
	WDR	120dB Super WDR	140dB Super WDR	120dB Super WDR
	Lens	Motorized 2.7~13.5mm/3.0~10.5mm/[email protected] P-Iris(Optional)			Motorized [email protected] P-Iris(Optional)	Motorized [email protected] P-Iris(Optional)
	Field of View	H113°~H33°/D130°~D38°/V60°~V18° (2.7~13.5mm)		H113°~H33°/D138°~D42°/ V83°~V25° (2.7~13.5mm)	H110°~H33°/ D118°~D38°/V60°~V18°	H116°~H48°/D134°~D55°/ V65°~V27°
	Shutter Time	1/100000s~1s
	IR Distance	Up to 65m(3.0~10.5mm/2.7~13.5mm), Up to 100m(7~22mm)			Up to 65m
	S/N	>55dB
Video	Max. Image Resolution	60fps@(1920×1080) 90fps@(1920×1080)(Optional for T Series)	60fps@(1920×1080)	30fps@(2592×1944)	30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTC P, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	–	Detect and capture faces, get real-time snapshots	–
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark Corridor Mode, Deblur, Watermark	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af) / DC 12V±10%
	Housing	IP67/IK10
	Dimensions/Weight	320mmx108mmx126mm/1630g

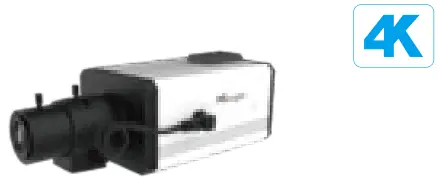

AI Pro Box Plus Camera

	Model	MS-C2852-RPA(2MP)	MS-C2952-RPA(2MP)	MS-C2952-RPC(2MP)	MS-C5352-PA(5MP)	MS-C8152-PA(4K)
Camera	Appearance
	Image Sensor	1/2″ Progressive Scan CMOS	1/2.8″ Progressive Scan CMOS		1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.001L [email protected] B/W: 0.0005L [email protected]	Color: 0.002L [email protected] B/W: 0.001L [email protected]		Color: 0.005L [email protected] B/W: 0.002L [email protected]	Color: 0.01L [email protected] W: 0.005L [email protected]
	WDR	120dB Super WDR		140dB Super WDR	120dB Super WDR
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s~1s
	S/N	>55dB
	Max. Image Resolution	60fps@(1920×1080)		60fps@(1920×1080)	30fps@(2592×1944)	30fps@(3840×2160)
Video	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	–		Detect and capture faces, get real-time snapshots	–
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark		Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark	Privacy Masking, Heat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3af) / DC 12V±10%
	Dimensions/Weight	130mmX75mmX66mm/366g

Al PTZ Series

360° Endless Pan, 95° Tilt
Up to 42X Optical Zoom
1/1.8″ STARVIS Starlight Sensor
4K High Resolution
0.002Lux Starlight
3 in 1 Super WDR Pro – 140dB
Up to 100fps High Frame Rate
Smart IR II Technology Auto Tracking
Intelligent 3D Positioning
Smart Rain-sensing Wiper
Versatile Interfaces

AI 12X PTZ Bullet Camera

	Model	MS-C2961-X12R(T)PC(2MP)	MS-C5361-X12PC(5MP)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on	Color: 0.008L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR (Super WDR Pro is optional for T Series)	120dB Super WDR
	Lens	[email protected]~F2.8, 12X Optical Zoom, 16X Digital Zoom
	Field of View	H61°~H5°/D69°~D5°/V36°~V2°	H57°~H4°/D69°~D5°/V44°~V1°
	Minimum Working Distance	1000~1500mm (Wide/Tele)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 140m
	S/N	>55dB
PTZ	Pan Range/Speed	360°endless; Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
	Tilt Range/Speed	-45°~30°; Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
	Preset Quantity	300
	Patrol/Pattern	8 Patrols, up to 48 presets each patrol, 4 Patterns
Video	Max. Image Resolution	60fps@(1920×1080), 100fps@(1920×1080)(Optional for T Series)	30fps@(2592×1944)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1 (Optional)
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	Detect and capture faces, get real-time snapshots
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1 (Optional)
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/2A±10%
	Housing	IP66
	Dimensions/Weight	160mmX273.5mmX210mm/2Kg (Wall Mount) 218mmX120mmX172mm/1.8Kg (Pedestal Mount)

AI 12X PTZ Bullet Camera

	Model	MS-C2961-X12R(T)(P)E(2MP)	MS-C5361-X12(P)E(5MP)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on	Color: 0.008L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR	120dB Super WDR
	Lens	5.3~64mm, 12X Optical Zoom, 16X Digital Zoom
	Field of View	H61°~H5°/D69°~D5°/V36°~V2°	H57°~H4°/D69°~D5°/V44°~V1°
	Minimum Working Distance	1000/1500mm (Wide/Tele)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 140m
	S/N	>55dB
PTZ	Pan Range/Speed	360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
	Tilt Range/Speed	-45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
	Preset Quantity	300
	Patrol/Pattern	8 Patrols, up to 48 presets each patrol, 4 Patterns
Video	Max. Image Resolution	60fps@(1920×1080), 90fps@(1920×1080)(Optional for T Series)	30fps@(2592×1944)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1 (Optional)
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	–
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1 (Optional)
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/2A±10%
	Housing	IP66
	Dimensions/Weight	160mmX273.5mmX210mm/2Kg (Wall Mount) 218mmX120mmX172mm/1.8Kg (Pedestal Mount)

AI 5X/20X/23X PTZ Bullet Plus Camera

	Model	MS-C2867- 20TPC(2MP)	MS-C2967-X23R(T)PC(2MP)	MS-C5367-X23PC(5MP)	MS-C8267-X5PC(4K)		MS-C8267-X20PC(4K)
Camera	Appearance
	Image Sensor	1/2″ Progressive Scan CMOS	1/2.8″ Progressive Scan CMOS		1/1.8″ Progressive Scan CMOS
	Min. Illumination	Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on	Color: [email protected] B/W: 0Lux with IR on		Color B/W: 0Lux with IR on
	WDR	140dB Super WDR Pro	140dB Super WDR (Super WDR Pro is optional for T Series)	120dB Super WDR
	Lens	[email protected]~F4.0, 20X Optical Zoom, 16X Digital Zoom	[email protected]~F3.5, 23X Optical Zoom, 16X Digital Zoom		[email protected]~F2.1, 5X Optical Zoom, 16X Digital Zoom		[email protected]~F4.0, 20X Optical Zoom, 16X Digital Zoom
	Field of View	H60°~H3°/D67°~D4°/ V37°~V1°	H60°~H3°/D69°~D4°/ V35°~V2°	H55°~H3°/D68°~D4°/ V42°~V2°	H36°~8°/D41°~D9°/ V21°~V5°		H60°~H3°/D67°~D4°/ V37°~V1°
	Minimum Working Distance	1000~2000mm (Wide/Tele)	1000~1500mm (Wide/Tele)				1000~2000mm (Wide/Tele)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 180m
	S/N	>55dB
PTZ	Pan Range/Speed	360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
	Tilt Range/Speed	-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
	Preset Quantity	300
	Patrol/Pattern	8 Patrols, up to 48 presets each patrol, 4 Patterns
Video	Max. Image Resolution	60fps@(1920×1080), 100fps@(1920×1080)(Optional for T Series)		30fps@(2592×1944)		30fps@(3840×2160)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	Detect and capture faces, get real-time snapshots
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General	Working Temperature/Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/3A±10%
	Housing	IP66
	Dimensions/Weight	110mmX337mmX220mm/2.9Kg

AI 12X/20X/23X PTZ Dome Camera

	Model	MS-C2971-X12R(T)PC(2MP)	MS-C2871-X20TPC(2MP)	MS-C2971-X23R(T)PC(2MP)	MS-C5371-X12PC(5MP)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS	1/2″ Progressive Scan CMOS	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005L [email protected] B/W: 0Lux with IR on	Color: 0.002L [email protected] B/W: 0Lux with IR on	Color: 0.005L [email protected] B/W: 0Lux with IR on	Color: 0.008L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR (Super WDR Pro is optional for T Series)	140dB Super WDR Pro	140dB Super WDR (Super WDR Pro is optional for T Series)	120dB Super WDR
	Lens	[email protected]~F2.8, 12X Optical Zoom, 16X Digital Zoom	[email protected]~F4.0, 20X Optical Zoom, 16X Digital Zoom	[email protected]~F3.5, 23X Optical Zoom, 16X Digital Zoom	[email protected]~F2.8, 12X Optical Zoom, 16X Digital Zoom
	Field of View	H61°~H5°/D69°~D5°/V36°~V2°	H60°~H3°/D67°~D4°/V37°~V1°	H60°~H3°/D69°~D4°/ V35°~V2°	H57°~H4°/D69°~D5°/V44°~V1°
	Minimum Working Distance	1000~1500mm (Wide/Tele)	100~2000mm (Wide/Tele)	100~1500mm (Wide/Tele)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 160m
	S/N	>55dB
PTZ	Pan Range/Speed	360° endless; Pan Manual Speed: 0.1°~450°/s, Pan Preset Speed: 450°/s
	Tilt Range/Speed	-5°~90° (Auto Flip); Tilt Manual Speed: 0.1°~360°/s, Tilt Preset Speed: 360°/s
	Preset Quantity	300
	Patrol/Pattern	8 Patrols, up to 48 presets each patrol, 4 Patterns
Video	Max. Image Resolution	60fps@(1920×1080), 100fps@(1920×1080)(Optional for T Series)			30fps@(2592×1944)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	Detect and capture faces, get real-time snapshots
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
General	Working Temperature/Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/3A±10%
	Housing	IP66/IK10
	Surge Protection	4KV
	Dimensions/Weight	Φ183mmX174.8mm/2Kg

AI 12X/20X/23X PTZ Dome Network Camera

	Model	MS-C2871-X20TPE(2MP)	MS-C2971-X12R(T)PE(2MP)	MS-C2971-X23R(T)PE(2MP)	MS-C5371-X12PE(5MP)
Camera	Appearance
	Image Sensor	1/2″ Progressive Scan CMOS	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.002L [email protected] B/W: 0Lux with IR on	Color: 0.005L [email protected] B/W: 0Lux with IR on	Color: 0.005L [email protected] B/W: 0Lux with IR on	Color: 0.008L [email protected] B/W: 0Lux with IR on
	WDR	140dB Super WDR			120dB Super WDR
	Lens	6.4~128mm, 20X Optical Zoom, 16X Digital Zoom	5.3~64mm, 12X Optical Zoom, 16X Digital Zoom	5~117mm, 23X Optical Zoom, 16X Digital Zoom	5.3~64mm, 12X Optical Zoom, 16X Digital Zoom
	Field of View	H60°~H3°/D67°~D4°/V37°~V1°	H61°~H5°/D69°~D5°/V36°~V2°	H60°~H3°/D69°~D4°/ V35°~V2°	H57°~H4°/D69°~D5°/V44°~V1°
	Minimum Working Distance	100/2000mm(Wide/Tele)	1000/1500mm(Wide/Tele)	100/1500mm (Wide/Tele)	1000/1500mm(Wide/Tele)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 160m
	S/N	>55dB
PTZ	Pan Range/Speed	360° endless; Pan Manual Speed: 0.1°~450°/s, Pan Preset Speed: 450°/s
	Tilt Range/Speed	-5°~90° (Auto Flip); Tilt Manual Speed: 0.1°~360°/s, Tilt Preset Speed: 360°/s
	Preset Quantity	300
	Patrol/Pattern	8 Patrols, up to 48 presets each patrol, 4 Patterns
Video	Max. Image Resolution	90fps@(1920×1080)	60fps@(1920×1080), 90fps@(1920×1080)(Optional for T Series)		30fps@(2592×1944)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Ethernet	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	–
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	1/1
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
General	Working Temperature /Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/3A±10%
	Housing	IP66/IK10
	Dimensions/Weight	Φ183mmX174.8mm/2Kg

AI 23X/30X Speed Dome Camera

	Model	MS-C2941-X23R(T)PC(2MP)	MS-C2941- X30R(T)PC/W (2MP)	MS-C5341-X23PC(5MP)	MS-C5341-X30PC/W (5MP)
Camera	Appearance
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: [email protected], B/W: 0Lux with IR on		Color: [email protected], B/W: 0Lux with IR on
	WDR	140dB Super WDR (Super WDR Pro is optional for T Series)		120dB Super WDR
	Lens	5~117mm, 23X Optical Zoom, 16X Digital Zoom	4.7~141mm, 30X Optical Zoom, 16X Digital Zoom	5~117mm, 23X Optical Zoom, 16X Digital Zoom	4.7~141mm, 30X Optical Zoom, 16X Digital Zoom
	Field of View	H60°~H3°/D69°~D4°/ V35°~V2°	H62°~H3°/D70°~D3°/ V37°~V1°	H55°~H3°/D68°~D4° /V42°~V2°	H58°~H3°/D71°~D3° /V44°~V2°
	Minimum Working Distance	100/1500mm (Wide/Tele)
	Shutter Time	1/100000s~1s
	IR Distance	Up to 200m	Up to 200m / Up to 300m (Wiper Version)	Up to 200m	Up to 200m / Up to 300m (Wiper Version)
	S/N	>55dB
PTZ	Pan Range/Speed	360°endless / Pan Manual Speed: 0.1°~400°/s, Pan Preset Speed: 400°/s
	Tilt Range/Speed	-5°~90°(Auto Flip) / Tilt Manual Speed: 0.1°~320°/s, Tilt Preset Speed: 320°/s
	Preset Quantity	300
	Patrol/Pattern	8 Patrols, up to 48 presets each patrol, 4 Patterns
Video	Max. Image Resolution	60fps@(1920×1080), 100fps@(1920×1080)(Optional for T Series)		30fps@(2592×1944)
	Video Compression	H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
	Video Bit Rate	16Kbps~16Mbps(CBR/VBR Adjustable)
Network	Ethernet	1*RJ45 10M/100M Ethernet Port
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio	Audio Compression	G.711/AAC/G.722/G.726
	Audio I/O	1/1
Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	Face Detection	Detect and capture faces, get real-time snapshots
	People Counting & Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System	Alarm I/O	4/2
	Storage	NAS(Support NFS, SMB/CIFS); Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	Privacy Masking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
General	Wiper(Optional)	–	Support	–	Support
	Working Temperature/Humidity	-40°C~60°C/0~90%(Non-condensing)
	Power Supply	PoE (802.3at) / AC 24V/3A±10%
	Housing	IP66/IK10(Optional)
	Dimensions/Weight	Φ205mmX308mm/4Kg
