QUICK START – STICK STVZO
73734-Y16 Hecto Stvzo
Run Times and Modes
| BLAST | ENDURO | |
 | 30 LUMENS | 15 LUMENS |
 | 1:30 h : min | 3:00 h : min |
Battery & Charging
|
|
|
10- 2%
Load
ChargedPlease charge the Lezyne LED when the charging indicator is on displays a steady blue light (when the light is on).
During charging, the charging indicator lights up solid blue.
When fully charged, the charging indicator turns off.
3 hours USB charging
Mounting

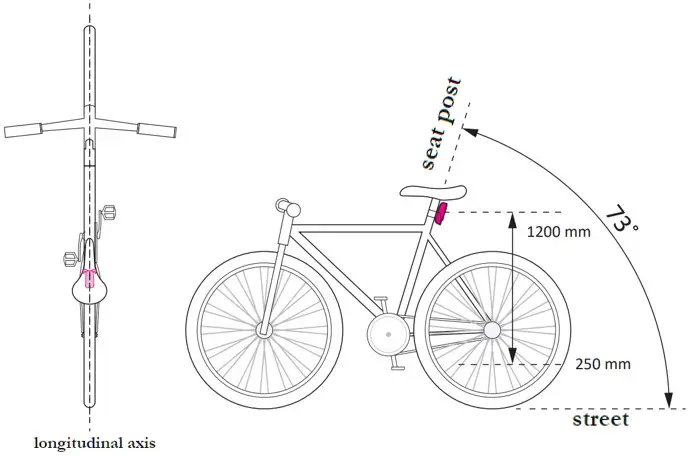

This lamp is intended for use on bicycles whose seat post is at 73 degrees angle. The mounting height is between 250mm and 1200mm. If you height, If you change the seat post, you also change the mounting height of the lamp.
The light beam must not be blocked by the tire or other parts of the bicycle will. The tail lamp must be mounted in such a way that the reference axis is parallel to the roadway.

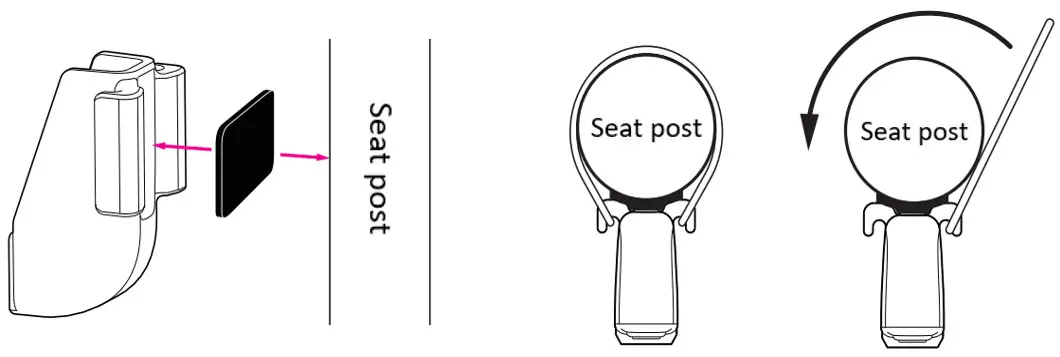

The 2-sided tape between the
Attach the bracket and the seat post.
Lezyne USA | 645 Tank Farm Rd., Unit F, San Luis Obispo, California 93401
LEZYNE Europe GmbH | Rolandstrasse 4, 14129 Berlin, Germany
UK Importer: Upgrade Bikes Ltd | Partridge Green, RH13 8RA
For more info go to: www.lezyne.com/support.php
Y16-LED-STICK STVZO-QUICK-R0A1
