QUICK START – FEMOTE USB REAR STVZO
73246-Y16 Femto USB Rear Stvzo
Run Times and Modes
FEMTO USB REAR STVZO
| BLAST | ECONOMY | |
 | 8 LUMENS | 4 LUMENS |
 | 4:00 h : min | 8:00 h : min |
Battery & Charging

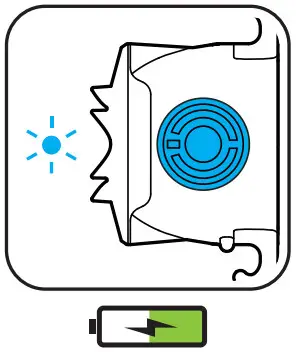

During charging, the charging indicator lights up solid blue.

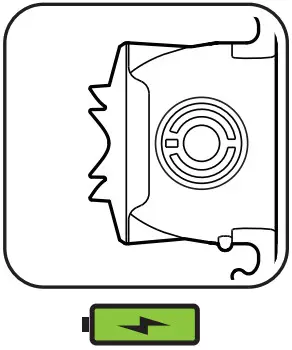

When fully charged, the charging indicator turns off.

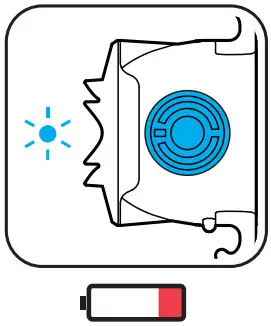

Please charge the Lezyne LED when the power button is on displays a steady blue light (when the light is on).
|
|
|
Load
ChargedMounting
- Before using your Lezyne LED Light for the first time, fully charge battery.

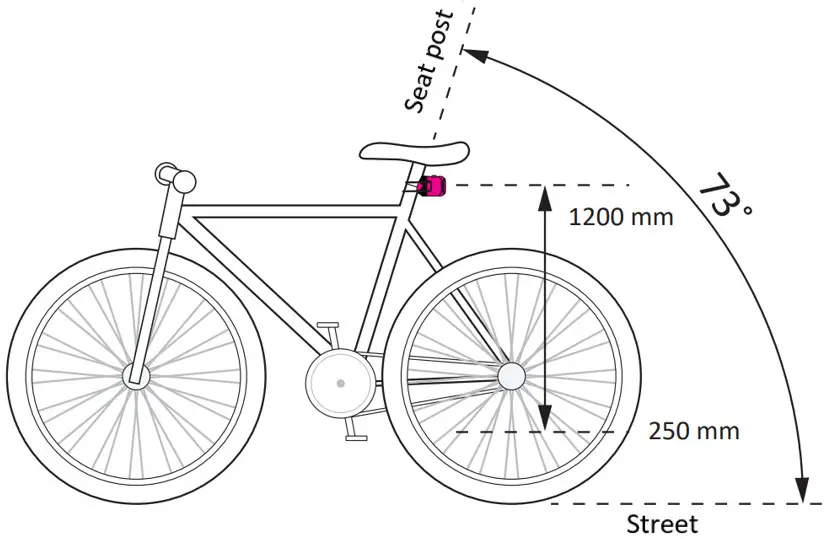

This lamp is intended for use on bicycles with a seat post in the 73rd degree angle. The mounting height is between 250 mm and 1200 mm. If you change the height of the seat post, that changes the mounting height of the Lamp.

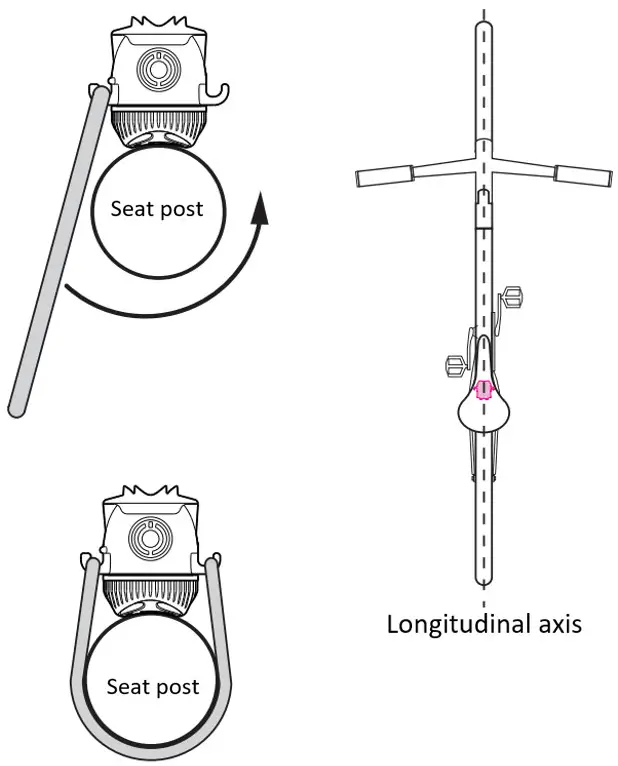

The light beam must not go through the tire or other parts of the bike be covered up. The tail light must be installed in such a way that the reference axis is parallel to the roadway.
Lezyne USA | 645 Tank Farm Rd., Unit F, San Luis Obispo, California 93401
LEZYNE Europe GmbH | Rolandstrasse 4, 14129 Berlin, Germany
UK Importer: Upgrade Bikes Ltd | Partridge Green, RH13 8RA
For more info go to: www.lezyne.com/support.php
Y16-LED-FEMTO USB REAR STVZO-QUICK-R0A1
