KTV REAR STVZO
QUICK START GUIDE
KTV Rear STVZO Light
Run Times and Modes
| BLAST | ECONOMY | |
 | 11 LUMENS | 4 LUMENS |
 | 6:30 h : min | 12:00 h : min |

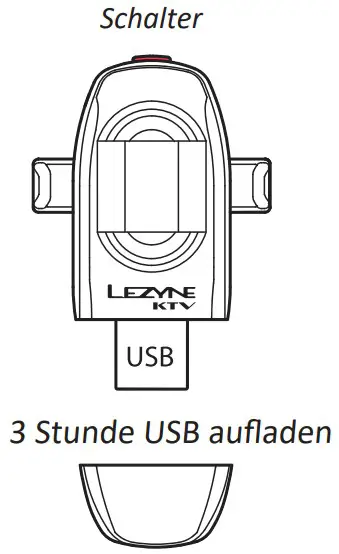

Battery & Charging

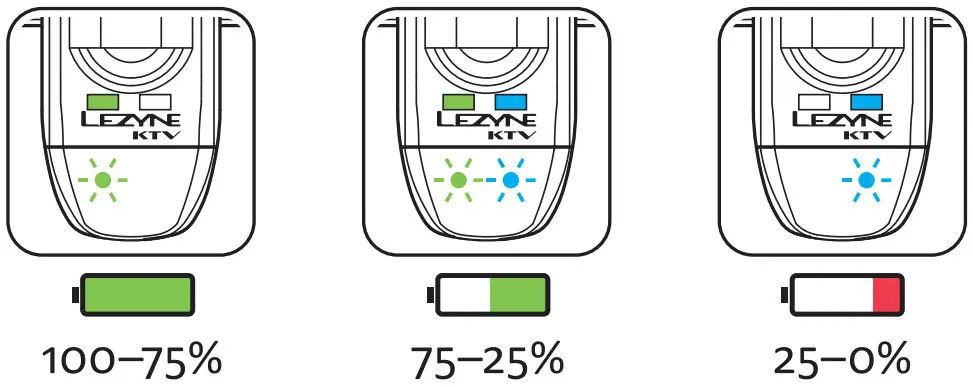

- Click power button while the light is off to check battery level.

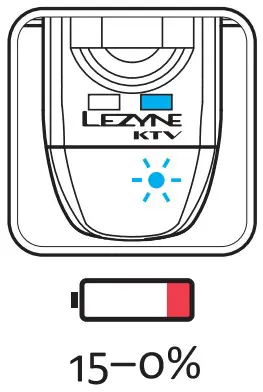

- Recharge your Lezyne LED Light when the power indicator is solid blue while the light is on.
Before using your Lezyne LED Light for the first time, fully charge the battery.

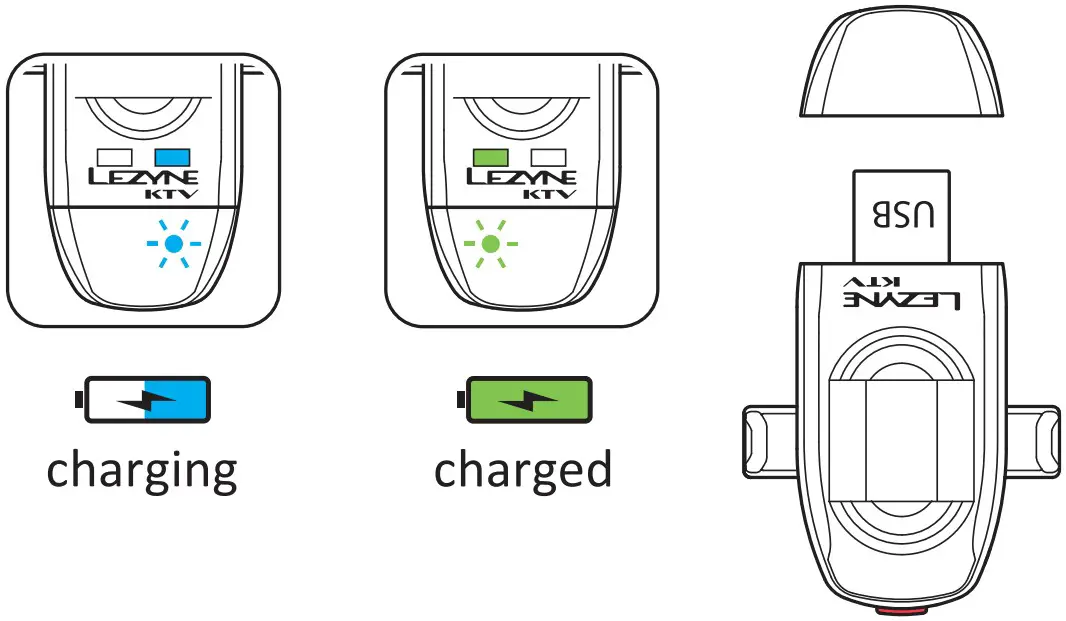

The charge indicator will be solid blue during charging. When charging is complete the indicator will turn solid green.

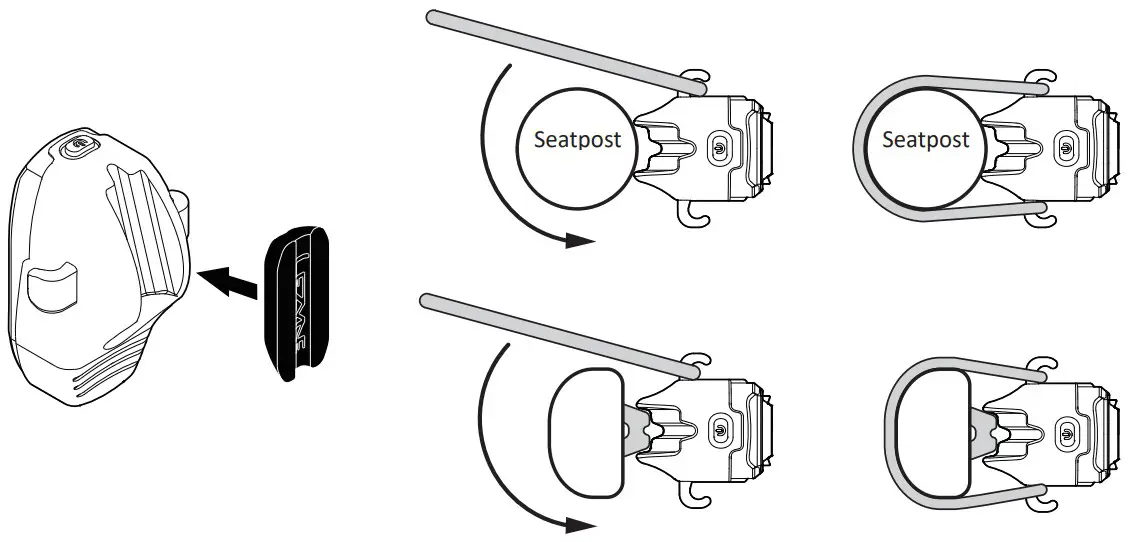

Mounting

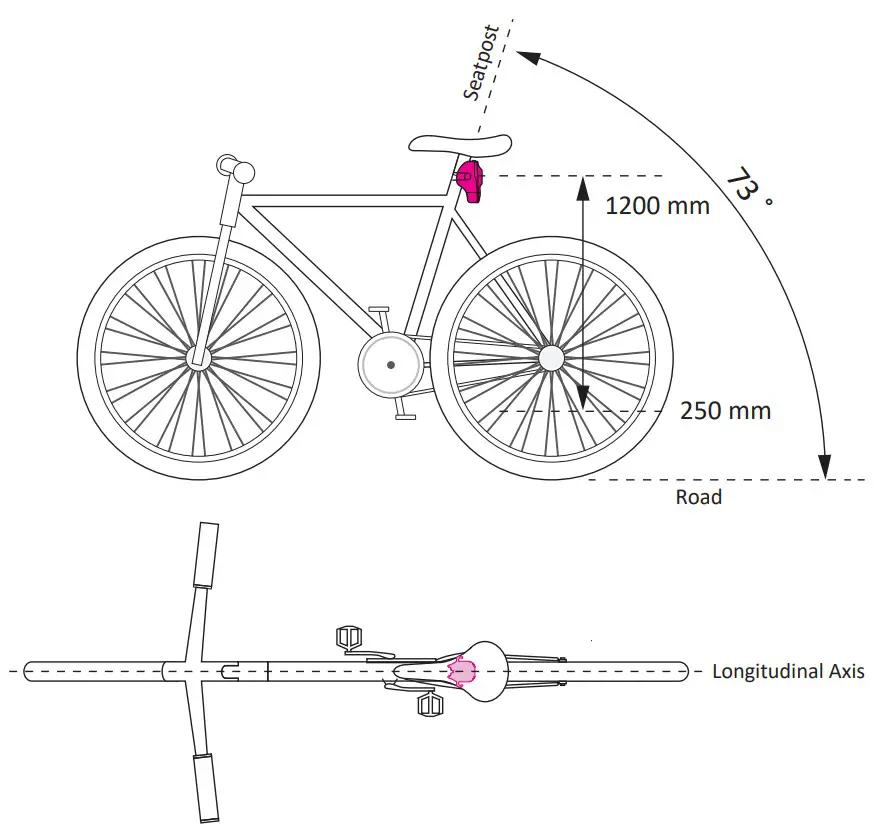

This light is intended for use on bicycles with a 73 degree seat post angle, height between 250mm to 1200 mm. Changing the seat post height will change the mounting height of the light.
Do not block the illumination range with tire or any parts of the bike.
Lezyne USA | 645 Tank Farm Rd., Unit F, San Luis Obispo, California 93401
LEZYNE Europe GmbH | Rolandstrasse 4, 14129 Berlin, Germany
UK Importer: Upgrade Bikes Ltd | Partridge Green, RH13 8RA
For more info go to: www.lezyne.com/support.php
Y16-LED-KTV REAR STVZO-QUICK-R0A1
