BLACK OAK LED XD Marine Night Vision Camera

KIT CONTENTS

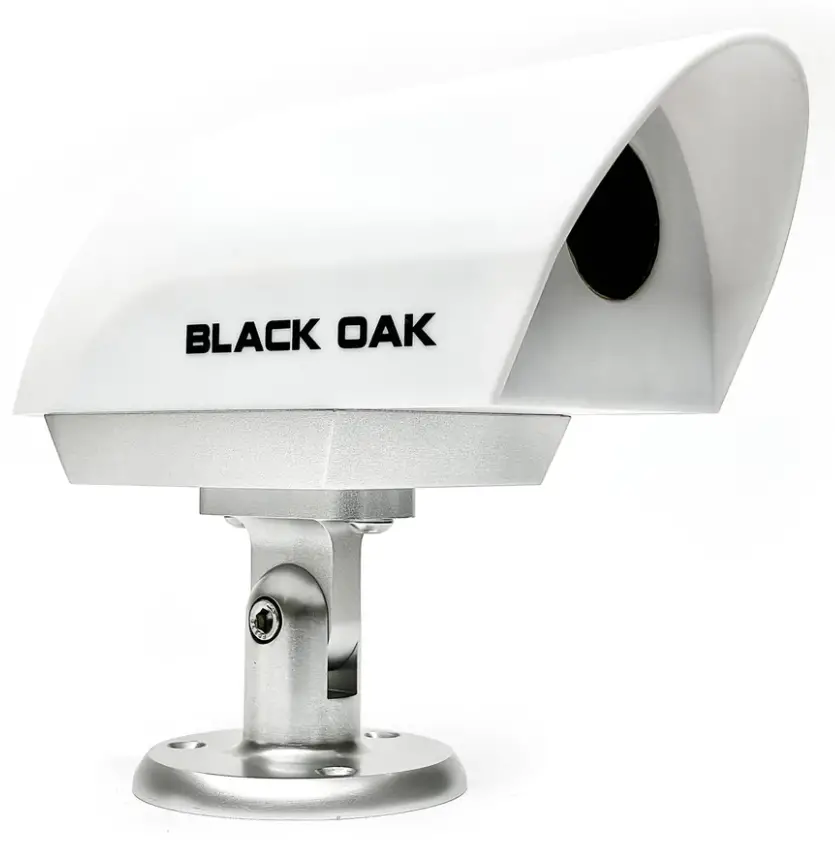

[1 ] Nitron XD Camera
[1 ] Base Mount
[1 ] 251 Quick Connect Harness
[1 ] BNC Connector
[1 ] Video Input Cable (MFD Specific)

INSTRUCTIONS

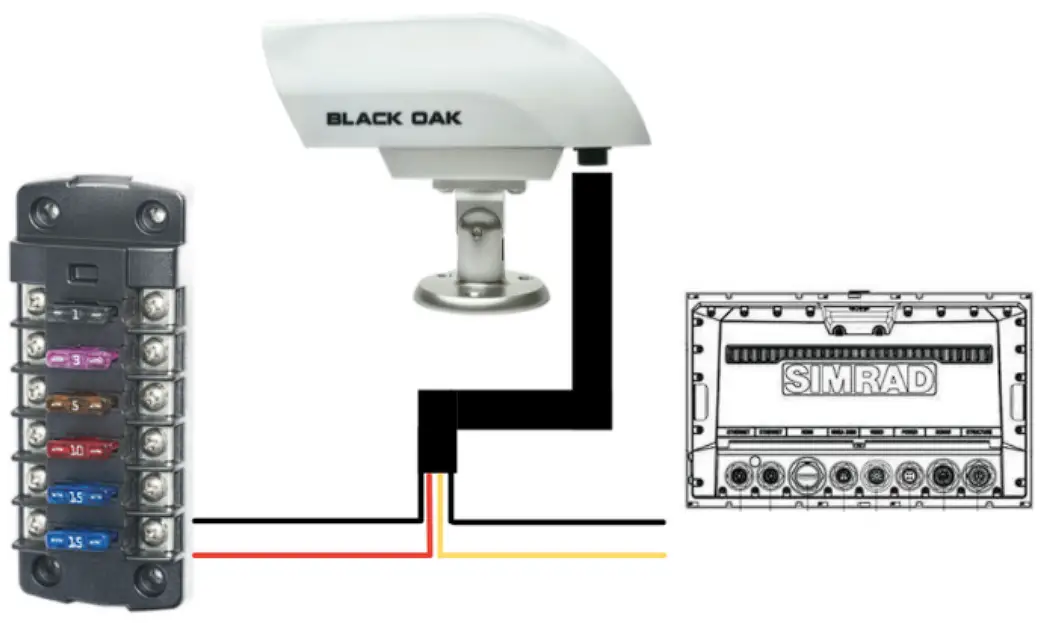

1. Confirm connection with video input cable to your MFD
2. Run wire from desired camera mounting location to MFD
3. Connect yellow and black (short) wires from harness to BNC adapter
4. Connect red wire to power (Bus bar, fuse panel, battery)
5. Connect black (long) wire to suitable ground
6. Plug video input cable into M FD
7. Plug and tighten quick connector into camera
8. Power on MFD and select video icon
9. Select PAL format

DO’S AND DON’TS

Don’t cut the quick connect plug

Modify the other end of the harness as needed
