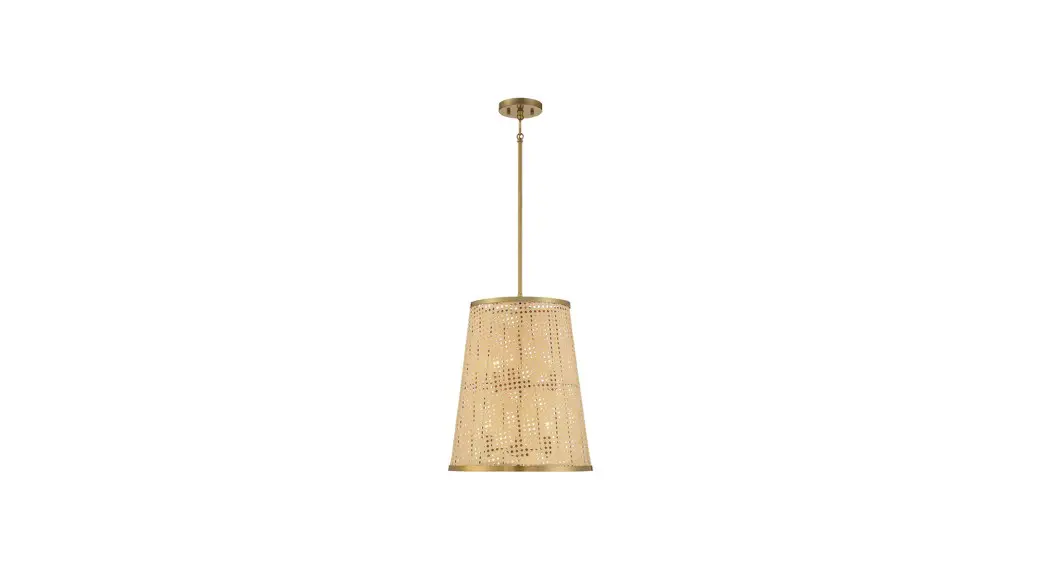

3-1772-6-200 Astoria 6-Light Natural-Burnished Brass Statement Pendant Light
ITEM NO: 3-1772-6-200
ASSEMBLY INSTRUCTIONS

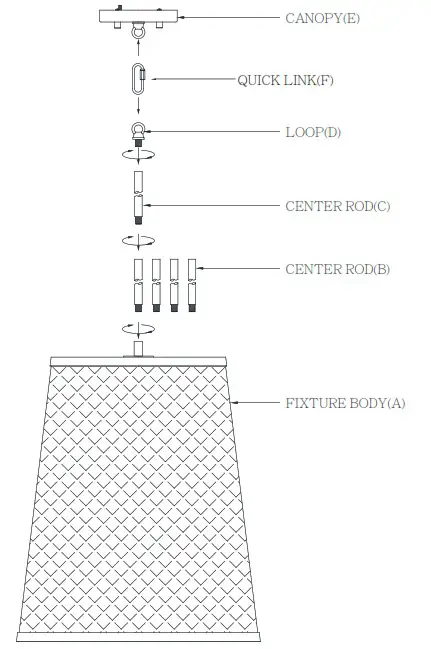

- Carefully unpack and identify all parts referring to illustration for parts identification.
- Turn the power to the installation point OFF.
- Unravel the supply power and ground wires and pass them through the center holes of center rod (B), (C), loop (D) and canopy (E).
- Thread the bottom of center rod (B) into the fixture body (A). Repeat process for remaining center rods (B) and (C). Hand tighten until snug.
- Install the loop (D) onto the top of center rod (C).
- Use quick link (F) to connect the top loop (D) to the loop on the canopy (E) and twist the locking mechanism to secure.
- Refer to the additional installation instructions included with the product for wiring and installation.
- Install proper bulbs (not included) into each socket referring to the markings and/or labels on the fixture for maximum wattage.
- Restore power to the installation point and retain this sheet for future reference.
