Lucande 9956151 45W LED Instruction Manual
Safety Precautions
Provided for stationary indoor use on ceilings

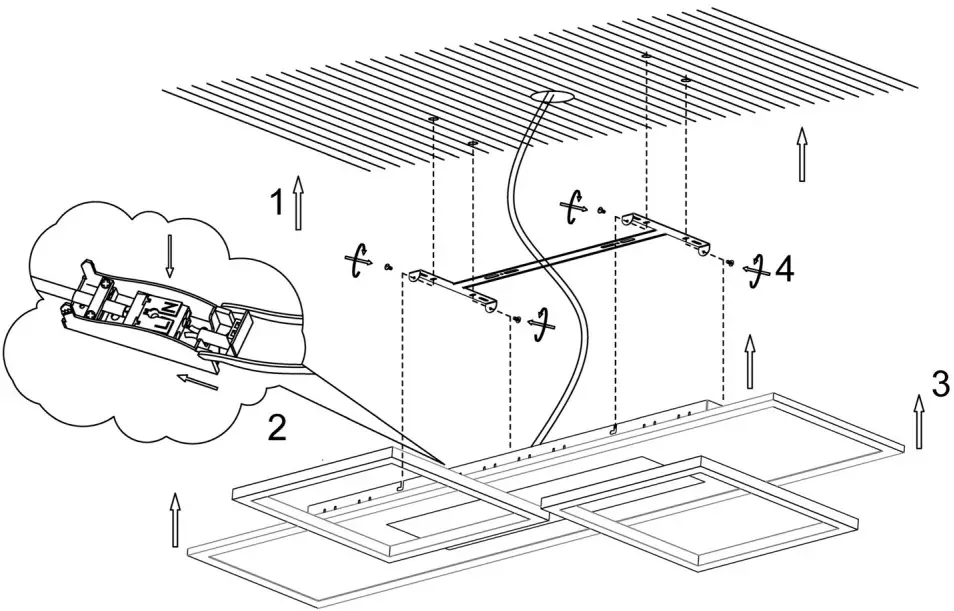

Package contents
Ceiling lamp Installation hardware Mounting instructions

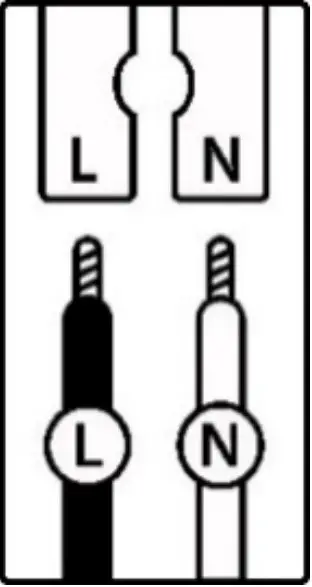

Live conductor

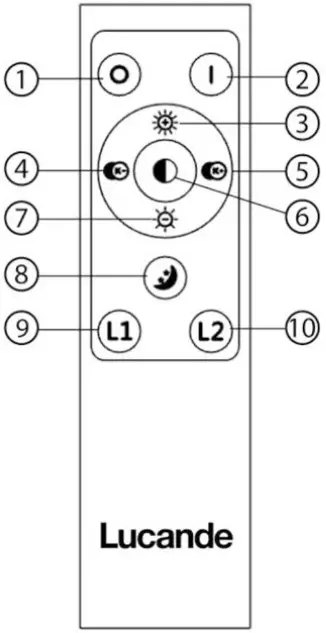

Remote control
| 1 | OFF (main and subsidiary light) |
| 2 | ON (main and subsidiary light)Matching code: power on the lamp and press long the button within 6 seconds. The lamp will flicker once if the matching is successful |
| 3 | Brightness + |
| 4 | CCT 2700K-6500K |
| 5 | |
| 6 | CCT change cycle:(1) 4000K 100% (main and subsidiary light)(2) 2700K 100% (main and subsidiary light)(3) 6500K 100% (main and subsidiary light)(4) 6500K 100% main light + 2700K 100% subsidiary light(5) 2700K 100% main light + 6500K 100% subsidiary light(6) Main light OFF + 2700K 100% subsidiary light(7) 6500K 100% main light + subsidiary light OFF(8) Night light 4000K 10% (main and subsidiary light) |
| 7 | Brightness – |
| 8 | Night light 4000K 10% (main and subsidiary light)(color temperature can be regulated by pressing buttons 4 and 5) |
| 9 | 1. When main light and subsidiary light are on, press the button to choose “main light” for individually control its CCT and brightness.2. Long press the button for 2 seconds, turn off the main light. Press the button again, turn on the main light. |
| 10 | 1. When main light and subsidiary light are on, press the button to choose “Subsidiary light” for individually control its CCT and brightness.2. Long press the button for 2 seconds, turn off the subsidiary light. Press the button again, turn on the subsidiary light. |
Wall switch function:
CCT mode: Turn the light on via the wall switch and turn off again within 5 seconds. Turn on the light again within 3 seconds. CCT mode is activated. The following variants can be selected by pressing the wall switch again.
- 4000K main and subsidiary light 2. 2700K main and subsidiary light
- 6500K main and subsidiary light
- 6500K main light + 2700K subsidiary light
- . 2700K main light + 6500K subsidiary light
Memory function: If the light is switched on for more than 10 seconds and then switched off for more than 5 seconds, the light scene last used is set when it is switched on again.
This product contains a light source of energy efficiency class E
4251911752885

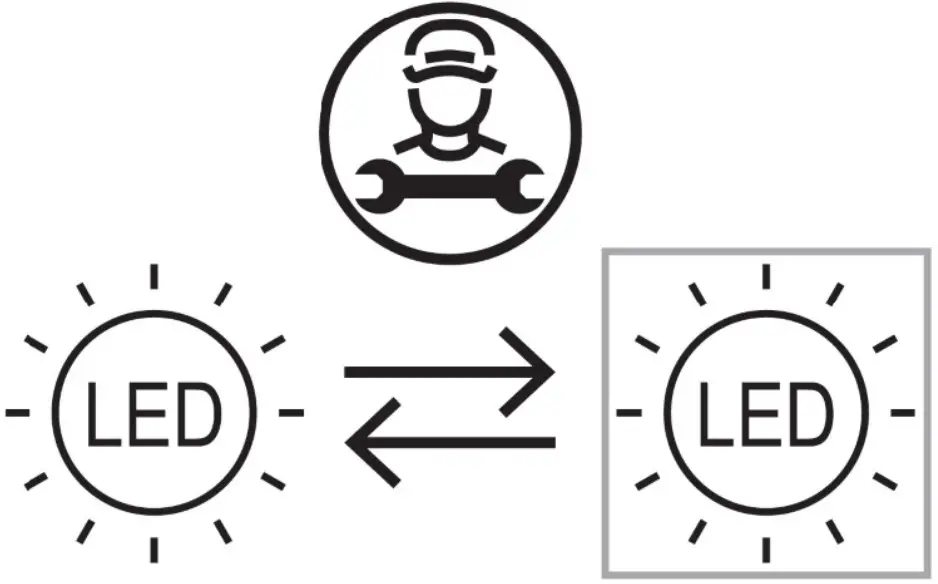

Replaceable (LED only) light source by a professional.

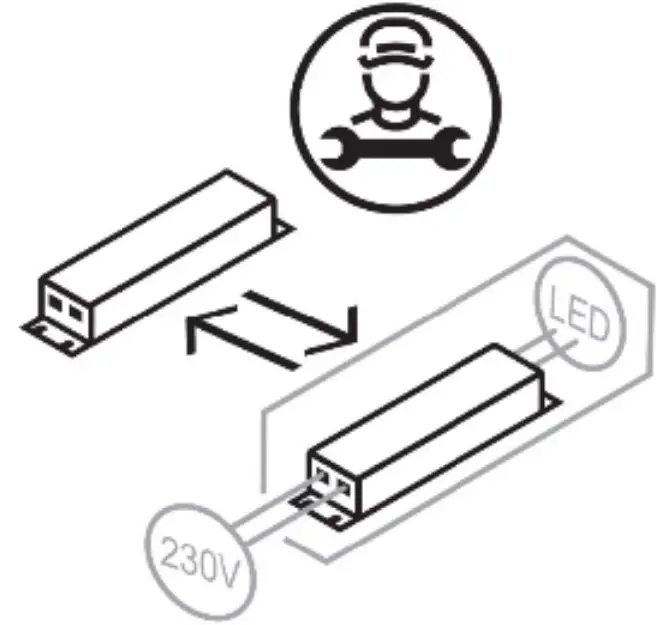

Replaceable control gear by a professional.
