Lucande 9922044 Stigla Led Ceiling Light Instruction Manual

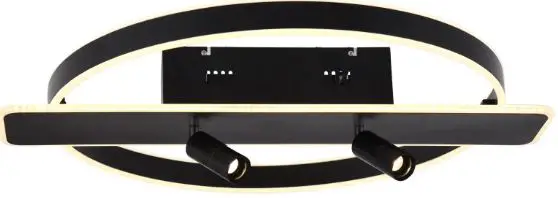

Lucande 9922044 Stigla LED Ceiling Light

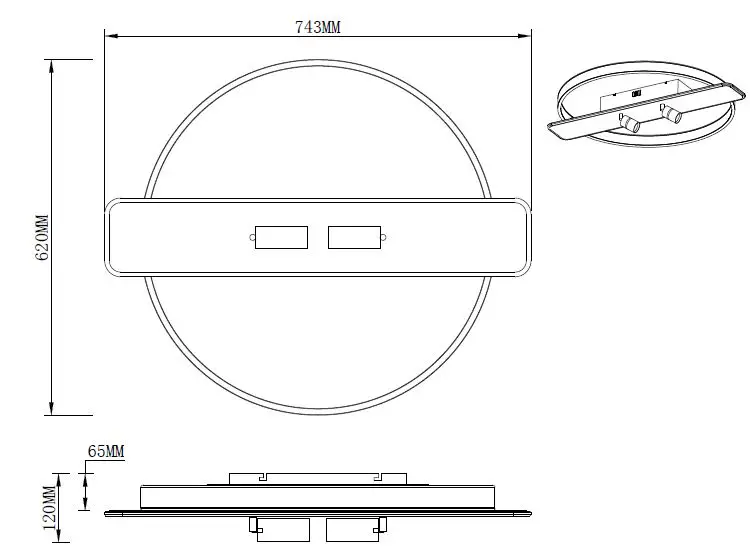

DIMENSIONS

Intended use

• Provided for stationary outdoor use on ceilings.

Safety Precautions

Package contents

• 1 Ceiling lamp
• Installation hardware
• Mounting instructions

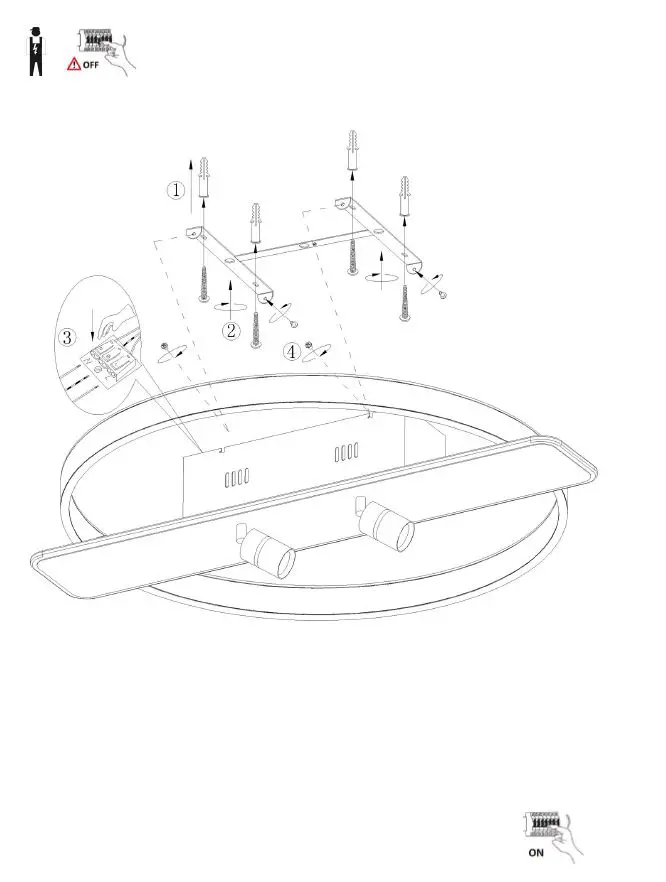

INSTALLATIONS

Instruction Manual for 2.4G Remote Control

Wall switch

• When switched off for more than 10s, then turn on the power, the lamp remembers the last setting.
• When switched on not more than 5s, then switched off, and switched on again within 0.5-3s, the lamp will change to the next setting. Setting loop: Main light and spot light – Main light spotlight.

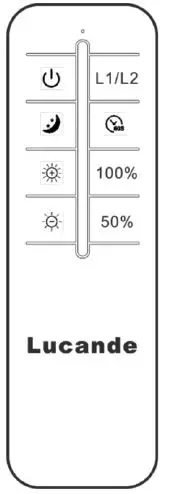

Instruction of remote control

• The lamp has already well paired with the remote control when you receive the lamp.
• If there are any issues with the remote control to match the lamp, you could repair it following the below method: after switching on the lamp within 6s, long press L1/L2 key for 2s, and the lamp will flicker one time, it is successful to match the lamp.
• Key’s function for remote control.

1. on/off key
2. Nightlight, short press for lowest power
3. Long press to dim up stepless
4. Long press to dim down stepsis
5. Toggle key circle: short press this key for main light + spot light; short press this key for main light; short press this key for spotlight.
6. Timer, short press, the 60s switched off.
7. Short press this key, and the main light is 100% power
8. Short press this key, and the main light is 50% power.

Note
Please open the back cover of the remote control, then you could load 2pcs battery of 1.5V AAA into the control remote, then close the back cover well and use it.

WIRING

• L: Live conductor
• Earth conductor
• N: Neutral conductor

SCAN

• This product contains a light source of energy efficiency class D: 4251911743814.

• This product contains a light source of energy efficiency class E: 4251911743838.

FEATURES

• Replaceable (LED only) light source by a professional.
• Replaceable control gear by a professional.
