Innr Ogl 13x C Outdoor Smart Globe Light Instruction Manual

Innr Ogl 13x C Outdoor Smart Globe Light Instruction Manual

INNRR-LOGO

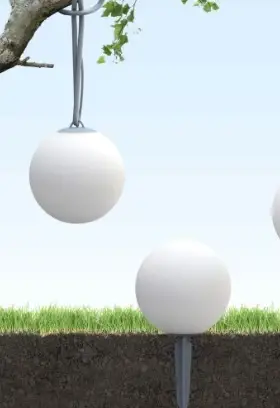

innr OGL 13x C Outdoor Smart Globe Light

innr-OGL-13x-C-Outdoor-Smart-Globe-Light-PRODUCT-IMAGE

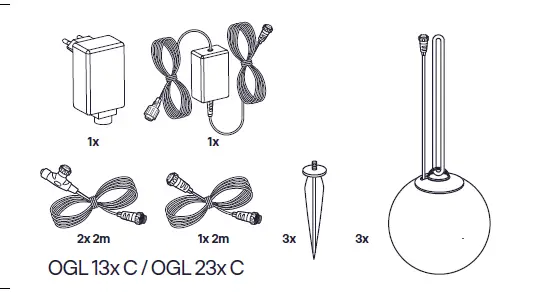

System Overview
innr-OGL-13x-C-Outdoor-Smart-Globe-Light-01

Attention: expandable to a maximum of 5 globes.

innr-OGL-13x-C-Outdoor-Smart-Globe-Light-10

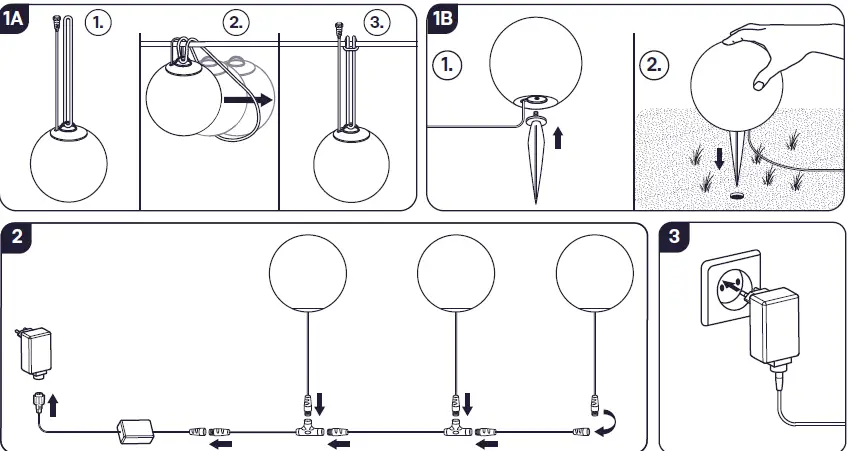

Installation

innr-OGL-13x-C-Outdoor-Smart-Globe-Light-03

Connection

To connect the lamp to the bridge, follow the instructions in the mobile app.

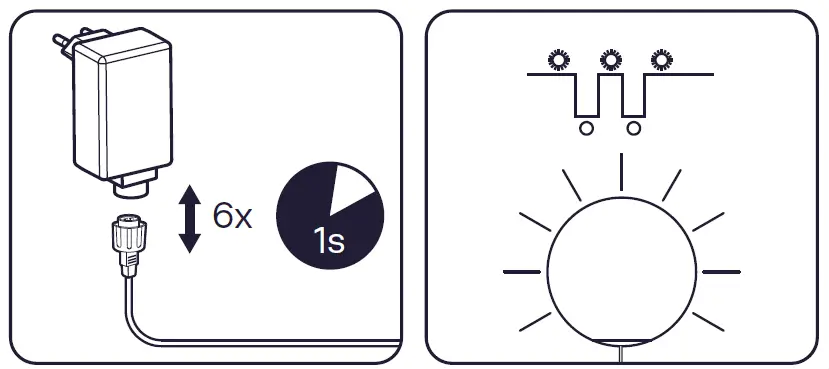

Factory reset

innr-OGL-13x-C-Outdoor-Smart-Globe-Light-04

Important safety instructions
  • Suitable for outdoor use
  • Do not disassemble the product; if any part is damaged, the product should not be used.
  • Do not immerse in water.
  • For cleaning, use a damp cloth, never a strong cleaning agent.
  • Keep these instructions for future use
Declaration of Conformity

Hereby, Innr Lighting BV declares that the radio equipment types OGL 13x C, OGL 23x C are in compliance with Directive 2014/53/EU.
The full text of the EU declaration of conformity is available at the following internet address: www.innrlighting.com/en/downloads
Frequency: 2.4 GHz (2400 ~ 2483.5MHz) – RF power: max. 10 dBm

  • This product contains light sources of energy efficiency class
Replaceable by consumer

innr-OGL-13x-C-Outdoor-Smart-Globe-Light-05

innr-OGL-13x-C-Outdoor-Smart-Globe-Light-06

INNR IM OGL 130 C – EU – 210 X 297 – Pantone 276C
