Lumascape Ls9182 Quadralux Q8 Foundation Instruction Manual

QUADRALUX Q8 LS9182 FoundationInstruction Manual

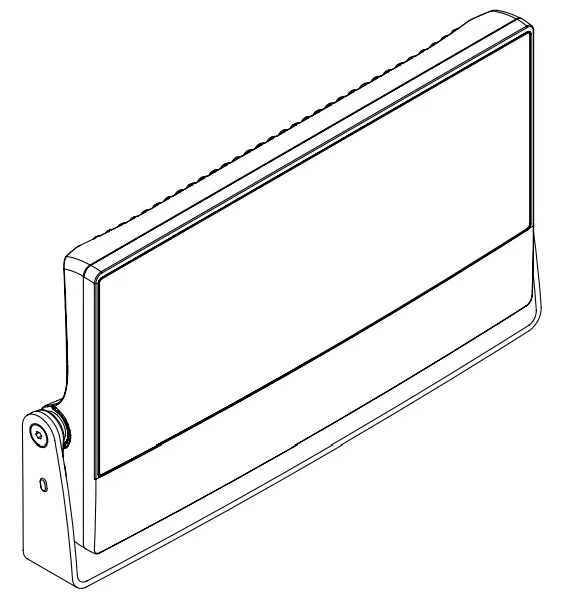

LS9182 Quadralux Q8 Foundation

MODEL LS9182
PART NUMBER LS9182 – xxx xxx xx xx x 01 xx xx xxx LS9182 – xxx xxx xx xx x 09 xx xx xxx
INSTALLATION TYPE FLOOD/SPOTLIGHT
IP RATING IP66/67 (Passes IP68 Test)
SUPPLY VOLTAGE 220-240 ~Vac, 50 Hz 120/277 ~Vac, 60 Hz
INSTRUCTIONS COVER Single Color (Non-Dimmable) Single Color Dimming (Dali, 0-10 V)
DIMENSIONS (LxWxH) 22.4” x 2.8” x 13.5” (569 x 71 x 343 mm)
WEIGHT 28.6 lbs (13.0 kg)
MAX. PROJECTED AREA 1.22 ft² (0.12 m²)

Please read and follow all safety instructions carefully. Failure to do so will void warranty.
WARNING – Product Warranty is void if product is not installed as per installation instructions and in compliance with all local and provincial codes.

• Ensure installation complies with local electrical rules and regulations.
• All electrical work must be performed by a licensed electrician.

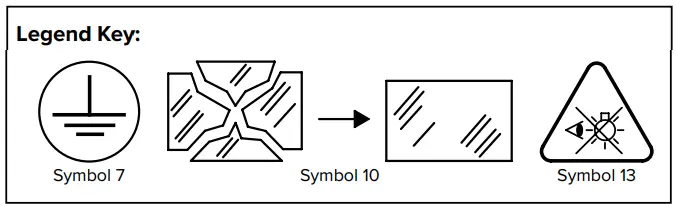

• Protective earth; protective ground (symbol 7).
• For LED Options 2,700K, 3,000K, Red, Green, Blue, RGBA, RGBW, Tunable White:
  This product contains a light source of energy efficiency class G.
• For LED Options 3,500K, 4,000K, 5,000K:
  This product contains a light source of energy efficiency class F.
• All luminaires may become hot. Use discretion on where the luminaire is mounted. Take care when setting luminaire as it may become hot.
• Luminaire should only be used complete with protective shield. If protective shield is cracked, immediately stop using luminaire. Isolate light source, keep it dry and immediately contact Lumascape for replacement of protective shield (symbol 10).
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by Lumascape or their service agent in order to avoid a hazard.
• The light source contained in this luminaire shall only be replaced by Lumascape or their service agent.
• Do not stare at the operating light source. The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 124′ (38 m) is not  expected (symbol 13)
• Basic insulation has been maintained between line voltage and the control conductors.
• To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
• Ensure mains input power is surge protected.
• Never make or break connections while the circuit is energized.
• Do not make modifications or alter the product.
• Keep luminaire clean and free of debris.
• Only clean with warm water.
• Do not use chemicals or abrasives to clean luminaire as this may void the product warranty.
• Connections are to be kept clean and dry at all times.
• Suitable for use indoors or outdoors.

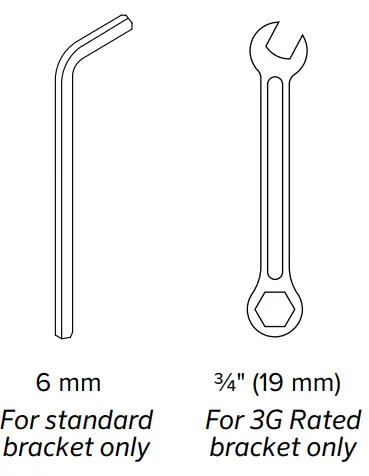

Tools Required

Included Components

Instructions	Luminaire	6 mm Allen Key

CAUTION Risk of Electric Shock

	Do Not Use Power Tools on Screws
	Keep Away from Flammable Materials
	Do Not Use Silicone On Outside Surface
	Keep Electronics Free From Dirt and Moisture
	Do Not Hose or Pressure Clean
	Do Not Cut Cable to the Luminaire

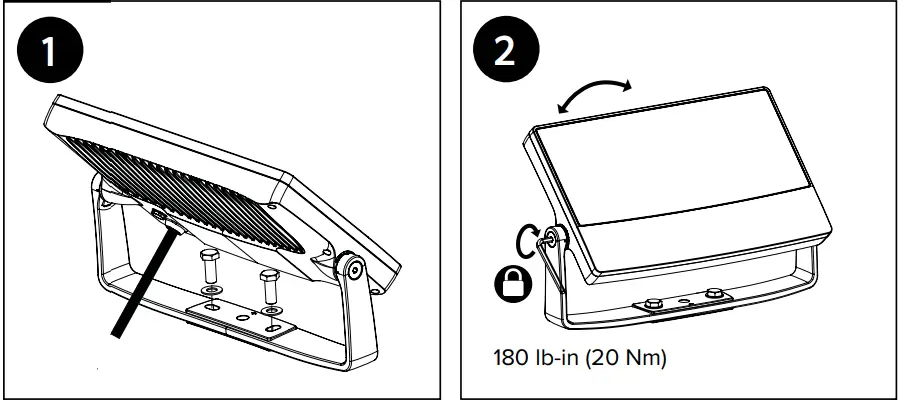

Assembly Instructions

STANDARD

3G RATED

Wiring Designations

Non-Dimmable (4-Core) – International

Do not Hi-Pot test
DALI (5-Core) – International

Do not Hi-Pot test
Non-Dimmable (4-Core) – North America

Do not Hi-Pot test
0-10 V (5-Core) – North America

Do not Hi-Pot test

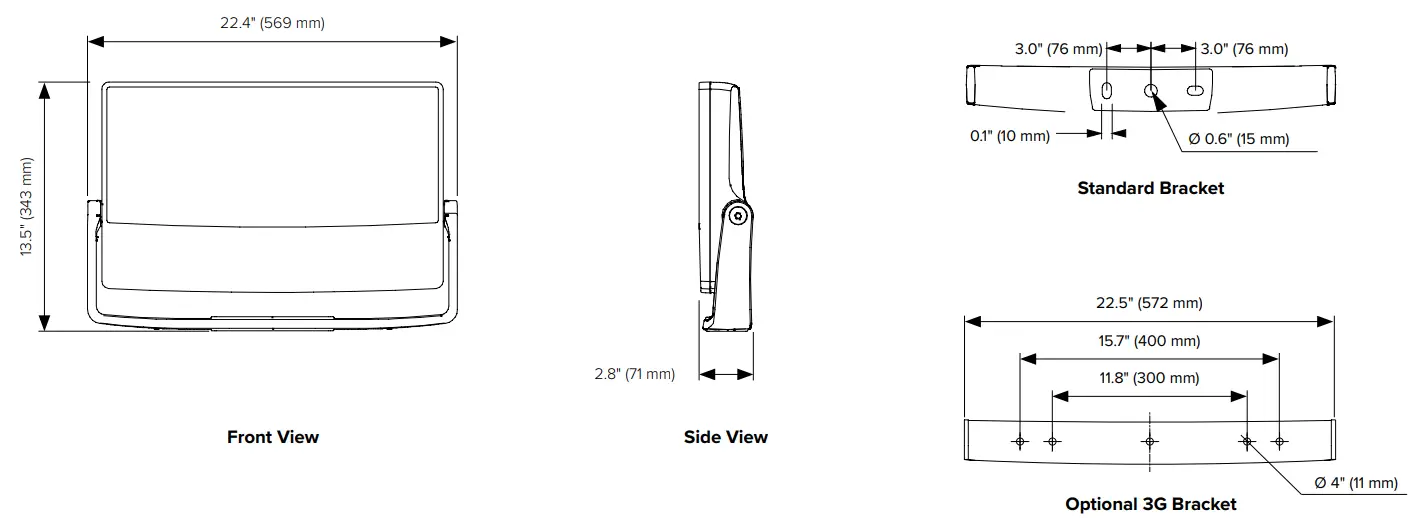

Dimensions
