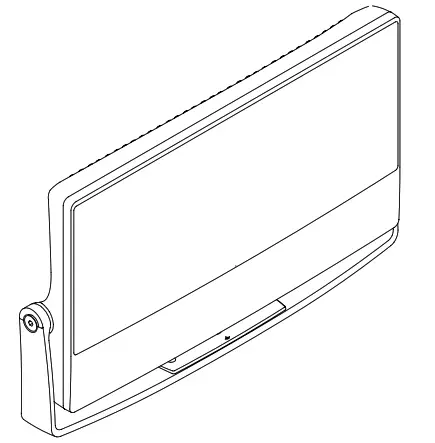

LS9162 Quadralux Q6 Foundation Spotlight
Instruction Manual
| MODEL | LS9162 |
| PART NUMBER | LS9162 – xxx xxx xx xx x 01 xx xx xxx LS9162 – xxx xxx xx xx x 09 xx xx xxx |
| INSTALLATION TYPE | FLOOD/SPOTLIGHT |
| IP RATING | IP66/67 (Passes IP68 Test) |
| SUPPLY VOLTAGE | 220-240 ~Vac, 50 Hz 120/277 ~Vac, 60 Hz |
| INSTRUCTIONS COVER | Single Color (Non-Dimmable) Single Color Dimming (Dali, 0-10 V) |
| DIMENSIONS (LxWxH) | 16.7″ x 2.4″ x 11.2″ (424 x 62 x 285 mm) |
| WEIGHT | 15.4 lbs (7.0 kg) |
| MAX. PROJECTED AREA | 0.66 ft² (0.06 m²) |

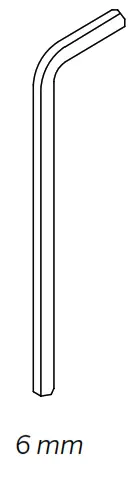

Tools Required

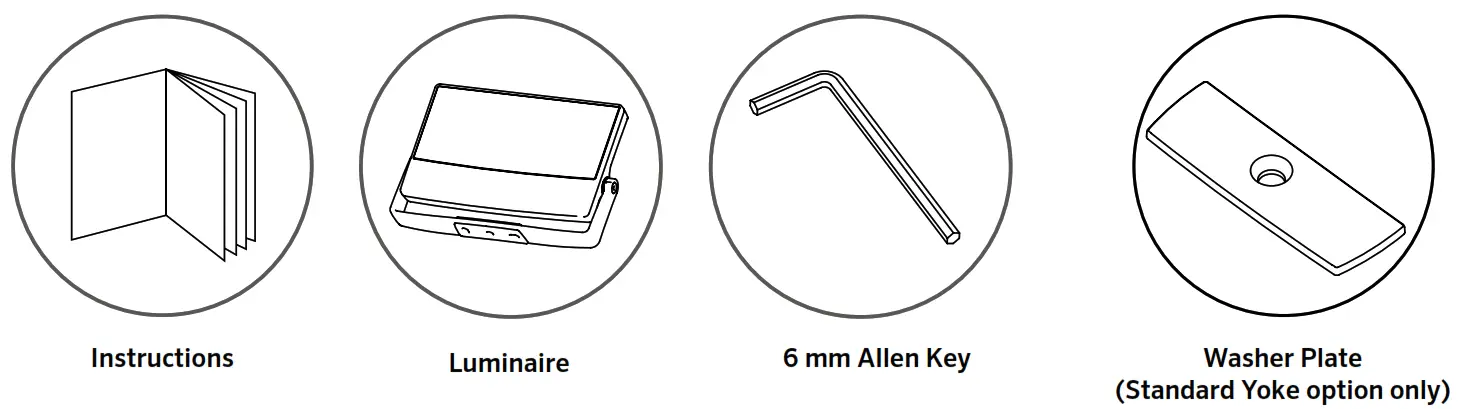

Included Components
CAUTION Risk of Electric Shock
 | Do Not Use Power Tools on Screws |  | Keep Away from Flammable Materials |  | Do Not Use Silicone On the Outside Surface |
 | Keep Electronics Free From Dirt and Moisture |  | Do Not Hose or Pressure Clean |  | Do Not Cut Cable to the Luminaire |
Please read and follow all safety instructions carefully. Failure to do so will void the warranty.
WARNING – Product Warranty is void if the product is not installed as per installation instructions and in compliance with all local and provincial codes.
- Ensure installation complies with local electrical rules and regulations.
- All electrical work must be performed by a licensed electrician.
- Protective earth; protective ground (symbol 7).
- For LED Options 2,700K, 3,000K, Red, Green, Blue, RGBA, RGBW, Tunable White:
This product contains a light source of energy efficiency class G. - For LED Options 3,500K, 4,000K, 5,000K:
This product contains a light source of energy efficiency class F. - All luminaires may become hot. Use discretion on where the luminaire is mounted. Take care when setting the luminaire as it may become hot.
- Luminaire should only be used complete with a protective shield. If the protective shield is cracked, immediately stop using the luminaire. Isolate the light source, keep it dry and immediately contact Lumascape for replacement of the protective shield (symbol 10).
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by Lumascape or their service agent in order to avoid a hazard.
- The light source contained in this luminaire shall only be replaced by Lumascape or its service agent.
- Do not stare at the operating light source. The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 95′ (29 m) is not expected (symbol 13)
- Basic insulation has been maintained between the line voltage and the control conductors.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Ensure mains input power is surge protected.
- Never make or break connections while the circuit is energized.
- Do not make modifications or alter the product.
- Keep luminaire clean and free of debris.
- Only clean with warm water.
- Do not use chemicals or abrasives to clean the luminaire as this may void the product warranty.
- Connections are to be kept clean and dry at all times.
- Suitable for use indoors or outdoors.

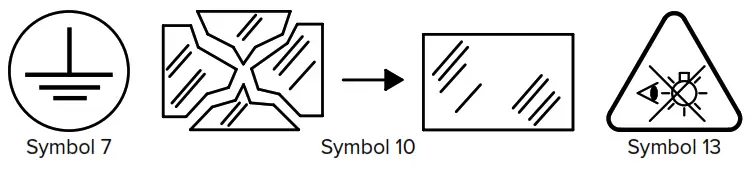

Legend Key:

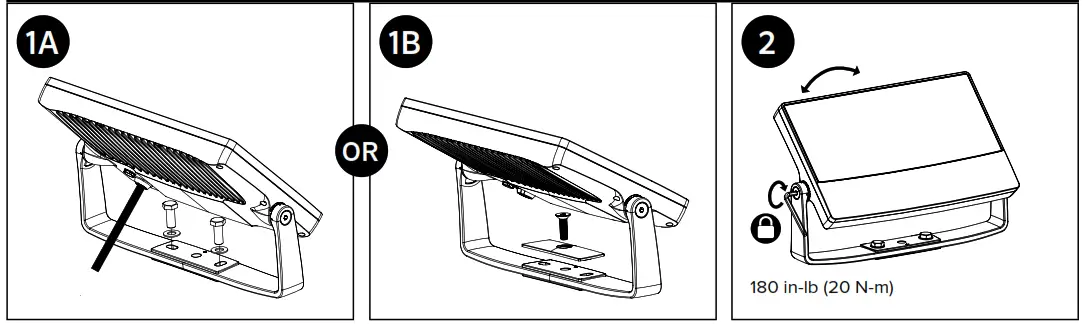

Assembly Instructions
STANDARD

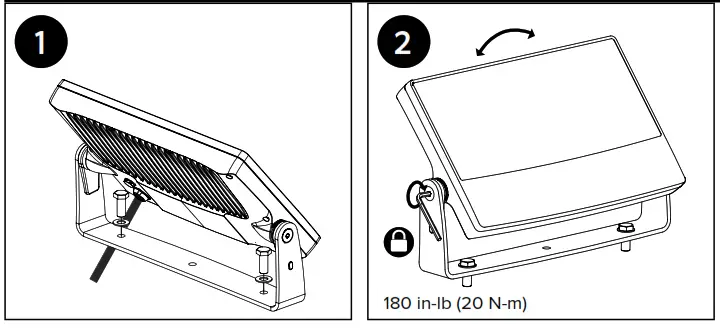

3G RATED
Wiring Designations
Non-Dimmable (4-Core) – International
| Designation | Color |
| Active | Brown |
| Neutral | Blue |
| Earth | Green / Yellow |
| Not Used | Black |
Do not Hi-Pot test
DALI (5-Core) – International
| Designation | Color |
| Active | Brown |
| Neutral | Blue |
| Earth | Green / Yellow |
| DALI + | Grey |
| DALI – | Black |
Do not Hi-Pot test
Non-Dimmable (4-Core) – North America
| Designation | Color |
| Active | Black |
| Neutral | White |
| Earth | Green / Yellow |
| Not Used | Grey or Red |
0-10 V (5-Core) – North America
| Designation | Color |
| Active | Black |
| Neutral | White |
| Earth | Green/Yellow |
| 0-10 V + | Purple |
| 0-10 V – | Grey or Pink |
Do not Hi-Pot test

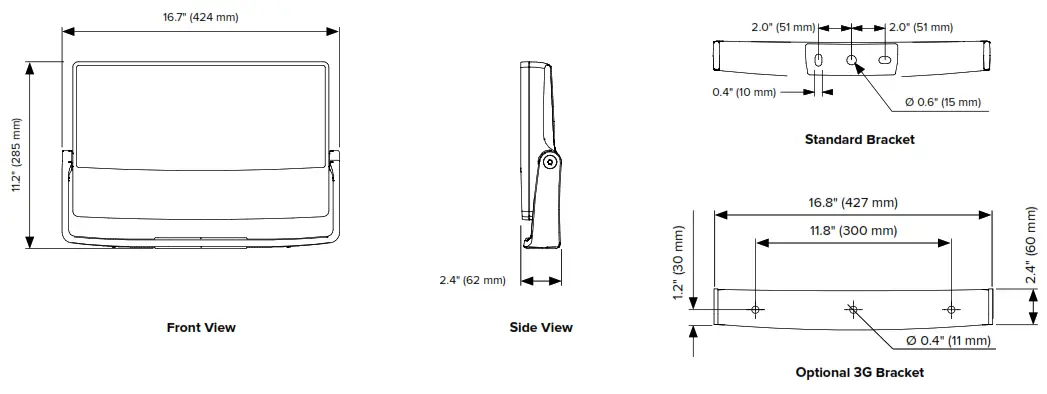

Dimensions
Find more product resources at lumascape.com
