LS2012 Centria C1 Foundation Stake Mount Spotlight
Instruction Manual

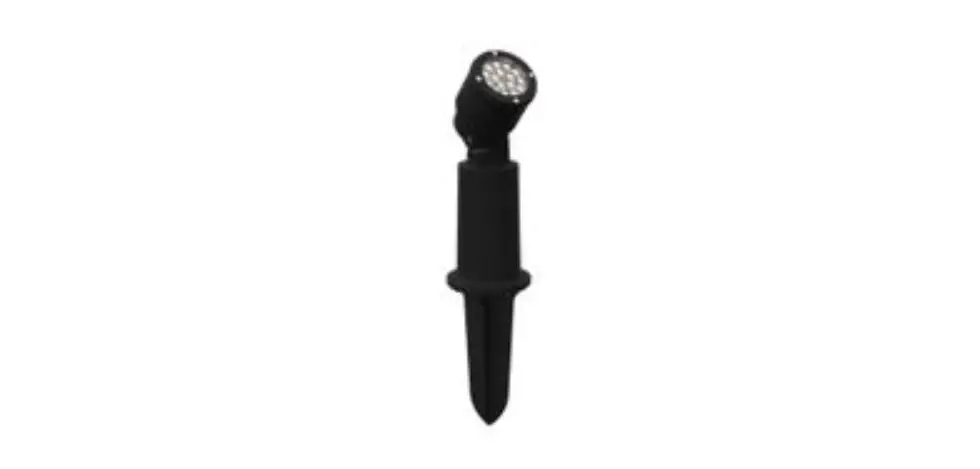

LS2012 Centria C1 Foundation Stake Mount Spotlight
| MODEL | LS2012 |
| PART NUMBER | LS2012 – 24D xxx xx 09 xx xx |
| INSTALLATION TYPE | GROUND MOUNT |
| IP RATING | IP66/67 (Passes IP68 Test) |
| SUPPLY VOLTAGE | 120/277 ~Vac, 60 Hz |
| INSTRUCTIONS COVER | Single Color (Non-Dimmable) Single Color Dimming (0-10 V) |
| DIMENSIONS (LxWxH) | 5.8” x 5.8” x 15.8” (146 x 146 x 402 mm) |
| WEIGHT | 4.5 lbs (2.0 kg) |
| MAX. PROJECTED AREA | 1.1 ft² (0.1 m²) |
Tools Required

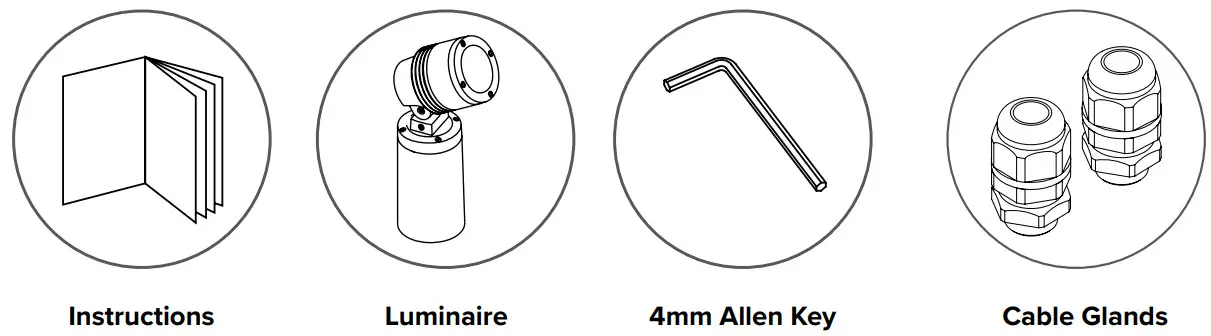

Included Components
Composants inclus
CAUTION Risk of Electric Shock
 | Do Not Use Power Tools on Screws |
 | Keep Electronics Free From Dirt and Moisture |
 | Keep Away from Flammable Materials |
 | Do Not Hose or Pressure Clean |
 | Do Not Use Silicone On the Outside Surface |
 | Do Not Cut Cable to the Luminaire |

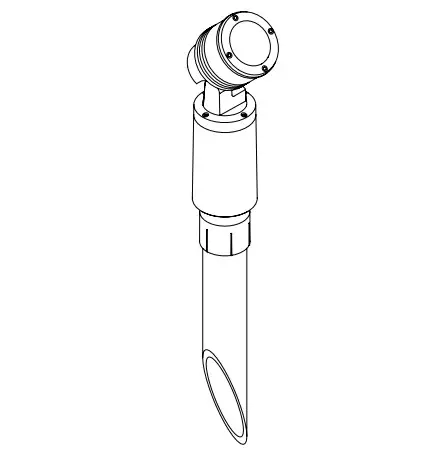

Assembly Instructions
Wiring Designations
Non-Dimmable (3-Core)
| Designation | Color |
| Active | Black |
| Neutral | White |
| Earth | Green / Yellow |
0-10 V (5-Core) – UL Market
| Designation | Color |
| Active | Black |
| Neutral | White |
| Earth | Green / Yellow |
| 0-10 V + | Purple |
| 0-10 V – | Grey |

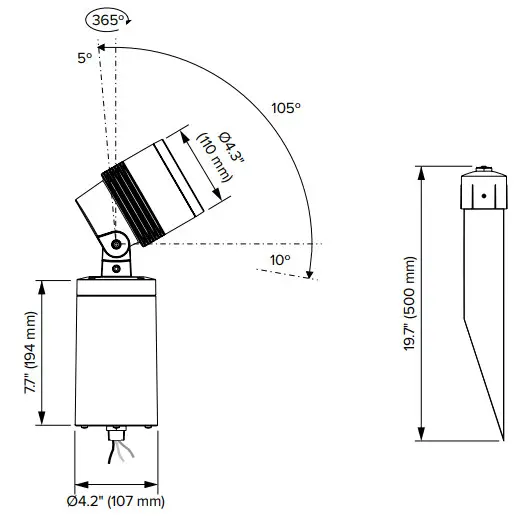

Dimensions
Please read and follow all safety instructions carefully. Failure to do so will void the warranty.
WARNING – Product Warranty is void if the product is not installed as per installation instructions and in compliance with all local and provincial codes.
- Ensure installation complies with local electrical rules and regulations.
- All electrical work must be performed by a licensed electrician.
- Protective earth; protective ground (symbol 7).
- For LED Options 3,500K, 4,000K, 5,000K:
This product contains a light source of energy efficiency class F.
- All luminaires may become hot. Use discretion on where the luminaire is mounted. Take care when setting the luminaire as it may become hot.
- Luminaire should only be used complete with a protective shield. If the protective shield is cracked, immediately stop using the luminaire. Isolate the light source, keep it dry and immediately contact Lumascape for the replacement of the protective shield (symbol 11).
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by Lumascape or their service agent in order to avoid a hazard.
- The light source contained in this luminaire shall only be replaced by Lumascape or its service agent.
- Do not stare at the operating light source. The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 26’ (8 m) is not expected (symbol 13)
- Basic insulation has been maintained between the line voltage and the control conductors.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Ensure mains input power is surge protected.
- Never make or break connections while the circuit is energized.
- Do not make modifications or alter the product.
- Keep luminaire clean and free of debris.
- Only clean with warm water.
- Do not use chemicals or abrasives to clean the luminaire as this may void the product warranty.
- Connections are to be kept clean and dry at all times.
- Suitable for use indoors or outdoors.
