LS3042 Erden E4 Foundation Ceiling Light
Instruction Manual
ERDEN E4 LS3042 Foundation

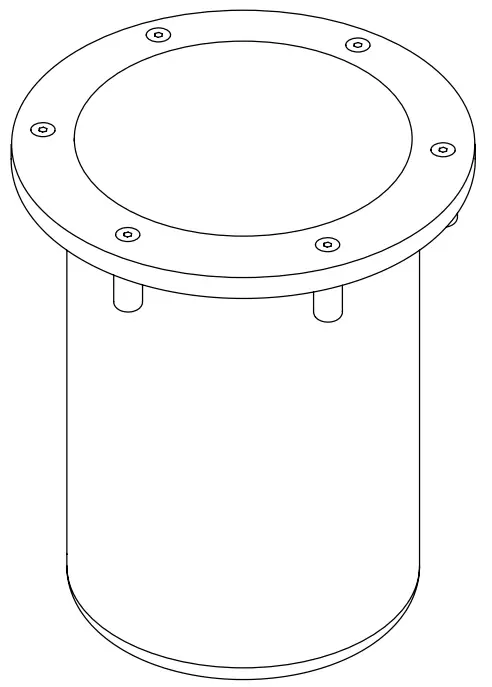

LS3042 Erden E4 Foundation Ceiling Light
Direct Burial
| MODEL | LS3042 |
| PART NUMBER | LS3042 – 18D xxx x x xx xx 21 x 01 xx LS3042 – 18D xxx x x xx xx 21 x 09 xx |
| INSTALLATION TYPE | INGROUND/IN-GRADE (Direct Burial) |
| IP RATING | IP66/67 (Passes IP68 Test) |
| SUPPLY VOLTAGE | 220-240 ~Vac, 50 Hz 120/277 ~Vac, 60 Hz |
| INSTRUCTIONS COVER | Single Color (Non-Dimmable) Single Color Dimming (Dali, 0-10 V) |
| DIMENSIONS (LxWxH) | 8.3” x 8.7” (210 x 220 mm) |
| WEIGHT | 8.8 lbs (4.0 kg) |
| SURFACE TEMPERATURE | < 149 ºF (65 ºC) |
| STATIC LOAD RATING | 3,968 lbs (1,800 kg) |

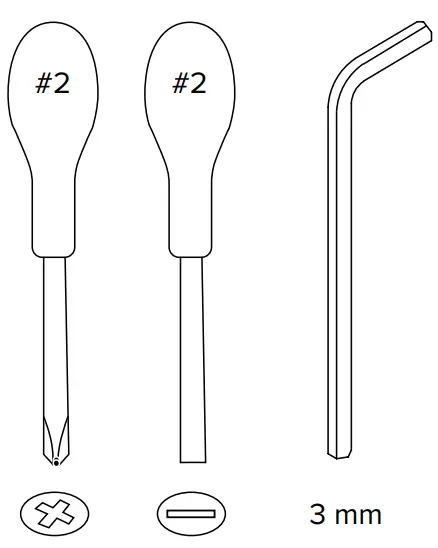

Tools Required

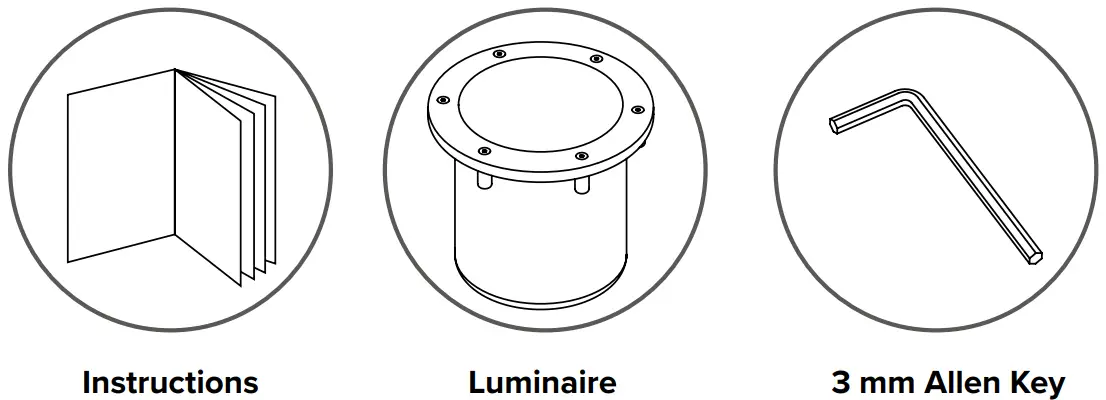

Included Components
Optional Accessories
 | Do Not Use Power Tools on Screws |
 | Keep Electronics Free From Dirt and Moisture |
 | No Downward Force |
 | Keep Away from Flammable Materials |
 | Do Not Hose or Pressure Clean |
 | Do Not Overtighten |
 | Do Not Use Silicone On Outside Surface |
 | Do Not Cut Cable to the Luminaire |

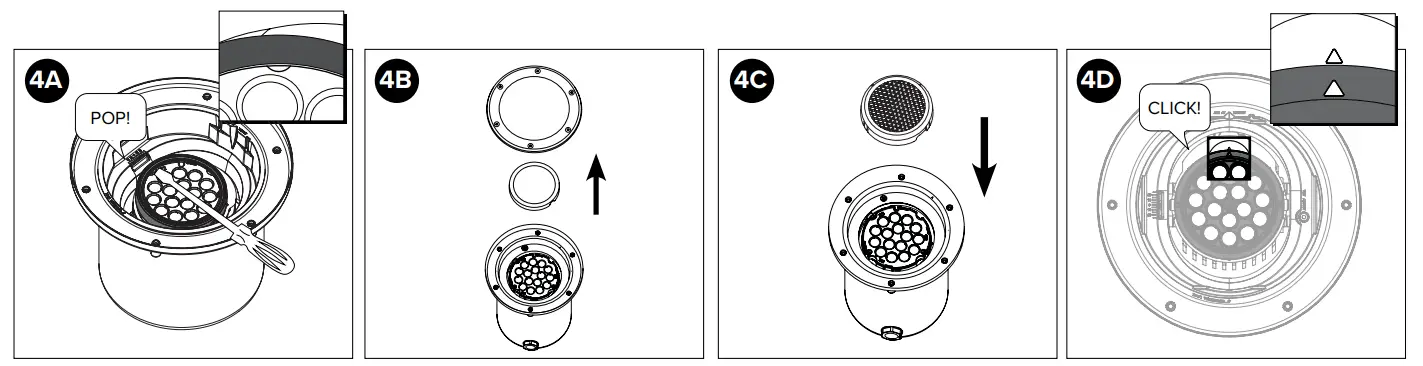

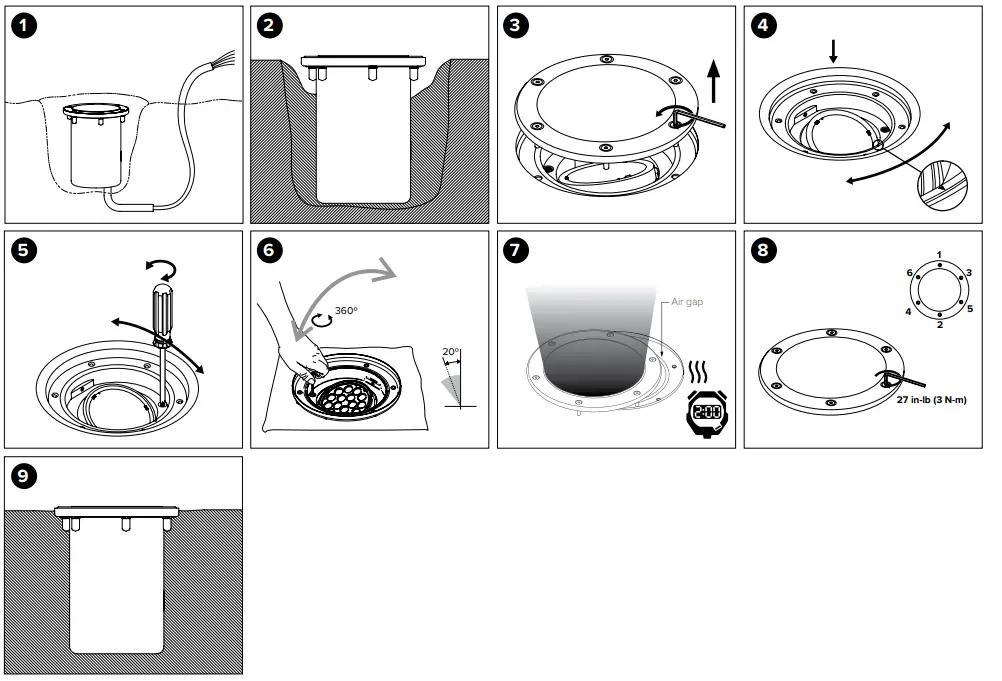

Assembly Instructions

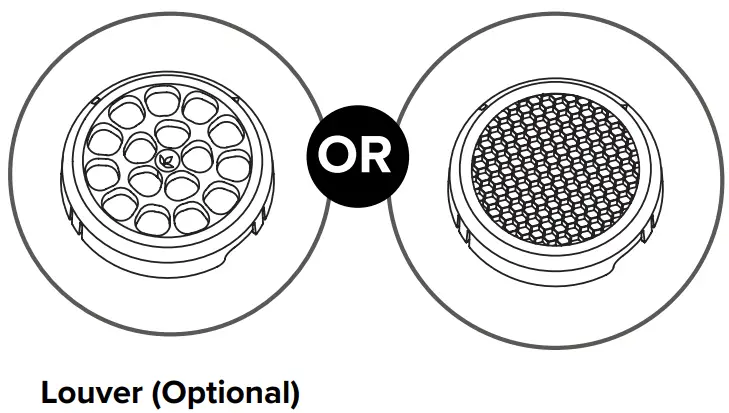

Optional Glare Control Accessories
Please recycle the aluminum trim according to Local Government Guidelines.
Wiring Designations
Non-Dimmable (3-Core) – International
| Designation | Color |
| Active | Brown |
| Neutral | Blue |
| Earth | Green / Yellow |
Do not Hi-Pot test
DALI (5-Core) – International
| Designation | Color |
| Active | Brown |
| Neutral | Blue |
| Earth | Green / Yellow |
| DALI + | Grey |
| DALI – | Black |
Do not Hi-Pot test
Non-Dimmable (3-Core) – North America
| Designation | Color |
| Active | Black |
| Neutral | White |
| Earth | Green / Yellow |
Do not Hi-Pot test
0-10 V (5-Core) – North America
| Designation | Color |
| Active | Black |
| Neutral | White |
| Earth | Green / Yellow |
| 0-10 V + | Purple |
| 0-10 V – | Grey |
Do not Hi-Pot test

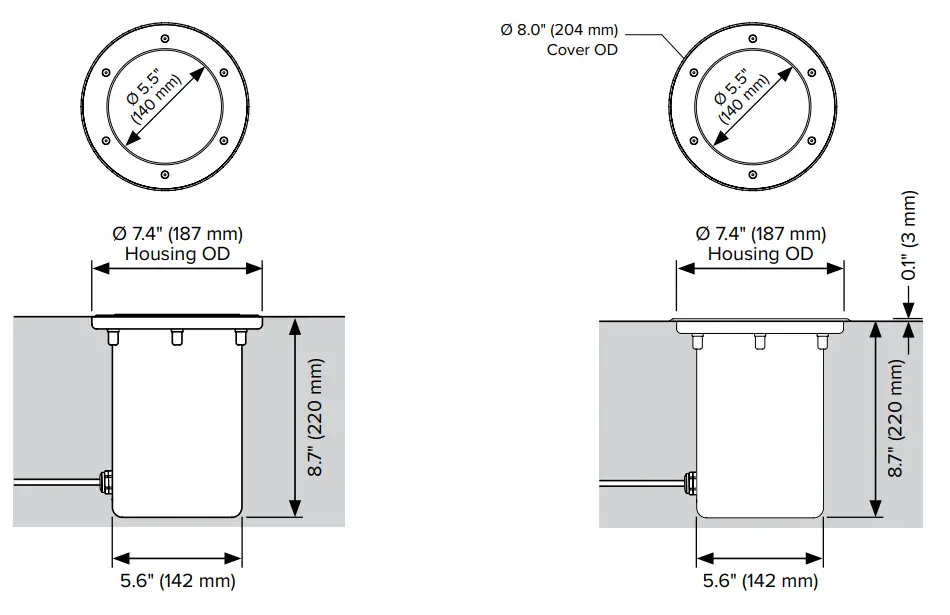

Dimensions
Please read and follow all safety instructions carefully. Failure to do so will void warranty.
WARNING – Product Warranty is void if product is not installed as per installation instructions and in compliance with all local and provincial codes.
- Ensure installation complies with local electrical rules and regulations.
- All electrical work must be performed by a licensed electrician.

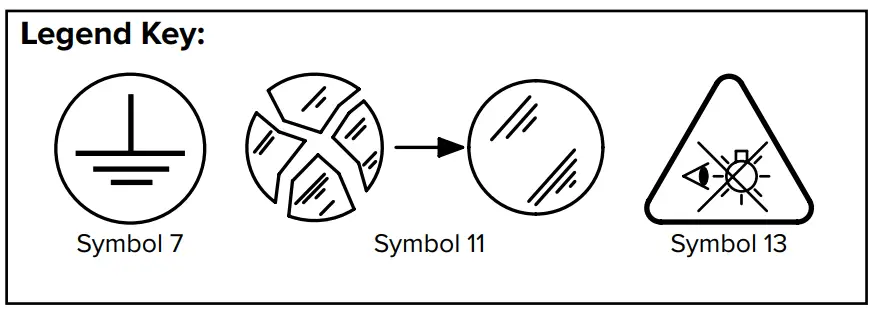

- Protective earth; protective ground (symbol 7).
- All luminaires may become hot. Use discretion on where the luminaire is mounted. Take care when setting luminaire as it may become hot.
- Luminaire should only be used complete with protective shield. If protective shield is cracked, immediately stop using luminaire. Isolate light source, keep it dry and immediately contact Lumascape for replacement of protective shield (symbol 11).
- If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by Lumascape or their service agent in order to avoid a hazard.
- The light source contained in this luminaire shall only be replaced by Lumascape or their service agent.
- Do not stare at the operating light source. The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 23’ (7 m) is not expected (symbol 13)
- Basic insulation has been maintained between line voltage and the control conductors.
- To reduce the risk of strangulation the flexible wiring connected to this luminaire shall be effectively fixed to the wall if the wiring is within arm’s reach.
- Ensure mains input power is surge protected.
- Never make or break connections while the circuit is energized.
- Do not make modifications or alter the product.
- Keep luminaire clean and free of debris.
- Only clean with warm water.
- Do not use chemicals or abrasives to clean luminaire as this may void the product warranty.
- Connections are to be kept clean and dry at all times.
- Suitable for use indoors or outdoors.
CAUTION Risk of Electric Shock
