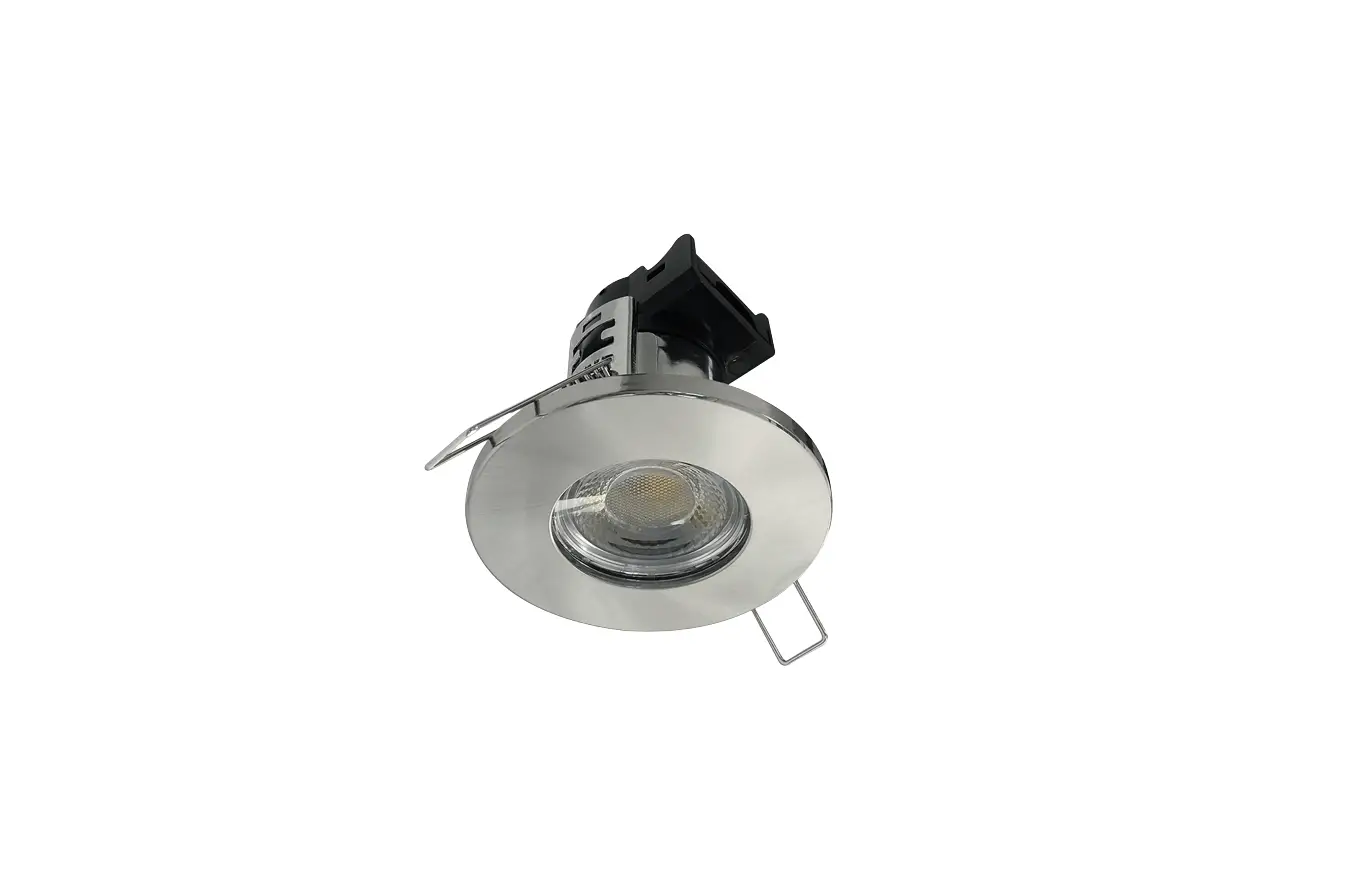

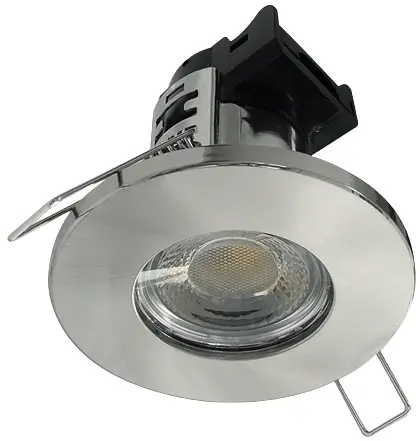

Eterna VECOIFIRE3 540 lM Ceiling Light
Overview
Dimension
ECONOMY-LED IP65 FIRE
RATED DIMMABLE DOWNLIGHTS
- Pressed steel construction
- Fire-rated tested for individual 30, 60 and 90 min ceiling types
- Dimmable – for optimum dimming performance we recommend using a compatible LED dimmer
- Foam bezel seals against air permeability
- 60° beam angle
- Hole cut-out dimension – 60mm

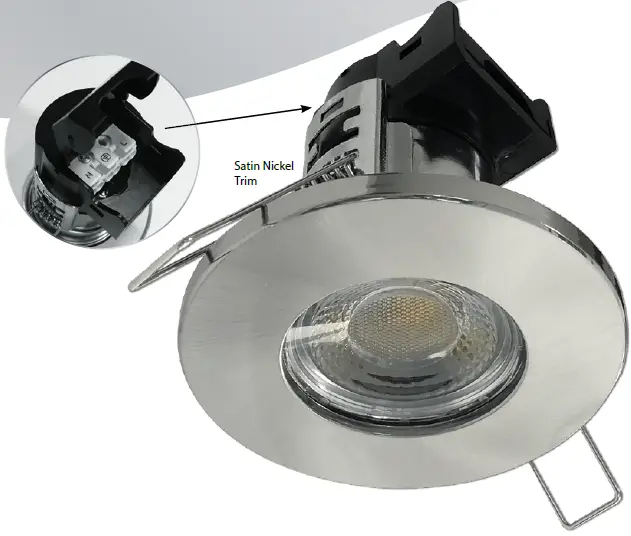

- Integrated chrome bezel with additional satin nickel and white bezels also included
- Push terminals

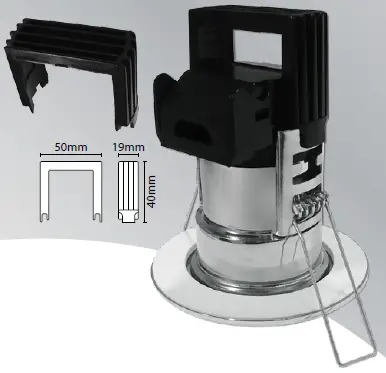

- Insulation bracket available separately – VECOIBRACK
- VECOIBRACK – polycarbonate construction
- 5-year warranty
- LED Fittings = M.O.M: 1 / O.P.Q: 40
- Bracket = M.O.M: 1 / O.P.Q: 200
| Code | Wattage | Colour Temp. | Luminaire Lumens | Avg. Rated Life (Hrs) | IP Rating |
| VECOIFIRE3 | 5W | 3000K | 540 lm | 36,000 hrs | IP65 |
| VECOIFIRE4 | 4000K | 560 lm | |||
| VECOIBRACK | Insulating bracket for VECOIFIRE range | ||||
PLEASE NOTE:
Due to the huge variety of dimmers in the market, dimming performance with all types cannot be guaranteed, compatibility should be tested before installation.
Specification
| LED LAMP SPECIFICATIONS: | VECOIFIRE3 | VECOIFIRE4 |
| Luminaire lumens (with diffuser) | 540 lm | 560 lm |
| Lumens from chip (no diffuser) | 620 lm | 650 lm |
| Useful lumens | 510 lm | 530 lm |
| Rated Wattage | 5W | 5W |
| Rated luminous flux | 510 lm | 530 lm |
| Nominal life time of the lamp | 36,000 hrs | 36,000 hrs |
| Colour temperature | 3000K | 4000K |
| Number of switching cycles before premature lamp failure | 15,000 | 15,000 |
| Warm-up time up to 60% of the full light output | <1s | <1s |
| Dimmable | Yes | Yes |
| Nominal beam angle | 60° | 60° |
| Rated power | 5W | 5W |
| Rated lamp lifetime | 36,000 hrs | 36,000 hrs |
| Lamp power factor | >0.8 | >0.8 |
| Lumen maintenance factor at end of nominal life | ≥0.70 | ≥0.70 |
| Starting time | <0.1s | <0.1s |
| Colour rendering | ≥80 | ≥80 |
| Colour consistency | Within a six-step Macadam ellipse | Within a six-step Macadam ellipse |
| Rated peak intensity | 286cd | 300d |
| Rated beam angle | 60° | 60° |
| Voltage / Frequency | 240V~50Hz | 240V~50Hz |
