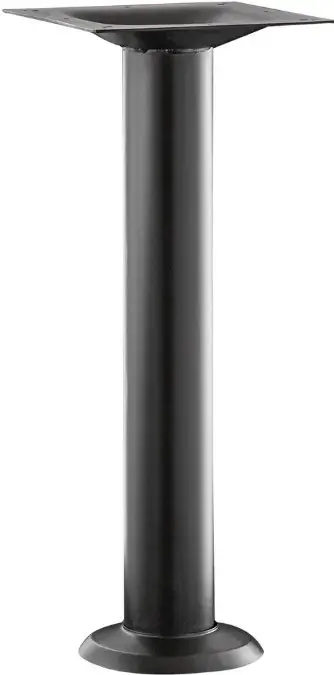

Millennium Bolt Down Base Instruction Manual

Millennium Bolt Down Base Instruction Manual

Parts

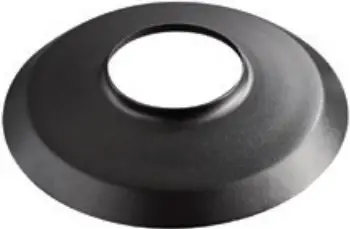

• Dust Cover

• Base Plate 1PC

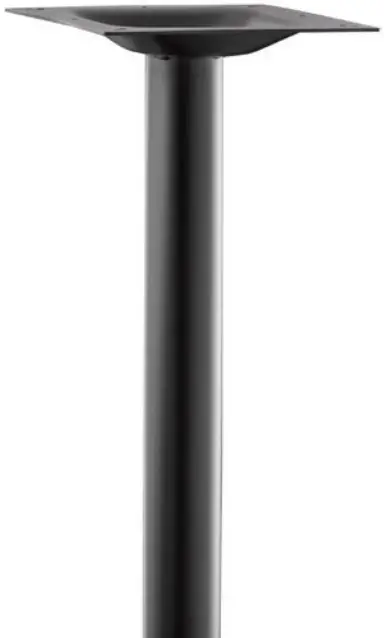

• Column/Spider x1 1PC

• Serrated Flange Bolt 1PC

• Tabletop Screws 8PCS


Tools

Tools not included:

• Wrench
• Screwdriver
• Drill (optional)

Assembly Instruction

STEP 1

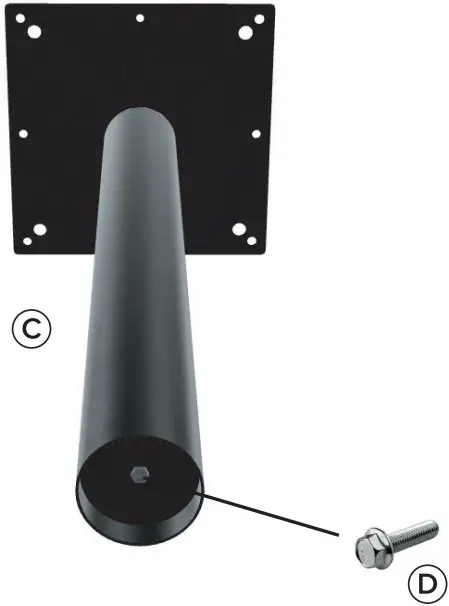

Flip the column and spider upside down with the spider resting on the ground. Remove the bolt from the bottom of the column.

STEP 2

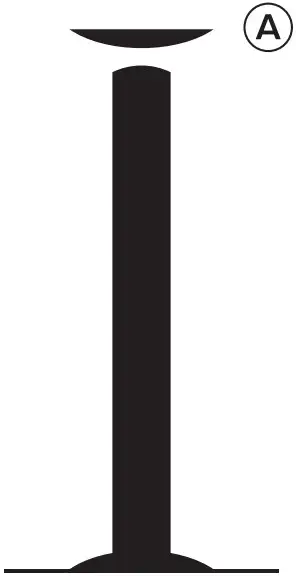

Slide dust cover onto column, upside down

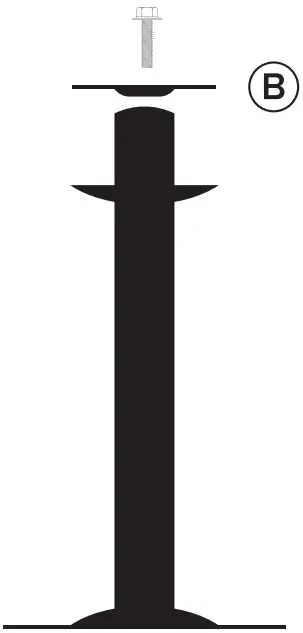

STEP 3
Place base plate on column and secure with bolt

STEP 4

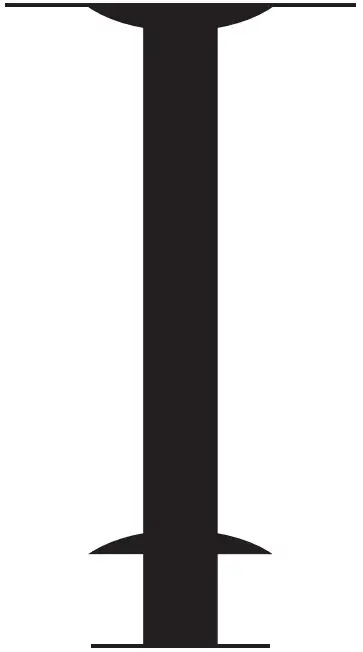

Flip the assembled base right side up

STEP 5

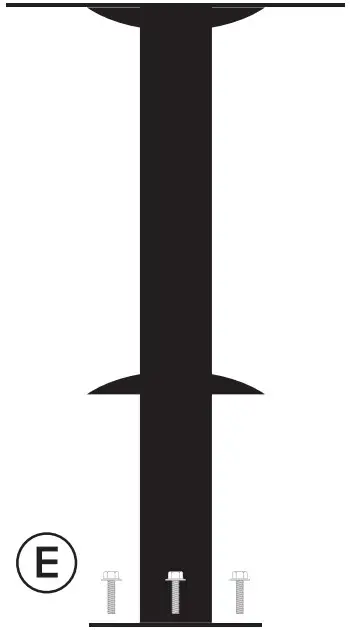

Place base plate at the desired location and olt to the floor. Slide dust cover down to cover the base plate. (Mounting hardware not included, professional installation recommended.)

STEP 6

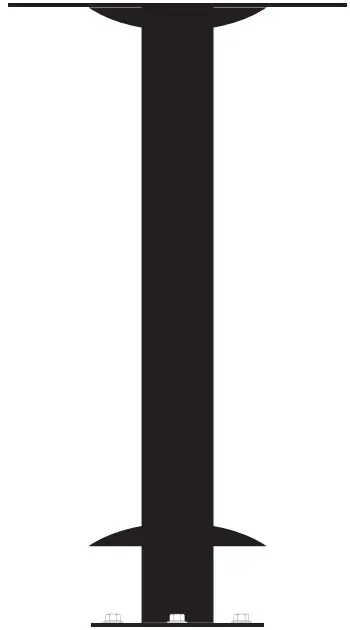

Slide dust cover over the mounting plate. The tabletop can now be mounted to the base.
