Shad Sh37 Top Case User Guide

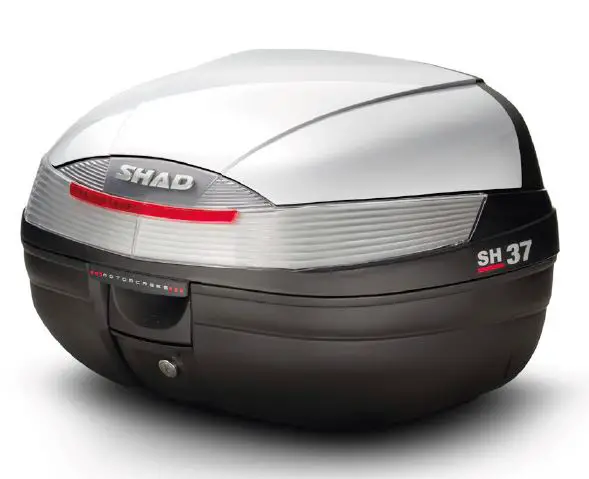

SHAD SH37 Top Case

Product Information

The SH37 is a top-case support assembly that is compatible with various accessories. It comes with different cover plates in blue, silver, red, black, white, and also an unpainted cover. Additionally, it can be equipped with a backrest and a light.

Product Usage Instructions

To use the SH37 top-case support assembly, follow these
steps:

1. Ensure that the top case support assembly is properly installed on your vehicle according to the vehicle-specific instructions.

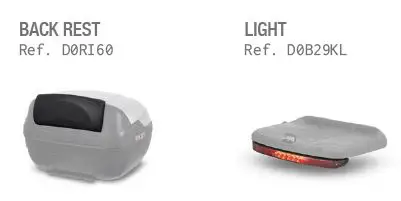

2. If desired, attach the backrest (Ref. D0RI60) to the top case support assembly. Follow the backrest installation instructions provided separately.
3. If desired, attach the light (Ref. D0B29KL) to the top case support assembly. Follow the light installation instructions provided separately.

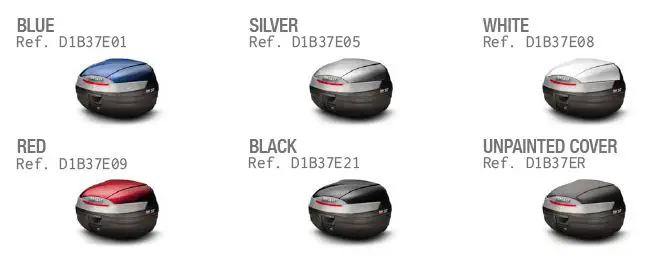

4. Choose the desired cover plate for the SH37 top case:
   • For a blue cover plate, use Ref. D1B37E01.
   • For a silver cover plate, use Ref. D1B37E05.
   • For a red cover plate, use Ref. D1B37E09.
   • For a black cover plate, use Ref. D1B37E21.
   • For a white cover plate, use Ref. D1B37E08.
   • For an unpainted cover, use Ref. D1B37ER.
5. Carefully attach the chosen cover plate to the SH37 top case support assembly, ensuring it is securely fastened.
6. The SH37 top case support assembly is now ready for use.

Refer to the complete user manual for any additional information or troubleshooting.

CARE AND MAINTENANCE

WARNING!

• MAXIMUM WEIGHT
• MAXIMUM SPEED, CHECK LOCAL LAWS.
• ALWAYS SECURE AND LOCK PRODUCTS.
• ONLY USE RECOMMENDED CLEANING PRODUCTS.
• CASES ARE NOT DESIGNED TO PROTECT FRAGILE OBJECTS.
• 1 M. MINIMUM DISTANCE WITH POWER WASHER.

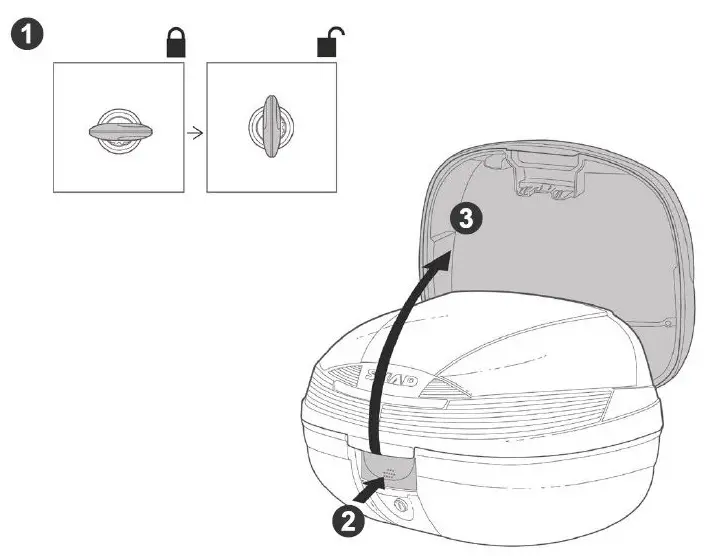

OPEN

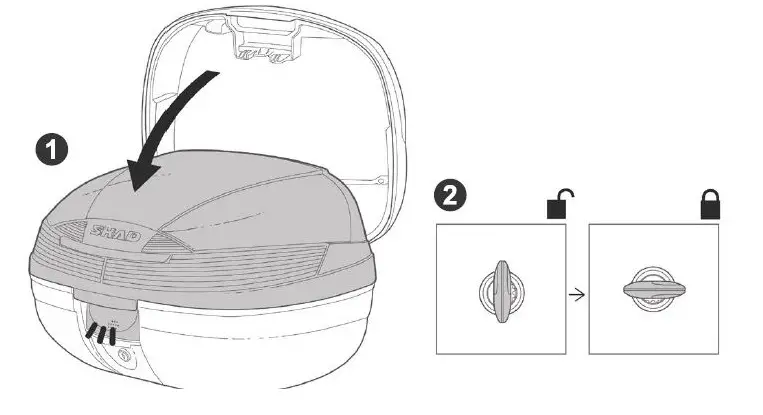

CLOSE

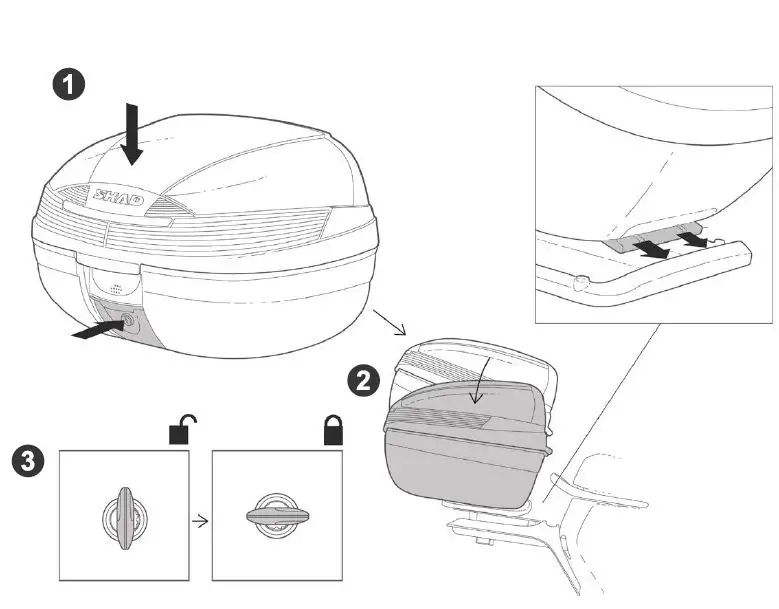

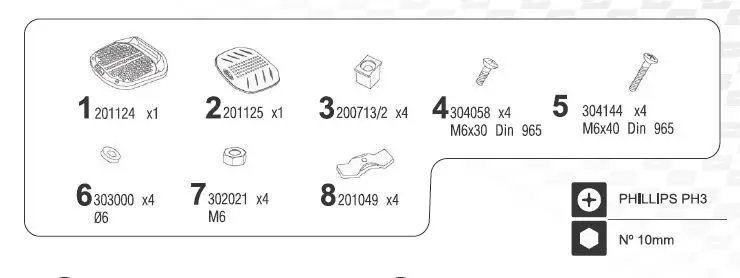

ASSEMBLY

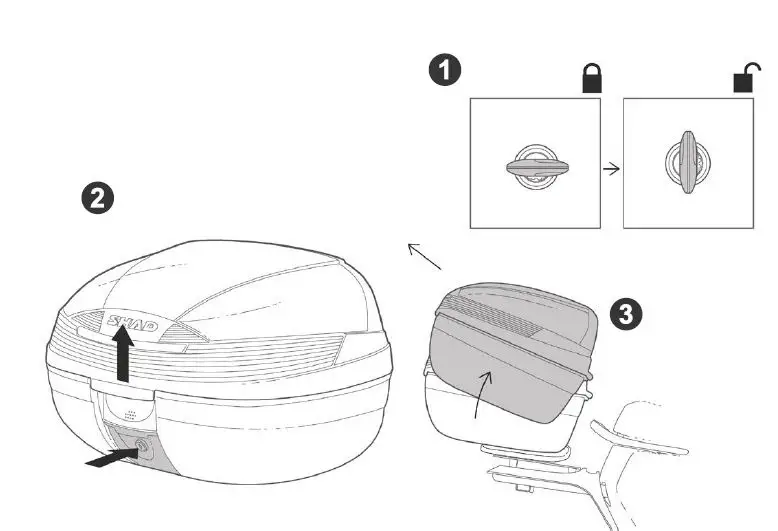

RELEASE

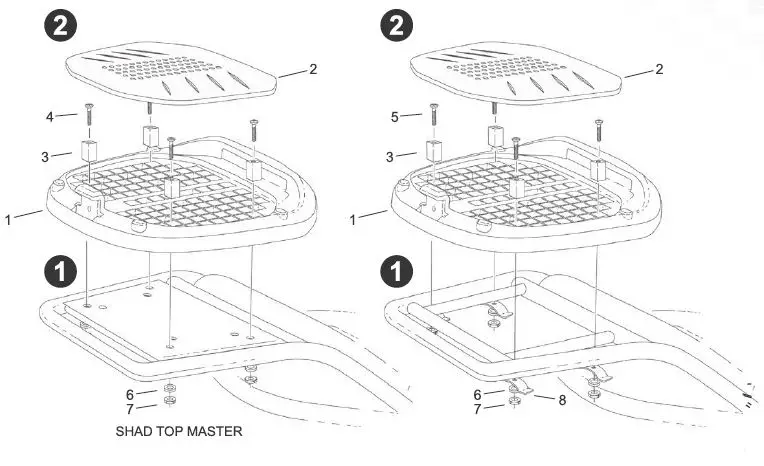

TOP CASE SUPPORT ASSEMBLYCHECK BIKE

WWW.SHAO.ES

ACCESSORIES

SH37 COVER PLATES
