SHAD SH44 Top Case for Motorcycle
CARE AND MAINTENANCE
WARNING!
 | MAXIMUM WEIGHT. |
 | MAXIMUM SPEED, CHECK LOCAL LAWS. |
 | ALWAYS SECURE AND LOCK PRODUCTS. |
 | ONLY USE RECOMMENDED CLEANING PRODUCTS. |
 | CASES ARE NOT DESIGNED TO PROTECT FRAGILE OBJECTS. |
 | 1 M. MINIMUM DISTANCE WITH POWER WASHER. |

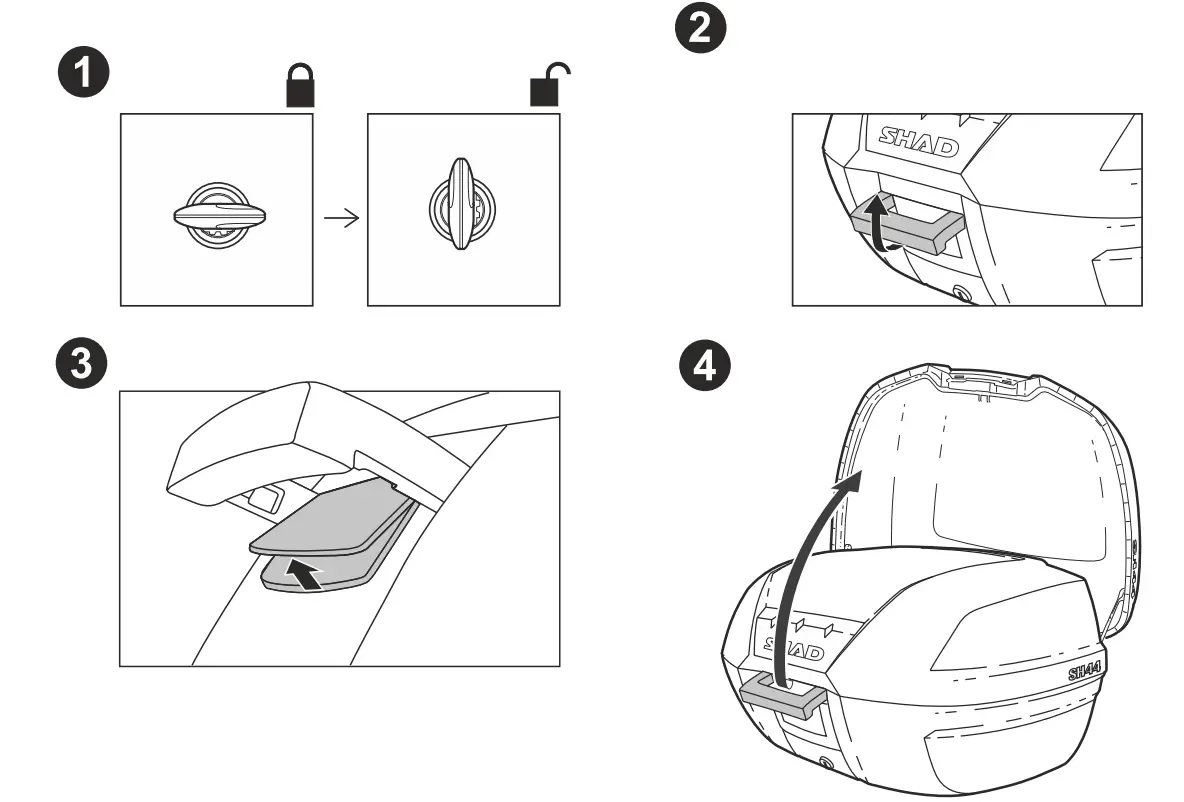

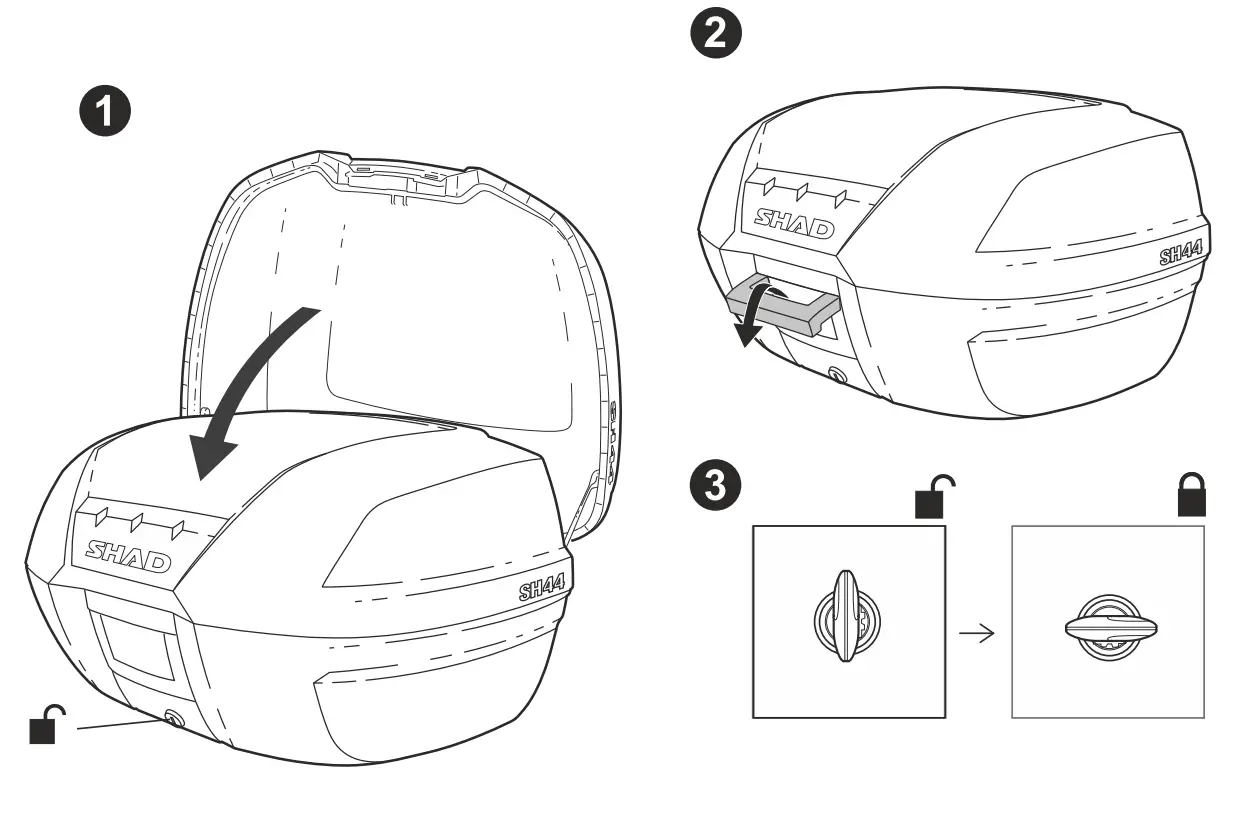

OPEN
CLOSE

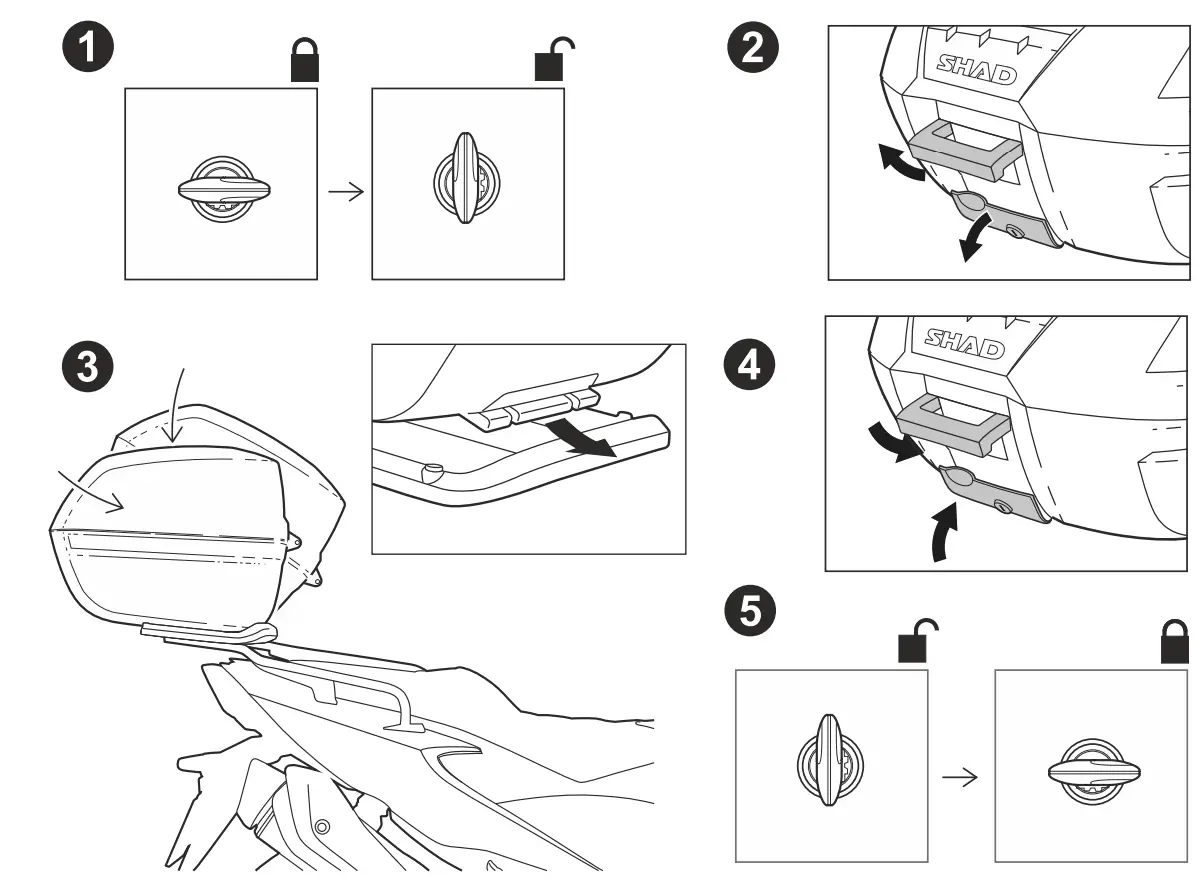

ASSEMBLY

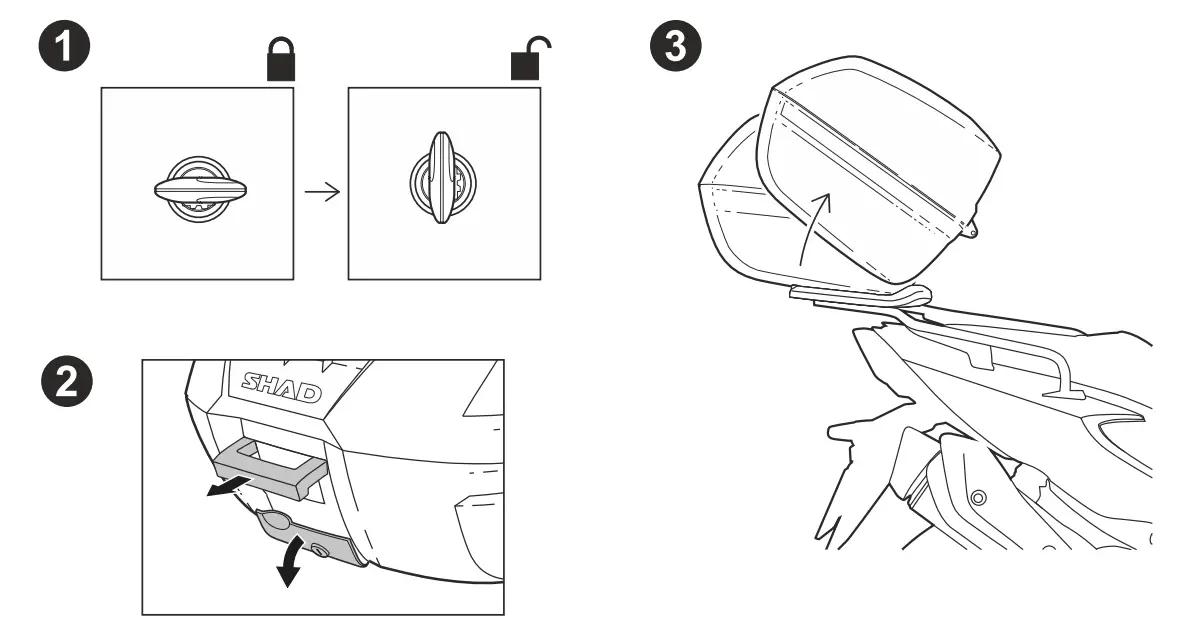

RELEASE

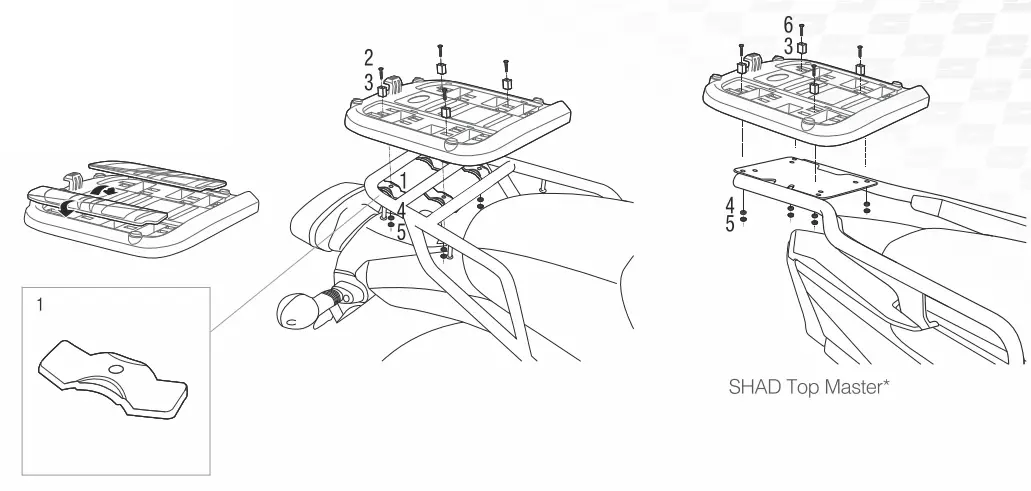

TOP CASE SUPPORT ASSEMBLY
USE TOP CASE PARTS
| # | Piece | Ounlltr |
| 1 | Clip | 4 |
| 2 | Screw M6x40 | 4 |
| 3 | Plastic spacer | 4 |
| 4 | 06WasherM6 | 4 |
| 5 | NutM6 | 4 |
| 6 | ScrewM6x30 | 4 |
USE FITTING KIT PARTS
| # | Piece | Ounlltr |
| 7 | Metal spacer | 4 |
| 8 | Screw M8x20 | 4 |
| 9 | WasherMB | 4 |
| 10 | Nut MB | 4 |
CHECK BIKE COMPATIBILl1Y WWW.SHAD.ES
ACCESSORIES
Find out about other products at

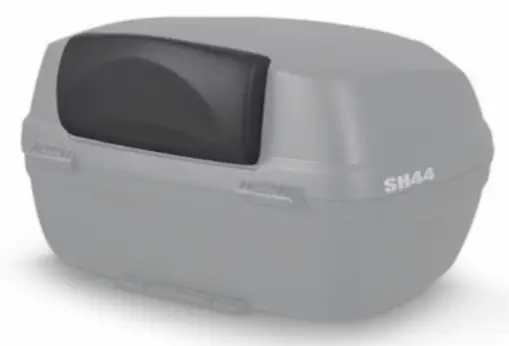

- BACKREST Ref. D0RI60

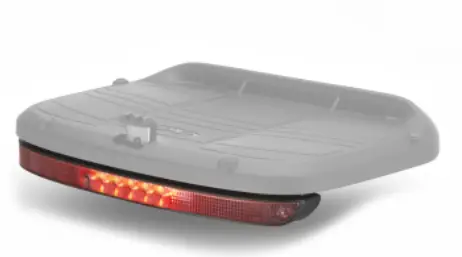

- BRAKE LIGHT Ref. D0B40KL

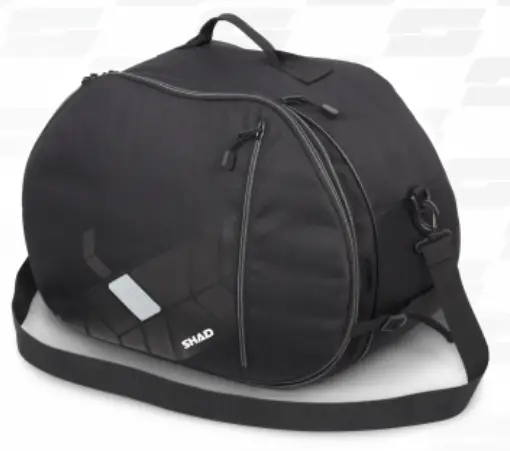

LED - INNER BAG Ref. X0IB00
X 35 Y 50 Z 21 (cm)
