USER GUIDE
TOP CASES

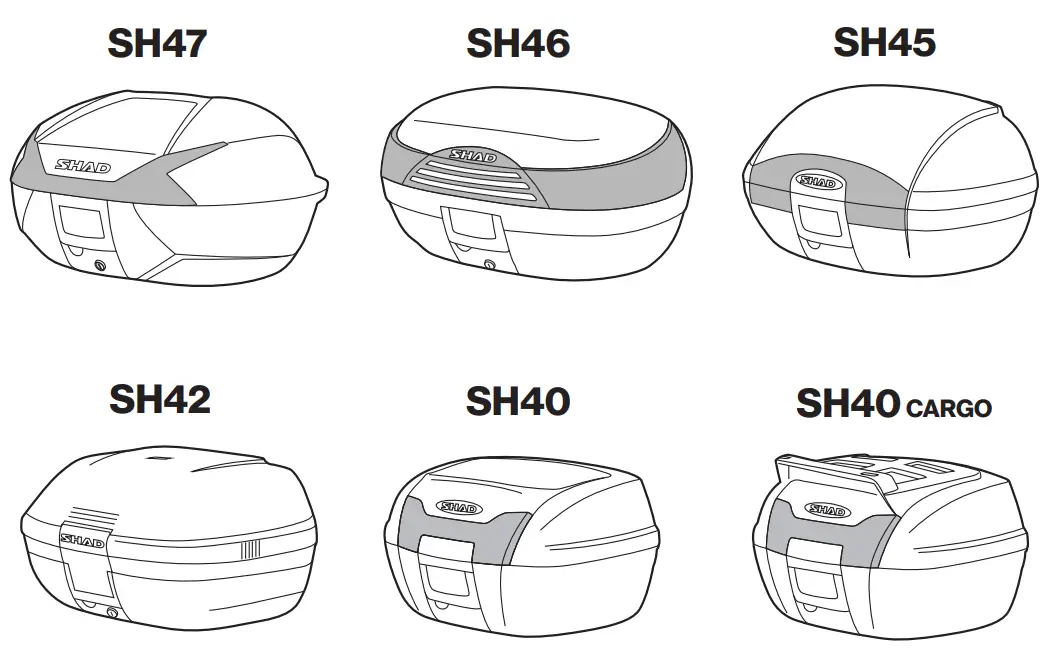

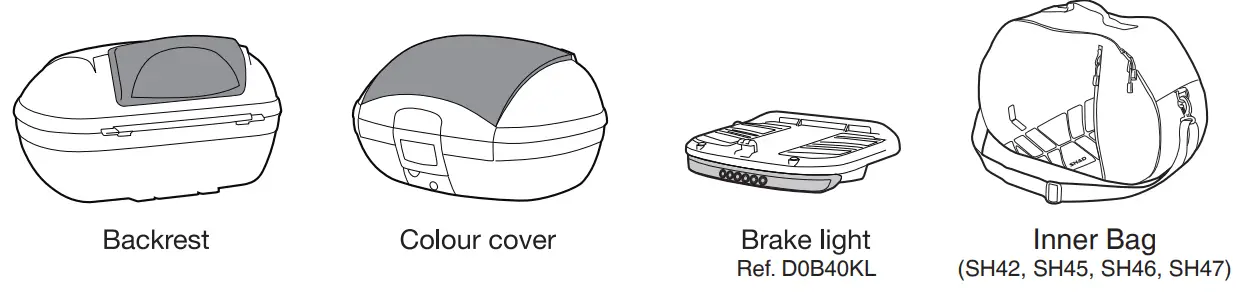

ACCESSORIES (OPTIONAL)
Find out about other products at
WWW.SHAD.ES

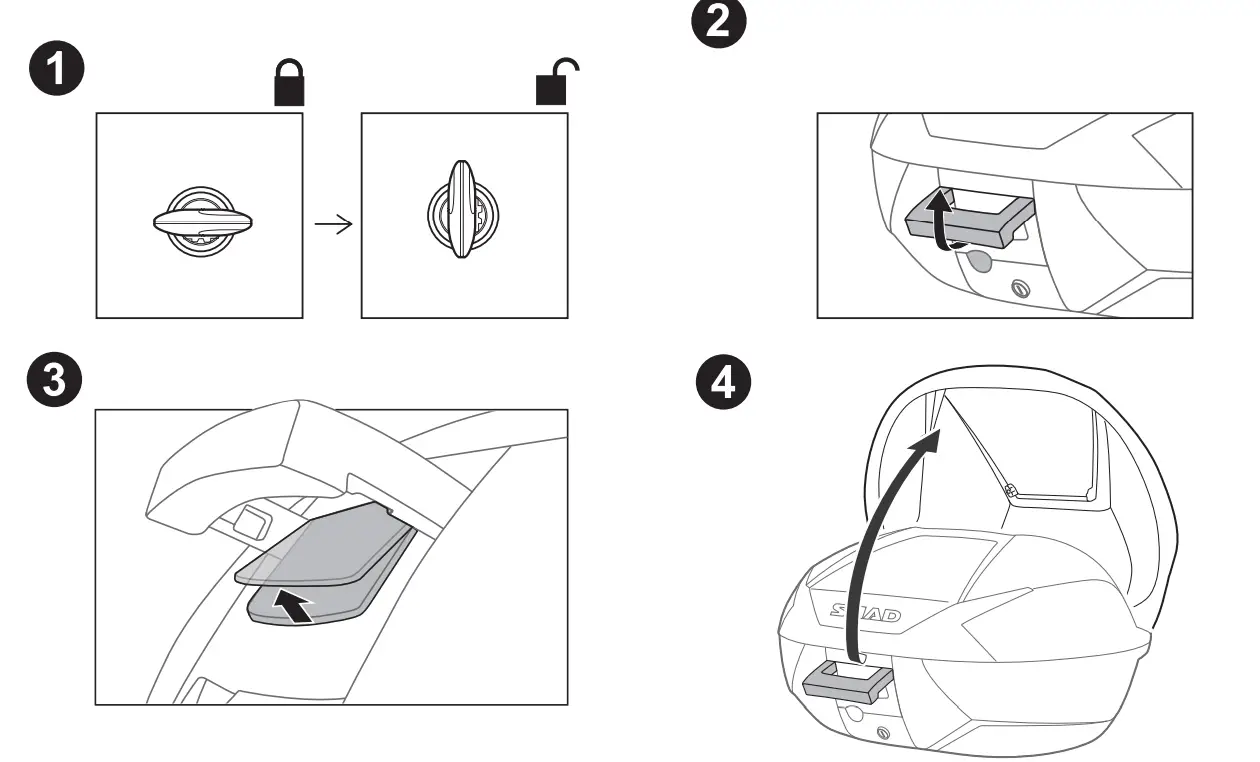

OPEN

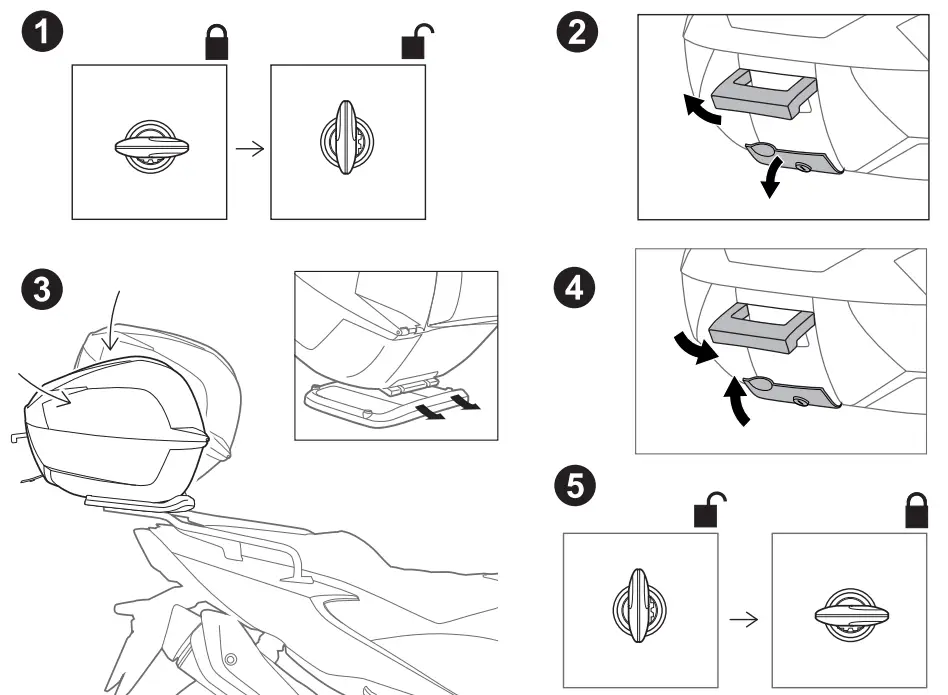

ASSEMBLE

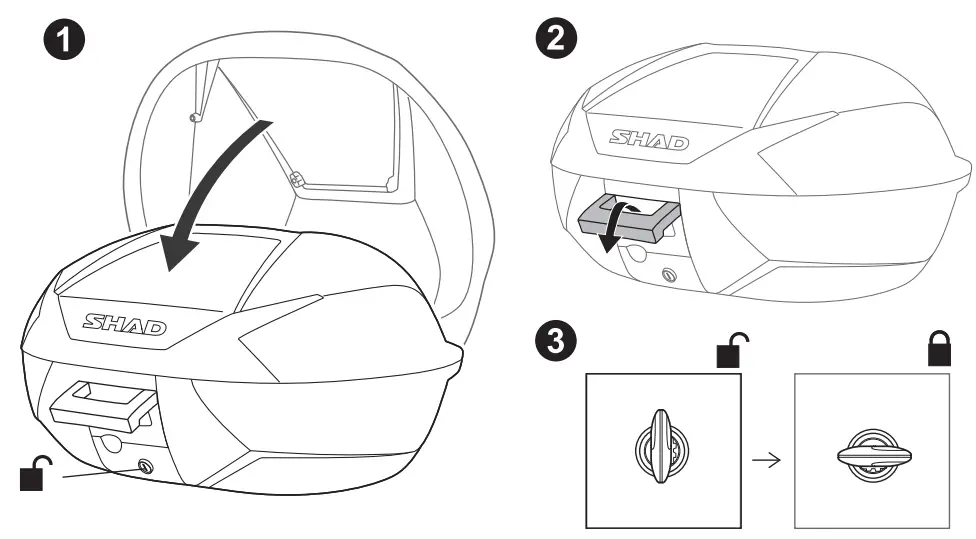

CLOSE

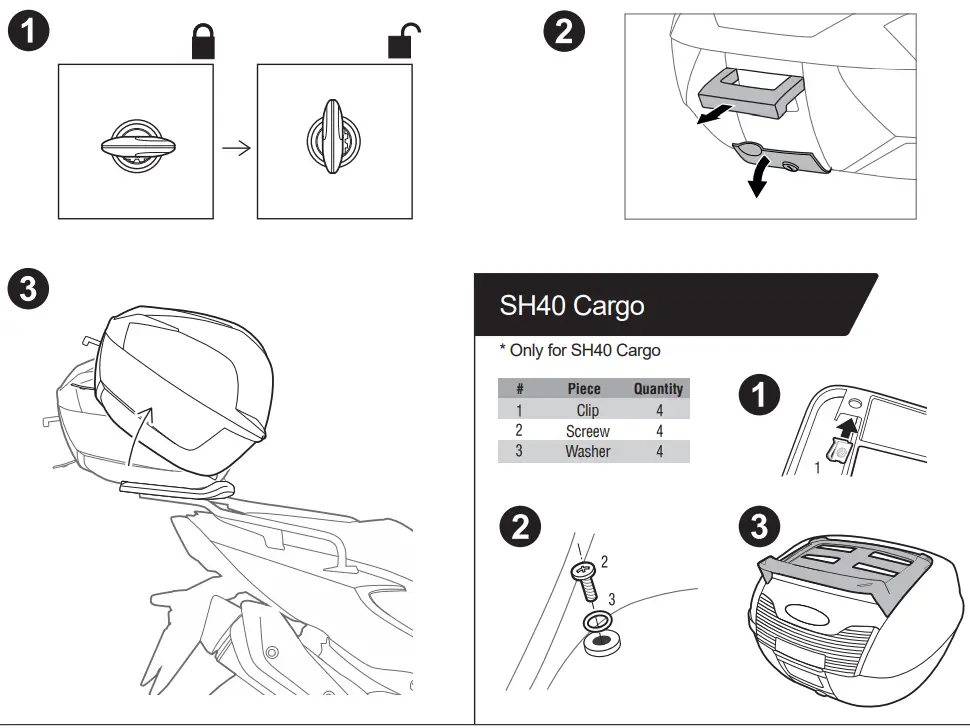

RELEASE

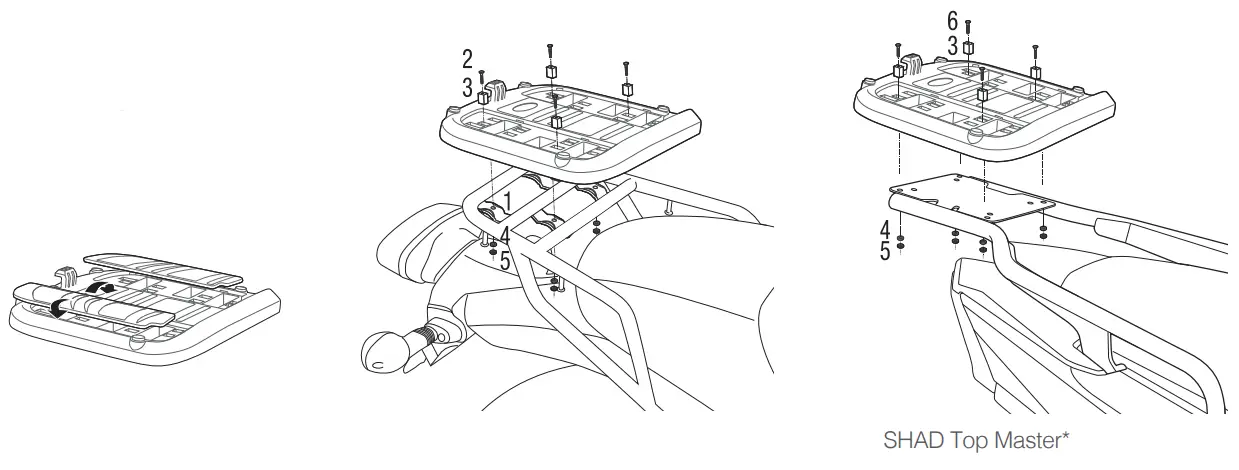

TOP CASE SUPPORT ASSEMBLY
Use top case parts
| # | Piece | Quantity |
| 1 | Clip | 4 |
| 2 | Screw M6x40 | 4 |
| 3 | Plastic spacer | 4 |
| 4 | Ø6 Washer M6 | 4 |
| 5 | Nut M6 | 4 |
| 6 | Screw M6x30 | 4 |
Use fitting kit parts
| # | Piece | Quantity |
| 7 | Metal spacer | 4 |
| 8 | Screw M8x20 | 4 |
| 9 | Washer M8 | 4 |
| 10 | Nut M8 | 4 |
CHECK BIKE COMPATIBILITY
WWW.SHAD.ES *
CARE AND MAINTENANCE
 | 1 M. MINIMUM DISTANCE WITH POWER WASHER |
 | MAXIMUM WEIGHT. (SH42, SH45, SH46, SH47) |
 | MAXIMUM WEIGHT. (SH40, SH40 Cargo) |
 | ALWAYS SECURE AND LOCK PRODUCTS. |
 | CASES ARE NOT DESIGNED TO PROTECT FRAGILE OBJECTS. |
 | MAXIMUM SPEED, CHECK LOCAL LAWS. |
