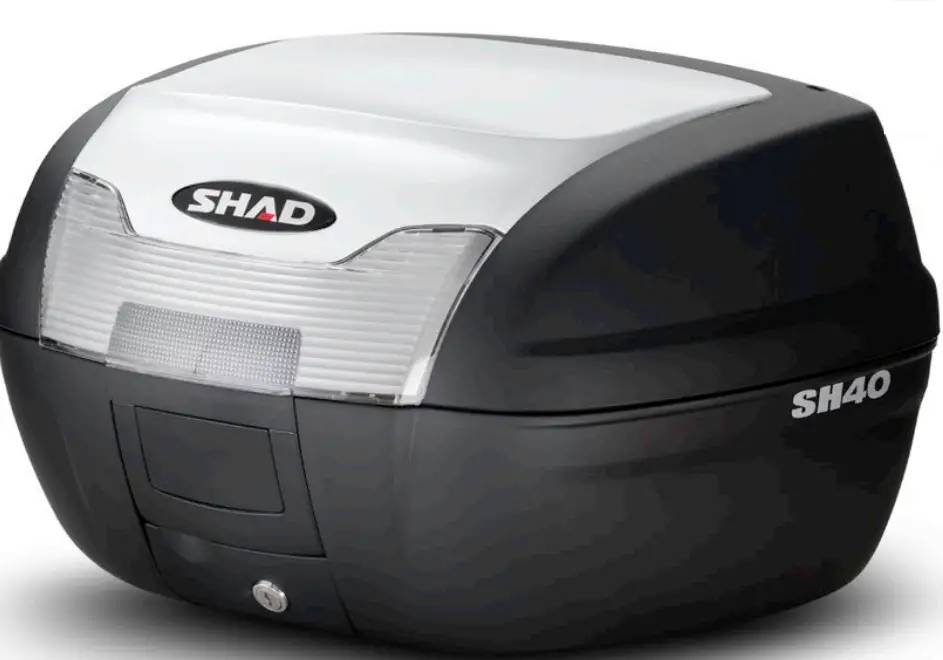

SHAD SH40 Black Top Case
CARE AND MAINTENANCE
WARNING!
- MAXIMUM WEIGHT
- MAXIMUM SPEED, CHECK LOCAL LAWS.
- ALWAYS SECURE AND LOCK PRODUCTS.
- ONLY USE RECOMMENDED CLEANING PRODUCTS.
- CASES ARE NOT DESIGNED TO PROTECT FRAGILE OBJECTS.
- 1 M. MINIMUM DISTANCE WITH POWER WASHER.

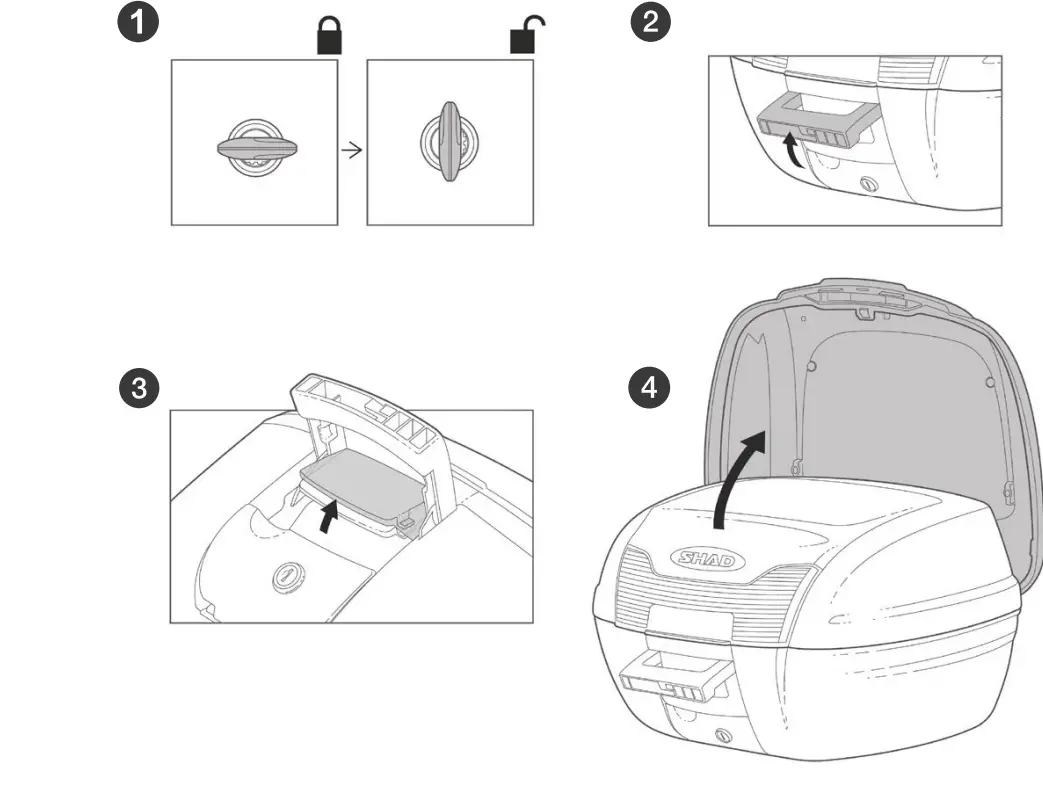

OPEN

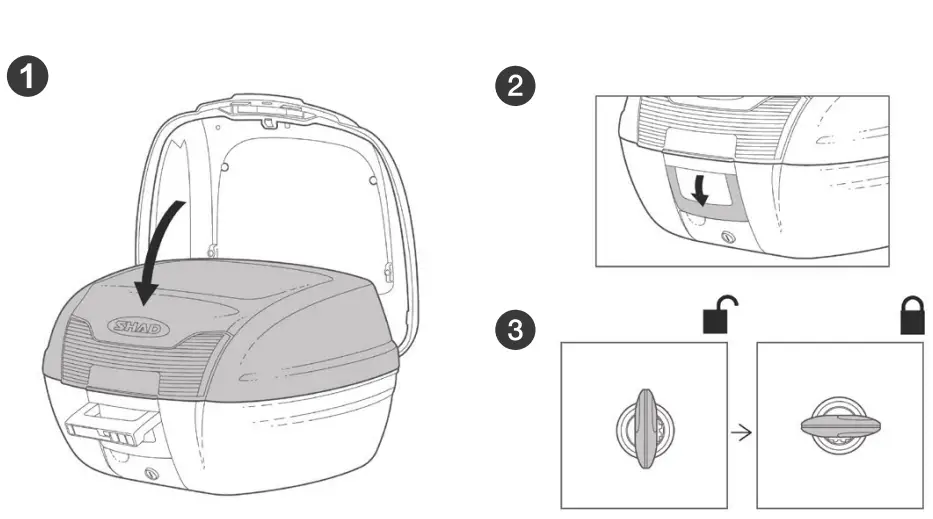

CLOSE

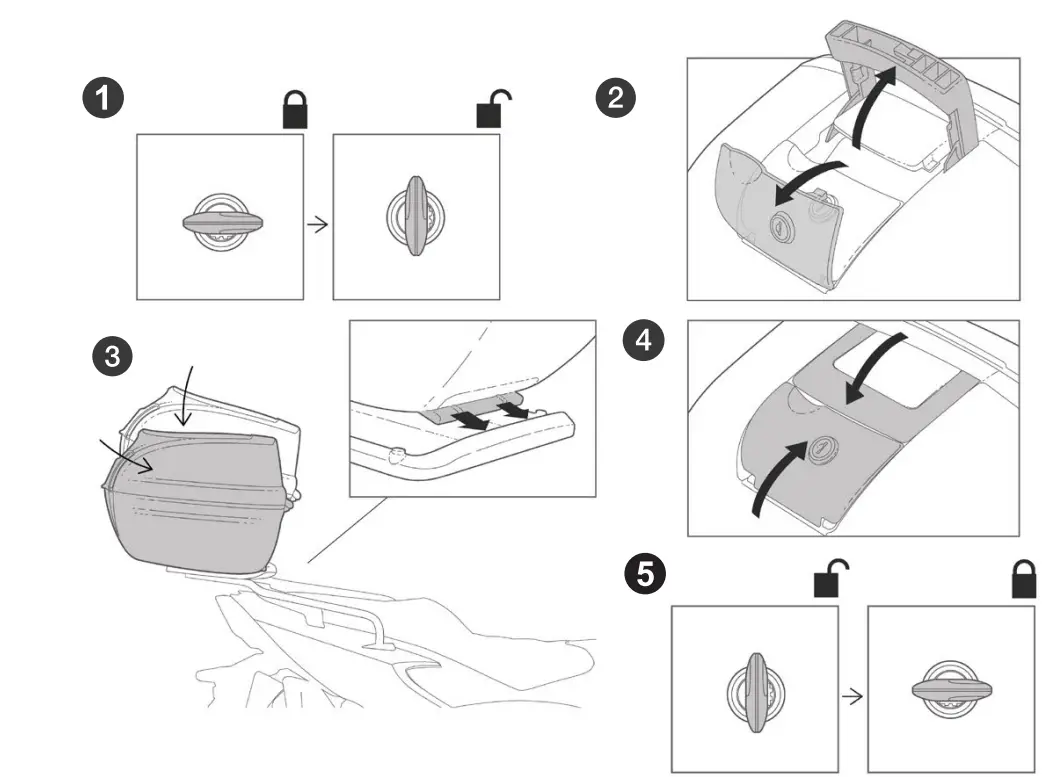

ASSEMBLY

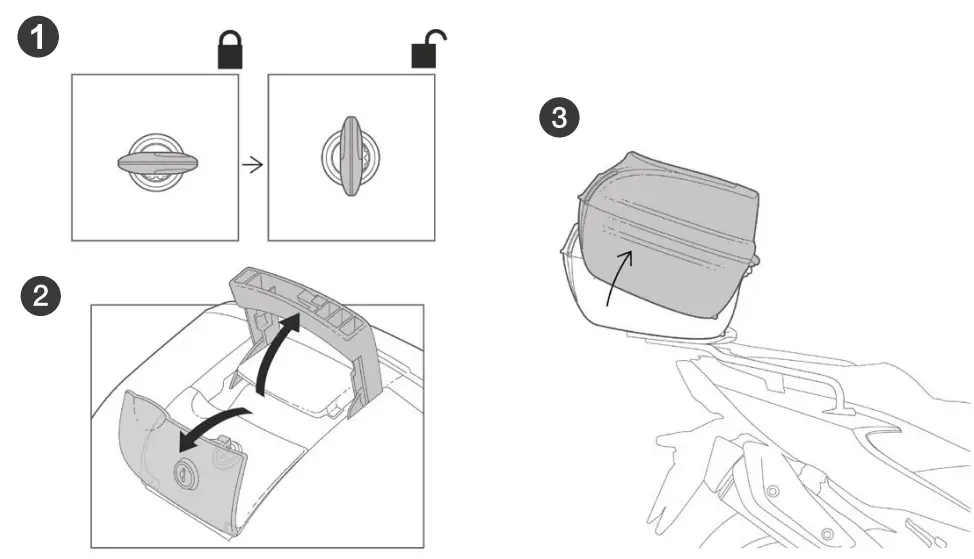

RELEASE

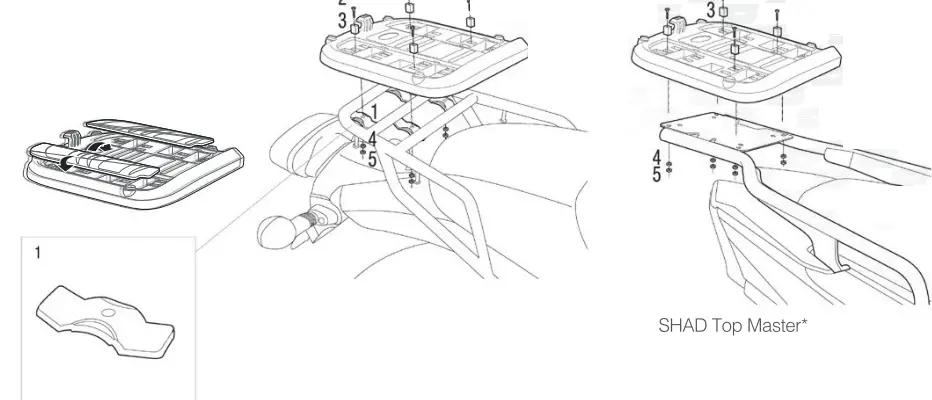

TOP CASE SUPPORT ASSEMBLY
USE TOP-CASE PARTS
| # | Piece | Quantity |
| 1 | Clip | 4 |
| 2 | Screw M6x4O | 4 |
| 3 | Plastic spacer | 4 |
| 4 | 06 Washer M6 | 4 |
| 5 | NutM6 | |
| 6 | Screw M6x3O | 4 |

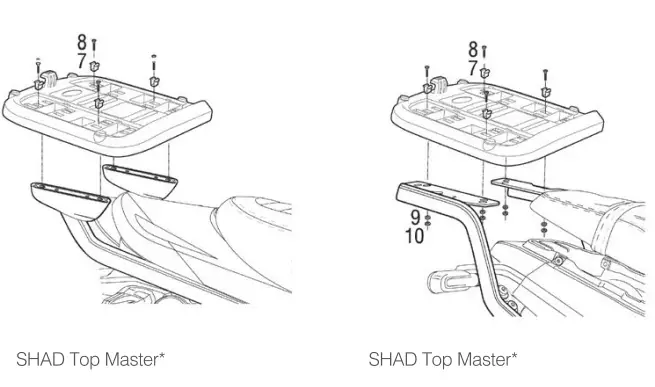

USE FITTING KIT PARTS
- CHECK BIKE COMPATIBILITY www.SHAD.ES

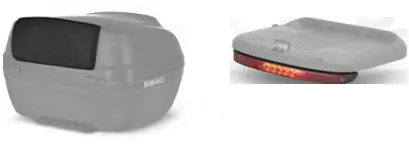

ACCESSORIES

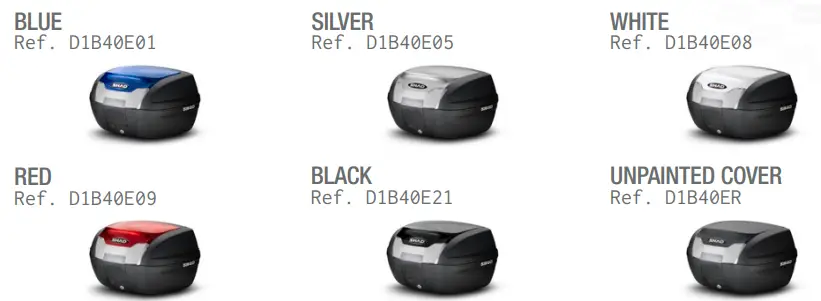

SH4O COVER PLATES
