KRAMER PT-2UT USB 2.0 PoC Extender User Guide
PT-2UT/R Kit Quick Start Guide
This guide helps you install and use your PT-2UT/R kit for the first time.
Go to www.kramerav.com/downloads/PT-2UT/R to download the latest user manual and check if firmware upgrades are available.
Step 1: Check what’s in the box
- PT-2UT USB Transmitter and PT-2UR USB Receiver
- 2 Bracket sets
- 8 Rubber feet
- 1 C-USB/AB-6 cable
- 1 Power adapter and cord
- 1 Quick start guide
Step 2: Get to know your PT-2UT/R
Step 3: Mount PT-2UT / PT-2UR
Install PT-2UT using one of the following methods:
- Attach the rubber feet and place the unit on a flat surface.
- Fasten a bracket (included) on each side of the unit and attach it to a flat surface (see www.kramerav.com/downloads/PT-2UT/R).
- Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/PT-2UT/R).
- Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
- Avoid uneven mechanical loading.
- Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
- Reliable earthing of rack-mounted equipment should be maintained.
- Maximum mounting height for the device is 2 meters.

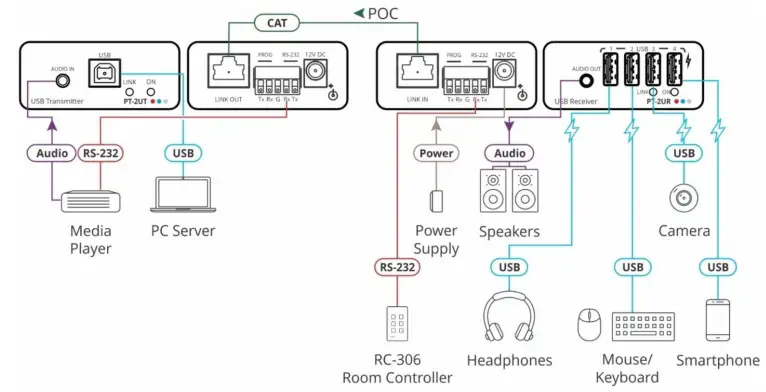

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your PT-2UT / PT-2UR.
Devices that are connected to the PT-2UR USB ports are powered/charged while connected.
Only 9600 baud rate is supported for RS-232 communication for both PT-2UT and PT-2UR, .

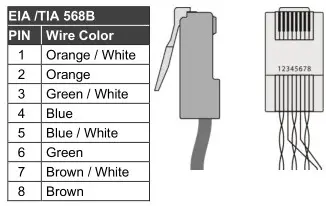

Wiring the RJ-45 Connectors
This section defines the TP pinout, using a straight pin-to-pin cable with RJ-45 connectors.
It is recommended that the cable ground shielding be connected/soldered to the connector shield.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/PT-2UT/R. Using third-party cables may cause damage!
Step 5: Connect power
Connect the power cord to PT-2UT / PT-2UR and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
- For products with relay terminals and GPIO ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
- There are no operator serviceable parts inside the unit.
Warning:
- Use only the power cord that is supplied with the unit.
- Disconnect the power and unplug the unit from the wall before installing.
