Lindy 43365 60m Usb 1.1 Cat.6 Extender User Manual

43365 60m USB 1.1 Cat.6 Extender
User Manual

Introduction

Thank you for purchasing Lindy 60m USB 1.1 Cat.6 Extender. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.

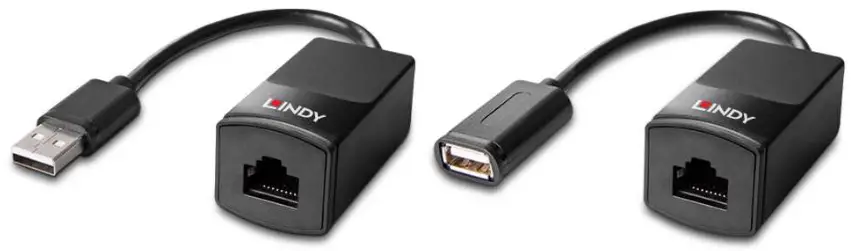

The Lindy Cat.6 USB Extender can be used to extend the distance between a USB device and a host computer by up to 60m. It consists of a local unit, which can be connected to the computer or laptop and a remote unit which connects to USB devices like mice or keyboards, perfect for long distance access. Standard, low cost Cat.5e/6 cable (not included) is used to connect the two units together. For best performance and compatibility, we recommend the use of solid core patched cables.

Package Contents

• Transmitter Unit
• Receiver Unit
• Lindy Manual

Features

• USB 1.1 specification
• Max. data transfer rates up to 12Mbps
• Supports distances up to 60 meters using Cat.5e/6 (or better) solid core cables
• USB Bus powered
• Compatible with USB Type A equipped computers
• True plug and play without any driver installation

Specification

• Transmitter: 1 x USB A male, 1 x RJ45 female
• Receiver: 1 x RJ45 female, 1 x USB A female
• Dimensions: 53x26x20mm (2.09×1.02×0.79in) for each unit
• Operating Temperature: 0° – 70°C (32°F – 158°F)
• Storage Temperature: -20°C – 80°C (-4°F – 176°F)
• Humidity: 0 – 90% RH (non-condensing)

Installation

Transmitter:

• Plug the USB A connector of the Transmitter into a USB A female port of your PC or laptop
• Connect a Cat.5e/6 cable up to 60 meters long with the other end connected to the RJ45 port on the Receiver (see below)

Receiver:

• Connect your USB device such as keyboard, mouse, printer etc. with a standard USB cable to the USB A female port
• Connect a Cat.5e/6 cable up to 60 meters long with the other end connected to the RJ45 port on the Transmitter (see above)

Recycling Information

WEEE (Waste of Electrical and Electronic Equipment), Recycling of Electronic Products

Europe, United Kingdom
In 2006 the European Union introduced regulations (WEEE) for the collection and recycling of all waste electrical and electronic equipment. It is no longer allowable to simply throw away electrical and electronic equipment. Instead, these products must enter the recycling process. Each individual EU member state, as well as the UK, has implemented the WEEE regulations into national law in slightly different ways. Please follow your national law when you want to dispose of any electrical or electronic products. More details can be obtained from your national WEEE recycling agency.

CE/FCC Statement

CE Certification
LINDY declares that this equipment complies with relevant European CE requirements.
UKCA Certification
LINDY declares that this equipment complies with relevant UKCA requirements.

FCC Certification
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
You are cautioned that changes or modification not expressly approved by the party responsible for compliance could void your authority to operate the equipment.
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

lindy.com
© LINDY Group – FIRST EDITION (June 2022)
Tested to comply with
FCC standards.
For home and office use.
