Selore S-global Seuc0703 Usb-c To Dual Hdmi Adapter Instruction Manual

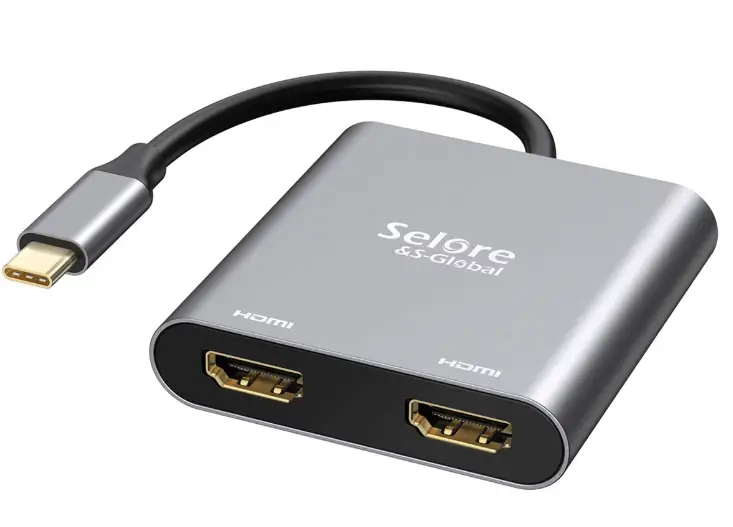

Selore S-Global SEUC0703 USB-C to Dual HDMI Adapter

Product Introduction

This is a metallic multifunctional USB-C hub, which can extend the USB-C port on your laptop. 2 HDMIl ports can be extended.
Note The USB-C source devices (mobile/notebook/tablet PC) must support video output.

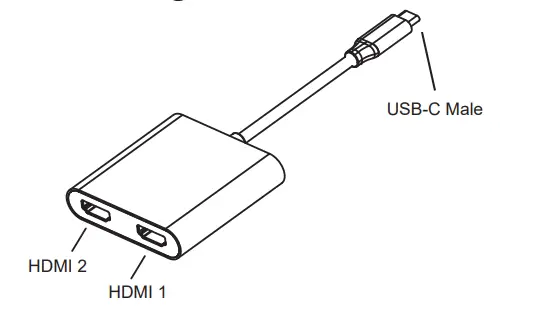

Structure diagram

Package Information

Product x1
Instruction Manual x1

Features

• 2 HDMI can work simultaneously.
• HDMI 1 output: 4K 2K@ 60HZ (work separately).
• HDMI 2 output: 4K 2K @ 60HZ (work separately).
• HDMI will be 4K 2K@ 30HZ if 2 HDMI work simultaneously

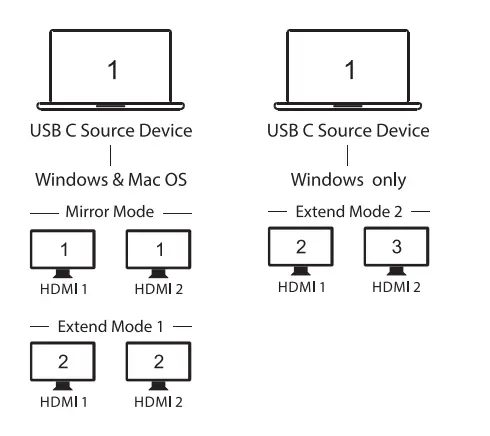

• Support Mirror and Extend mode.
• Comply with USB-C interface specification.
• Built in conversion chip, plug and play.

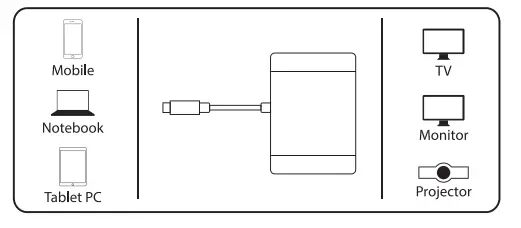

Connection

Note: For HDMI output, USB-C source devices must support video output.

FAQ

• a. Why there is no video output?
  1. Pls make sure your USB-C source devices support vedio output
  2. Pls check the connection is good
  3. Pls use standard HDMI cable
• b. Why there is no audio output from HDMI port?
  1. Pls make sure that there is audio output function on the monitor.
  2. Pls set the external monitor as default audio output device.
