Sunco Lighting Ufo High Bay Led Fixture With Accessory Socket Instruction Manual

SUNCO LIGHTING UFO High Bay LED Fixture with Accessory Socket

COMPONENTS

EASY INSTALLATION

Suspended with Lifting Hook

1. Turn off power at the circuit breaker before installing.

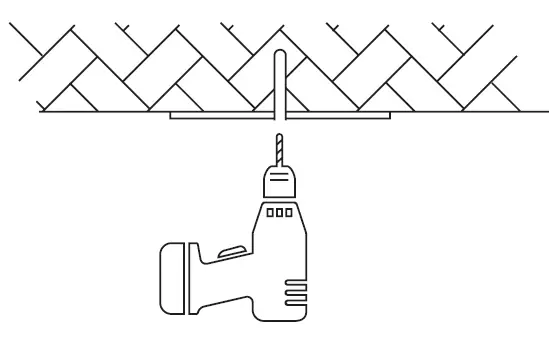

2. 2. Drill a pilot hole in the ceiling and install a chain or ceiling hook (not included) for adequate support.

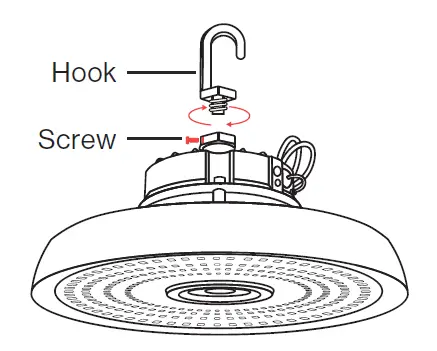

3. Attach provided lifting hook by turning clockwise into UFO fixture. Tighten the screw to lock it into place.
4. Use a lifting hook to hang fixture onto ceiling

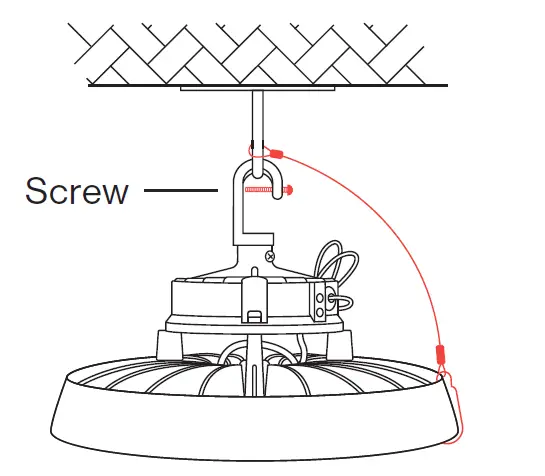

5. Secure light with safety cables (not included) to prevent it from falling.
   • Use screw to lock lifting hook in place

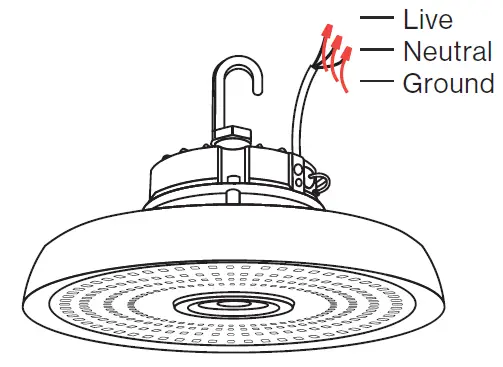

6. Use wire nuts to connect supply wires to fixture wires.
   • Black to Black
   • White to White
   • Ground to Ground
7. Turn on the circuit breaker and test the light.

WARNING

To reduce the risk of fire, electric shock, or physical injury:

• This product should be installed by a person familiar with the construction and operation of the product and the hazards involved.
• Abide by related regional and local laws or regulations.
• Check for shipping damage prior to installation. If the product is damaged, do not use it.
• Proper grounding is required to ensure safety. Do not install this fixture in the rain. the power immediately and notify relevant personnel.
• Clean the fixture regularly to ensure proper operation. Do not clean with harsh solvents.
• Use safety precautions. Safety eyeglasses and gloves are recommended.

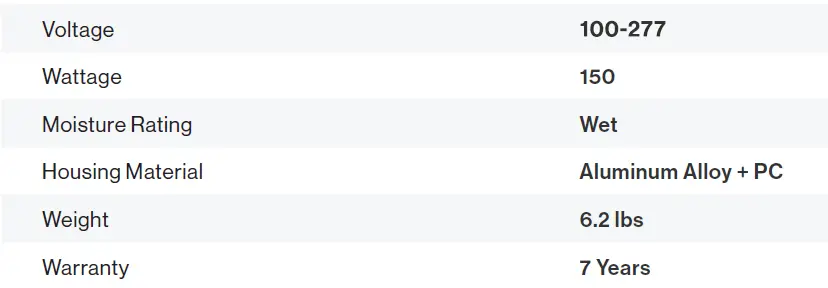

SPECIFICATIONS
